    ALDV120P - Overview

    Pixel-perfect digital video

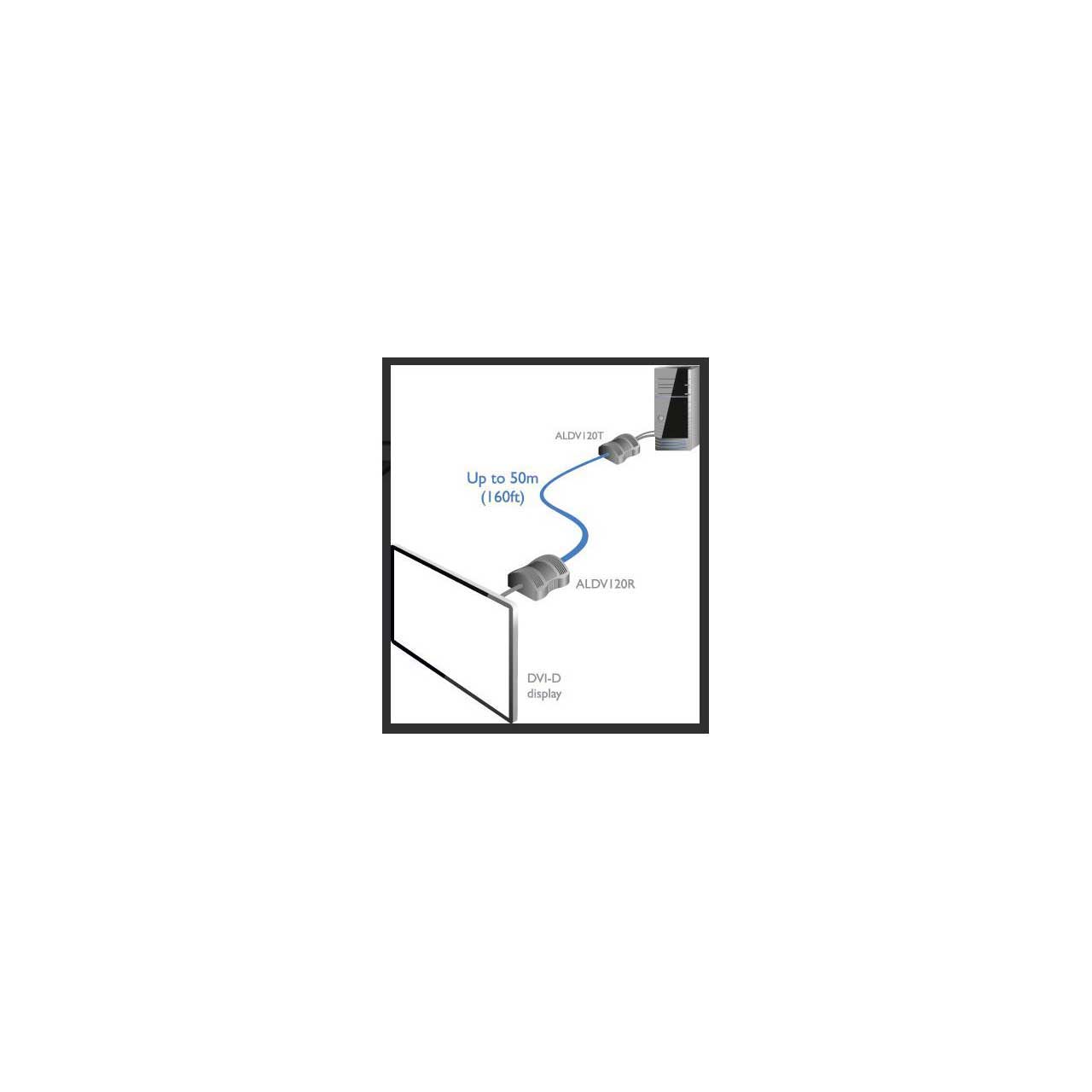

    The AdderLink® DV120P system allows you to extend DVI-D digital video over a maximum of 164 feet/50 meters of twisted pair cable with the minimum of infrastructure and fuss.

    The DV120 is an easy to install, highly compact digital video extender system capable of transmitting an HD video stream over a single CATx cable via a DVI connection.It is simply powered via USB from the local end, so that no additional power supply is required at the remote, simultaneously saving time and space as well as making installation very straightforward.

    This allows you to locate your media playback hardware in a secure and temperature-controlled environment. Your valuable systems are kept safely away from the display point environment while maintaining precisely the same user experience.

    • Features:

      • Pixel-perfect digital video by using an uncompressed communication system with zero loss of data for resolutions up to 1920 x 1200 @ 60Hz (WUXGA)
      • Distribution of video and power up to 164 feet/50m over a single CATx cable (with the achievable extension distance dependent on cable type and number of connection intervals)
      • High energy efficiency where power is harvested from a standard USB socket so external PSUs are not needed
      • EDID management means Extended Display Identification Data (EDID) enables the remote system to exactly mirror the data coming from the source monitor
      • Plug and Play! AdderLink DV120 extenders are delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
      • Robust yet lightweight, tough but light ABS enclosures along with reliable internal and external connectors to withstand environmental pressures

    • Specifications:

      • Approvals / Compliance:
      • CE/ FCC

      • Standards:
      • DVI-D interface: The system supports resolutions such as 480p, 720p, 1080p or WUXGA (1920 x 1200) @ 60Hz (with reduced blanking) and 24bit color depth. Hardware compatibility: All computers with DVI-D and USB connections

      • Cable Guidelines:
      • Important extension distance information
      • Recommended cables are CAT7 shielded foiled twisted pairs: Daetwyler 7702 Flexible patch cable Daetwyler 7120 Bulk cable. CAT6 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances. Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5m (16ft). Preferably patch cables should be of type CAT7 and less than 2m (6.5ft). Patch cables over 2m (6.5ft) must be CAT7.

      • Environmental:
      • Operating Temperature: 0 to 40°C / 32 to 104°F

      • Connectors - Local Unit:

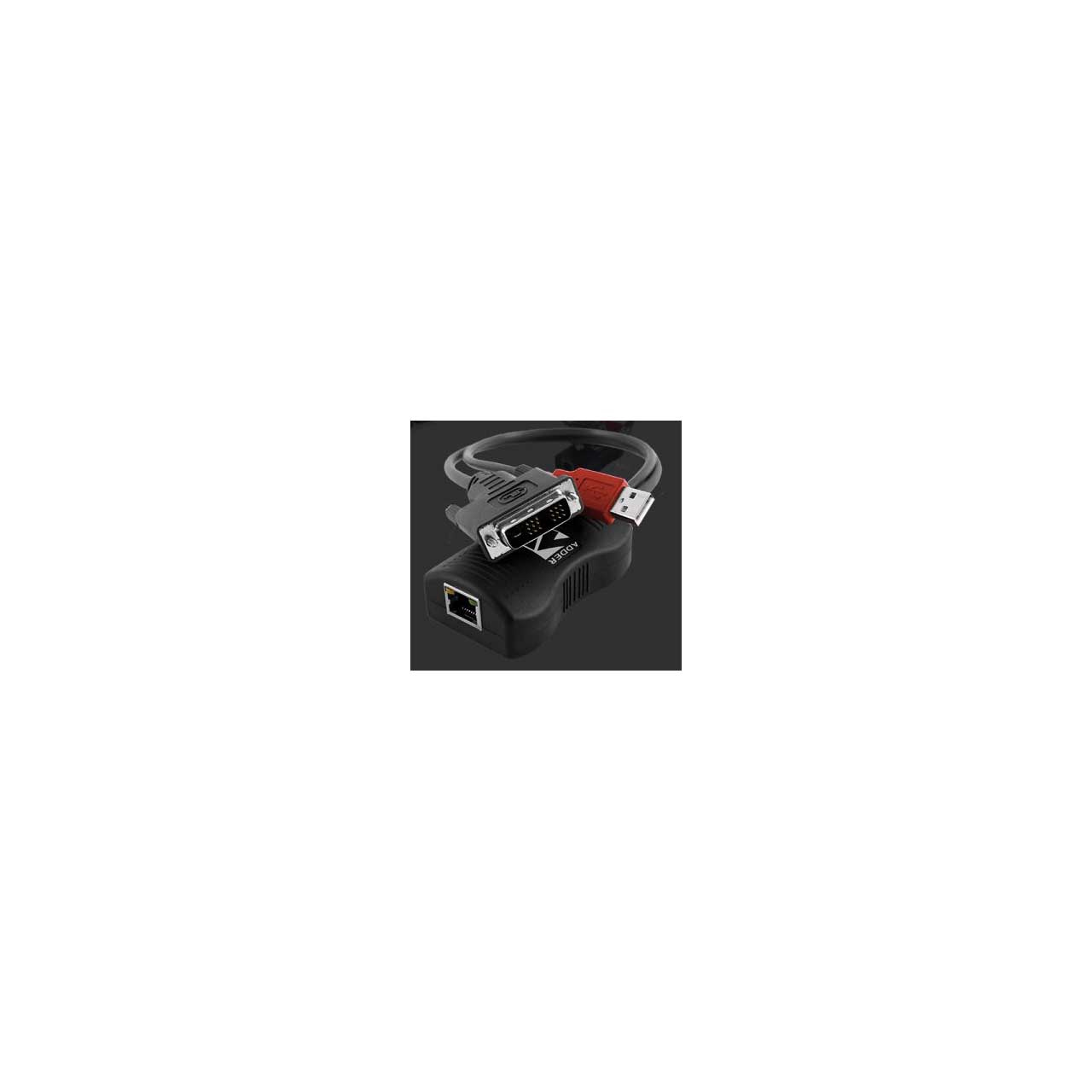

      • Computer connections at transmitter (TX) DVI-D male, USB type A (for power only)

      • Connectors - Remote Unit:
      • Display connections at receiver (RX) DVI-D male

      • Mechanical:
      • Injection molded ABS cases: 45mm/1.8'' (w) x 63mm/2.5''(d) x 21mm/0.8''(h) with 30cm/12" pigtails
      • Weight: 250g / 0.6 lb per pair

      • Power:
      • USB powered, 5VDC -2.5W for both RX and TX units combined

      • Software:
      • Compatible with all known operating system

    • Item Includes:

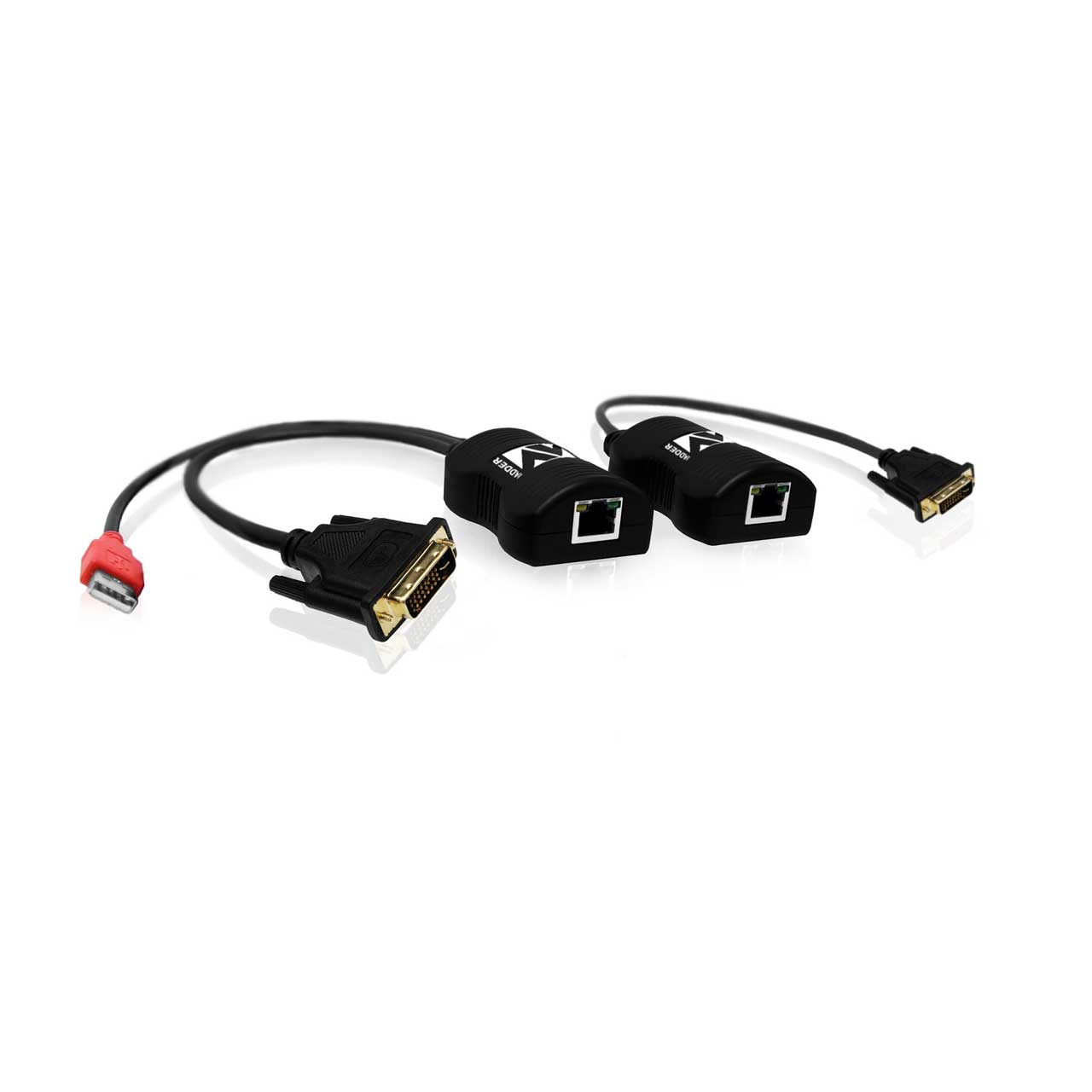

      • ALDV120P package includes: 1 local unit and 1 remote unit

    • Warranty:

      • 2 Year Limited

    • GTIN:

      0818252121141
