    AV4PRO-VGA-QUAD-US - Overview

    Ultimate flexibility for sharing high-res screens and USB peripherals

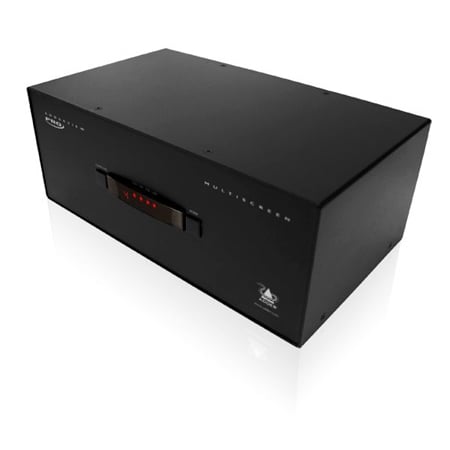

    Part of the ADDERView® PRO range, the AV4PRO-VGA-QUAD-US 4 PRO is a Quad-Head KVMA switch designed to enable four multihead computers to be controlled from a single high resolution KVM console using high definition analog VGA video links. The switch makes use of Adder's USB True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching while also supporting the extra keys and features of enhanced keyboards and mice.

    • Features:

      • Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen
      • High resolution video: VGA capabilities enable users to work at very high resolutions including WUXGA (1920 x 1200) or (1920 x 1440)
      • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
      • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
      • Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote
      • Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices
      • Options port for control, synchronization and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port.
    • Specifications:

      • Video Resolutions
      • VGA resolutions to a maximum of 1920 x 1200 or 1920 x 1440 @60Hz
      • Dual x 2, Triple x 3 or Quad x 4

      • Audio
      • 3.5mm stereo jack

      • Approvals / Compliance
      • CE
      • FCC

      • Standards
      • USB 2.0 type B

      • Cable Requirements
      • All standard cables

      • Environmental
      • 0 to 40 deg C / 32 to 104 deg F

      • Connectors - User
      • Keyboard/Mouse: 2 x USB type A
      • Switched USB: 2 x USB 2.0 type A. Supports USB 2.0 devices in low, full and high speed modes.
      • USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported

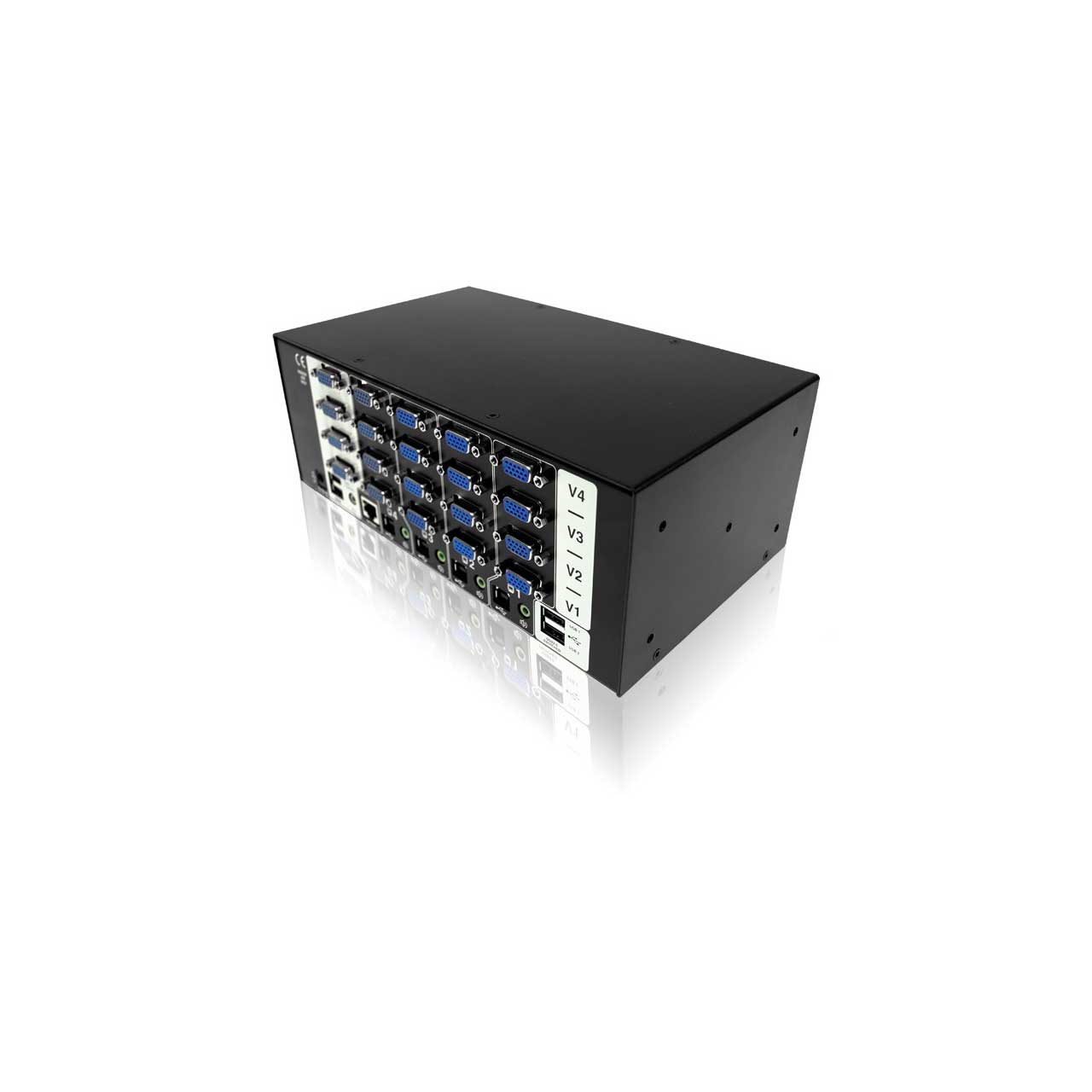

      • Other Connections:
      • Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches):
      • Modular 10P10C USB 2.0 type B
      • Hi Res VGA (up to 4 per connection)
      • 3.5mm stereo jack

      • Connectors - Computer
      • Options (flash upgrade, sync with other AV4PRO-DP and RS232 triggered power switches): Modular 10P10C

      • Mechanical
      • Single: 1U high metal case 260mm (w), 150mm (d), 40mm (h)
      • Dual, Triple and Quad: 2.5U high metal case 260mm (w), 150mm (d), 100mm (h)

      • Power
      • 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

      • Software
      • Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc
    • Item Includes:

      • AV4PRO unit and power supply
    • Warranty:

      • 2 Year Limited
