    DDX-CAM-DP - Overview

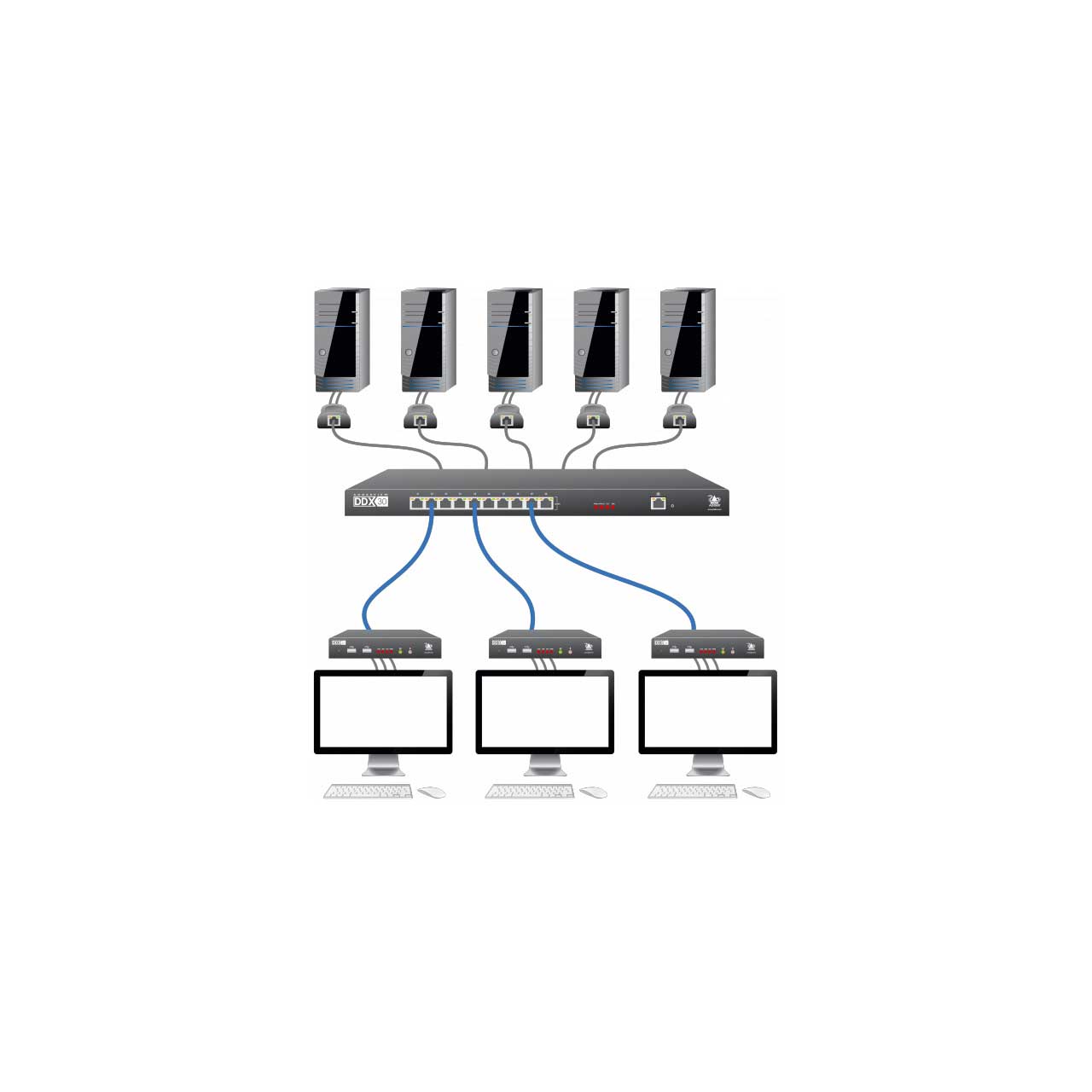

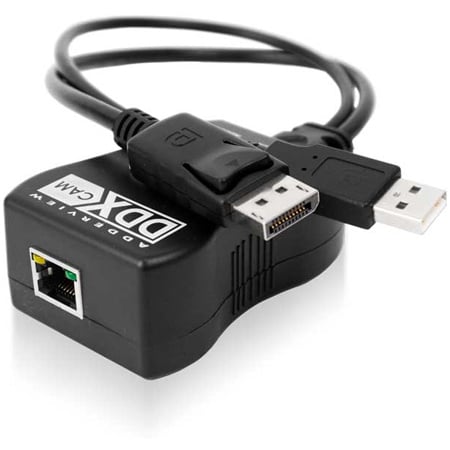

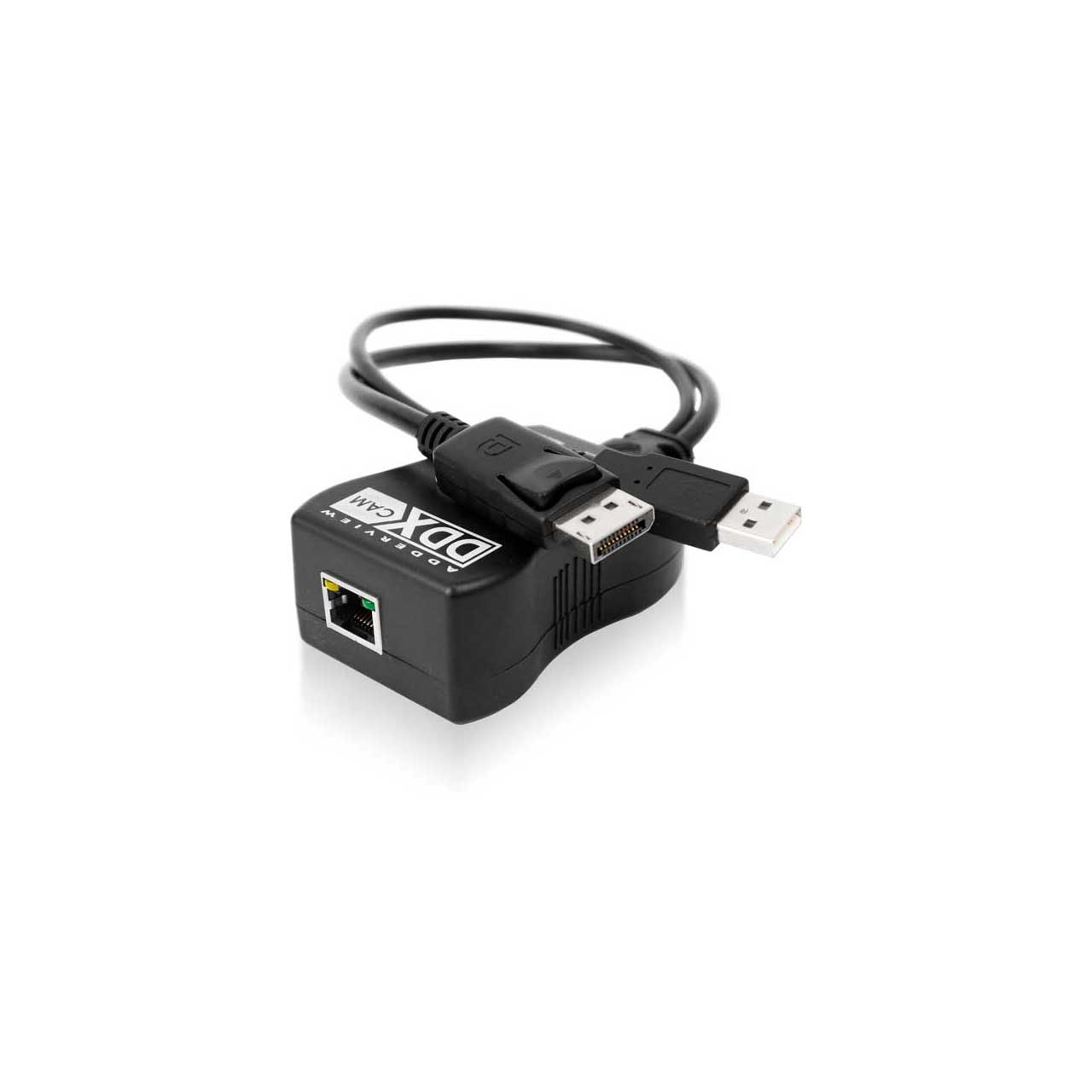

    Part of the ADDERView® DDX® range, the DDX CAM-DP is a Zero U DisplayPort CAM or Computer Access Module (CAM) which attaches a source computer and acts as a transmitter to either the DDX10 or DDX30 switch or directly to the DDX USR user station as a point to point extender (all sold separately). When combined with the DDX10 or DDX30, it forms an integral part of a KVM Matrix.

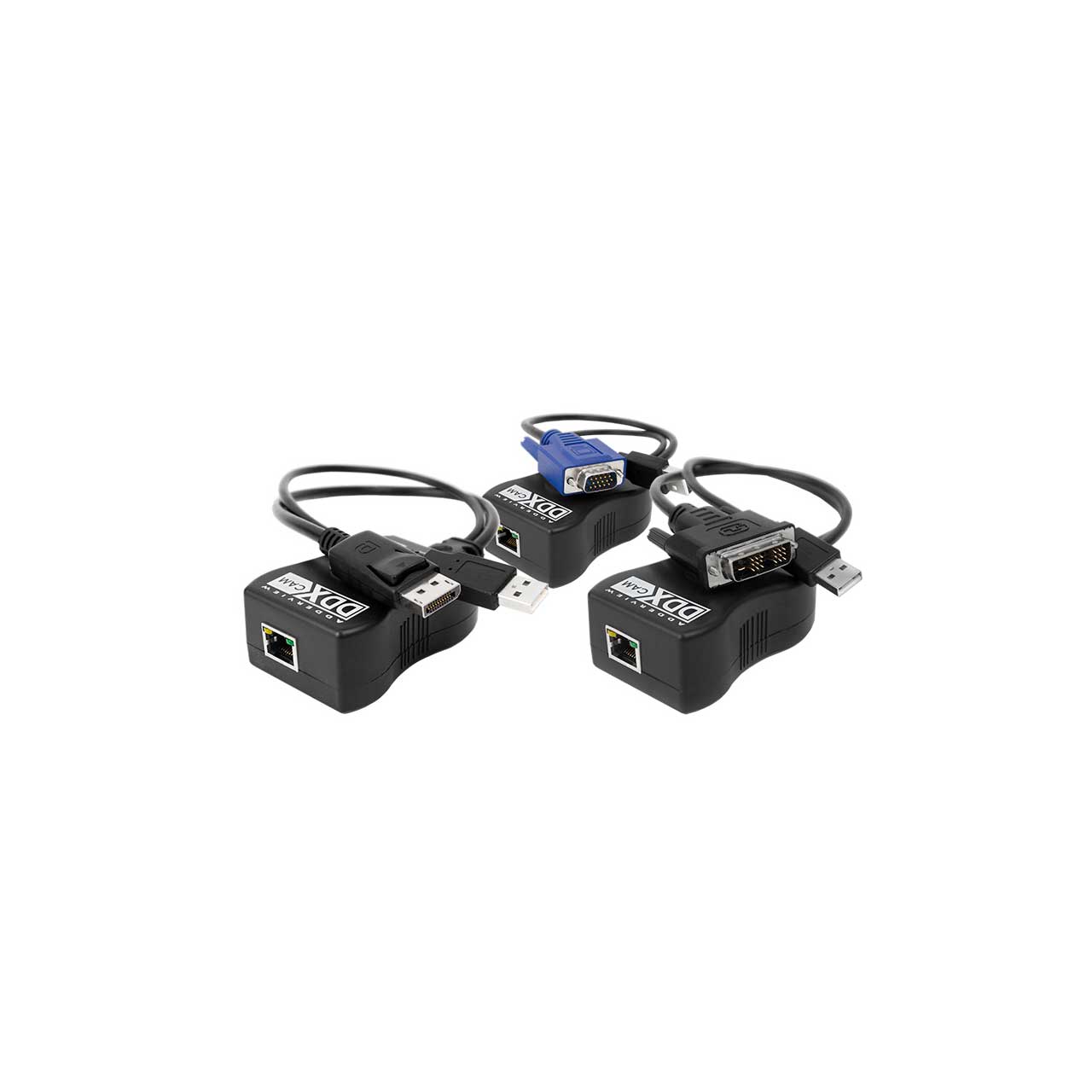

    Available in DisplayPort, VGA and DVI variants, the DDX CAM supports all common single link digital video resolutions. HDMI is also possible via a passive converter.

    Because the DDX CAM is powered by USB, you do not need an external power supply, thus simplifying cable clutter significantly. The same USB power connector also delivers USB data functionality and acts as a USB audio device.

    • Features:

      • Plug and Play: the CAM requires no configuration, so you can simply connect it to the DDX USR or a DDX switch
      • Video resolutions: supports all common single link digital video resolutions
      • Easily expand your installation: for each new computer system and user, simply add a USR and CAM module, safeguarding your investment
      • Multi-functional USB: the CAM does not need an external power supply as it is powered by USB, which also delivers USB data functionality and acts as a USB audio device
    • Specifications:

      • Approvals / Compliance
      • CE
      • FCC

      • Standards
      • VGA, DVI (1920 x1200 @60Hz) and DP video standards
      • USB 2.0 (HID)

      • Cable Requirements
      • A minimum specification of Shielded Twisted Pair (STP) cables must be used with the DDX range. Recommended cables are SFTP:
      • Daetwyler 7702 Flexible patch cable
      • Daetwyler 7120 Bulk cable
      • Unshielded cables are not suitable for the DDX. Distances are achieved using single lengths of SFTP trunk/bulk cable with two 3m SFTP patch cables.
      • For each additional break/patch connection reduce distance by 5m.
      • Patch cables must be SFTP.

      • Environmental
      • 0° to 40°C / 32° to 104°F

      • Connectors - Local Unit
      • Three types of DDX-CAM modules are available:
      • DVI-D and USB type A (for all)
      • DisplayPort and USB or VGA and USB
      • VGA-RJ-45 plug

      • Power
      • USB powered (Max 500mA @ 5V)

      • Software
      • Compatible with all known operating systems
    • Item Includes:

      • 1x ADDERView DDX CAM Computer Access Module DisplayPort
    • Warranty:

      • 2 Year Limited
