    DVA - Overview

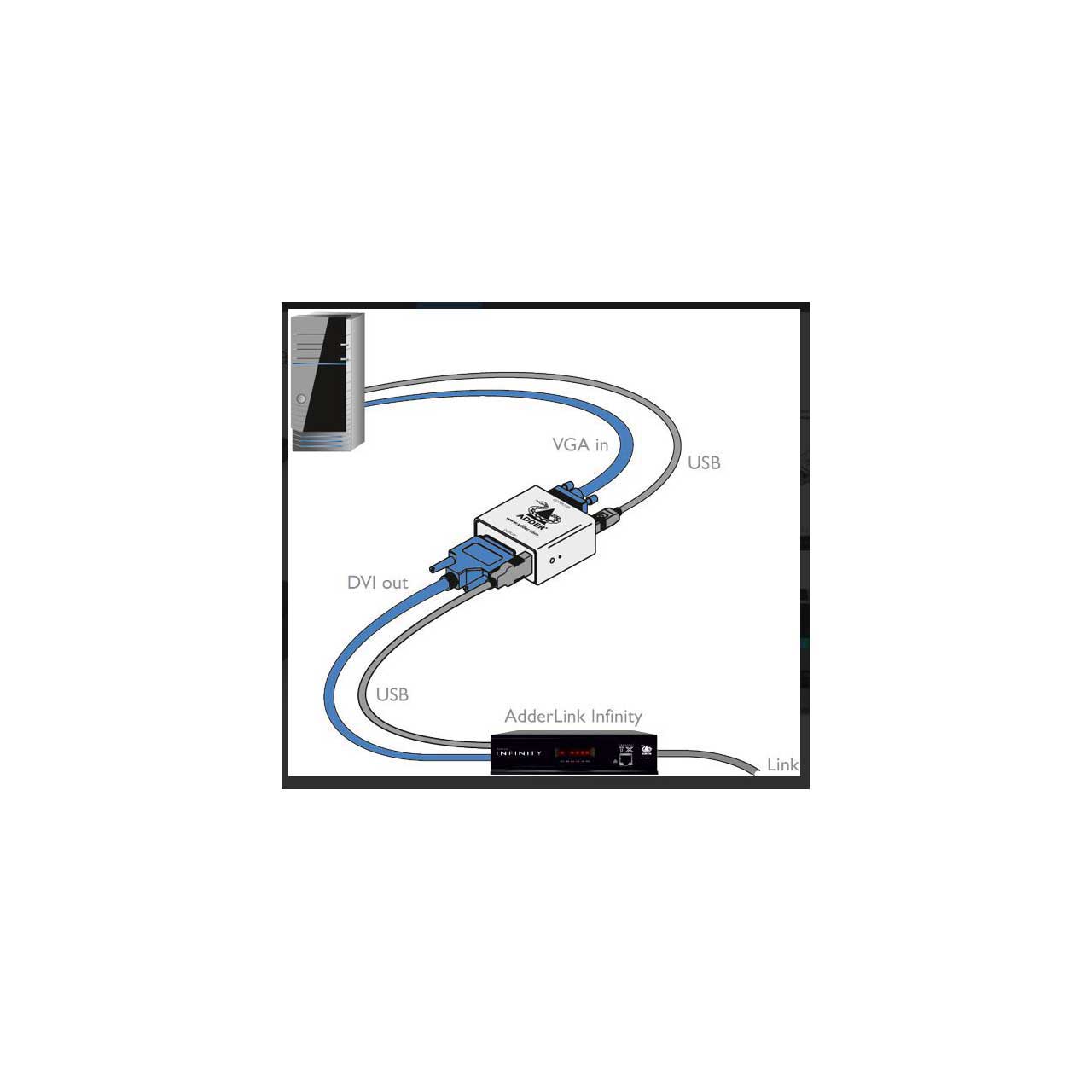

    ADDER DVA is a high-performance VGA to DVI-D video converter that transforms analog signals to digital. Placed in-line and USB powered this solution fits well with the AdderLink Infinity range of products. It converts VGA signals, up to 1920 x 1200 @ 60Hz, into a DVI standard equivalent.

    Analog to digital video conversion up to 1920 x 1200 (165MHz max. pixel frequency)

    EDID management to ensure clean operation

    Adjustment control for alignment, tone, sharpness and brightness

    USB powered with USB feed through

    • Features:

      • High Quality VGA to DVI-D Conversion: Adder DVA is a high quality VGA to DVI-D converter supporting most resolutions up to 1920 x 1200 @ 60Hz.
      • Auto Calibration: Adder DVA auto calibrates for horizontal and vertical position. Manual adjustment is also available through the Virtual Control Panel (VCP) app, if required.
      • EDID Management: EDID management is a critical element in VGA/DVI-D conversion, to ensure the correct settings are passed to the computer's graphics card.
      • USB Powered with Pass Through: Adder DVA requires no separate power adapter and instead draws less than 300mA in operation from a spare USB port on the computer. A USB pass-through port is made available on the Adder DVA to allow a low-powered USB device to be connected; thus, the same total number of USB ports remain available for other uses.
      • Flash Upgrade-able: Adder DVA is flash upgrade-able, allowing custom EDID adjustment for non-standard operations. Upgrades are achieved via the USB port.
      • Virtual Control Panel app Over DDC-CI: Adder DVA is supplied with a Virtual Control Panel (VCP) app which allows brightness, tone and sharpness to be adjusted. Vertical and horizontal video alignment can also be adjusted, where necessary. The VCP app contains a test pattern to accurately display the changes. EDID management options can also be changed and the EDID's of the monitors can be displayed.
    • Specifications:

      • Hardware compatibility
      • All computers with VGA output

      • VGA input
      • The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz with pixel frequencies up to 165MHz

      • DVI Output
      • Conforms to the DVI 1.0 standard. Resolutions supported to a maximum of 1920 x 1200 @ 60Hz with pixel frequencies up to 165MHz

      • Software compatibility for VCP app
      • Windows 7 and above with .NET v3.5

      • Computer connections
      • VGA DB15 x 1, USB type B x 1

      • Peripheral connections
      • DVI-D x 1, USB type A x 1

      • Physical design
      • Compact case, robust metal construction. 55mm/2.16" (w), 25mm/1.0" (h), 70mm/2.75" (d), 0.1kg/0.2lbs.

      • Power
      • USB powered - less than 300mA (1.5W)

      • Operating temperature
      • 0 to 40°C / 32 to 104°F

      • Approvals
      • CE, FCC
    • Item Includes:

      • 1x Adder DVA module
      • 1x 16 inch/41cm VGA cable (male to male)
      • 1x 17 inch/45cm USB A to B cable
    • Warranty:

      • 2 Year Limited
