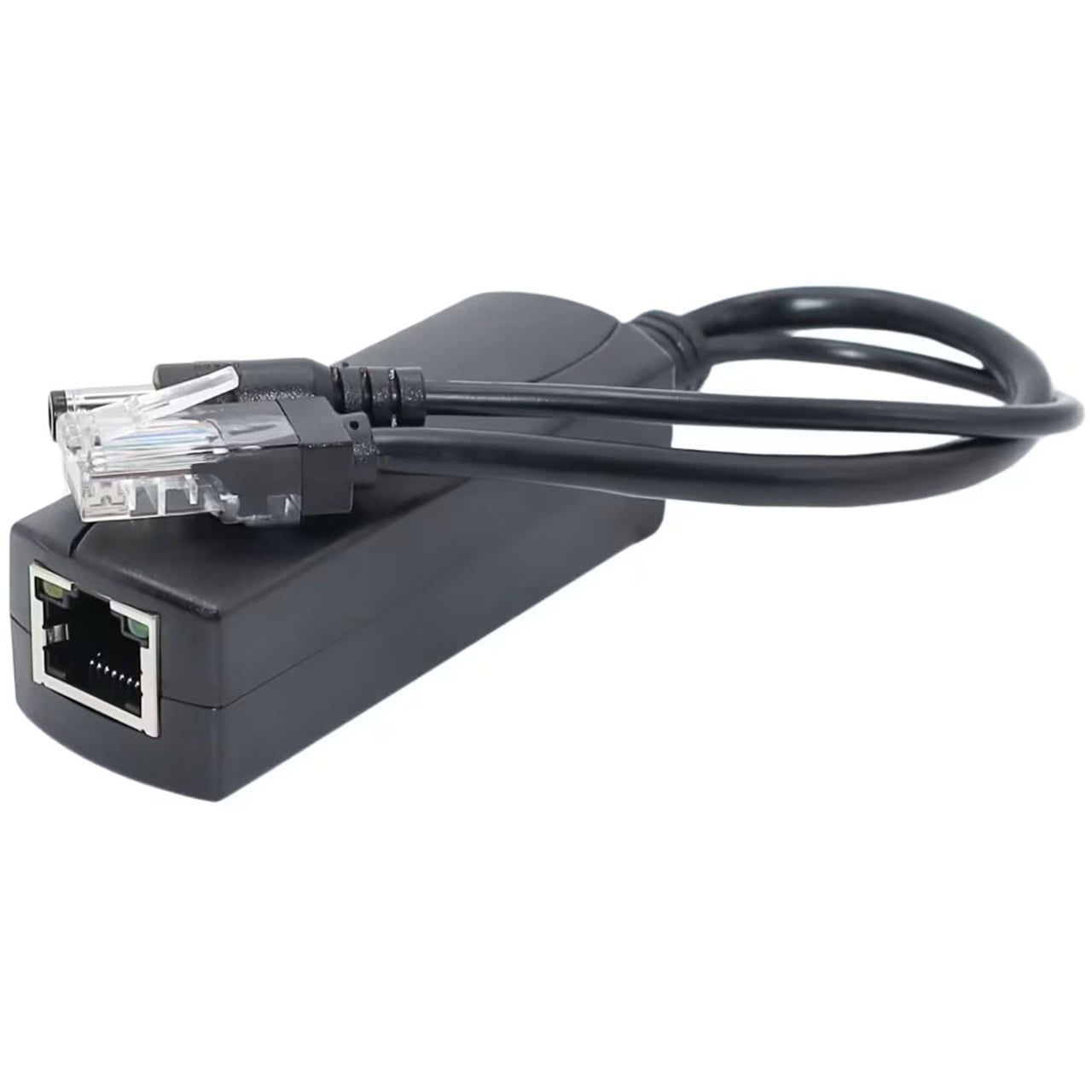

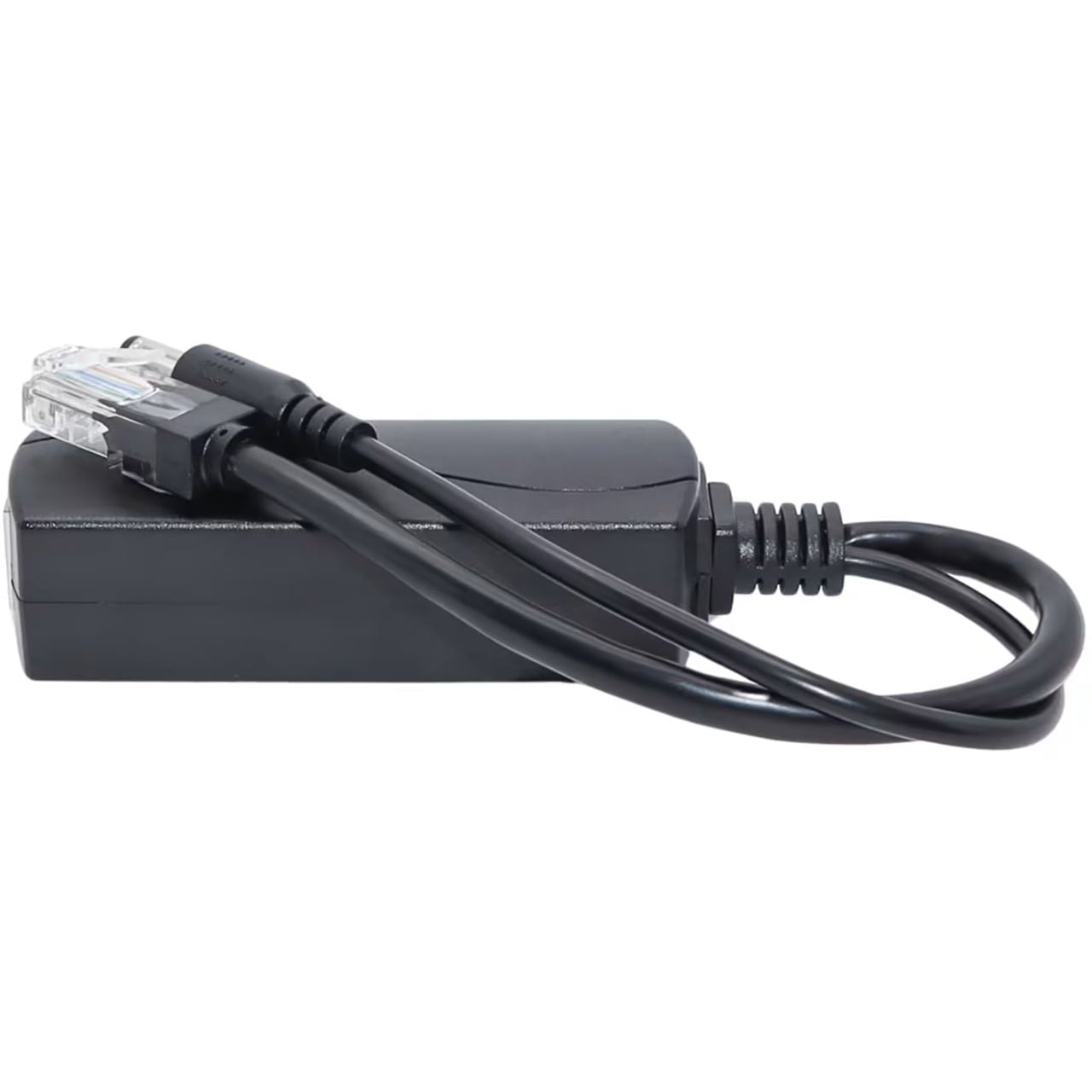

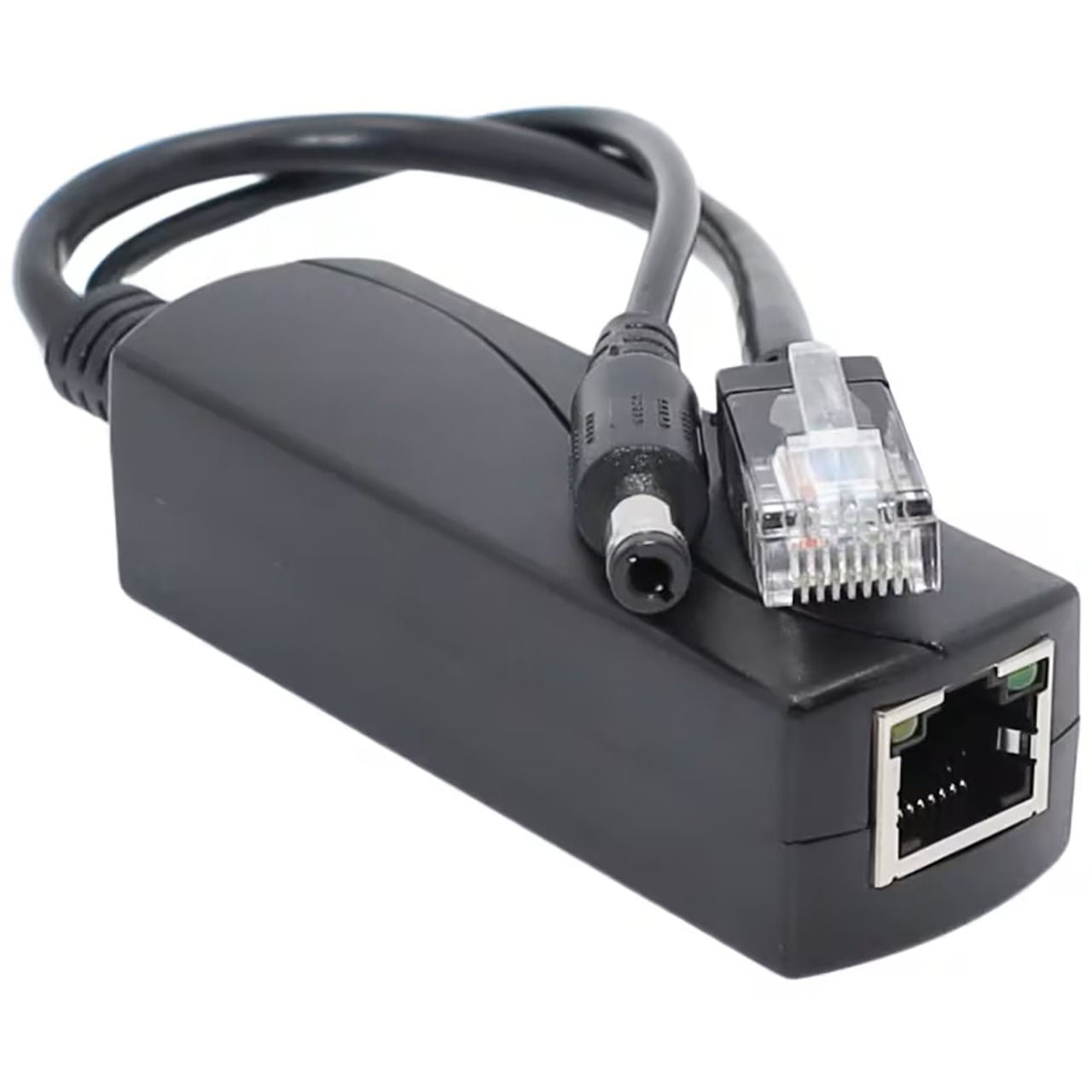

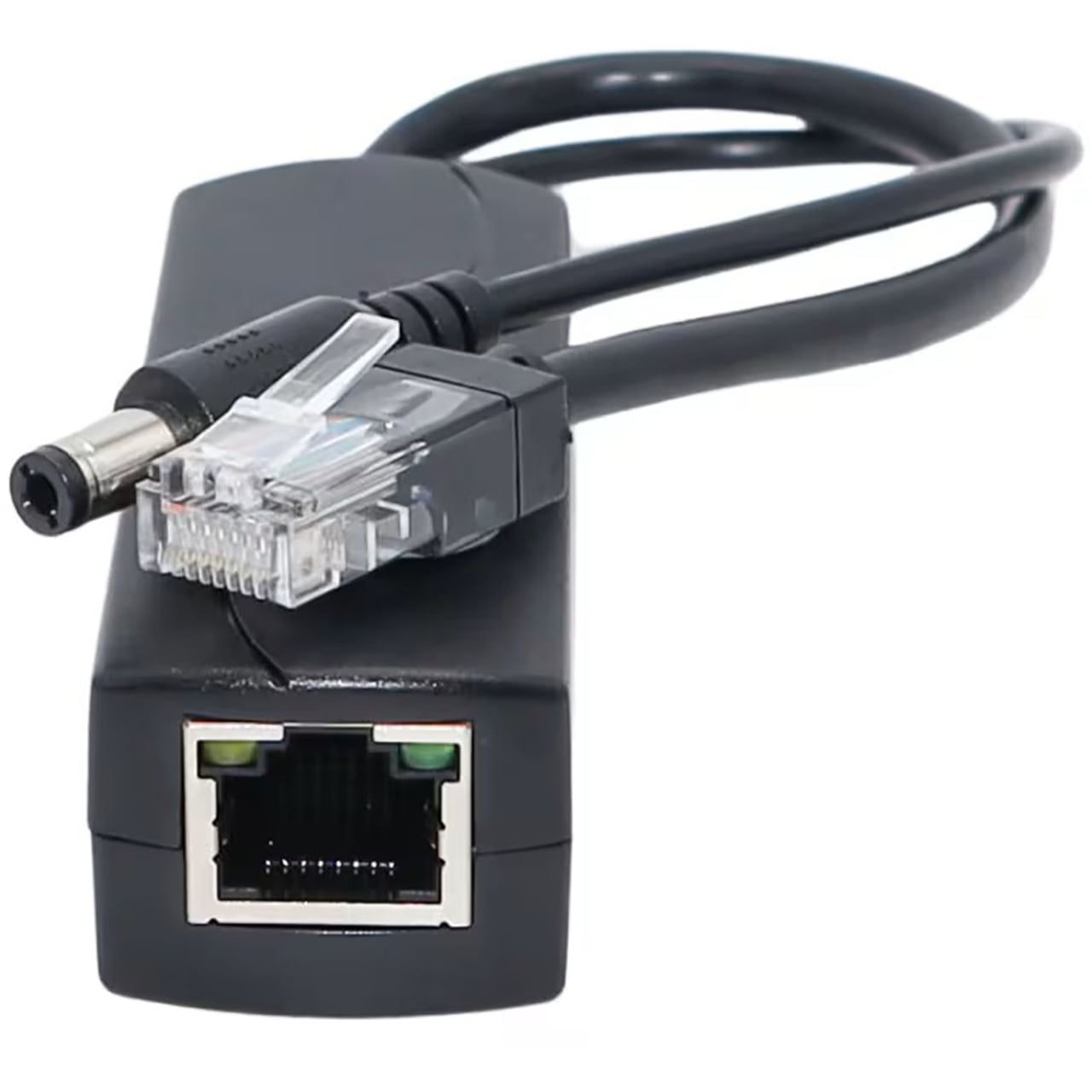

ADDER PSU-POE-5VDC-2.4A 1GbE IEEE802.3af PoE Splitter - 5V 2.4A

PSU-POE-5VDC-2.4A - Overview

• Features:

  • IEEE802.3af: Compliant to IEEE802.3af which features a 1500V high voltage isolation PoE transformer and integrated high performance network filter
  • 1GbE Support: 10/100/1000Mbps Ethernet and supports the full range of IEEE802.3 standards: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3af, IEEE802.3at
  • Safe and Secure: Supports 44V-57V, auto-detects PSE power source with isolation circuit to help protect connected equipment from short circuit, over voltage, overcurrent and overheating.
  • Power Efficient: At 83% efficiency this PoE splitter is class leading and leads to its -4°F - 122°F (-20°C - 50°C) operating temperature range


• Specifications:

  Link Ports
  • 8p8c (RJ45): 1x

    Cable Requirements
  • Recommended Cable Type: CAT5e and above
  • Maximum Cable Length: 328ft (100m)

    Network Support
  • Bandwidth: 10/100/1000MbE
  • 10/100 Support: Yes

    Environmental
  • Operating Temperature: -4°F - 122°F (-20°C - 50°C)
  • Storage Temperature: -22°F - 140°F (-30°C - 60°C)
  • Operating Humidity: 10% - 90% (non-condensing)
  • Storage Humidity: 5% - 95% (non-condensing)
  • Altitude: 6562ft (2000m)

    Power Source
  • 5V: 1x
  • Input Power Supply: PoE (802.3.AF)

    Physical Design
  • Construction Material: Robust plastic enclosure
  • U size: Zero
  • Dimensions (LxWxH): 3.2" x 1.1" x 0.9" (81mm x 28mm x 24mm)
  • Flying Lead Length: 7.48" (190mm)
  • Weight: 0.2lbs (0.1kg)

    Approvals and Standards
  • Approvals: CE, FCC, ICES
  • Standards: ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, FCC pt15B, ICES003, IEE802.3at
  • Other: Cal Prop 65, China ROHS, EU REACH, UK REACH

    Ordering Information
  • Code: Description
  • PSU-POE-5VDC-2.4A: 1GbE Power over Ethernet Splitter 12W


• Item Includes:

  • 1x 1GbE Power over Ethernet Splitter 12W
