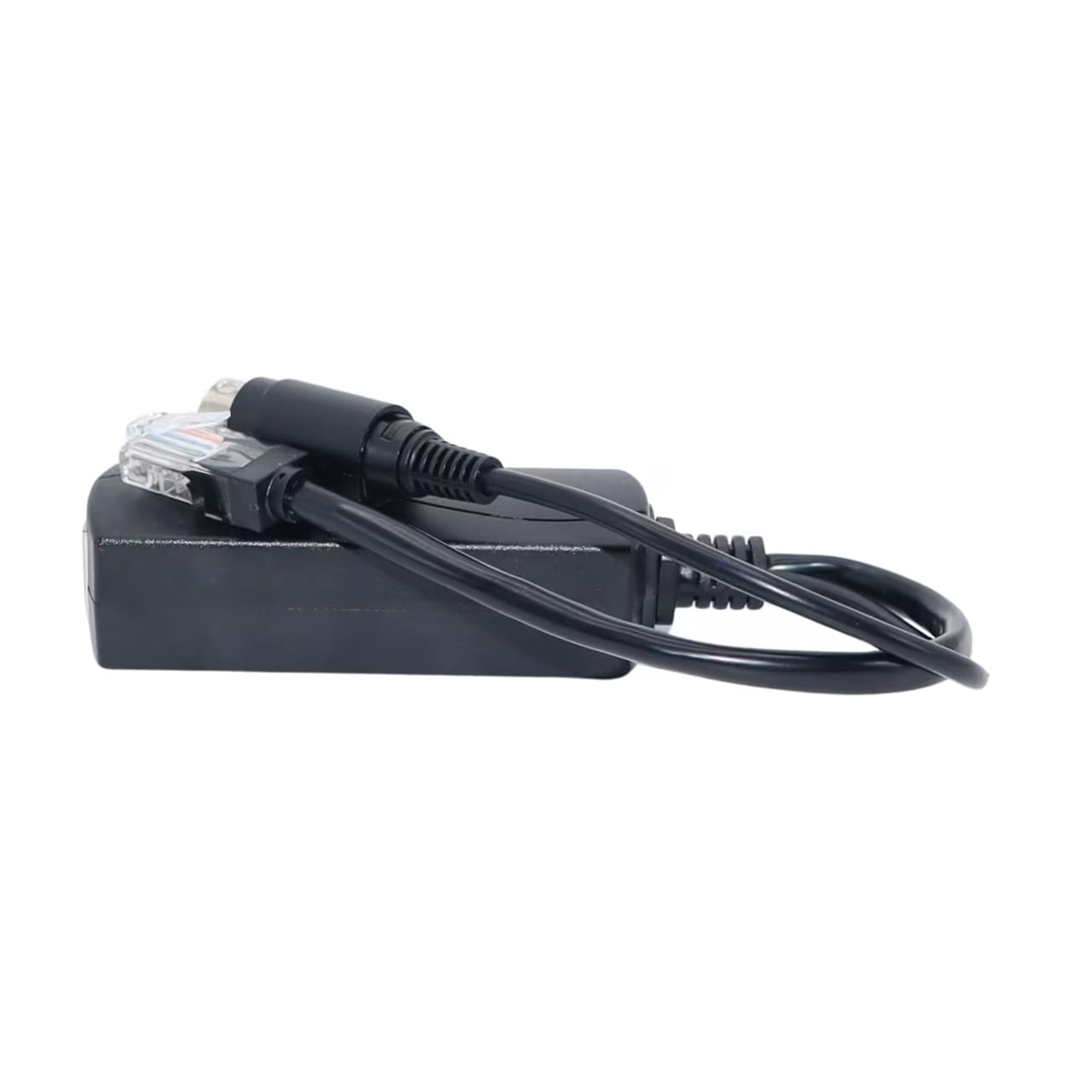

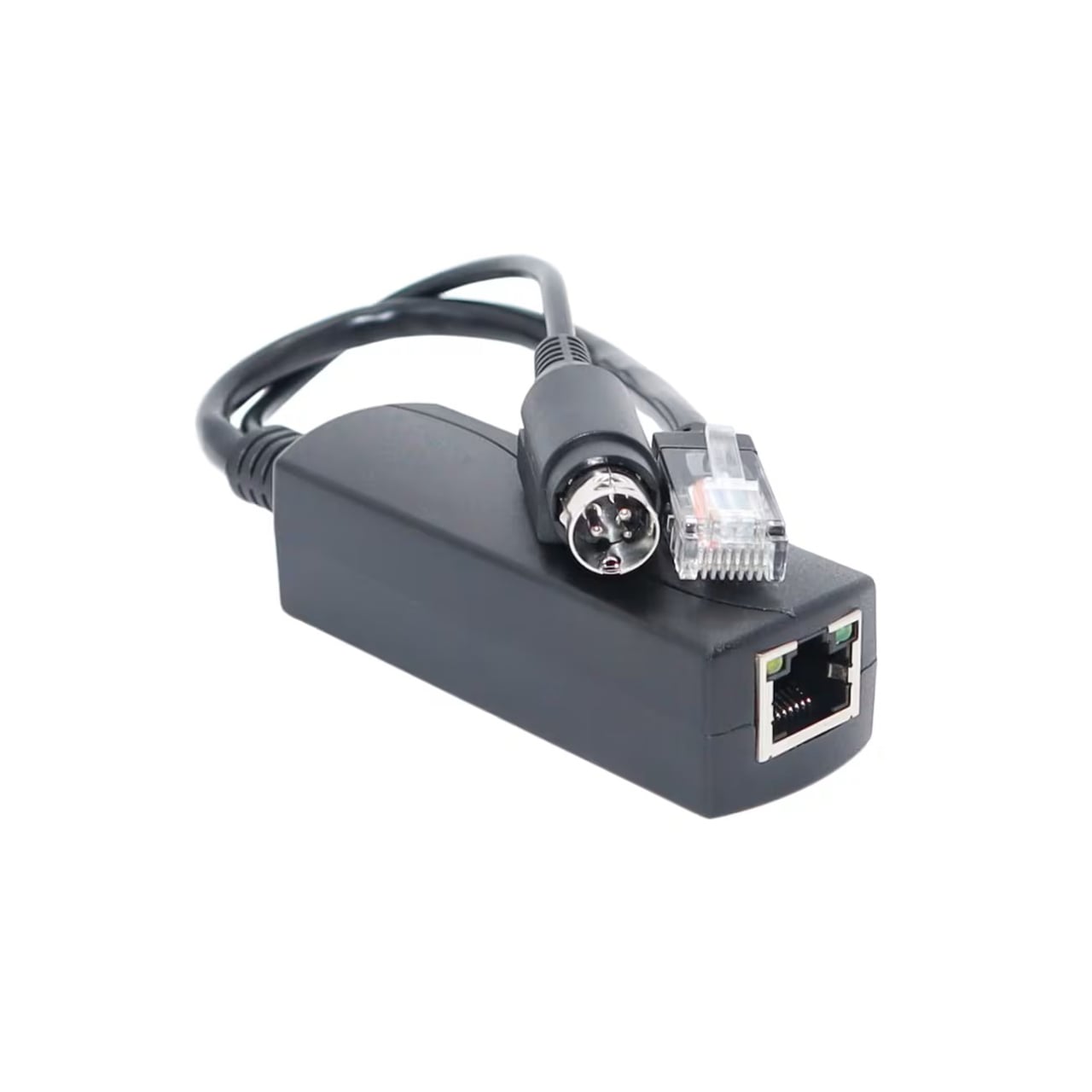

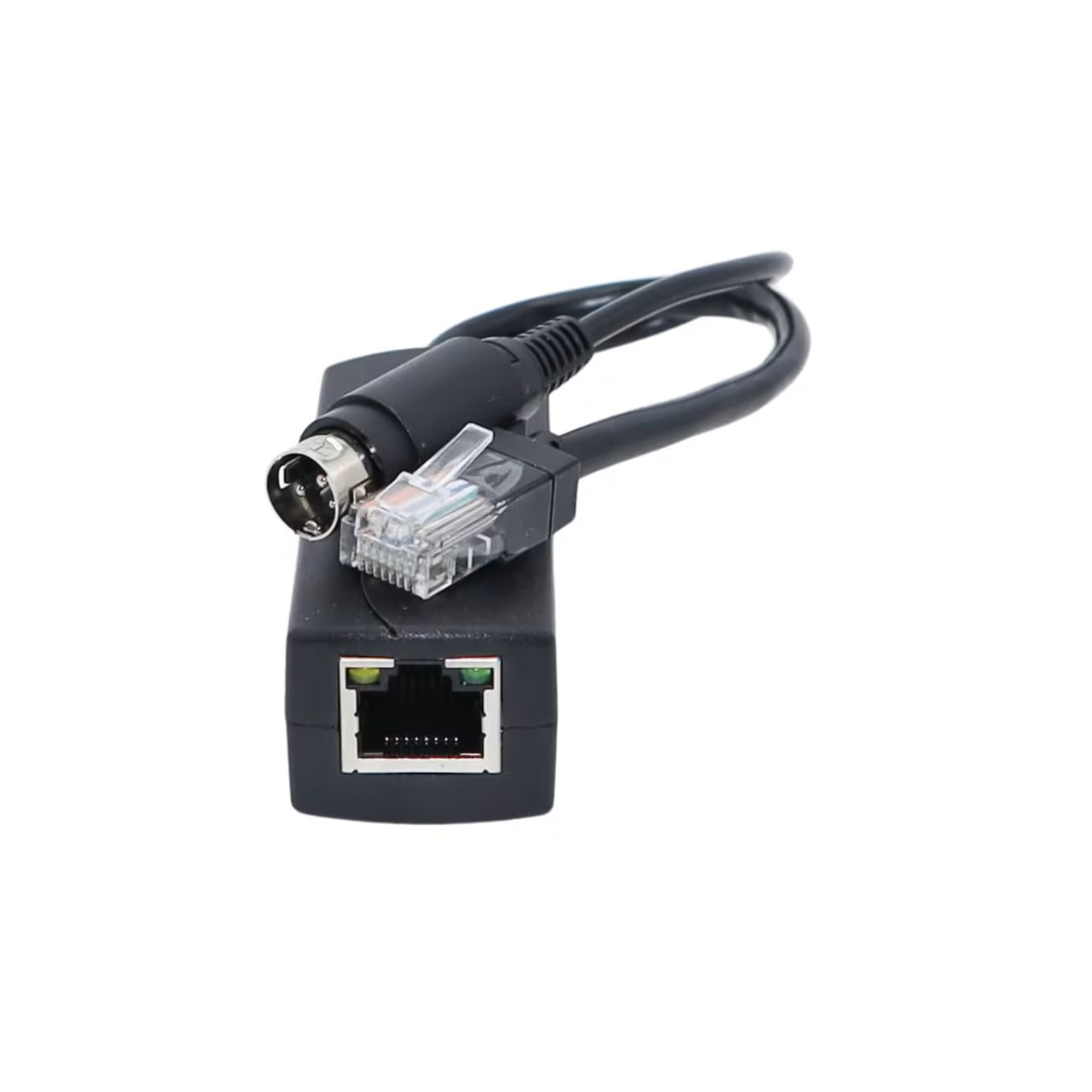

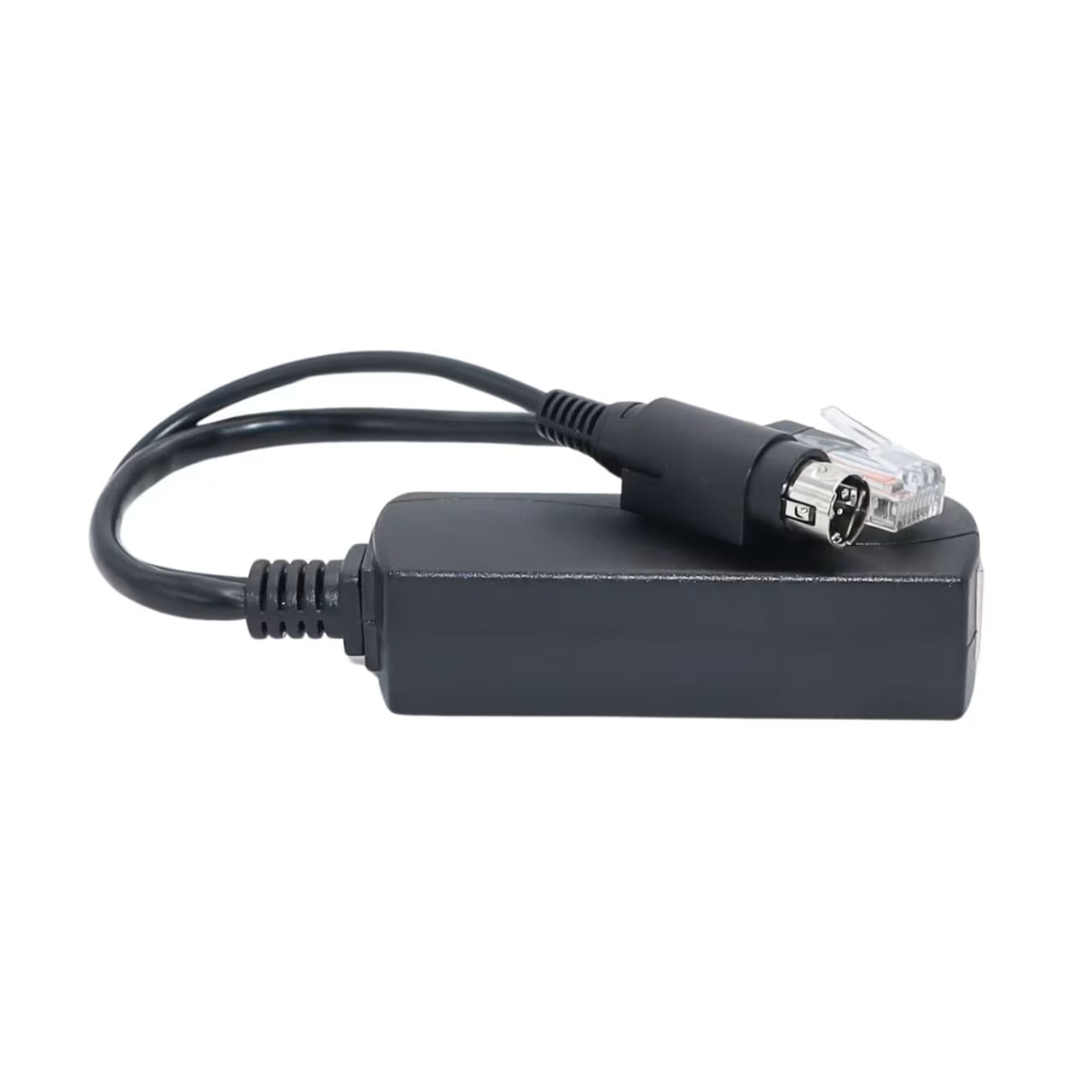

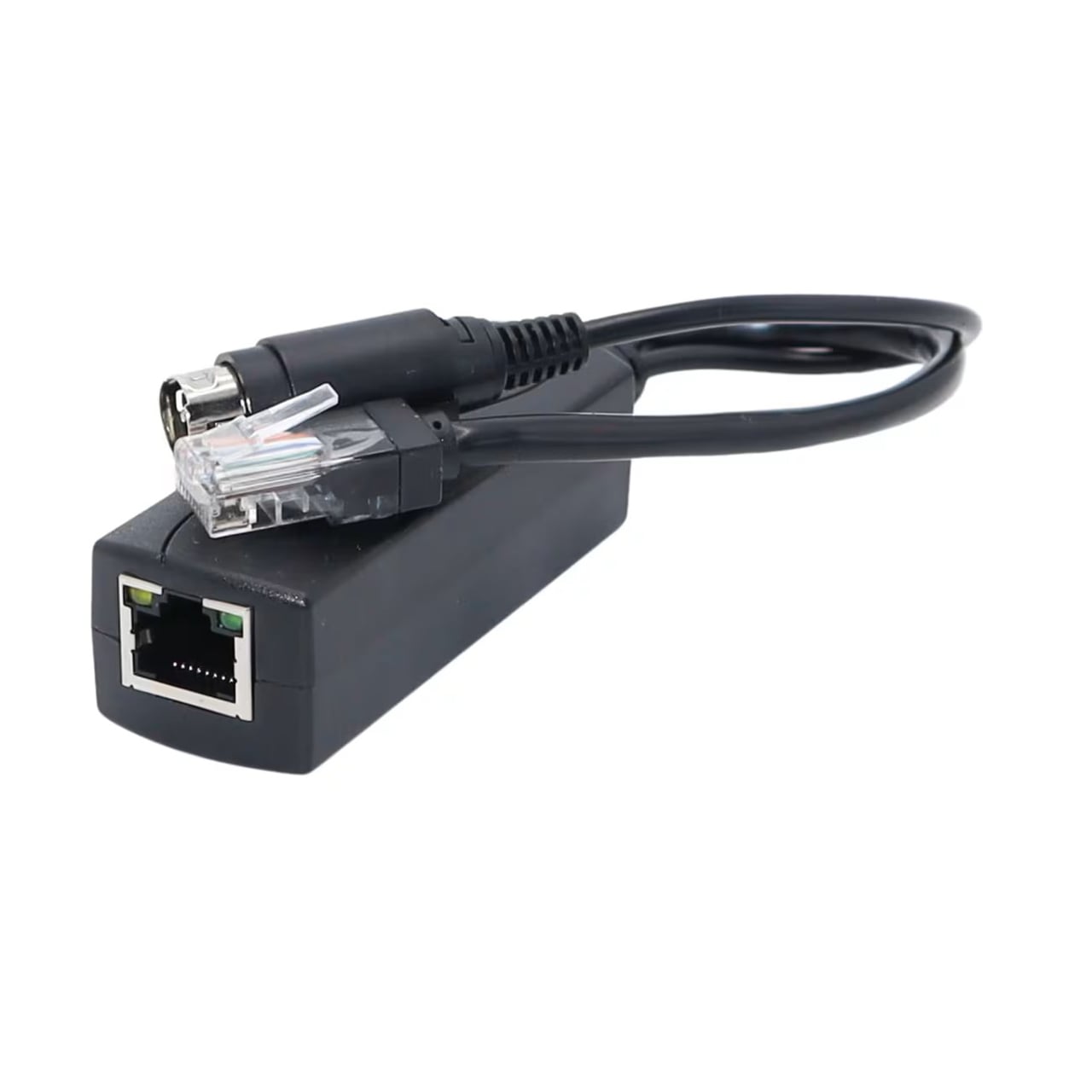

Adder PSU-POE-12VDC-2A 1GbE Power Over Ethernet Splitter - 24W

PSU-POE-12VDC-2A - Overview

• Features:

  • IEEE802.3af/at: Compliant to IEEE802.3af/at which features a 1500V high voltage isolation PoE transformer and integrated high performance network filter
  • 1GbE support: 10/100/1000Mb Ethernet and supports the full range of IEEE802.3 standards: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3af, IEEE802.3at.
  • Safe and secure: Supports 44V-57V, auto-detects PSE power source with isolation circuit to help protect connected equipment from short circuit, over voltage, overcurrent and overheating.
  • Power Efficient: At 90% efficiency this PoE splitter is class leading and leads to its -20 to +50C operating temperature range.


• Specifications:

  Link Ports
  • 8p8c (RJ45): 1x

    Cable Requirements
  • CAT5e and above: 328ft (100m)

    Network Support
  • Bandwidth: 10/100/1000MbE
  • 10/100 Support: Yes

    Environmental
  • Operating Temperature Range: -4°F - 122°F (-20°C - 50°C)
  • Storage Temperature Range: -22°F - 140°F -30°C - 60°C
  • Operating Humidity: 10% - 90% (non-condensing)
  • Storage Humidity: 5% - 95% (non-condensing)
  • Altitude: 6562ft (2,000m)

    Power Source
  • 12V 3-pin: 1x
  • Input Power Supply: PoE (802.3.AF), PoE (802.3.AT)

    Physical Design
  • Construction Material: Robust plastic enclosure
  • U size: Zero
  • Dimensions (WxHxD): 1.1" x 0.9" x 3.2" (28mm x 24mm x 81mm)
  • Flying Lead Length: 7.5" (190mm)
  • Weight: 13lbs (5.9kg)


• Item Includes:

  • 1x 1GbE Power over Ethernet Splitter 24W


• Warranty:

  • 2 Year Limited Warranty
