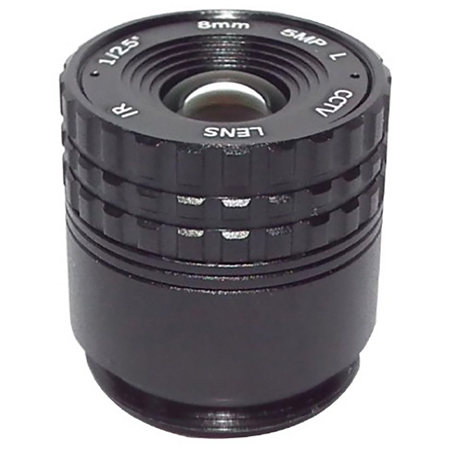

AIDA Imaging CS-8.0F 8mm 5MP CS Fixed Focal Mount Lens - Compatible with 1.3 to 5MP Cameras

AIDA-CS-8.0F - Overview

Made for 1/2.5" Progressive CMOS Sensor - optimized for CS mount AIDA HD Cameras!

• Features:

  • Optimized for AIDA FHD Cameras
  • CS Mount Lens
  • 8mm Focal Length
  • Aperature F2.0
  • Horizontal Field of View: ~45°


• Specifications:

  • Back Focal Length: 7.7mm
  • Focal Length: 8mm
  • F-Stop: F2.0
  • Focus Operation: Manual
  • FOV:
    - 1/2.5" HFOV: 45°
    - 1/3" HFOV: 36.6°
  • Image Format: Max 1/2.5" Sensor
  • Megapixel Count: 5M
  • TV Distortion: -18.5% with 1/2.5" Sensor
  • Mount Type: CS-Mount
  • Operation Temp: -4°F - 140°F (-20°C - 60°C)
  • Dimension: 1.81" x 1.39" (31.2mm x 28mm)
  • Weight: 0.0004lbs (2g)
