AudioPressBox APB-112 SB-D-USB Portable Active AudioPressBox - 1-Channel Dante Input/12 Line/Mic Outputs/4 USB-C Outputs

APB-112 SB-D-USB - Overview

Portable Active 1-Channel Dante Enabled Press Box with XLR and USB-C Outputs

• Features:

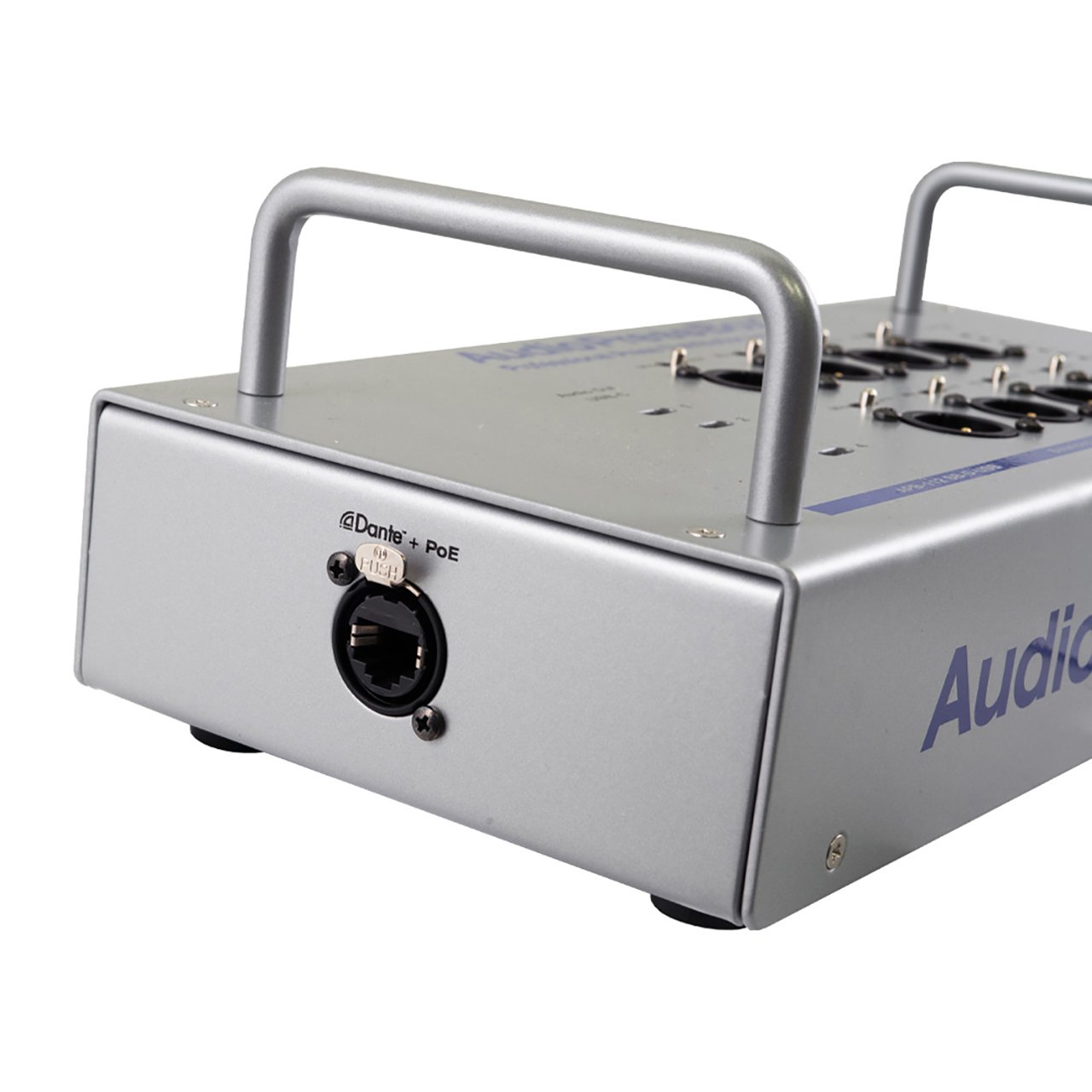

  • 1-Channel DANTE input - RJ45 ethercon

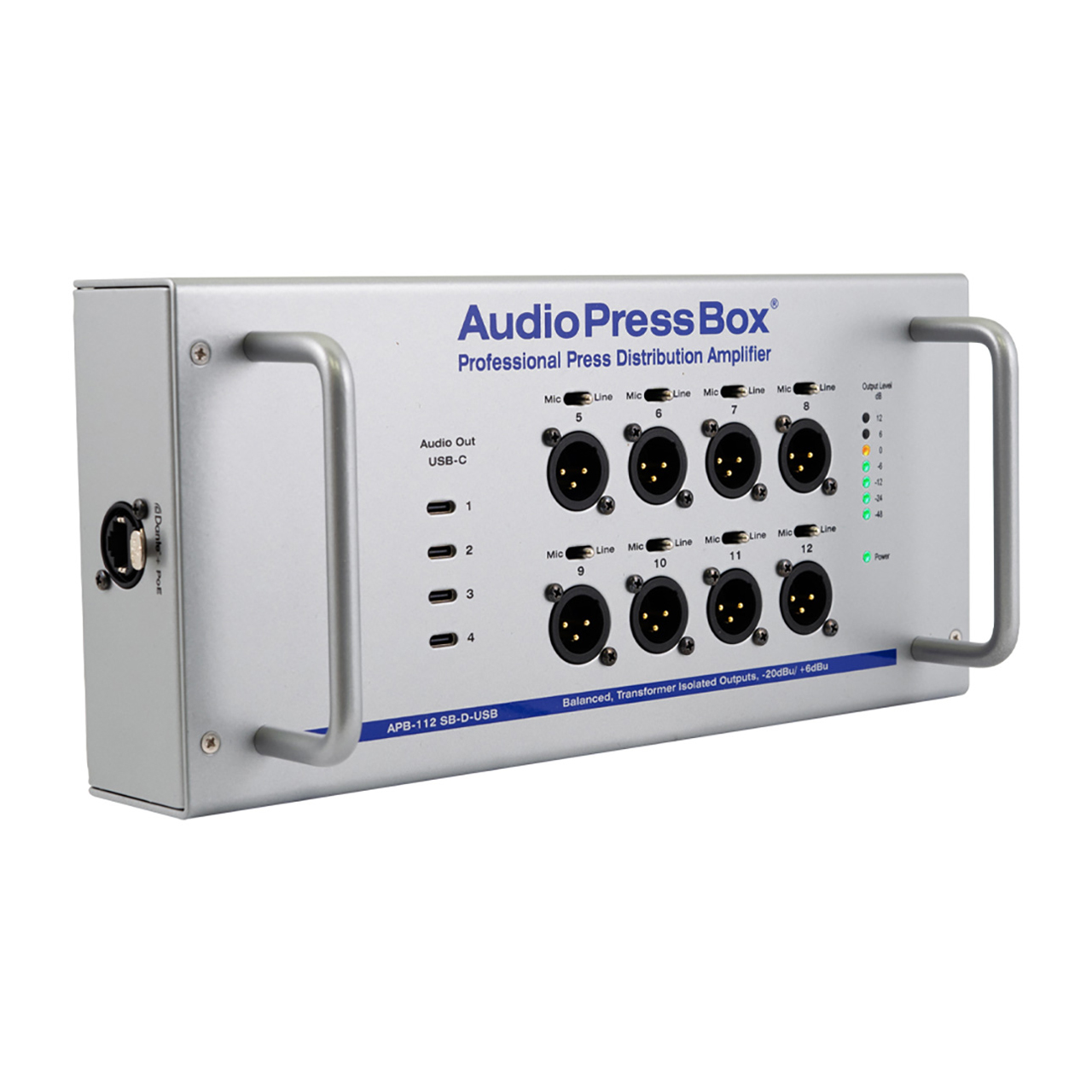

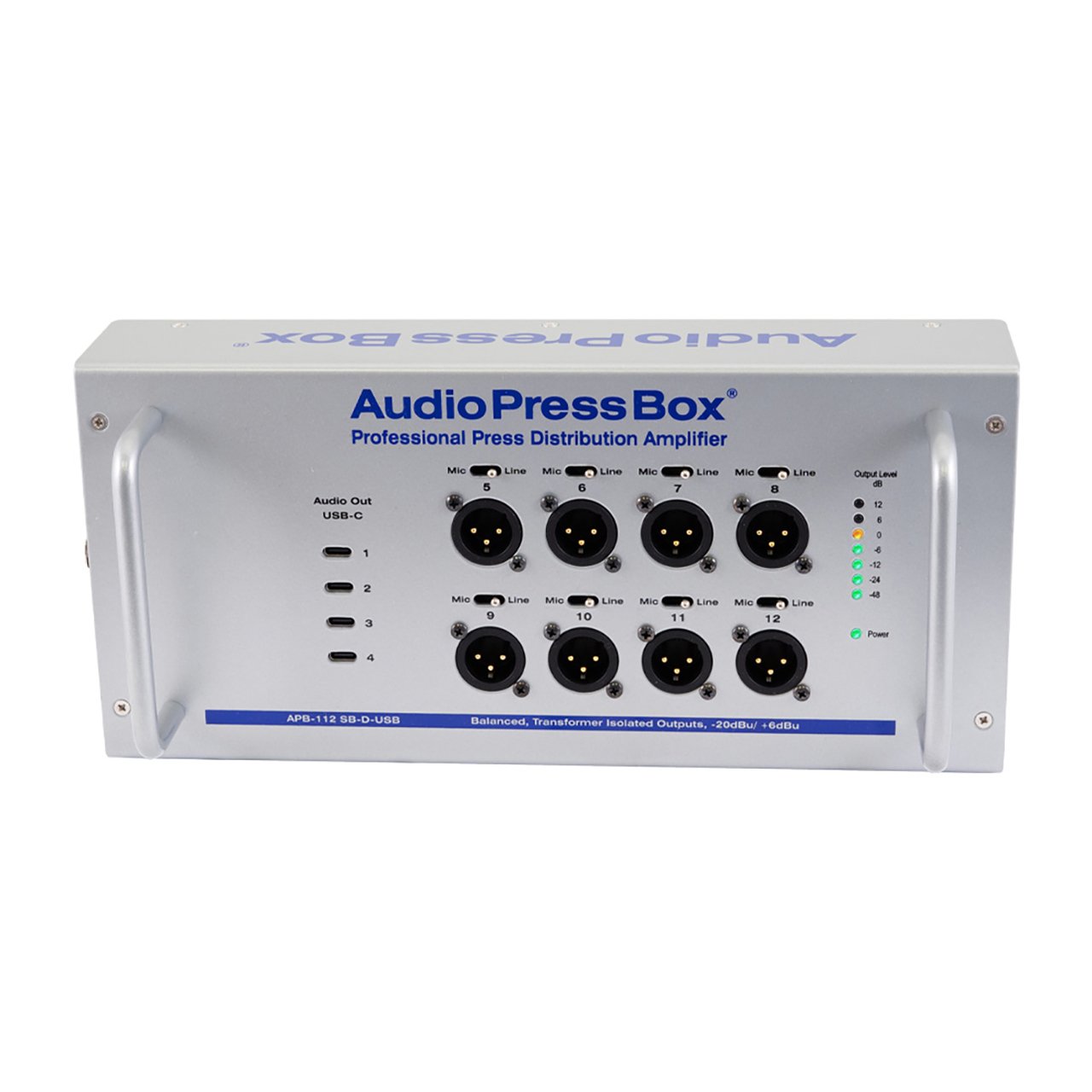

  • 8x high quality balanced, individually transformer isolated outputs
  • 4x Digital USB-C outputs
  • XLR outputs are switchable between MIC or LINE level
  • The unit is powered only via PoE from DANTE network

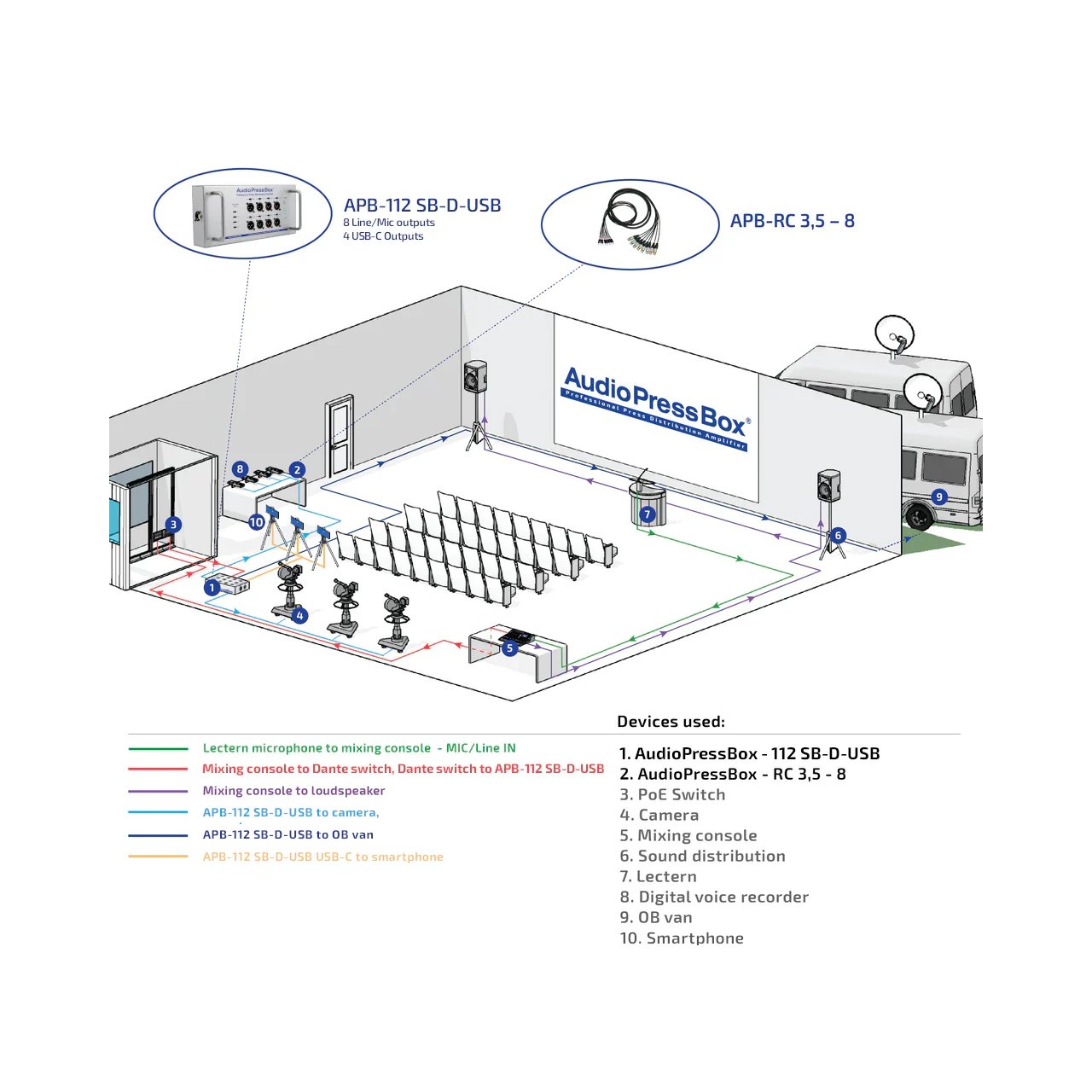

  • Thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 SB-D-USB
  • AudioPressBox delivers audio in broadcast quality


• Specifications:

  • Type: 1 In 12 Out
  • Groups: 1

    Input Section
  • Inputs: 1x
  • Input Connectors: RJ45 - Dante
  • PoE Requirement: Yes
  • Reference Level: -18dBFS

    Output Section
  • Analog Outputs:
    - Outputs: 8 Line/MIC level
    - Output Connectors: Balanced, XLR
    - Nominal Output Level: +6dBu
    - Maximum Output Level: +20dBu (no load) / +14dBu (600Ω)
    - Output Impedance: Mic: 220 Ω / Line: 600 Ω
    - Individually Transformer Isolated Outputs: Yes (each output)
    - SNR: >70 dB
    - Frequency Response: 25Hz to 20kHz/-3dB
  • Digital Outputs:
    - Outputs: 4x USB Type-C
    - Compliant USB Specification: USB 2.0
    - Supported Sampling Rates: 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
    - Bit Depth: 16-Bit
    - Interface Powering: Bus powered (from connected USB host device)
    - Charging capability: No

    Indicators

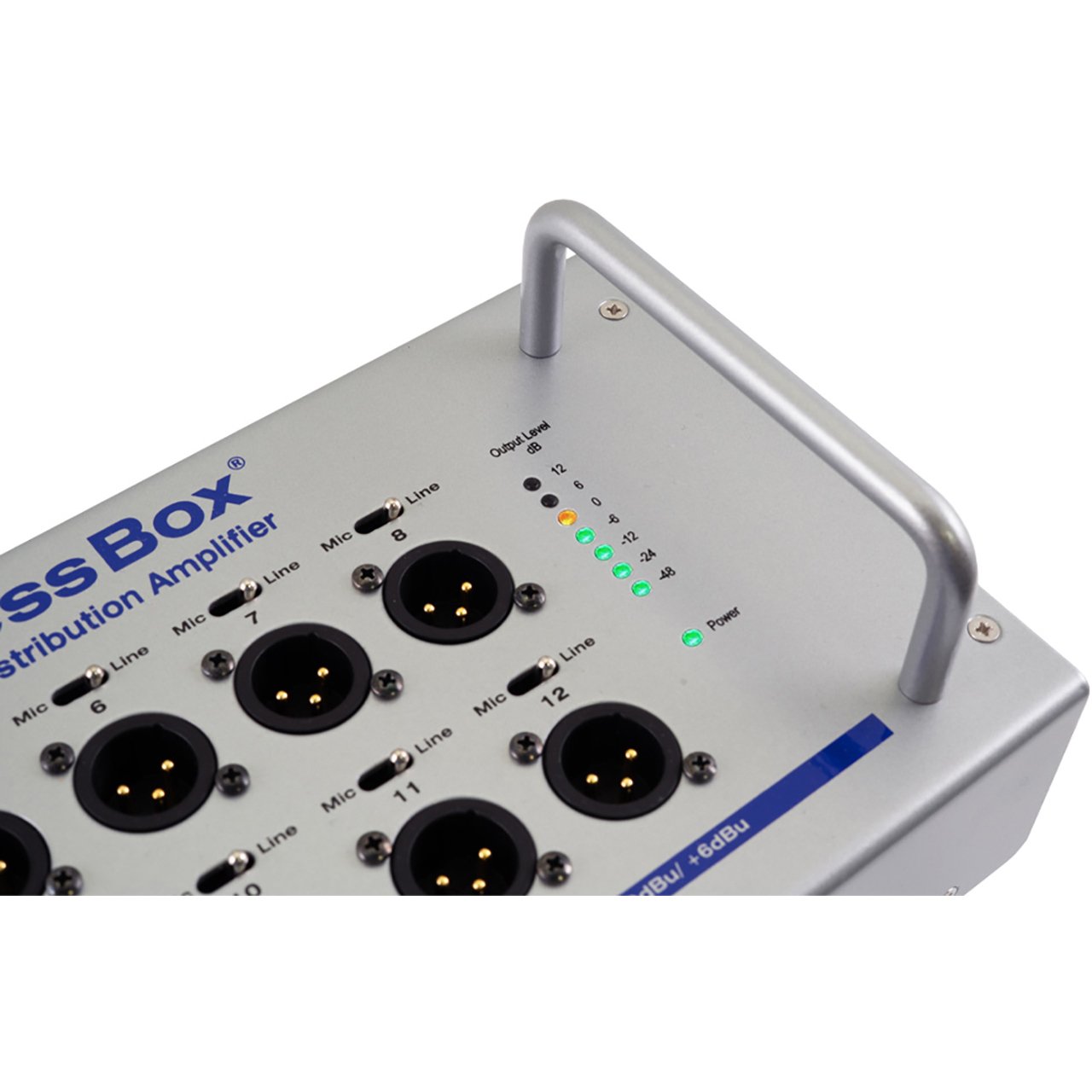

  • Output section: Output level, Power

    Power
  • Power Supply: PoE (Type 1, Class 3 (12,95W))

    Mechanical
  • Dimensions (WxHxD): 11.61" x 5.43" x 3.94 (295 x 138 x 100mm)
  • Weight: 6.17 lbs (2800 g)


• Item Includes:

  • 1 AudioPressBox APB-112-SB-D-USB Portable Active AudioPressBox - 1-Channel Dante Input/12 Line/Mic Outputs/4 USB-C Outputs


• GTIN:

  8588007614526
