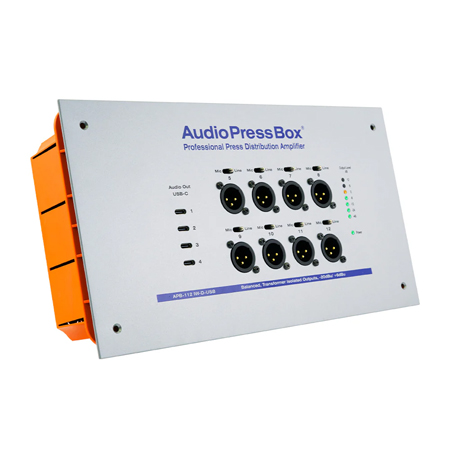

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AudioPressBox
Free Shipping with $49 Minimum Order

Our Price:

$2,880.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

APB-112 IW-D-USB - Overview

A Professional In-wall Active Press Conference Audio Distribution Amplifier!

The AudioPressBox APB-112 IW-D-USB distribution audio amplifier delivers broadcast quality audio and is designed for use in press conferences. It features one digital input from Dante network, eight analog audio outputs with indiviudal output level switch - MIC/LINE and four USB-C outputs**. There is no signal processing inside. All desired processing should be done in other devices (e.g. mixing console or DSP). The APB-112 IW-D-USB is perfect for fixed installations with an integrated Dante network.

** For iPhone and iPad with a lightning connector - a USB-3 Camera Adapter is needed together with a USB-A to USB-C cable.

  • Features:

    • 1-channel Dante input - RJ45

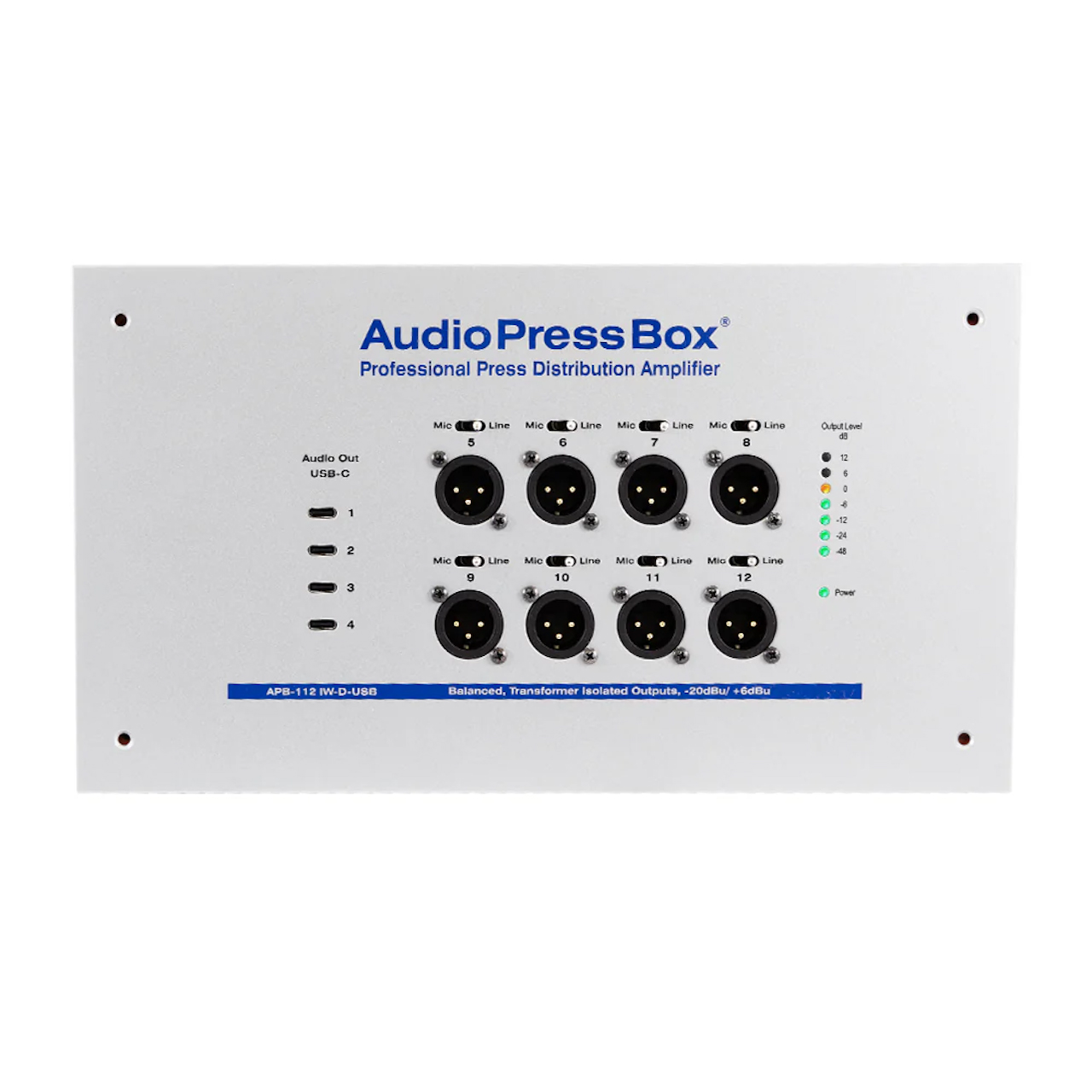

    • 8x high quality balanced and individually transformer isolated outputs
    • 4x Digital USB-C outputs
    • Each XLR Output is switchable between MIC or LINE output level

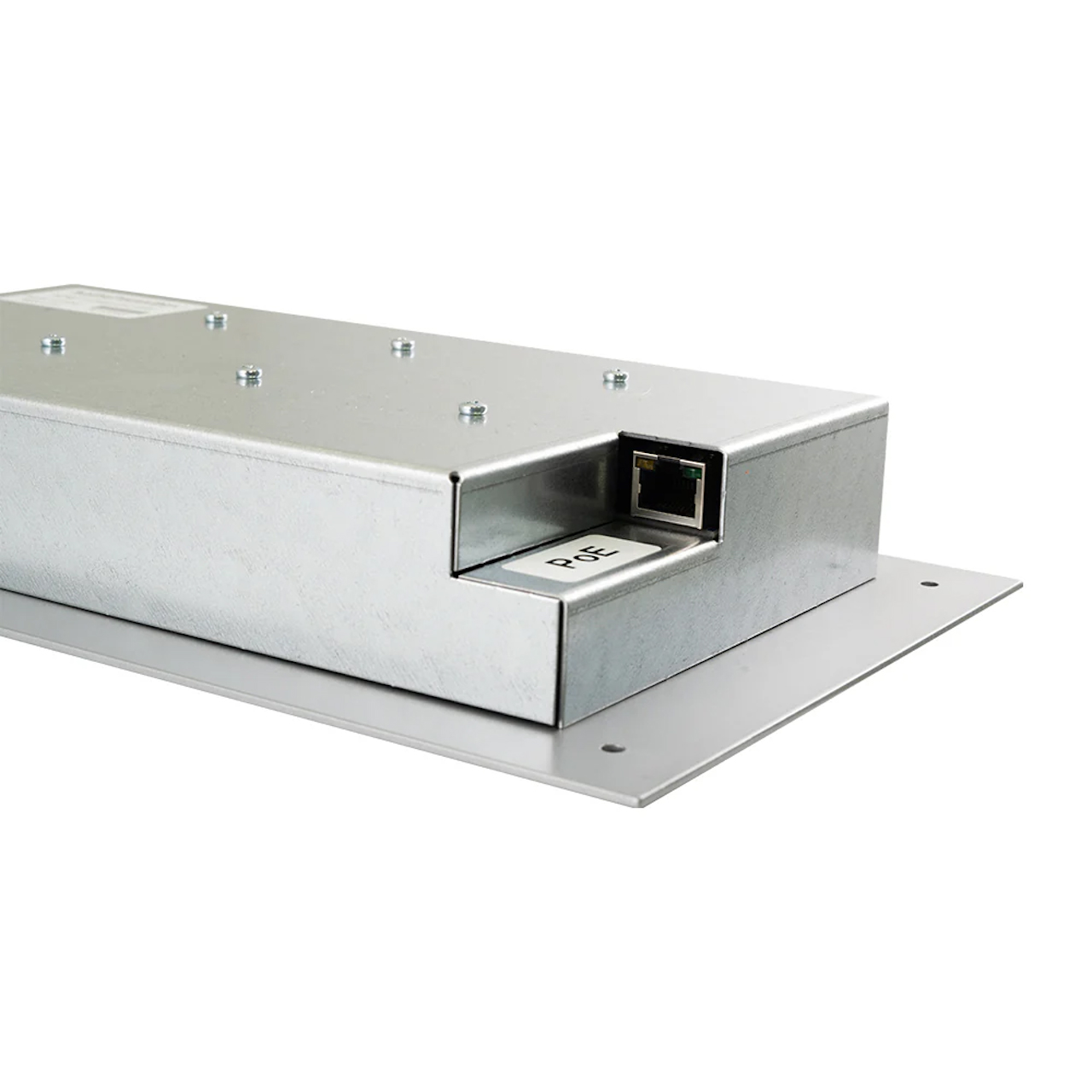

    • The unit is powered only via PoE from Dante network
    • Thanks to Dante patching you can easily expand number of channels or number of outputs by adding other APB-112 IW-D or APB-112 IW-D-USB units
    • The package also contains the scame flush mounting box
    • AudioPressBox delivers audio in broadcast quality


  • Specifications:

    • Type: 1 In 12 Out
    • Groups: 1

      Inputs
    • Inputs: 1
    • Input connectors: RJ45 - Dante
    • PoE Requirement: YES
    • Reference level: -18dBFS

      Analog Outputs
    • Outputs: 8 Line/MIC level
    • Output Connectors: Balanced, XLR
    • Nominal Output Level: +6dBu
    • Maximum Output Level:
      - +20dBu (no load)
      - +14dBu (600Ω)
    • Output iMpedance:
      - Mic: 220 Ω
      - Line: 600 Ω
    • Transformer Isolated Outputs: Yes (each output)
    • SNR: >70 dB
    • Frequency Response: 25Hz to 20kHz/-3dB

      Digital Outputs
    • Outputs: 4x USB Type C
    • Compliant USB Specification: USB 2.0
    • Supported Sampling Rates: 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
    • Bit Depth: 16-Bit
    • Interface Powering: Bus powered (from connected USB host device)
    • Charging Capability: No

      Indicators
    • Output Section: Output level, Power

      Power
    • Power Supply: PoE, Type 1, Class 3 (12,95W)

      Mechanical
    • Dimensions (WxHxD): 11.02" x 5.43" 1.97" (280 x 138 x 50mm)
    • Weight: 5.95lbs (2700 g)


  • Item Includes:

    • 1x AudioPressBox APB-112 IW-D-USB
    • 1x Test report

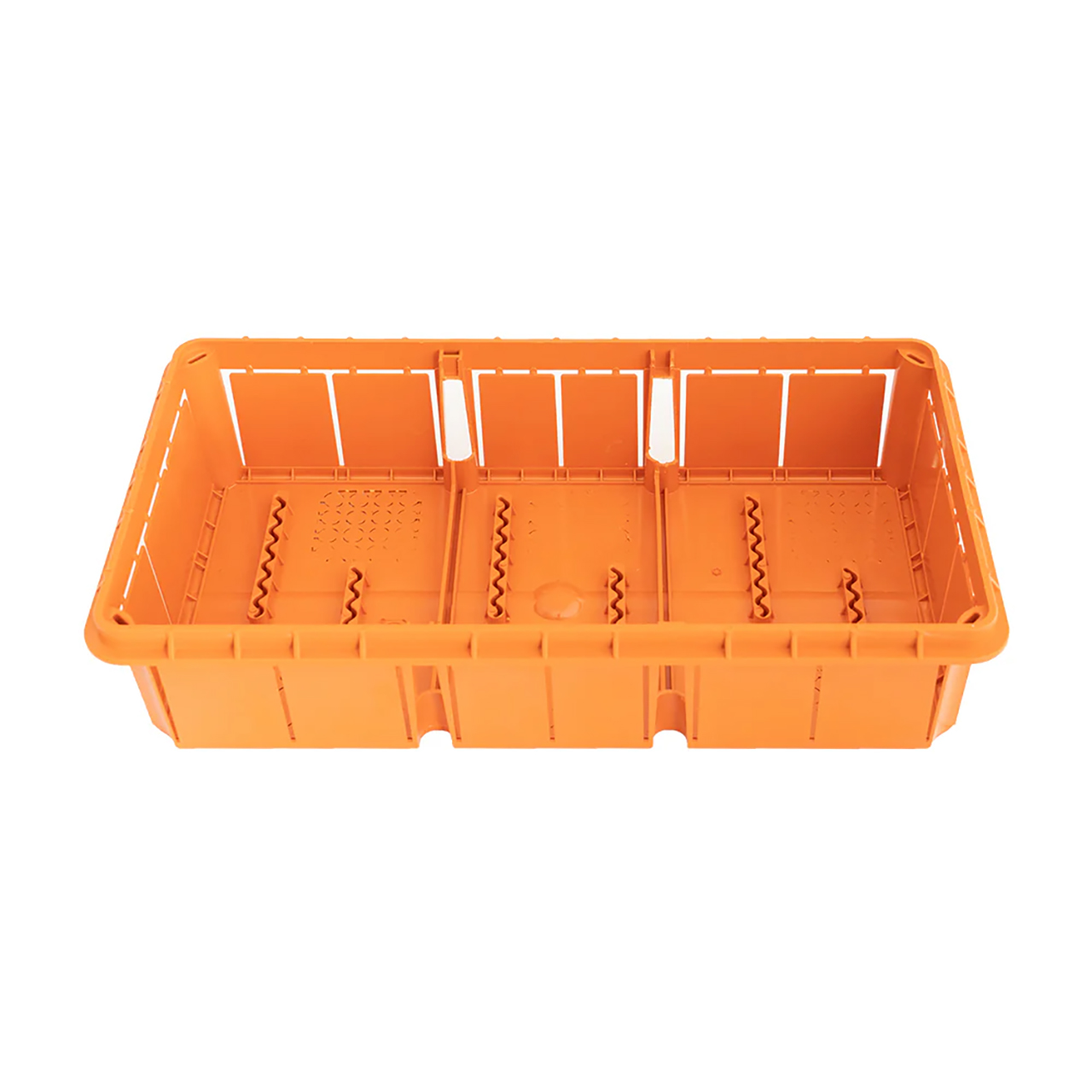

    • 1x Flush mounting box
