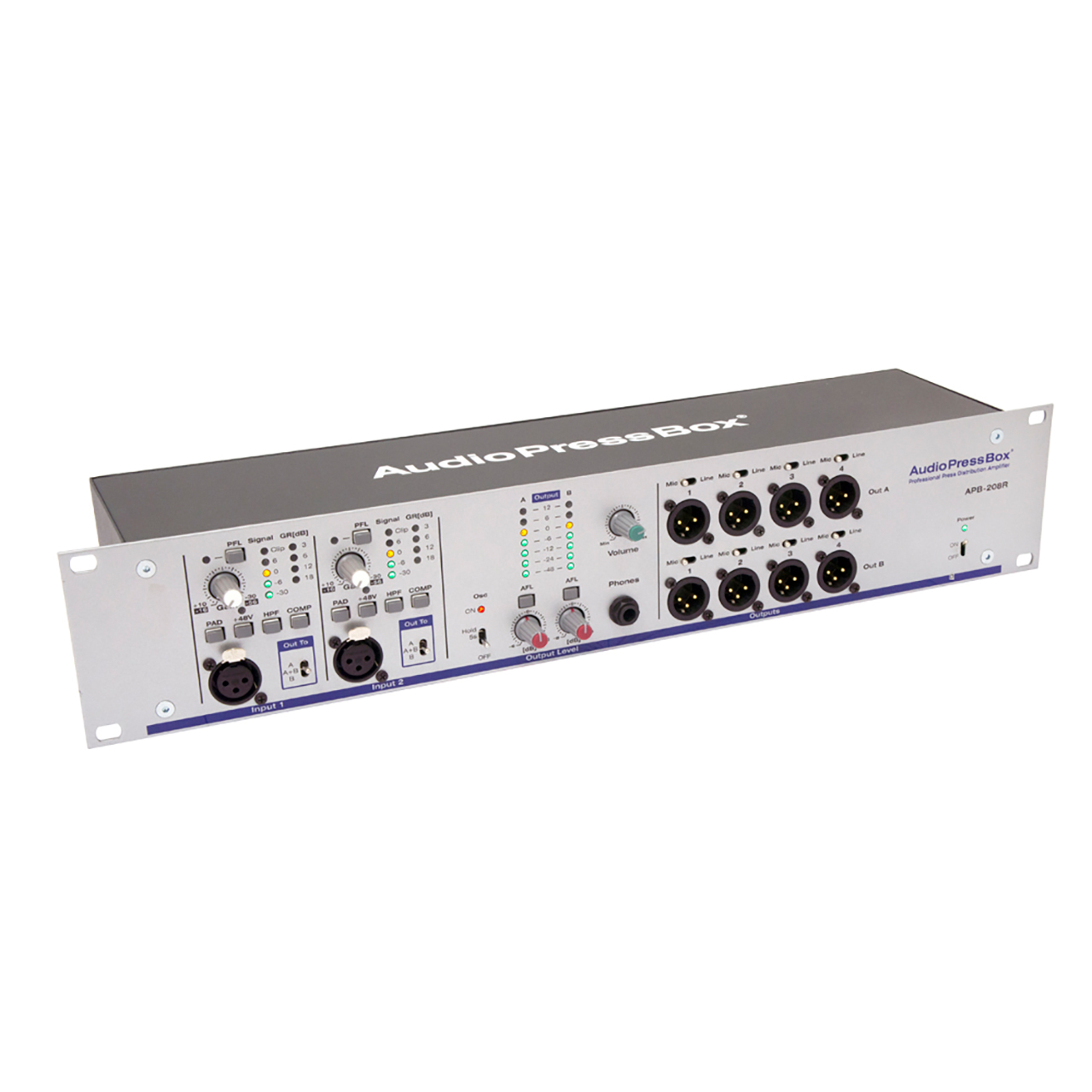

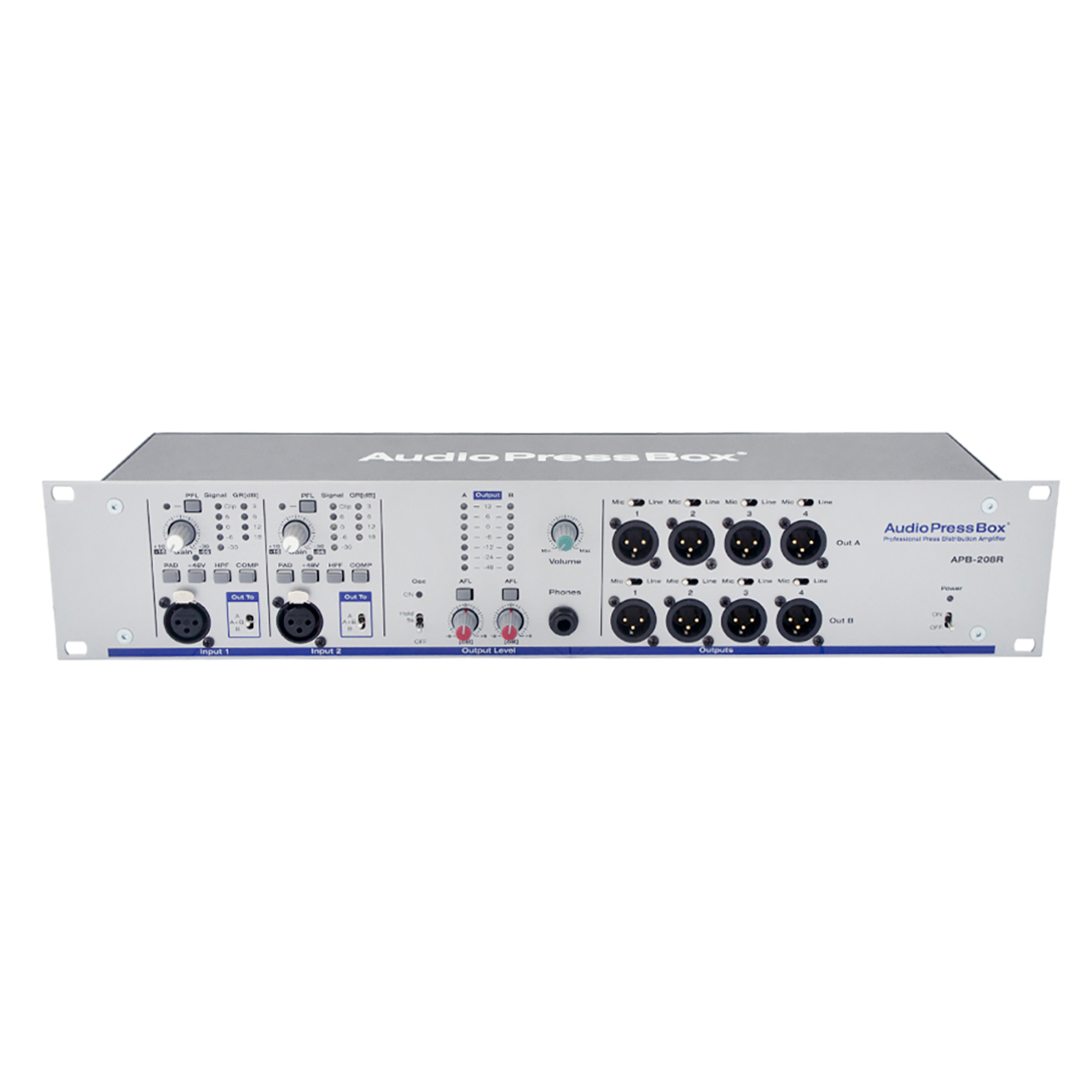

AudioPressBox APB-208 R 2RU 19-Inch Active Press Box Rack Distribution Amp - 2x MIC/LINE Routable In - 8x LINE/MIC Out

APB-208-R - Overview

Rack Design with 2 Routable Inputs (A, A+B, B), 8 Line/MIC Outputs, 4 Buffered Outputs for APB Expanders

• Features:

  • +48V - If you are about to use condenser microphone, turn Phantom power switch ON to feed your microphone with 24/48V. If you use dynamic microphone or microphone with his own power, you can switch this OFF
  • PAD 26dB - If you are using microphone as an input, this button should be set to "Off" position. If you are using input from the mixing console or CD player, please set this switch to "On" position

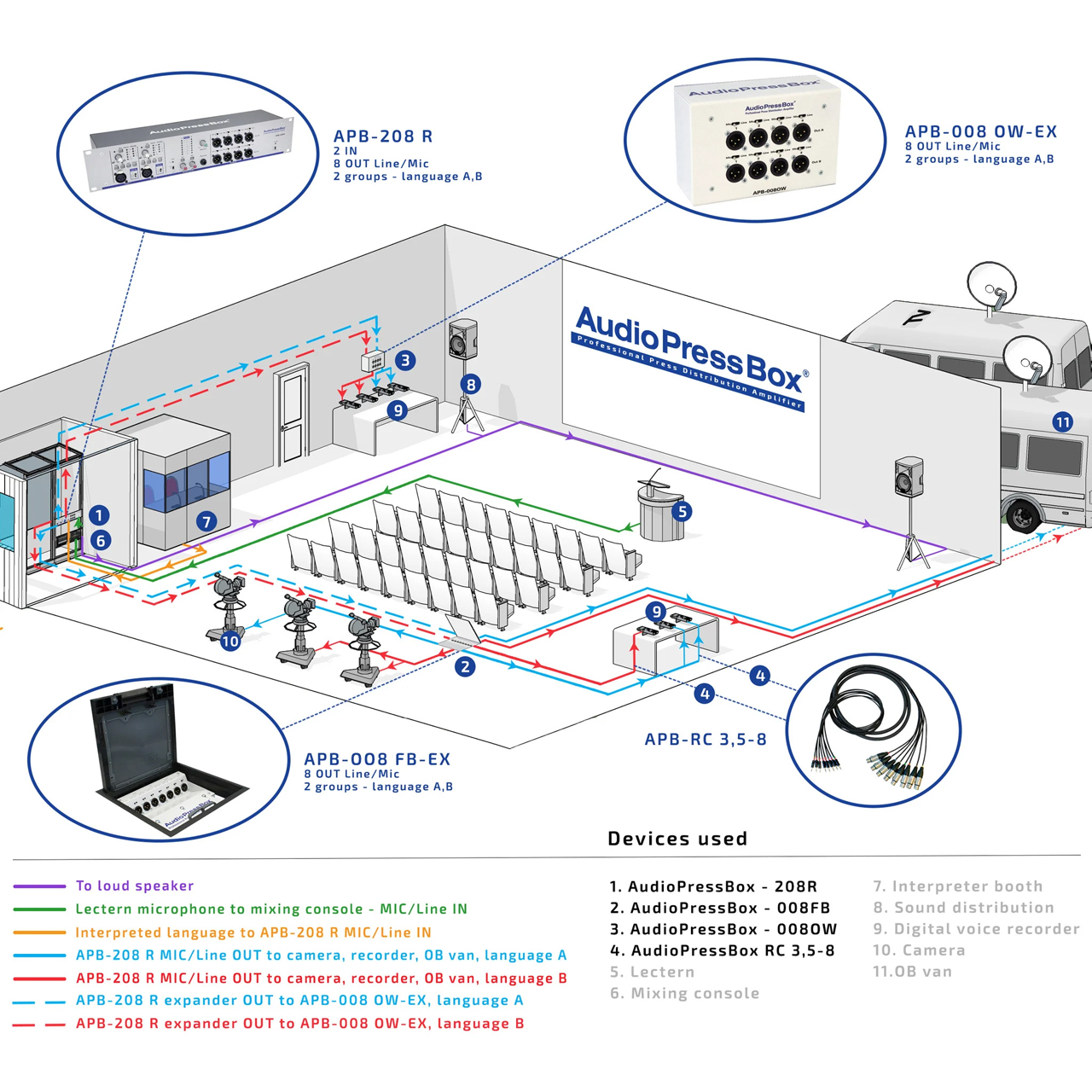

  • BUS - Routing switch Each microphone could be routed to 2 separated groups or to both groups at the same time. This is useful, if you have two (or four) lecterns and you want to route signal from each microphone (or group of 2 microphones) to separated tracks. Reporters can edit the recording easily, if they have both lecterns on separated tracks. You can label the outputs in the output extender with names of the lecterns or groups and reporters easily decide which group output they want to use
  • AFL - For better check your levels, you can isolate output from each group to your headphones. You can check the output levels of each group by hearing. Just push the button and you will hear output from particular group
  • PFL - To check your levels only for one input, push this button and you can see the level of output for corresponding input. You can easily see if all microphones have the good output levels and identify, if some of the microphones are too loud or too silent in the output
  • COMP (Compressor/Limiter operation button) - To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion
  • HPF (High Pass Filter) - This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options - full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out
  • OSC (Oscillator operation switch) - To test signal level, which is coming to the outputs, you can switch this Test 1kHz sine signal oscillator on. After recipients set the levels in their recording devices, you should switch this function OFF. When compressor switch is set to ON, output signal level won't exceed this maximum output level
  • Separately transformer isolated outputs
  • 24V DC Power Supply

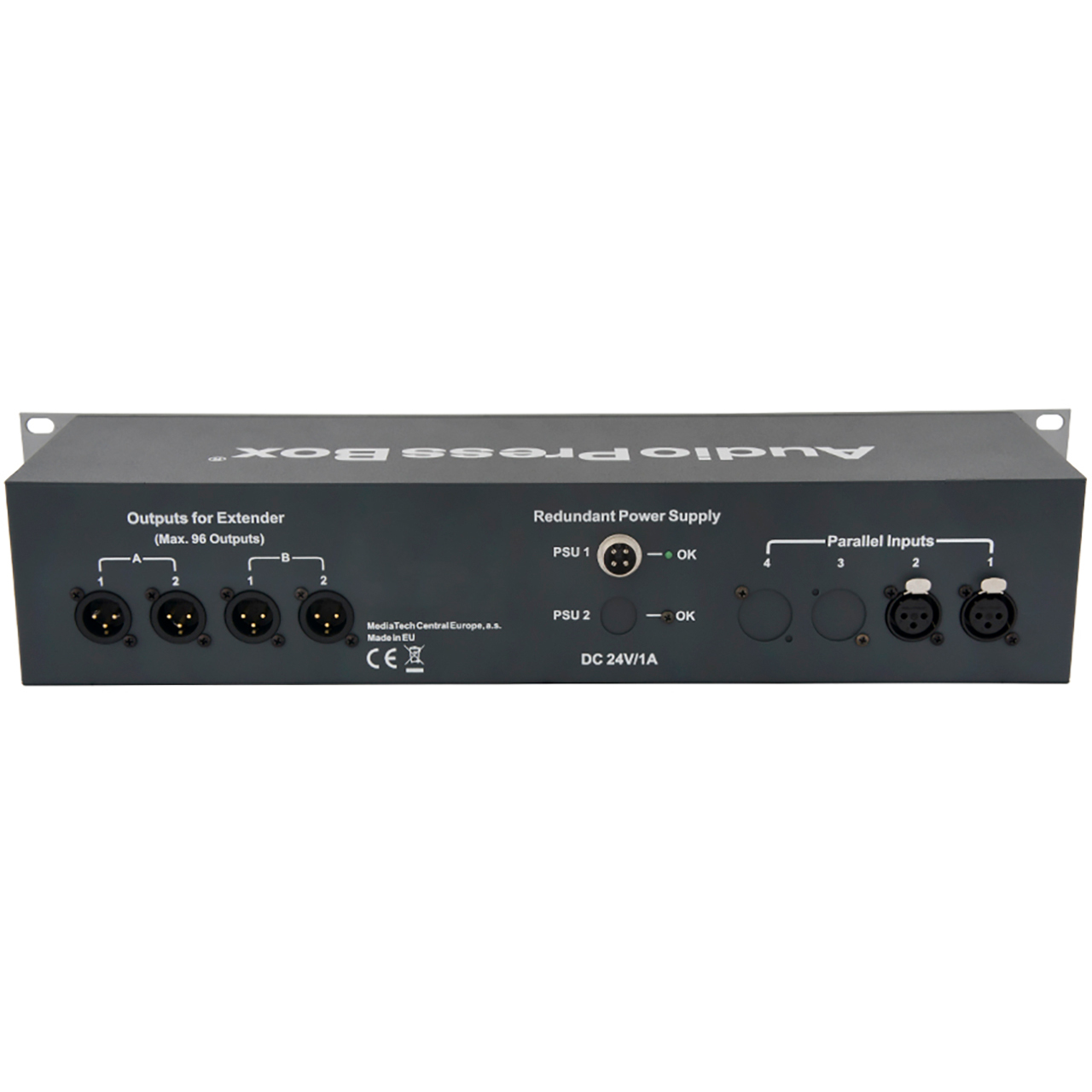

  • Driver 4x24 2 x bus A, 2x bus B buffered expander outputs


• Specifications:

  • Type: 2 in 8 out
  • Groups: 2

    Input Section
  • Inputs: 2
  • Input Connectors: Balanced, XLR
  • Input Gain:
    - MIC +22/+62dB
    - LINE -4/+36dB
  • Max. Input Level: Limiter ON
  • Mic: -10/-30dBu
  • Line: +36/-4dBu: Limiter OFF
  • Mic: -2/-42dBu
  • Line: +24/-16dBu
  • Phantom Voltage: 48V
  • Input Impedance:
    - Mic: 2,4kΩ
    - Line: 3,5kΩ

    Output Section

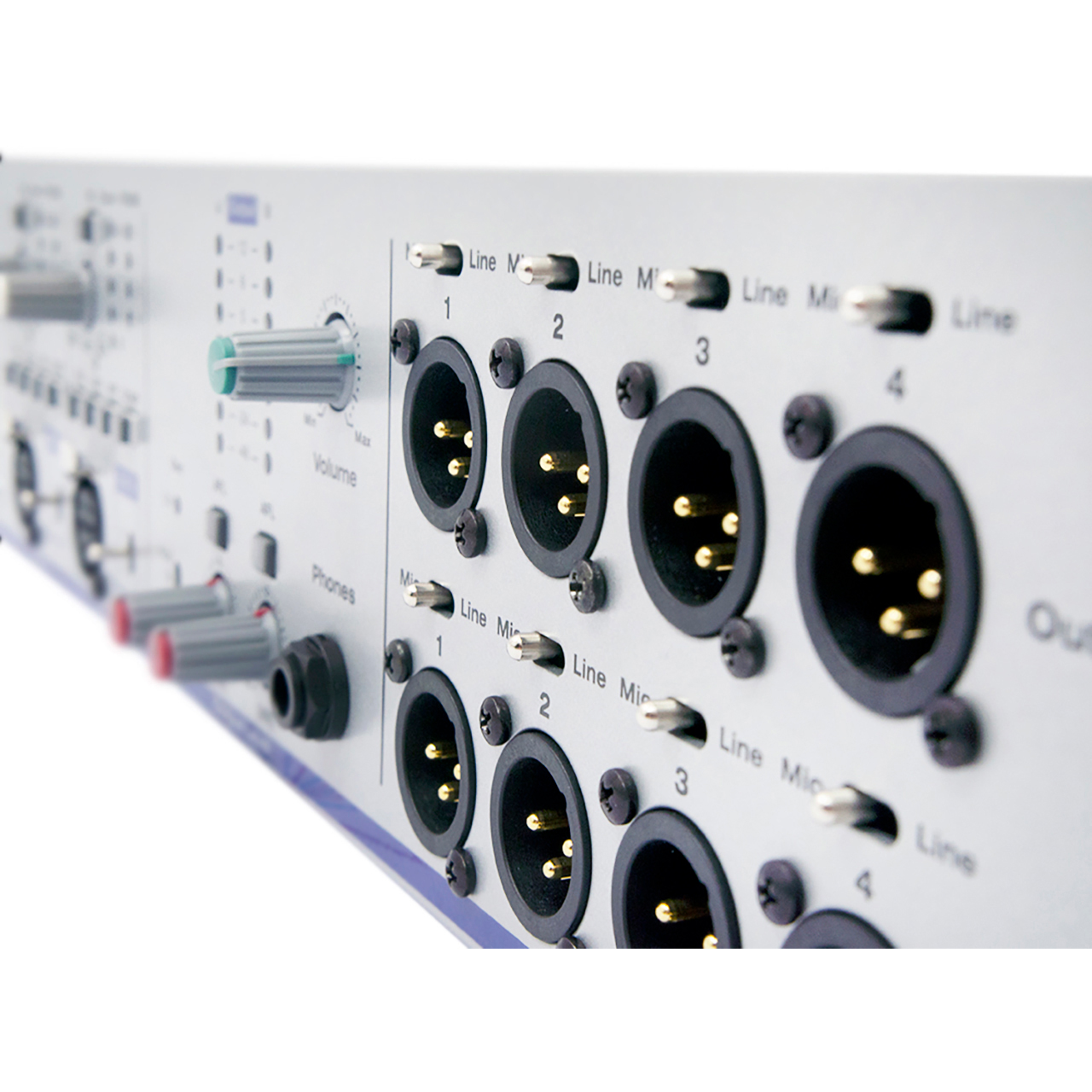

  • Outputs: 8 Line/MIC level (4x Output A, 4x Output B), 4x expander outputs
  • Output Connectors: Balanced, XLR
  • Nominal Output Level: +6dBu
  • Maximum Output Level:
    - +20dBu (no load)
    - +14dBu (600kΩ)
  • Output Impedance:
    - Mic: 220Ω
    - Line: 600Ω
  • Transformer Isolated Outputs: Yes (each output)
  • SNR: 86dB
  • Frequency Response: 30/160Hz (filter) to 30kHz/-1dB
  • Controls:
    - Input Section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switch
    - Output Section: Oscilator, Output level for bus A and bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
  • Indicators:
    - Input Section: Input clip, Phantom power, Input level, Gain reduction, PFL
    - Output Section: Output level for Bus A and Bus B, Oscilator, Power
  • Power Supply: 24V DC, 1A external adaptor

    Physical
  • Dimensions (WxHxD): 2 RU, 18.90" x 5.31" x 3.54" (480mm x 135mm x 90mm)
  • Weight: 7.12lbs (3230g)


• Item Includes:

  • 1x APB-208 R
  • 1x Power supply with mains cable
  • 1x Manual


• GTIN:

  0858800761417
