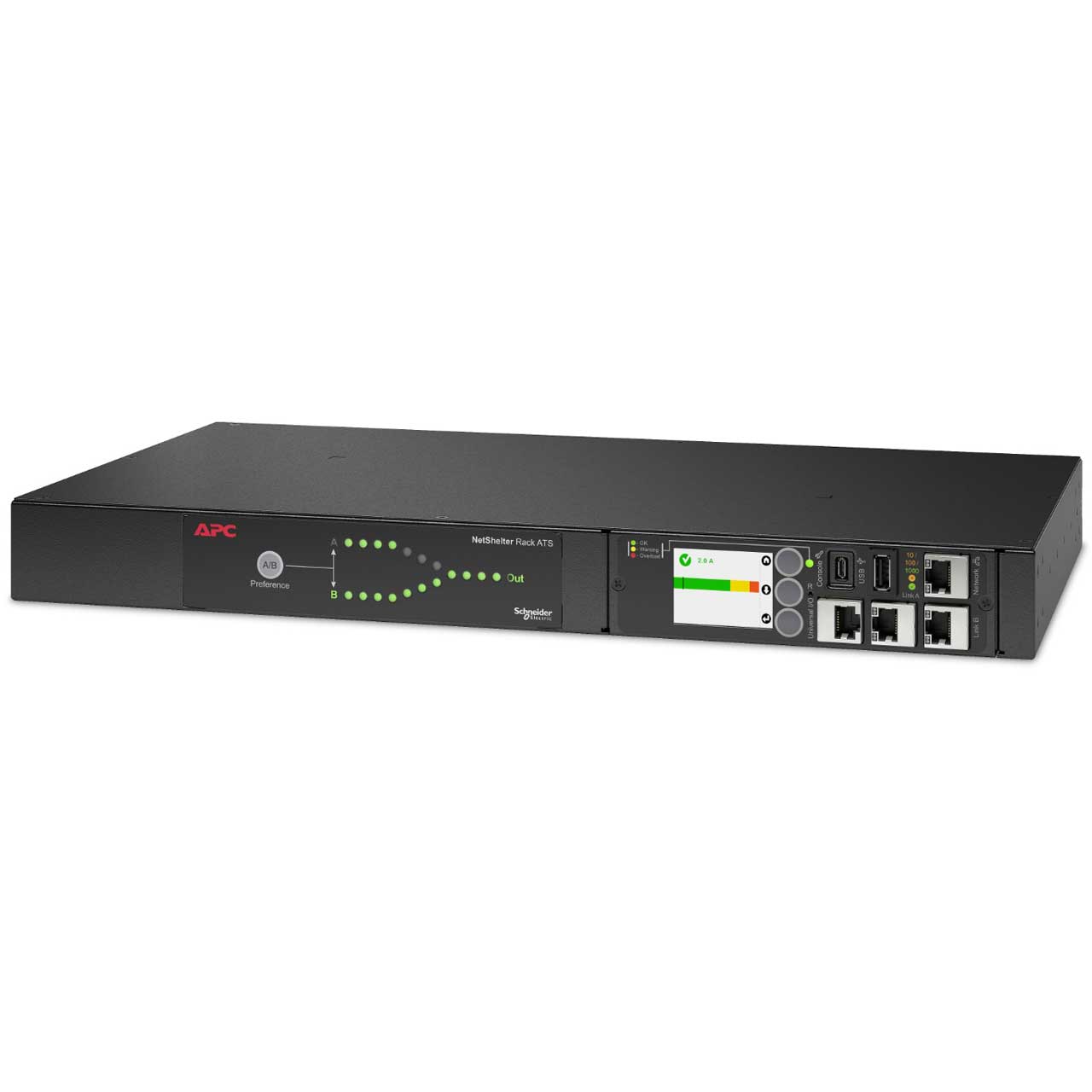

APC AP4452A Netshelter Rack Automatic Transfer Switch - 1U / 20A / 120V / 2x L5-20 IN / 10x 5-20R OUT / 50/60Hz

AP4452A - Overview

• Features:

  • Seamless switching with transfer time <10ms
  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address


• Specifications:

  • Main
  • Main Input Voltage: 120 V AC 1 phase
  • Product Or Component Type: Automatic transfer switch
  • Main Output Voltage: 120 V AC 1 phase
  • Input Connection Type: NEMA L5-20P 16 A 2P+E
  • Number Of Rack Unit: 1U
  • Cable Length: 8 ft (2.44 m)

    Physical
  • Color: Black
  • Dimensions: 1.73" x 17.01" x 9.29: (4.4 cm x 43.2 cm x 23.6 cm)
  • Weight: 9.70 lb(US) (4.4 kg)
  • Mounting Mode Rack-mounted
  • Mounting Position Horizontal

    Input
  • Input Frequency: 50/60 Hz
  • Line Rated Current: 20 A
  • Permissible Voltage: 108 - 132 V
  • Max Line Current: 20 A
  • Input Current Limits: 20 A
  • Load Capacity: 1920 VA

    Output
  • Maximum Total Current Draw Per Phase: 20 A
  • Number Of Power Socket Outlets: 10 NEMA 5-20R 16 A 2P+E
  • Protection Type: Without circuit breaker
  • Cord Length: 8.01 ft (2.44 m)

    Environmental
  • Ambient Air Temperature For Operation: 23 °F - 113 °F (-5 °C - 45 °C)
  • Relative Humidity: 5 - 95 %
  • Operating Altitude: 0 - 10000 ft
  • Ambient Air Temperature For Storage: -13 °F - 149 °F (-25 °C - 65 °C)
  • Storage Relative Humidity: 5 - 95 %
  • Storage Altitude: 0.00 - 50000.00 ft (0.15240 m)


• Item Includes:

  • 1x APC Automatic Transfer Switch
  • 1x Mounting Hardware
  • 1x Rack Mounting brackets


• Warranty:

  • 2-Year Warranty
