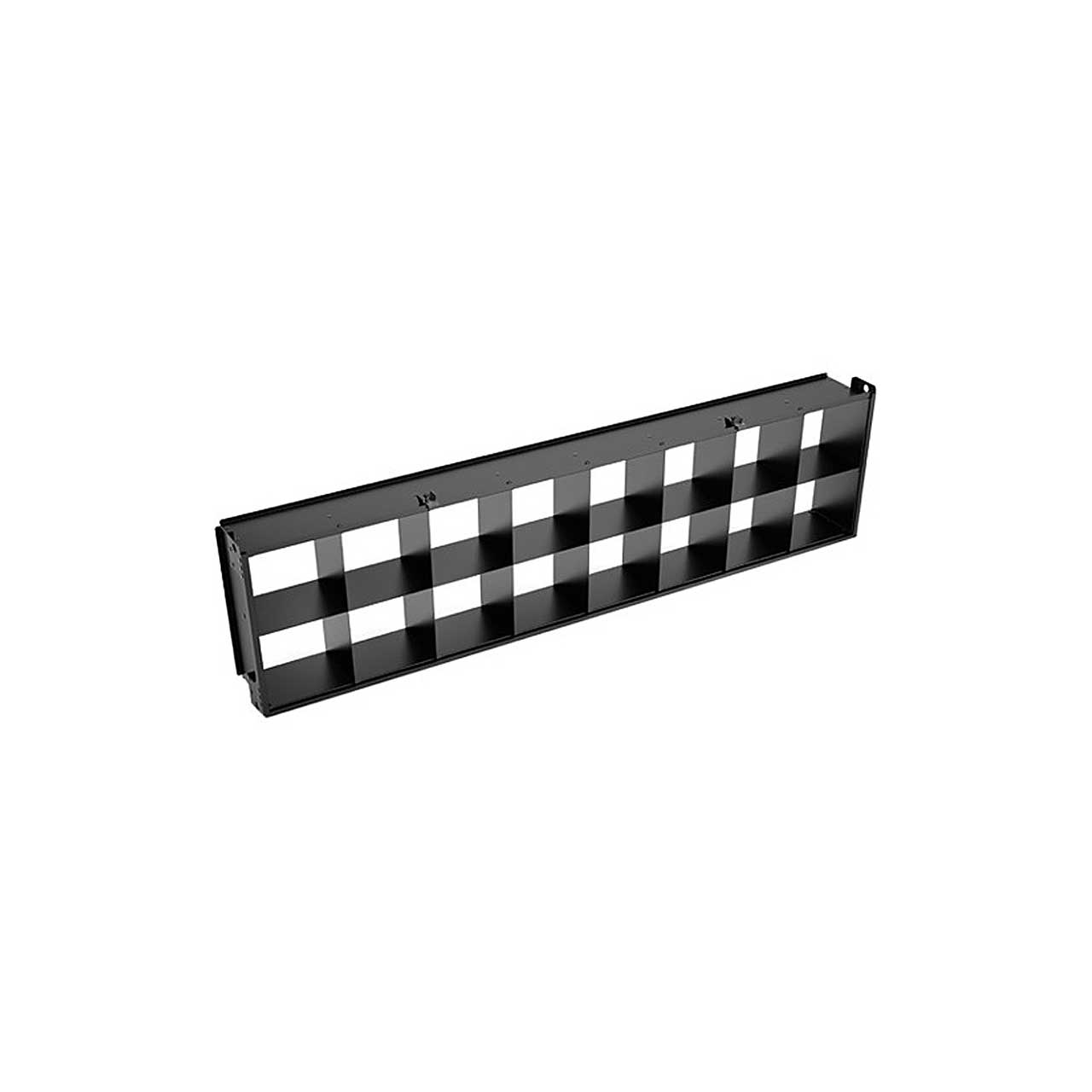

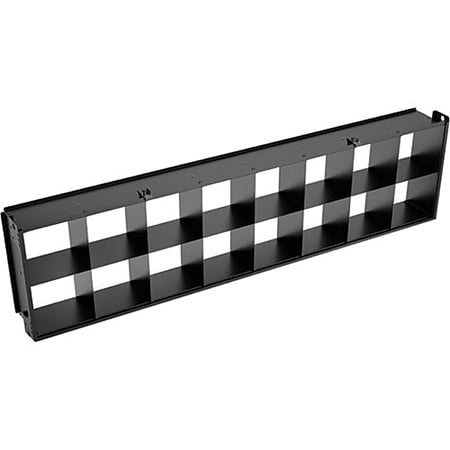

The 16-chamber L2.0009690 Eggcrate for the SkyPanel S120 is 130 mm thick (5.1 inches) and controls light by limiting the half peak angle to 60°.
With the new SkyPanel S120 joining the S60 and S30 family of products, the highly acclaimed ARRI SkyPanel series of LED soft lights is growing. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. Retaining the same features and color tuneability as its smaller counterparts, the S120 consumes less than 400 watts, yet it is slightly brighter than the S60-C and has an outstanding efficacy of 90 lumens per watt.
A large surface area is a crucial feature of a good soft light. With an aperture of 1290 mm x 300 mm (50.8" x 11.8"), the S120 outputs a beautifully soft, even beam of light that has a wide range of uses. The long aspect ratio wraps light around objects and is perfect for vertical lighting of people. In addition the S120 works well as an overhead light for large areas, with the increased dimensions meaning that fewer lights and less cables are required.
SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, color, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI.
Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Color) versions are fully tuneable; correlated color temperature is adjustable between 2,800 K and 10,000 K, with excellent color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible. The remote phosphor versions of SkyPanel are roughly 10% brighter than the color versions and have a lower price point.
Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last - constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.
The state-of-the-art light engines and electronics built into every SkyPanel have paved the way for a powerful new feature in SkyPanel Firmware 3.0: lighting effects. With SkyPanel Lighting Effects users can now choose and manipulate 12 effects without the need for a lighting console or hours of programming. Each effect has several parameters that allow for customization of the effect to fit your needs. The lighting effects include: candle, clouds passing, club lights, color chase, cop car, fire, fireworks, light strobe, lightning, paparazzi, pulsing, and television. SkyPanel Lighting Effects changes the game for on-set lighting effect generation.
