Arri Omnibar 2 Multi-Color LED Lighting Fixture Creator Set with 1x Omnibar 2 and Universal Power Supply - Blue / Silver

ITEM #: ARR-OMNI2CREATOR MFG #: LK.0055798

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$890.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


LK.0055798 - Overview

The ARRI Omnibar is a battery-powered, multi-color LED linear lighting fixture that combines unparalleled versatility and advanced functionality for creators, filmmakers, broadcasters, and event professionals. Compact, robust, and waterproof, Omnibar excels in both indoor and outdoor environments, offering exceptional convenience, reliability, and workflow efficiency for a variety of applications.

Users can combine and daisy-chain multiple units with minimal visible gaps. With this modular daisy-chaining capability, up to six 4ft or twelve 2ft Omnibars can share a single power and data source, reducing setup times and minimizing the need for extra long cables. Designed for quick and effortless setups, Omnibar features flexible rigging options that save valuable time and reduce complexity for professionals in dynamic production settings. Its front-loaded, magnetically fixed, and easily interchangeable optics empower users to customize their lighting to meet specific requirements. With its intuitive design, the Omnibar is engineered for advanced connectivity and control. The fixture is compatible with all industry standard control systems and is adaptable to diverse user preferences.

  • Features:

    • Linear IP65 LED light with magnetically interchangeable optics & extensive practical mounting options
    • RGBMA color mixing
    • CCT range from 1700K to 20,000K
    • Versatile color modes, new Pixel effects & cinematic lighting effects matching SkyPanel
    • Battery powered - allows operation up to 24 hours
    • Built-in CRMX & Bluetooth for wireless control
    • Wired DMX control via Omnibase
    • Omnibase supports daisy chaining and up to 6 DMX universes

  • Specifications:

    • Power Consumption: 25W
    • Aperture (Open Face): 23.86" x 1.65" (606mm x 42mm)
    • Pixel Zones: 16
    • Color Engine: ARRI RGBMA
    • Optical System: Magnetically changeable optics
    • Beam Angle:
      - Open Face 115°
      - Round Diffuser 145°
      - Flat Diffuser 130°
      - Intensifier 60°
    • Battery Runtime: Up to 24 Hours (2 hours max brightness)
    • Battery Capacity: 49Wh
    • Battery Charging Time: 2 Hours
    • Battery Health: >70% after 300 charge cycles
    • Mounting:
      - 2x Built-in Magnetic Connection Points
      - 5x Built-in Cable Slots (2x Ends, 3x Body)
      - Omnigrip + Omnipin (1.125"/28mm pin)
      - Omniclip
      - Mini Tripod
      - Eyebolt
    • Mains Power Connection: 100V - 240V, 50/60Hz Universal Power Supply Charger with 5.5mm x 2.1mm Barrel Connector
    • DC Voltage Range: 24V 2.1A
    • DC Connector: 2x Barrel Connector, 5.5mm x 2.1mm (1x In, 1x Out)
    • White Light: Calibrated 1700K to 20,000K continuously variable correlated color temperature
    • Color Modes: CCT, HSI, RGBMA, X/Y coordinates, gel selection, cine & pixel effects
    • Color Temperature Tolerance: 3200K - 5600K: ±150K (nominal), ±1/8 Green-Magenta (nominal)
    • High Color Rendition Mode: 3200K - 5600K:
      - CRI average > 98
      - TLCI average > 98
      - TM-30 average > 93
    • Green-Magenta Adjustment: Continuously adjustable between full minusgreen to full plusgreen
    • Dimming: Smooth, 100% - 0%, continuously, linear/exponential/logarithmic
    • Wired Connectivity: DC In, DC Out, USB-C
    • Wireless Connectivity: Bluetooth, CRMX
    • Bluetooth Mesh: ARRI Bluetooth Mesh Protocol Support
    • Control Options: DMX 512 (8 & 16 bit) via Omnibase, wireless control via LumenRadio CRMX1 (DMX), Art-Net, sACN, ARRI Bluetooth Mesh Protocol
    • Housing Color: Blue/Silver
    • Weight: 2.9lbs (1.3kg)(without Optics)
    • Dimensions: 23.98" x 1.76" x 1.57" (609mm x 44.6mm x 40mm)
    • Ambient Temperature:
      - Operation: 32°F - 104°F (0°C - 40°C)
      - Boost Mode: 32°F - 77°F (0°C - 25°C)
    • Protection Class: II
    • IP Rating: IP65
    • Estimated LED Lifetime (L70): 50,000 Hours
    • Certifications & Declarations of Conformity: CB, CE, FCC, ENEC, ICID, ETL, PSE, MIC, SRRC, RCM, RoHS 2.0, REACH, UN38.3

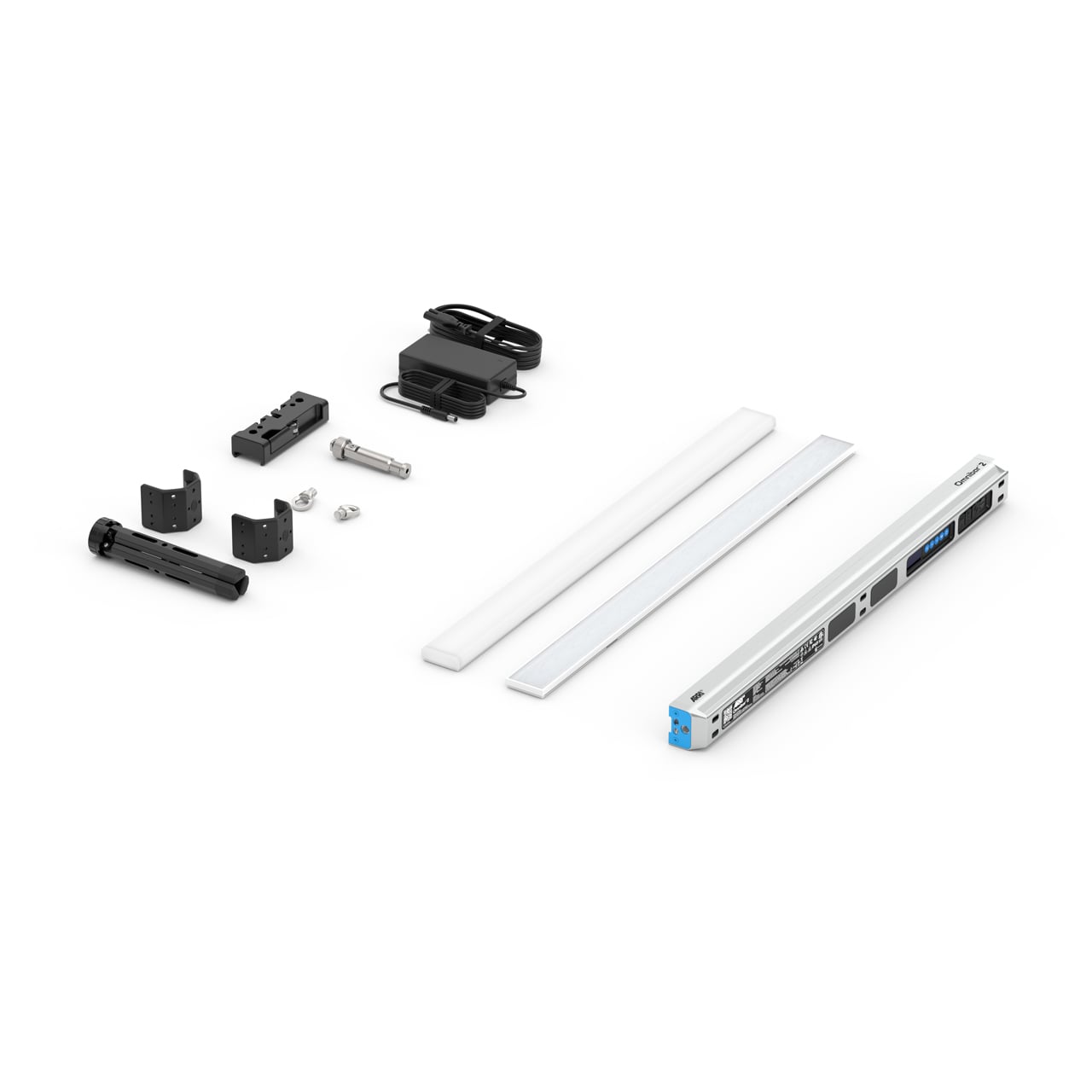

  • Item Includes:

    • 1x Omnibar 4
    • 1x Flat Diffuser
    • 1x Intensifier
    • 1x Omnigrip
    • 1x Omnipin
    • 2x Omniclip
    • 1x Mini Tripod
    • 2x Eyebolt
    • 1x Universal Power Supply/Charger

  • Warranty:

    • 2 Year Warranty
