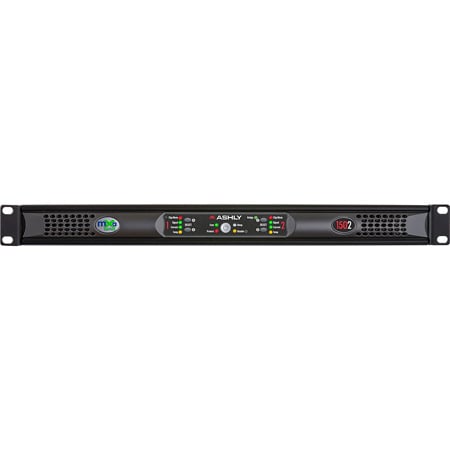

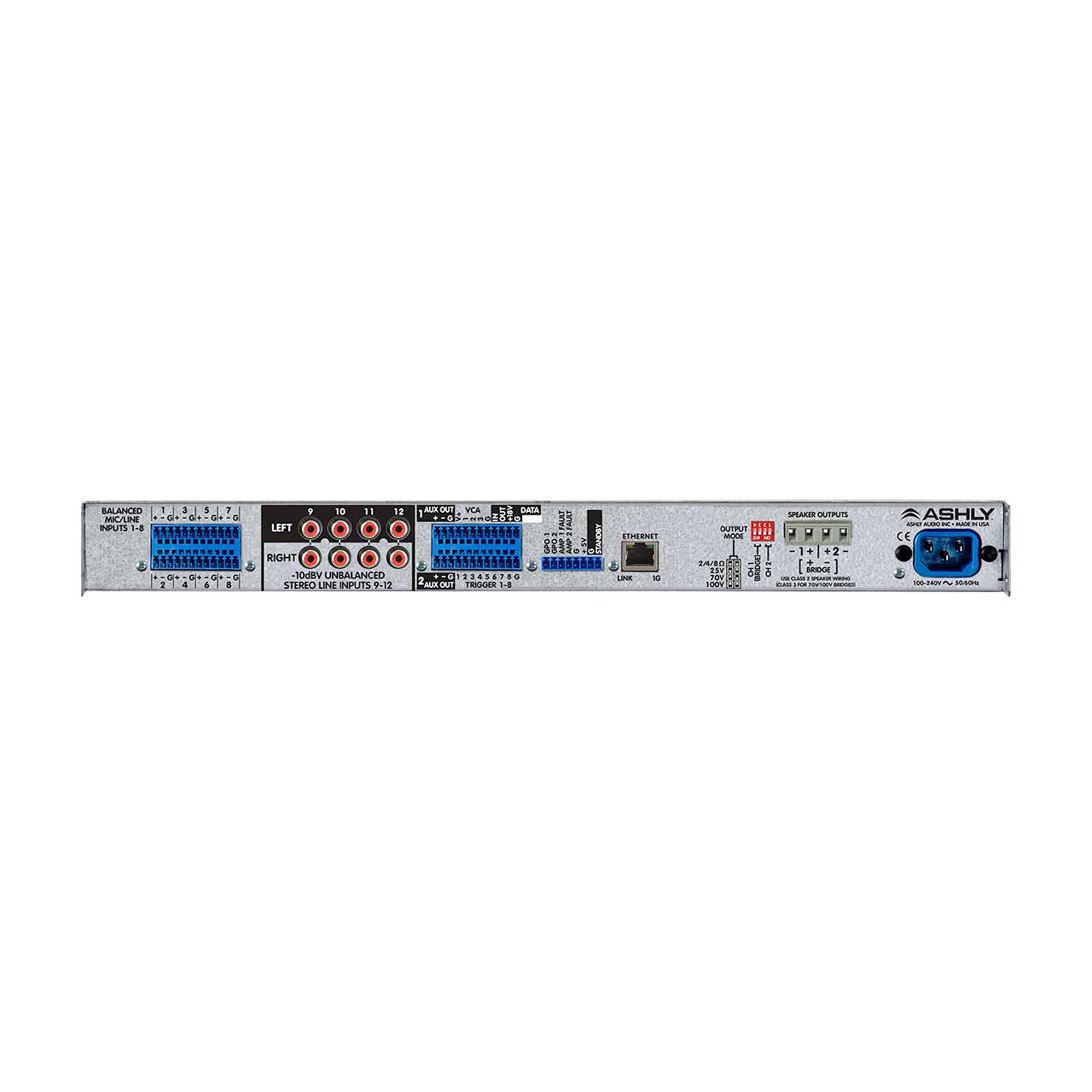

Ashly Audio mXa-1502 4-Zone DSP 16x4 Mixer & 2-Ch Amplifier with AquaControl Software

ITEM #: ASH-MXA-1502 MFG #: MXA-1502

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    MXA-1502 - Overview

    The Ashly Audio mXa-1502 with AquaControl™ provides total control over four separate zones with a rich compliment of digital signal processing, including routing, auto-mixing, ducking, amplifier monitoring, event scheduling/triggering and more. All through our easy-to-use AquaControl™ that doesn't require a week of tutorials to understand and configure. It lets you and your customers navigate using virtually any browser-enabled device. Trouble-shoot or re-configure it without having to travel to the client location. It's built-in 2 x 150W multi-mode amplifier can accommodate a range of applications out of the box, while expanding the system with the mXas2 AUX outputs is an easy task.

    The mXa-1502 runs on Ashly's next generation AquaControl™ web-server based interface, which means it functions with virtually any networked PC or mobile device, any OS. Nothing to install. And, it incorporates most of the familiar features found in our legacy PnES DSP software, including:

    - Auto-Mixing
    - Ambient Noise Control
    - Comprehensive Event Scheduler
    - The usual collection of Dynamics, EQs, Filters, Delays.

    And have even added a few things, like..

    - Input & Output Template Import & Exporting
    - Advanced Priority Ducking
    - Remote Control Page with the new Virtual WR-5 wall remote
    - And much more

    Designed for Most Applications
    The mXa-1502 was engineered with working contractors and integrators in mind. Built to fit the widest range of most common applications, you know-the ones you do the most of and want to complete quickly and efficiently. This single unit with all the right features and all the right connections, with any easy, flexible user interface means less time spent selecting products, programming and installing and more time devoted to capturing new opportunities.

    • Features:

      • 8-balanced Mic/Line Inputs
      • Precision Class A mic preamp design
      • 4 Stereo Line Inputs
      • 4 Outputs
      • 2 x 150W Class D Amplifiers with selectable Multi-mode operation (2/4/8 Ohm + 25/70/100V)
      • Four convenient front-panel buttons for source/preset select
      • Scheduler and RTC (Real-Time Clock) allows user-defined automatic, timed activation of various operations
      • Generous integration I/O, including: Network, Serial, GPIO, VC, Standby & Fault (works with the WR-1, WR-1.1, WR-1.5, and WR-2 remotes)
      • Compact 1U design reduces rack space requirements
      • New, advanced Ashly AquaControl™ software allows easy and convenient access from many browser-based devices. No app to install! Comprehensive DSP includes:
      • Inputs
        - Programmable Analog Mic Preamps, Phantom Power On/Off, Gain with Link Group Assign and Polarity switch, Remote Gain, DVCA Gain, Meter with Peak Hold Equalizers, 31-band Graphic - Constant or Proportional Q, 10-band Parametric EQ + HPF / LPF, Signal Generator, Delay
      • Dynamics
        - Compressor, Auto Leveler, Clip (Brick Wall Limiter), Gate, Matrixing, Automixers, Ducker
      • Outputs
        - 31-band Graphic - Constant or Proportional Q, 10-Band Parametric, FIR Filters, 2/3/4-way Crossover, Ambient Noise Control, Delay, Dynamics (same as Inputs), Signal Generator, Meter with Peak Hold
      • Event Scheduler (Calendar)
      • Event Logs
      • Reports
      • Compatibility
      • Windows® OS 10, Mac™ OS 10 and later, Linux Web Browsers, Chrome for Windows®, OS X, iOS, Android®, Safari for OS X, Edge for Windows®
    • Specifications:

      • Number of Input Channel: 16 (8 Balanced Mic/Line, 4 Unbalanced Stereo Line)
      • Number of Output Channels: 4 (2-Powered, 2-AUX Line)
      • Amplifier Power Output: 2 X 150W @2/4/8 Ohms & 25/70/100V. 300W Bridged
      • Damping Factor: >250 (8 Ohm load <1kHz)
      • Distortion (SMPTE, typical): <0.5%
      • Distortion (THD-N, typical): <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)
      • Channel Separation -75dB: (dB from full output, 1kHz)
      • Signal-to-Noise (unweighted): >99dB (20Hz-20kHz, Gain@26dB)
      • Frequency Response: 20Hz-20kHz, ±0.05dB
      • Balanced Input Connector: Euroblock 3.5mm
      • Input Impedance: 10k Ohms
      • Maximum Input Level: +21dBu
      • Speaker Output Connector: Euroblock 7.62mm
      • Nominal Voltage Input: 100 - 240VAC
      • Operating Range: 70 - 270VAC
      • Power Supply Type: SMPS with active PFC
      • AC Mains Line Cord Connector: Detachable Nema 5-15 for USA
      • Control Network: RJ-45 connector, 1GB Ethernet
      • AUX Output Connector: Balanced Euroblock 3.5mm
      • AUX Output Maximum Level: +21dBu
      • Data Connection: Euroblock 3.5mm - Gnd, +18V, Data Out, Data In
      • Fault Condition Logic Outputs: Euroblock 3.5mm - fault indicated by loss of 1Hz "heartbeat" pulse signal
      • Remote DC Level Control: Euroblock 3.5mm - Gnd, CV, V+ per input
      • Amplifier Protection: Shorted output power limiting, over-temperature, DC-output, power-supply fault, mains-fuses & inrush-current limiting
      • Cooling: Continuously variable temperature controlled fan
      • Unit Dimensions: 19"W x 1.75"H x 14.54"D (483mm x 45mm x 369mm)
      • Dimensions: 25.2"W x 2.5"H x 19.5"D / 641mm x 64mm x 495mm
      • Weight: 13.0 lbs (5.4 kg)
    • Item Includes:

      • 1x Mxa1502 DSP Mixer/Amplifier
      • 1x AC Cord & Removable Euroblock connectors
    • Warranty:

      • 5 Years Parts and Labor
    • Applications


      • Retail
      • Hospitality
      • Schools and Colleges
      • Huddle Rooms
      • Office/Warehouses
