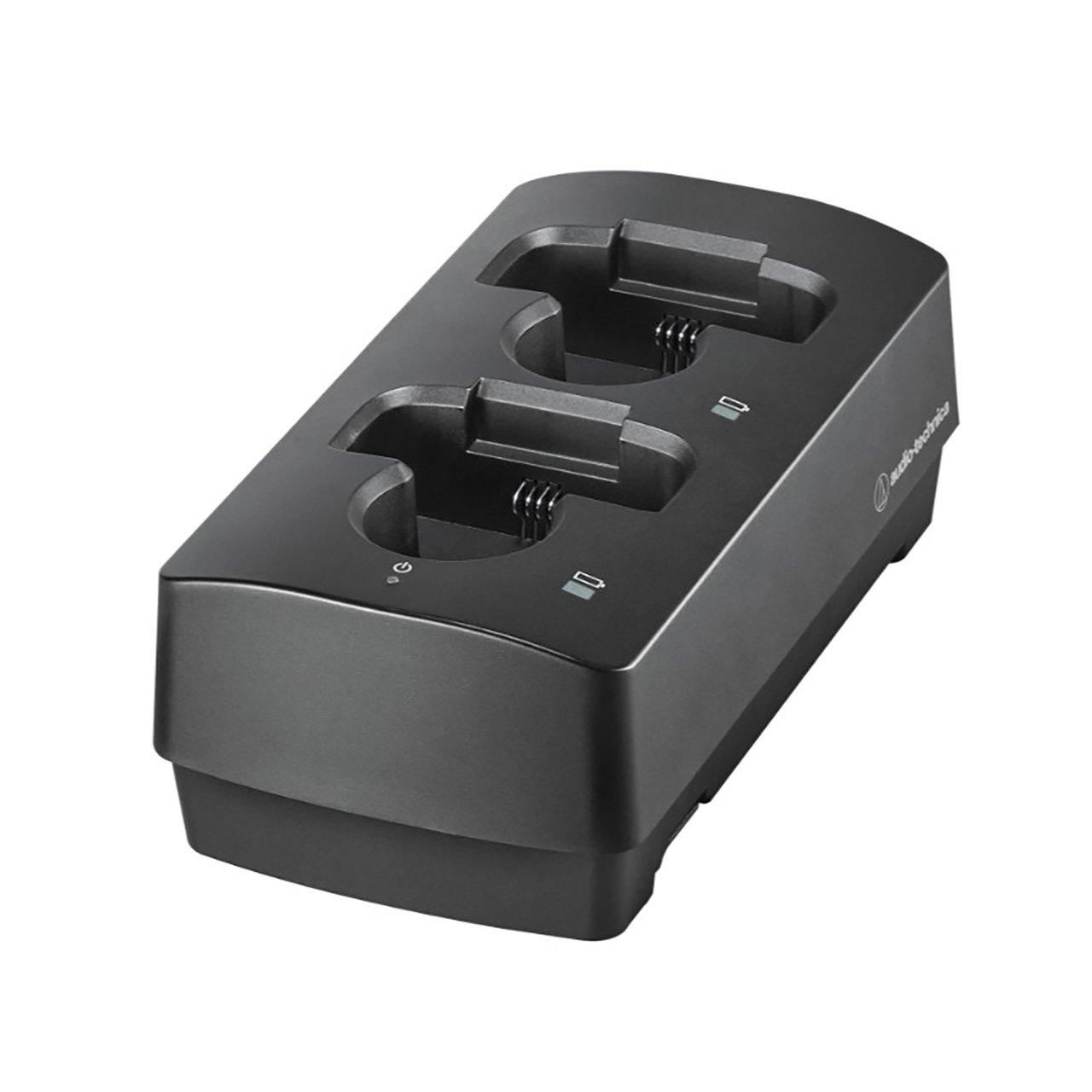

Audio-Technica ATW-CHG3NA Networked Two-Bay Smart Charging Dock for 3000 Series TX 3000 Series RX & System Pro 20 TX

ATW-CHG3NA - Overview

• Features:

  • Two-bay charging station for use with for use with 3000 Series transmitters, 3000 Series IEM receiver, and System 20 PRO transmitters
  • Charges NiMH batteries (not included) while they are housed within a transmitter
  • Automatically shuts off if alkaline or damaged batteries are detected
  • Indicator LEDs for easy monitoring of power and charging status
  • Up to five ATW-CHG3NA/ATW-CHG3A charging stations can be linked and powered by a single power supply (using AT8687 link kit and AD-SA1230XA AC adapter, sold separately)

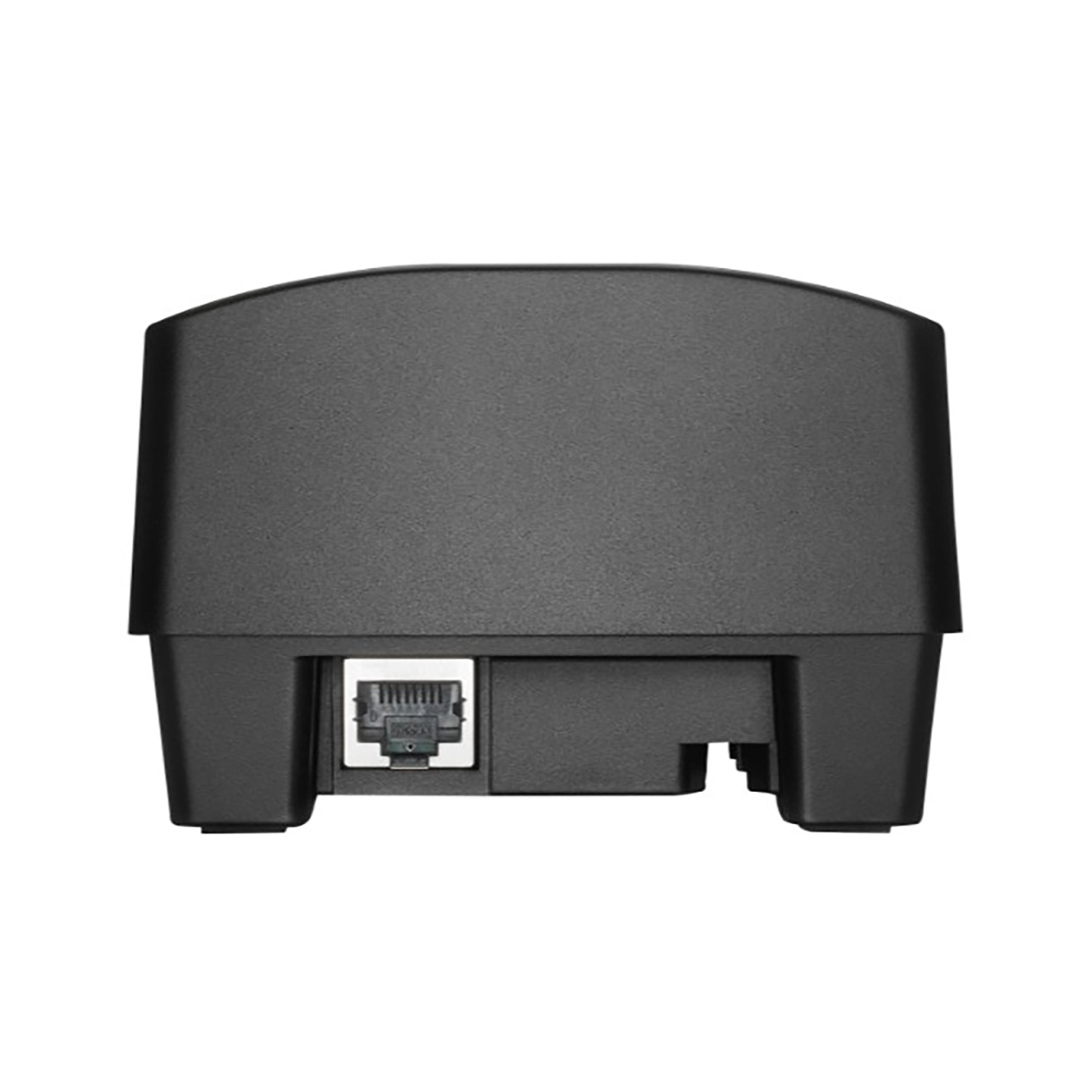

  • ATW-CHG3NA connects to a network (via standard Ethernet cable), allowing the charging status of all transmitters in linked stations (both ATW-CHG3NA and ATW-CHG3A) to be monitored through the dedicated Audio-Technica app or third-party software
  • Transmitters power off automatically when placed in the charging station and power on automatically when removed


• Specifications:

  • Power Requirements: 12V DC 3.0A
  • Charging Output: 3.6V DC 500mA (x2)
  • Power Consumption:
    - 5.3W (when 2 transmitters are charging)
    - 27.8W (when CHG3NA and four CHG3A units are connected and 10 transmitters are charging)
  • Charging Time: Approx. 6.5 hours (1,900mAh rechargeable battery) Depending on battery type and use pattern.
  • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
  • Dimensions (WxDxH): 7.28" x 3.90" x 2.70" (185mm x 99mm x 68.5mm)
  • Net Weight: 15oz (415g)
