Audio-Technica ES964 Tri-Capsule Tabletop Microphone Array with Touch Controls

ITEM #: AT-ES964 MFG #: ES964

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ES964 - Overview

The Audio-Technica ES964 is a compact boundary microphone array that is simple to install and provides clear audio for multi-person conference environments. This microphone is designed for small-group online conferences, and for businesses that are considering installation or expansion of shared or permanent conference spaces. With its low-profile design, the microphone takes up minimal space on a tabletop, but still captures clear, natural sound for online calls.

The ES964 has one omnidirectional capsule and two bidirectional capsules that can be matrixed into discrete directions and varying polar patterns. Designed to work with compatible mixers such as Audio-Technica Digital SmartMixersr or with an open-architecture DSP, the microphone will provide 360-degree hypercardioid and cardioid polar patterns around the microphone for simultaneous pickup of all participants seated at the table.

Intuitive touch controls enable users to mute audio or trigger a logic point from any of the three separate buttons on the mic. The buttons are accessible to meeting participants in multiple seating positions.

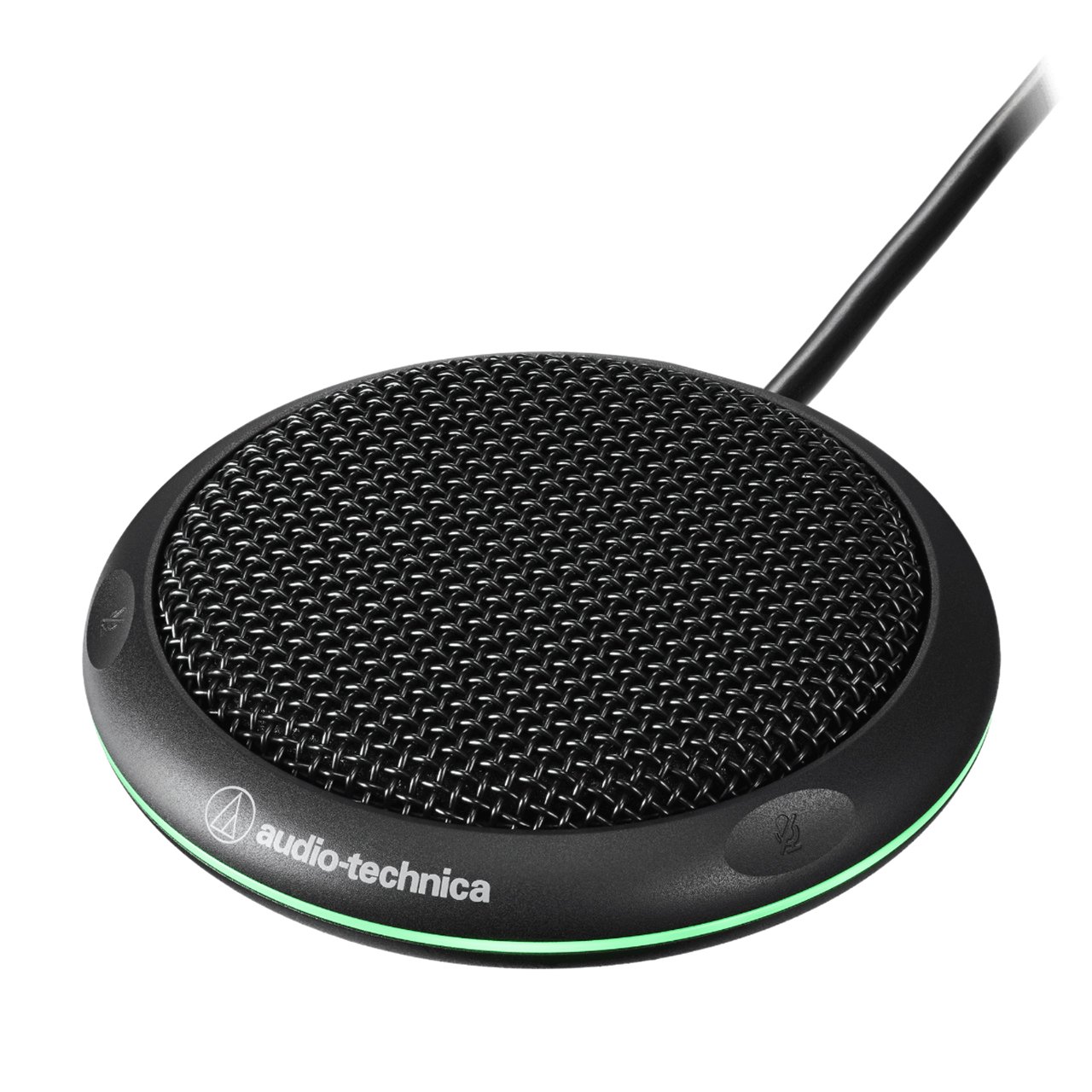

The LED ring also provides immediate indication of the microphone's ON/OFF/MUTE status and can be customized using seven different colors to match the design of your brand or office space.

Optimal Audio for Small Groups
The tabletop ES964 boundary microphone array is the ideal, cost-effective solution for small meeting spaces, combining clear, natural sound with convenient touch controls.

Tri-Capsule Steerable Microphone Array
Designed for use with the Audio-Technica Digital SmartMixers and other compatible mixers, the ES964 provides 360-degree coverage through virtual hypercardioid or cardioid polar patterns to pick up all participants seated around a table.

Saves Space
With a 3.5" diameter and height of less than an inch, the ES964 provides professional audio capture without taking up a lot of much-needed space.

Simple to Use, Simple to Install
For meeting rooms that can't support a hanging microphone array, the ES964 offers a simple-to-install tabletop solution for multi-person audio capture.

  • Features:

    • Hypercardioid and cardioid polar patterns can be formed 360° around the microphone when used with the ATDM Series Digital SmartMixer® or compatible mixers
    • Multiple and simultaneous pickup patterns can be made to suit the seating positions of conference participants
    • Easily control the microphone from any position via three MUTE touch controls
    • Create an optimal audio environment for calls via touch controls for talking, muting, or localizing sound or changing the LED colors
    • Microphone ON/OFF status is indicated by seven LED colors that can be changed to match your branding or call environment
    • LED ring visible from any direction
    • Compatible with 20V to 52V DC phantom power supplies
    • Proprietary shielding technology that protects the audio signals from radio frequency interference (RFI)
    • Low-profile, space-saving design: 3.5" (88mm) diameter, 0.87" (22mm) height
    • Fixable to the table with a dedicated 0.79" (20mm) jig in a 1.2" (30mm) diameter hole, or with general-purpose M3 screws

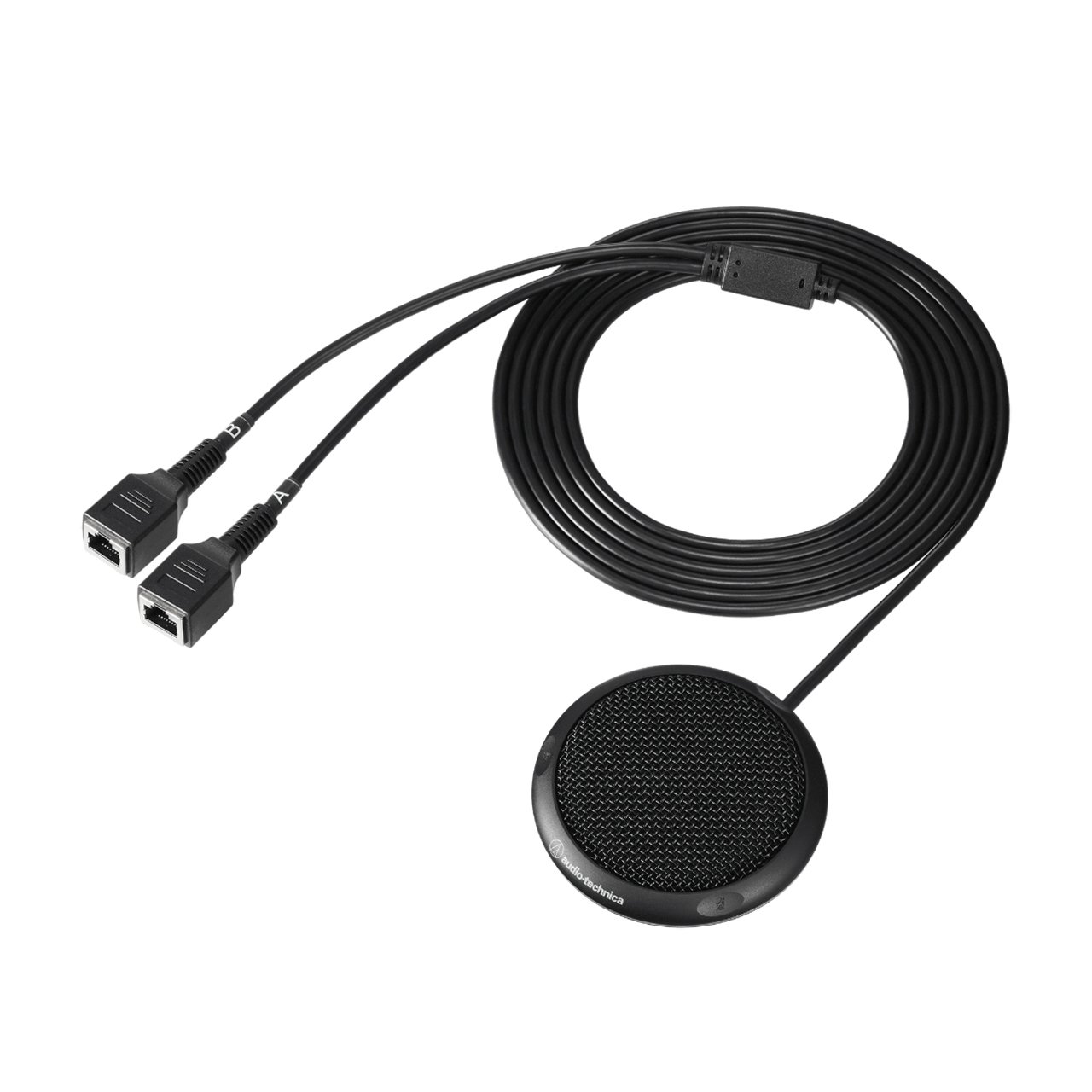

    • Includes two RJ45 breakout cables necessary for connecting to a mixer; two standard RJ45 cables are required separately for transporting audio and control signals

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Adjustable: Cardioid (Wide)/Hypercardioid (Normal)
    • Frequency Response: 20Hz - 15kHz
    • Open Circuit Sensitivity:
      - Wide: -33dBV (22.4mV)(0dB=1V/Pa, 1kHz)
      - Normal: -35dBV (17.8mV)(0dB=1V/Pa, 1kHz)
    • Impedance: 100Ω
    • Maximum Input Sound Level: Wide/Normal: 136.5dB SPL (1kHz THD1%)
    • Signal-to-Noise Ratio:
      - Wide: 68.5dB (1kHz at 1Pa, A characteristic)
      - Normal: 67.5dB (1kHz at 1Pa, A characteristic)
    • Phantom Power Requirements: DC 20V - 52V, 19.8mA (total for all channels)

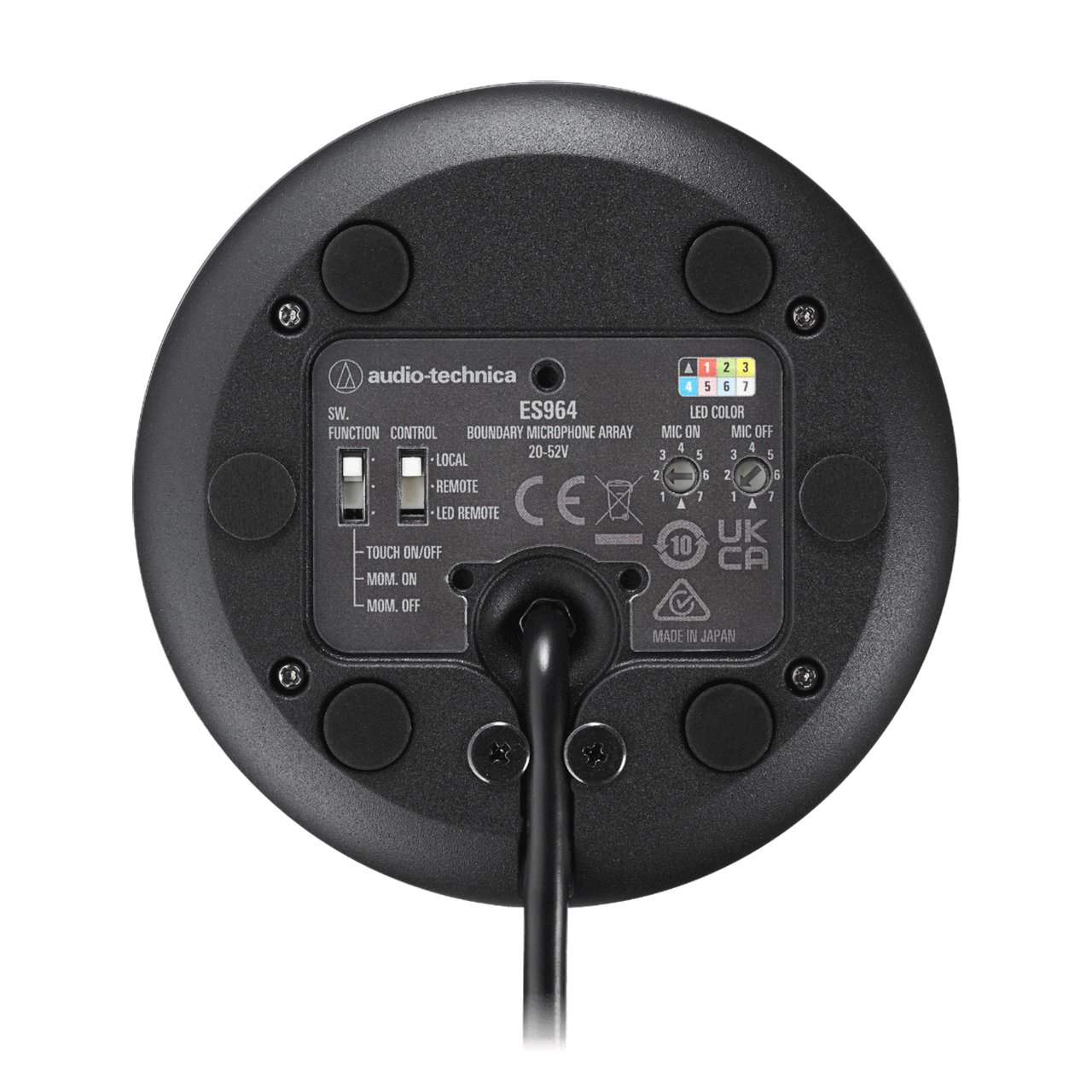

    • Switches:
      - SW.FUNCTION: TOUCH ON/OFF, MOM.ON, MOM.OFF
      - CONTROL: LOCAL, REMOTE, LED REMOTE
    • Weight: 12.8oz (364g)
    • Dimensions:
      - Maximum Body Diameter: 3.5" (88mm)
      - Height: 0.9" (22mm)
    • Output Connector: Euroblock connector
    • Contact Closure:
      - Closure Input Voltage: -0.5V - 5.5V
      - Maximum Allowable Power: 200mW
      - On-Resistance: 100Ω
    • LED Control:
      - Active High (+5V DC): TTL compatible
      - Active Low Voltage: 1.2V or lower
      - Maximum Allowable Input Voltage: -0.5V - 5.5V
      - Maximum Allowable Power: 200mW

  • Warranty:

    • 2 Year Limited Warranty
