ATEN CS1942DP 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch - Rack Mountable

ITEM #: ATEN-CS1942DP MFG #: CS1942DP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$454.00

Our Price:

$431.30

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CS1942DP - Overview

The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.

Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.

Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.

Note: As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.

  • Features:

    • One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
    • Supports Quad Display by connecting two Dual Display KVM switches
    • Supports superior video quality - Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
    • Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
    • 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
    • Supports DisplayPort Dual-Mode technology (DP++)
    • Supports MST (Multi-Stream Transport)
    • Supports Console keyboard emulation / bypass feature
    • Supports Console mouse emulation / bypass feature
    • Independent switching of KVM, USB, and Audio
    • Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
    • DisplayPort 1.2 compliant; HDCP compliant
    • Supports HD audio
    • Power on detection
    • Firmware upgradable

  • Specifications:

    • Computer Connections: 2
    • Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands

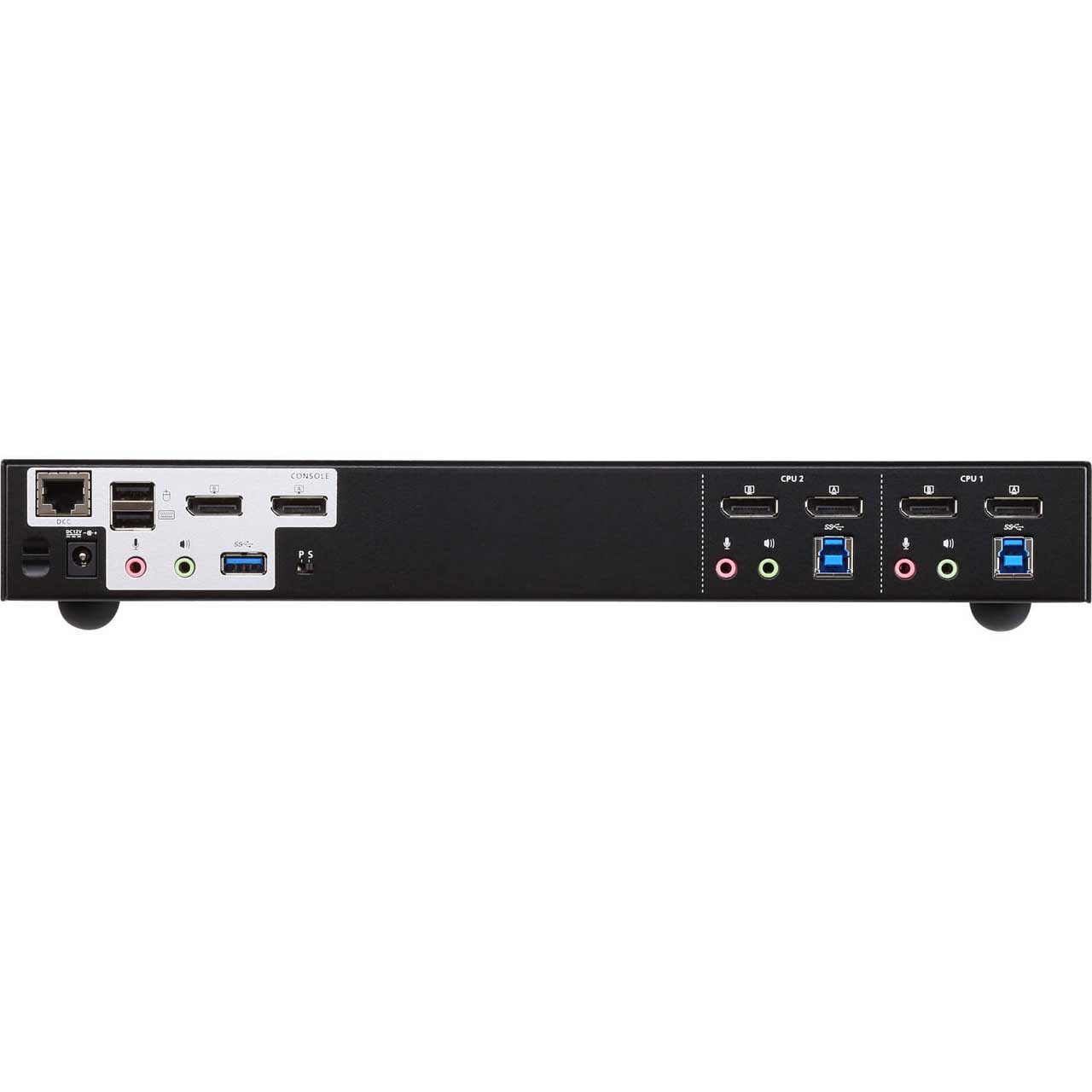

      Console Ports
    • 2 x USB Type A Female
    • 2 x DisplayPort Female (Black)
    • 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
    • 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

      KVM (Computer) Ports
    • 2 x USB3.1 Gen1 Type B Female (Blue)
    • 4 x DisplayPort Female (Black)
    • 2 x 3.5mm Audio Jack Female (Green)
    • 2 x 3.5mm Audio Jack Female (Pink)

    • Daisy Chain Ports: 1 x RJ-45 Female
    • Power: 1 x DC Jack
    • USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

      LEDs
    • KVM: 3 (Orange)
    • Audio: 3 (Green)
    • USB Link: 3 (Green)

      Switches
    • Selected: 3 x Pushbutton
    • Station Selection: 1 x Slide Switch

    • Keyboard / Mouse: USB
    • Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
    • Scan Interval: 1-99 seconds (default: 5 seconds)
    • Power Consumption: DC12V:3.48W:73BTU
    • Operating Temperature: 0-50°C
    • Storage Temperature: -20-60°C
    • Humidity: 0-80% RH, Non-condensing
    • Housing: Metal
    • Weight: 3.39 lb
    • Dimensions (L x W x H): 13.19 x 6.17 x 1.73 in.

  • Item Includes:

    • 1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
    • 4x DisplayPort 1.2 Cables
    • 2x USB 3.0 Cables
    • 4x Audio Cables
    • 1x Power Adapter
    • 1x User Instructions


CS1942DP - Required Accessories
