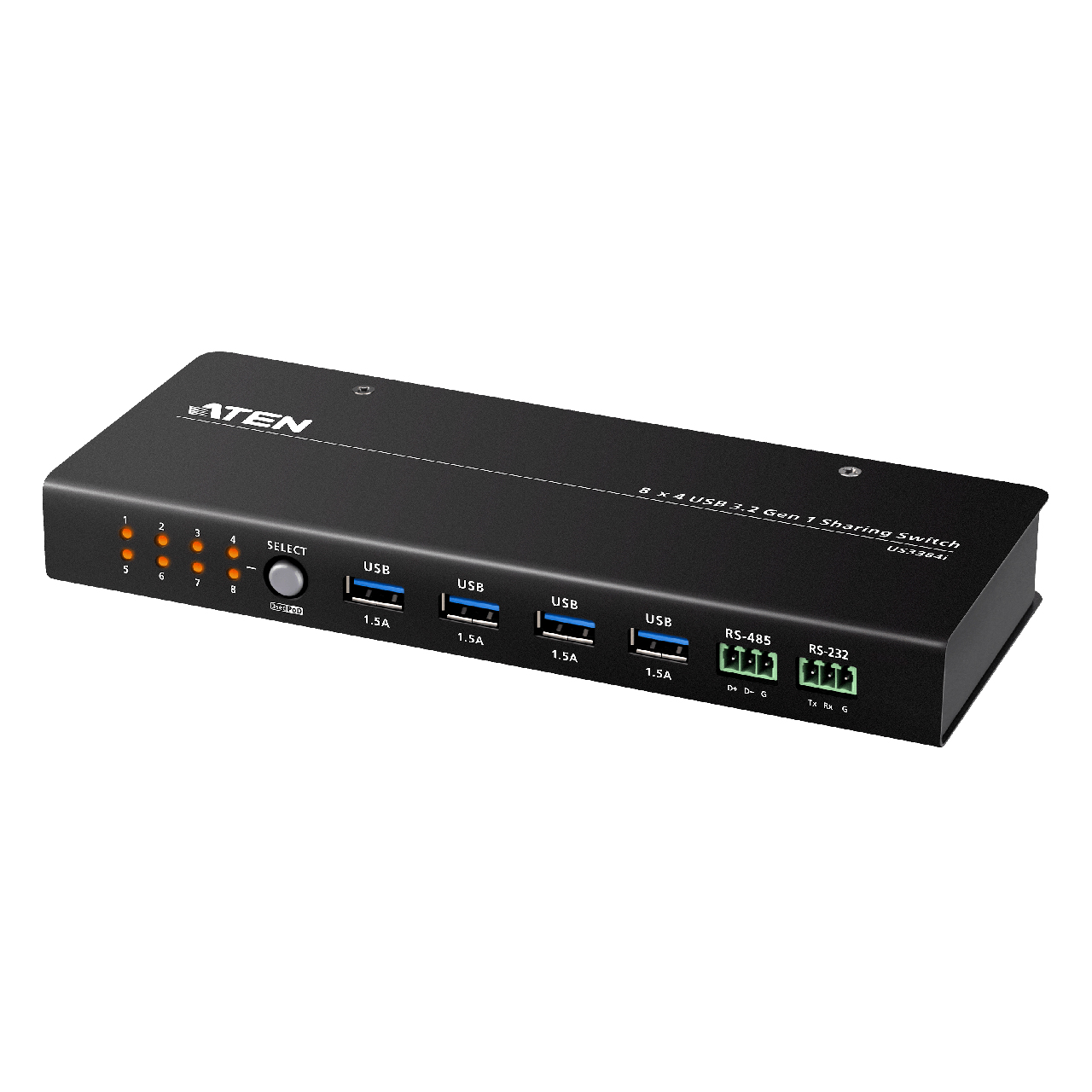

ATEN US3384i 8x4 USB 3.1 Gen 1 Sharing Switch - Shares up to 4 USB 3.2 devices to 8 PCs

ITEM #: ATEN-US3384I MFG #: US3384I

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$510.00

Our Price:

$484.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


US3384I - Overview

Designed to Elevate Your BYOM/BYOD Meeting Experience with Ease

Built to take your BYOM/BYOD experience to the next level, the ATEN US3384i allows sharing of up to 4 USB 3.2 devices, such as keyboards, mice, cameras, speakerphones, and sound bars, among 8 PCs to declutter workspaces while permitting smooth USB content sharing across multiple meeting participants.

Conferences are kept disruption-free thanks to its blazing fast bandwidth speed of 5 Gbps and the backward compatibility with USB 2.0/1.1 devices, ensuring swift data transmission. In addition, the US3384i boasts versatile port selection methods, including the push button on the front, the RS-232/RS-485 serial commands, and the external remote port selector*, which add more flexibility to its operation. The US3384i supports Power on Detection function, which automatically switches the PC focus to the last plugged-in/poweredon host device. What is more, the priority port preference is configurable, allowing the focus to switch to a secondary USB host when the primary one is lost. The front-panel port status LEDs illuminate to indicate which one of the PCs connected to the US3384i is having the focus at a glance.

In terms of installation, the US3384i comes with plug-and-play support on Windows and macOS operating systems, meaning no drivers are needed. It is also hot-pluggable, so users can connect/disconnect the host devices dynamically to the US3384i without powering off the switch. The case is constructed with premium metal for enhanced durability and supports wall-mounting to meet more installation requirements.

Please Note: DC Jack Power Adapter (0AD8-8012-50M2) sold seperately.

  • Features:

    • Allows sharing of up to four USB 3.2 devices among 8 PCs

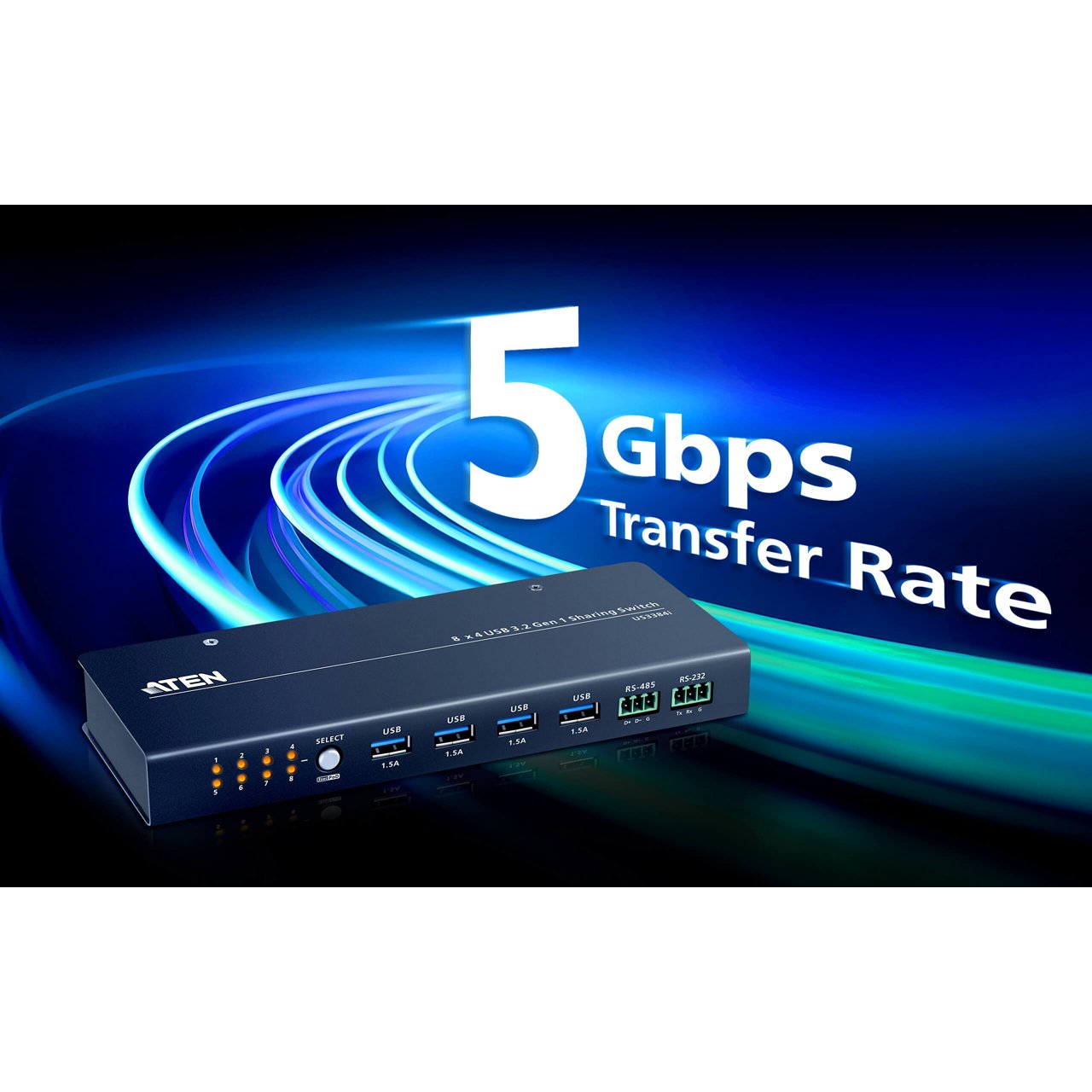

    • Bandwidth speed of 5 Gbps and backward compatibility with USB 2.0/1.1 to ensure swift data transmission
    • Versatile port selection methods - front panel pushbutton, RS-232/RS-485 serial commands, and external remote port selector1
    • Power on Detection
    • Automatically switches the PC focus to the last plugged-in/powered-on host device
    • Configurable priority port preference - allows the focus to switch to a secondary USB host when the primary one is lost

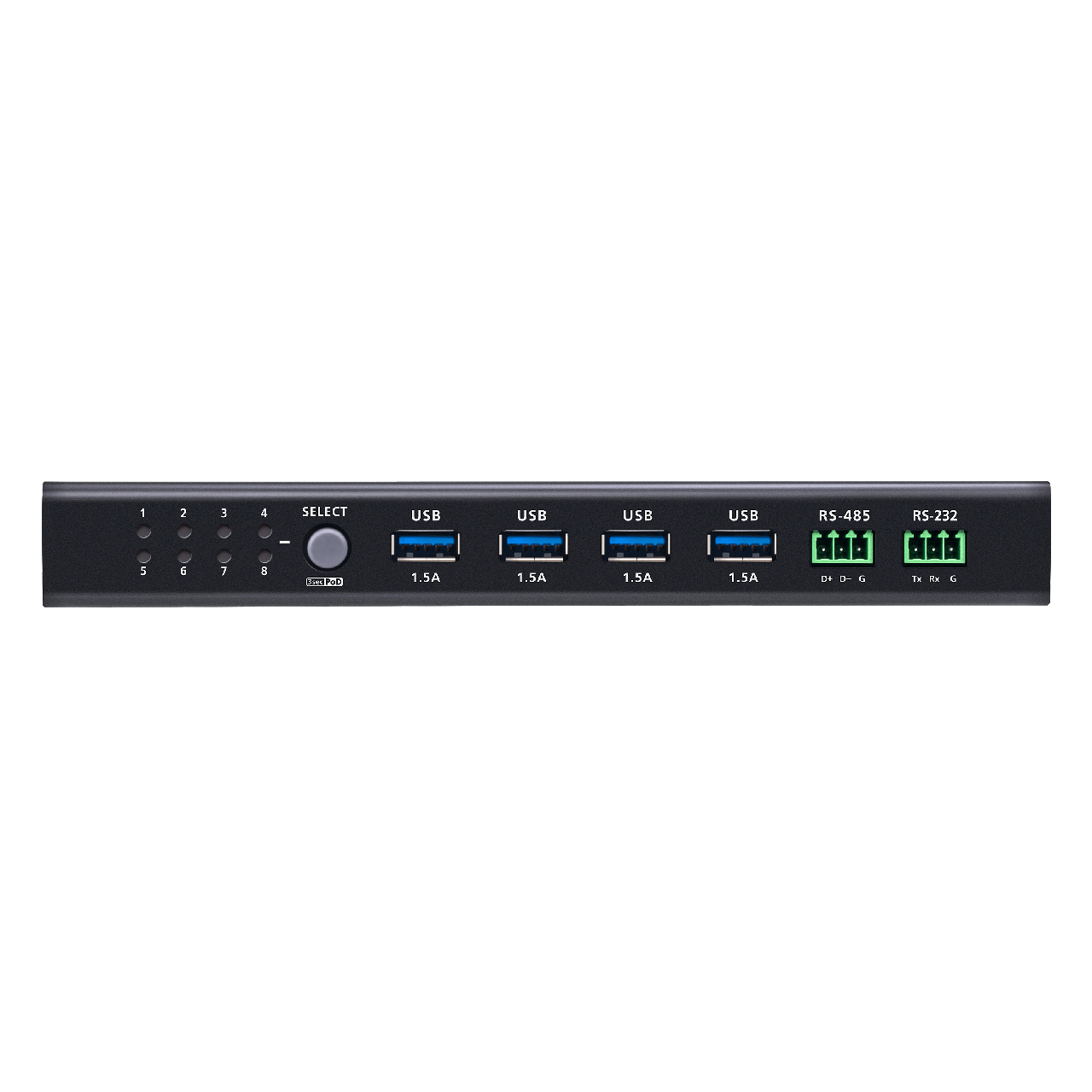

    • Front panel port status LEDs - indicate which one of the PCs connected to the US3384i is having the focus at a glance
    • Supports USB BC 1.2 to ensure sufficient power for downstream USB devices
    • Overvoltage protection circuit - extends device lifespan and minimizes risks of electrical hazards/explosions led by voltage spikes surpassing safe operating limits
    • Supports DC 9V - 24V power input through terminal block2
    • Plug-and-play on Windows and macOS operating systems - no drivers are needed
    • Hot-pluggable - users can connect/disconnect the host devices dynamically to the US3384i without powering off the switch
    • Wall-mountable case constructed with premium metal for enhanced durability

  • Specifications:

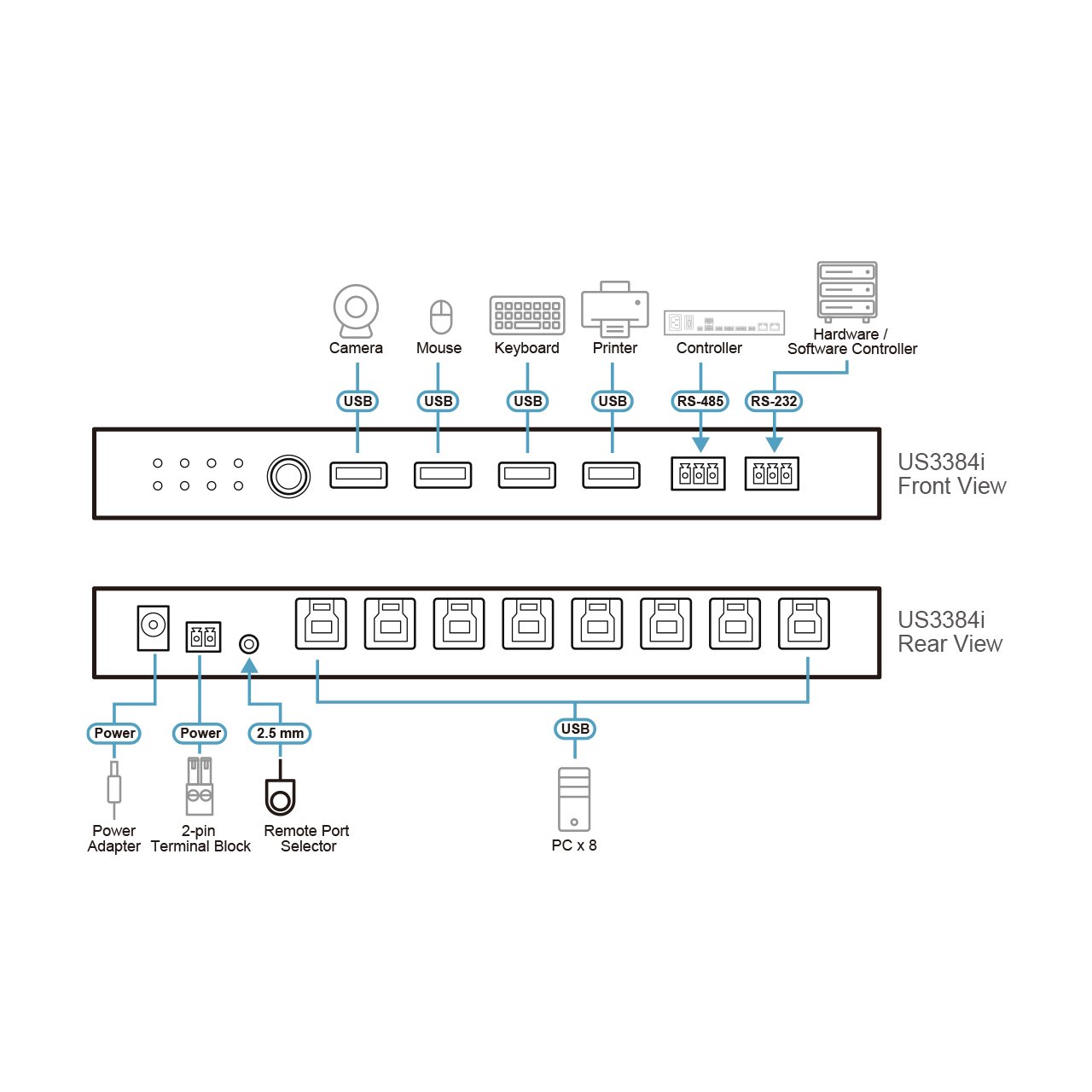

      Connectors
    • Computer Connections: 8

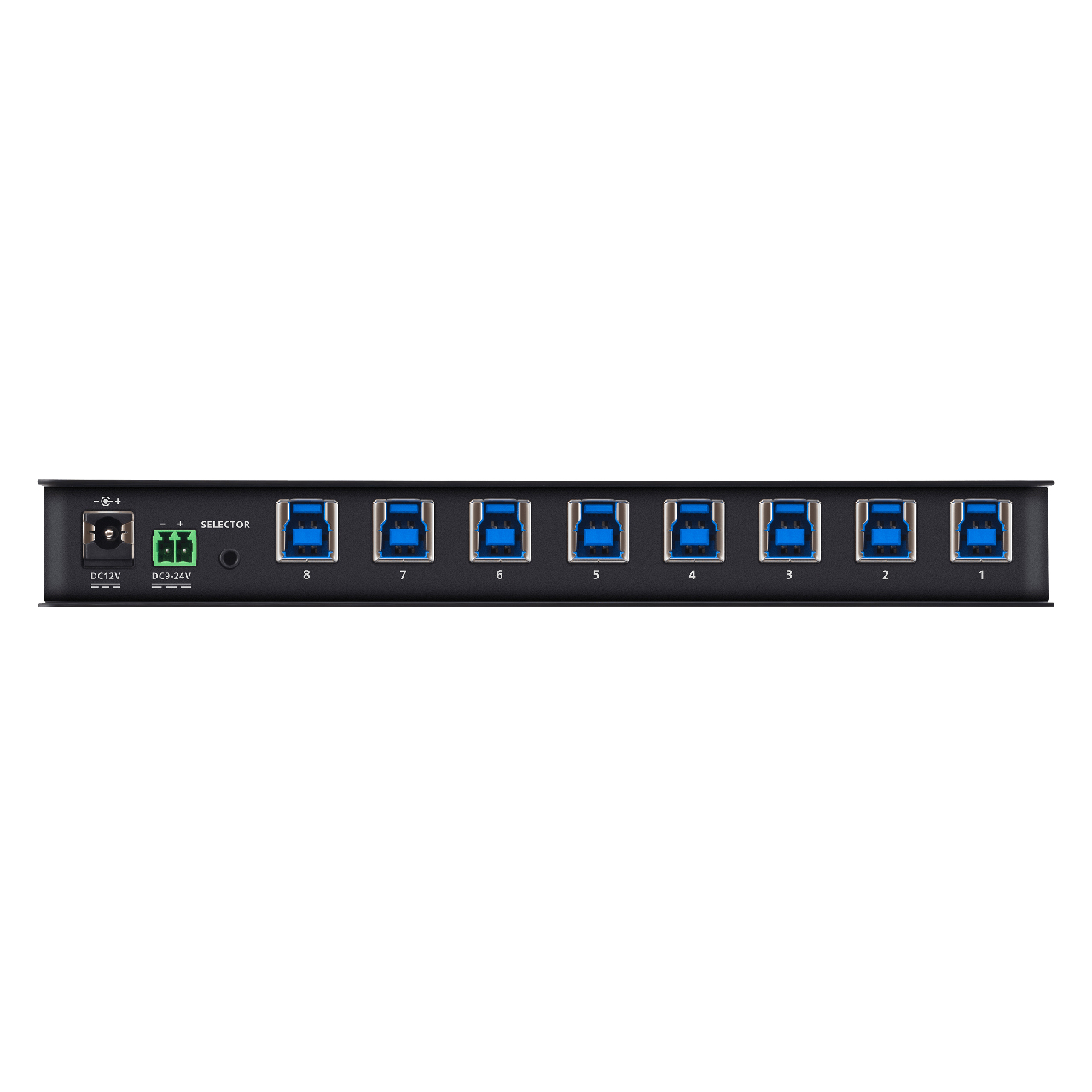

    • Computer: 8x USB 3.2 Gen 1 Type-B Female (Blue)
    • Device: 4x USB 3.2 Gen 1 Type-A Female (Blue)
    • Serial: 2x 3-pin Terminal Block (Green)
    • Power: 1x 2-pin 9-24V Terminal Block (Green)
    • Power (Optional): 1x 12V DC Jack Female (Black)

      Power Consumption
      - DC12V: 0.52W: 130BTU/h
      - DC24V: 0.53W: 130BTU/h
    • Power Mode: Terminal Block/DC Jack Power Adapter (Sold Separately)
    • Port Selection: Pushbutton/Remote Port Selector/Serial Command

      LEDs
    • Selected: 8 (Orange)

      Cable Length
    • USB Cable: 8x USB 3.2 Gen 1 Type-A to Type-B Cables 1.2m

      Environmental
    • Humidity: 0% - 80% RH, Non-condensing
    • Operating Temperature: 32°F - 122°F (0°C - 50°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)

      Physical Properties
    • Housing: Metal
    • Weight: 1.1lbs (0.50kg)
    • Dimensions (LxWxH): 7.87" x 3.17" x 0.98" (20cm x 8.06cm x 2.50cm)

  • Item Includes:

    • 1x ATEN US3384i 8x4 USB 3.1 Gen 1 Industrial Hub Switch

  • Warranty:

    • 3 Year Limited Warranty
