ATEN VE150A 75 Ohm VGA Cat 5 Extender - 1280 x 1024@ 500 Foot/150m - TAA Compliant

ITEM #: ATEN-VE150A MFG #: VE150A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$130.46

Our Price:

$123.94

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VE150A - Overview

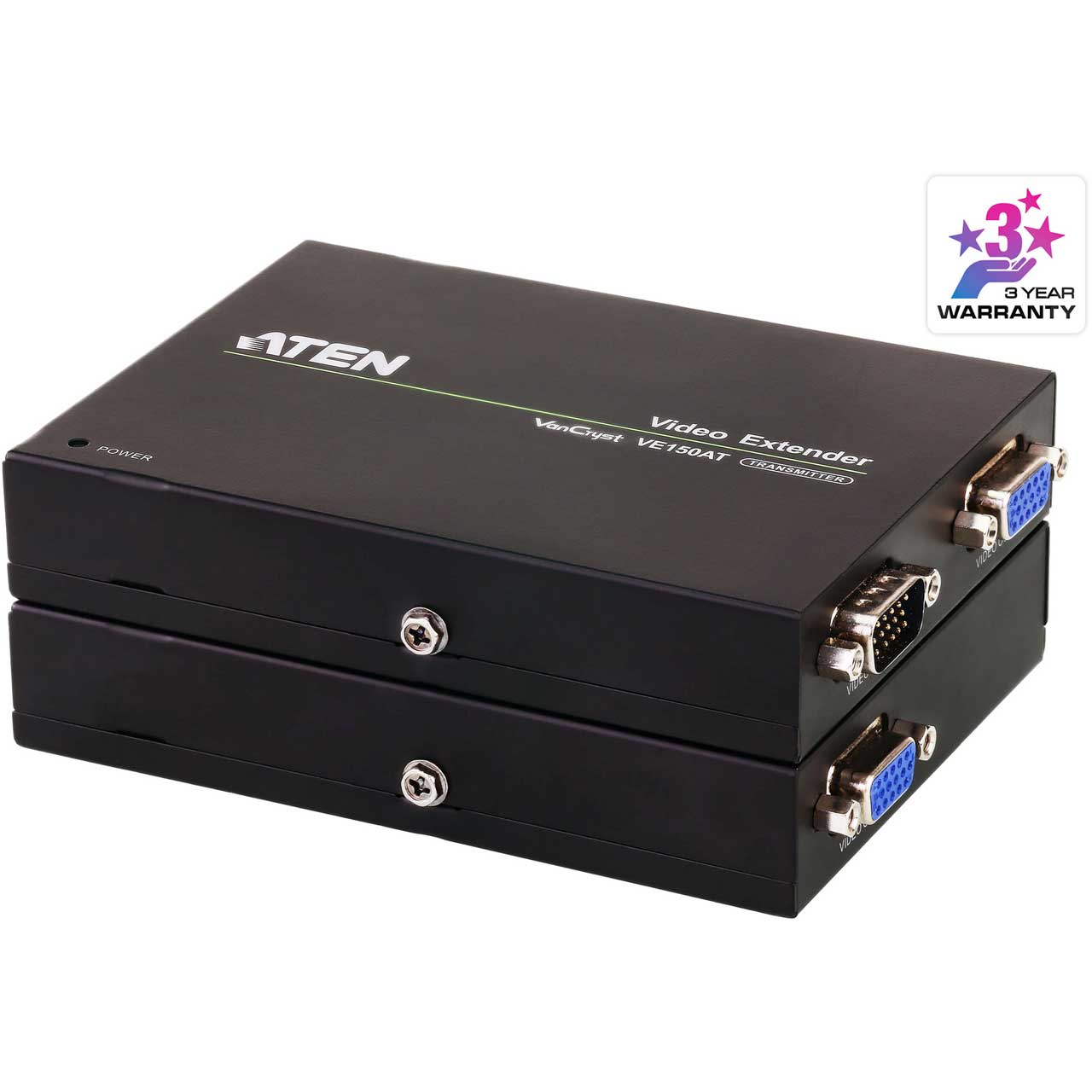

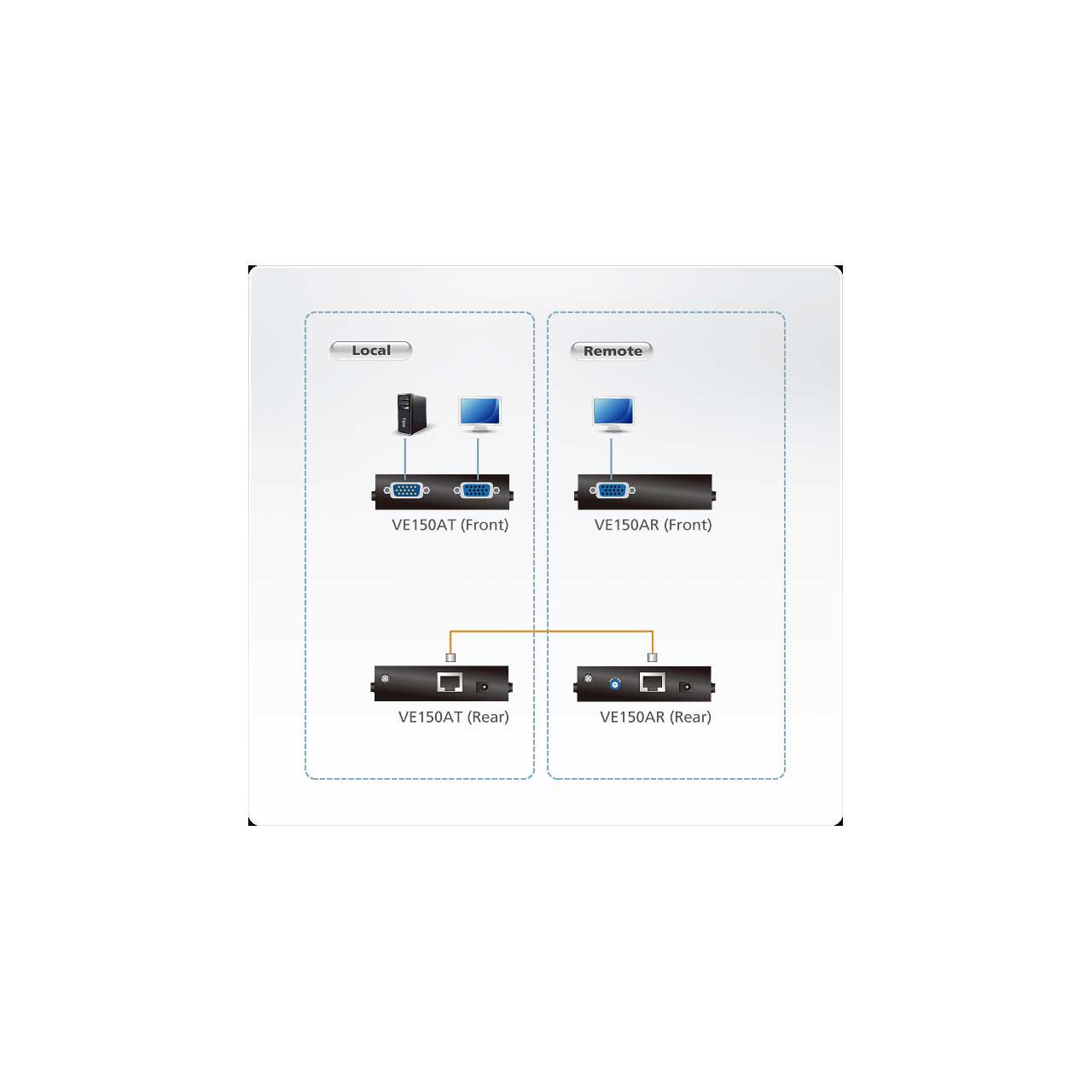

    The ATEN VE150A is a VGA video extender system with a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 492 feet/150 meters with superior video quality supporting up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m). It is ideal for factories and construction sites, or any location where your video display may need to exposed to the elements or be placed in a risky setting, but you want the operating system to be kept in a safe location.

    • Features:

      • Uses Cat 5e cables to connect the local and remote units
      • Supports one local and one remote display
      • Long distance transmission - up to 150 m
      • Adjustable gain control - manually adjust signal strength to compensate for distance
      • Superior video quality - up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
      • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
      • Supports wide screen formats
      • Supports hot-plugging
      • Built-in 8KV/15KV ESD protection
      • Supports DDC for the local monitor
      • Easy installation
      • Rack Mountable
      • Plug-and-play - no software installation required

    • Specifications:

      • VE150AT Video Input
      • Interfaces: 1 x HDB-15 Male (Blue)
      • Impedance: 75 Ω
      • Max. Distance: 1.8 m

        Video Output
      • Interfaces: 1 x HDB-15 Female (Blue)
      • Impedance: 75 Ω

        Video
      • Max. Bandwidth: 300 MHz
      • Max. Resolutions / Distance: Up to 1920 x 1200@30m; 1280 x 1024@150m

        Connectors
      • Power: 1 x DC Jack
      • Power Consumption: DC5.3V:0.87W:8BTU

        Environmental
      • Operating Temperature: 0 - 50°C
      • Storage Temperature: -20 - 60°C
      • Humidity: 0 - 80% RH, Non-Condensing

        Physical Properties
      • Dimensions (L x W x H): 5.03 x 3.56 x 0.89 in.
      • Housing: Metal
      • Weight: 0.53 lb

    • Item Includes:

      • 1x VE150AT Video Extender (Local unit)
      • 1x VE150AR Video Extender (Remote unit)
      • 2x Power Adapters
      • 1x VGA Cable (1.8m/6ft)
      • 1x Mounting Kit
      • 1x User Instructions

    • Warranty:

      • 3 Year
