M1370B - Overview

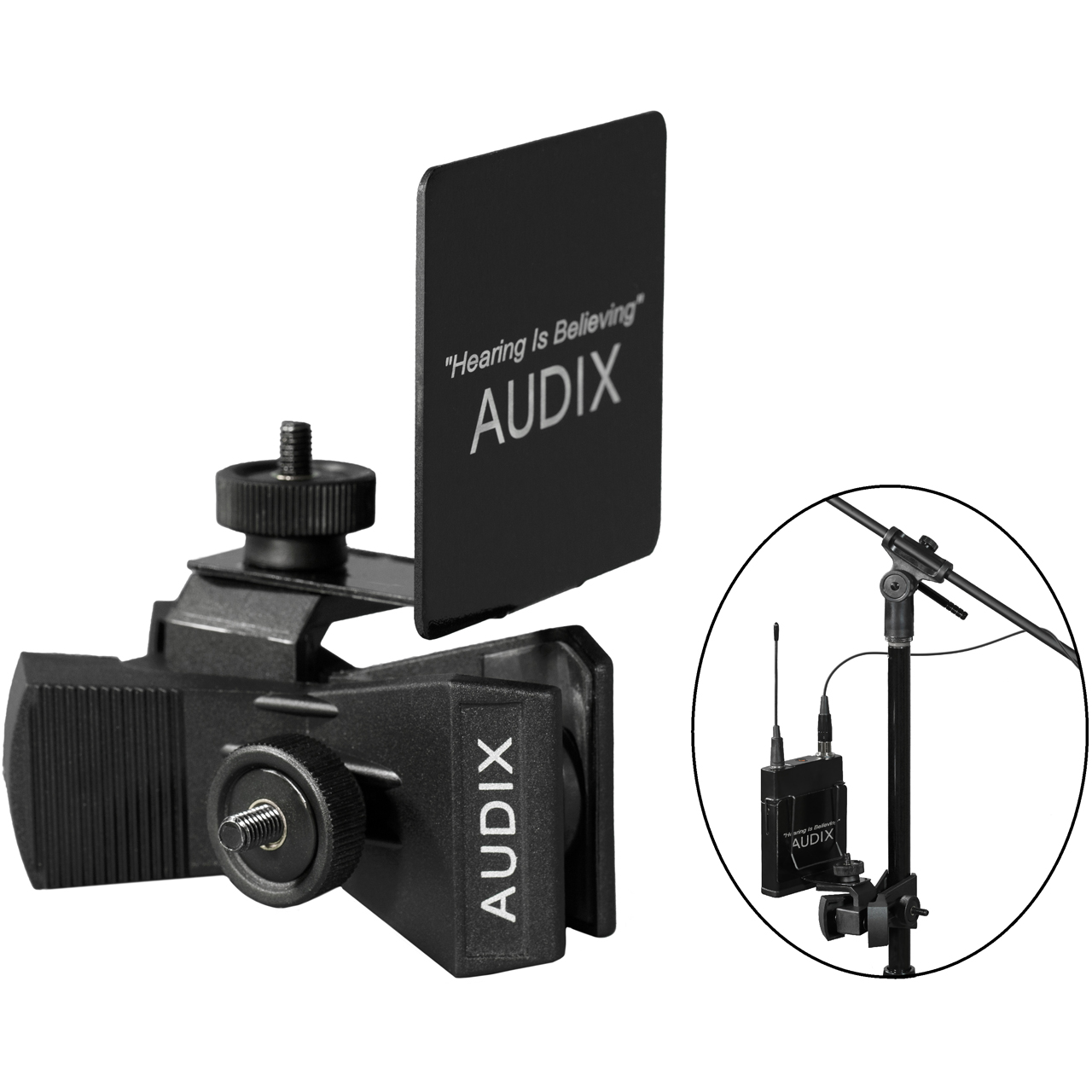

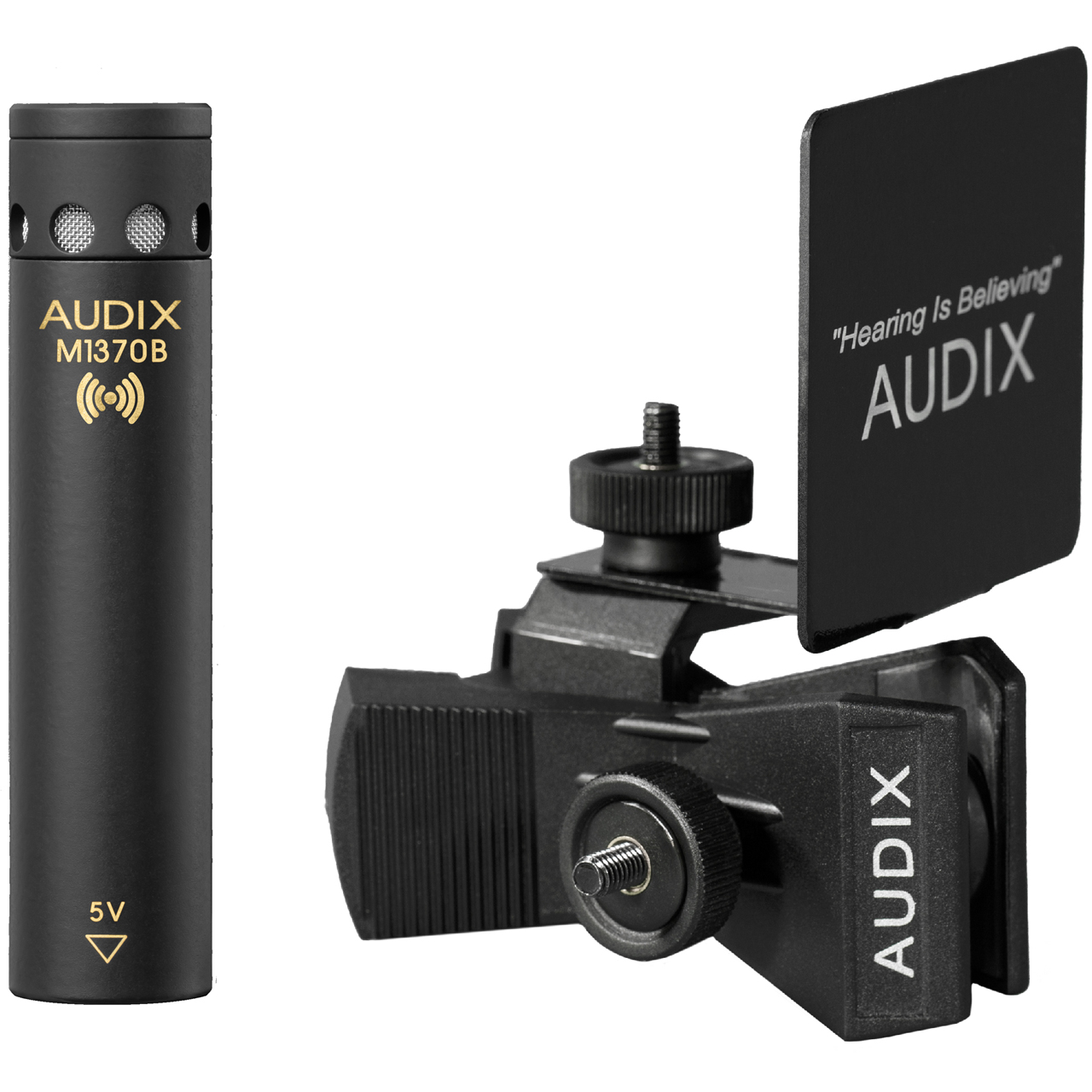

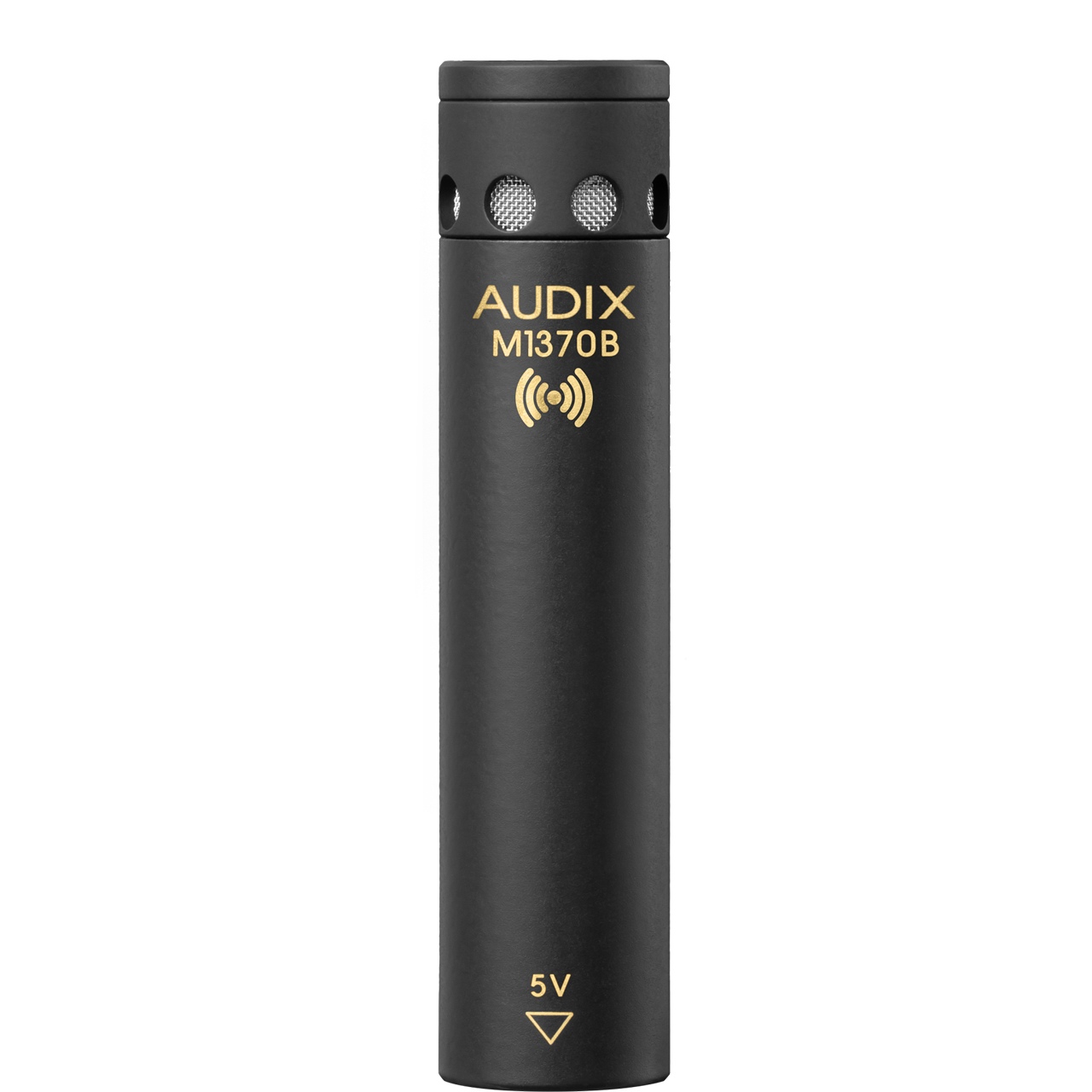

The Audix M1370B is a retrofit kit designed to adapt an existing wired Audix MicroBoom System for wireless operation. It contains the M1370B cardioid microphone designed to operate on 4.5V - 5.5V bias power supplied by Audix, Shure and other popular body pack transmitters (not included) that provide 4.5V - 5.5V power, two 6ft cables terminated in TA3F and TA4F to plug into a wireless body pack and the Audix MBWFLEX to mount the body pack transmitter to a standard straight mic stand. Standard 48V phantom power voltage from an audio mixer or recording device will not damage the microphone, however it will not pass signal.

Applications:
• Choir
• Ensemble vocal
• Theatre
• Orchestral zone miking
• Location recording
• Presentation

  • Features:

    • Pristine, studio-grade audio quality
    • Compatible with standard 5V body pack transmitters
    • Fast setup, portable, and cable-free
    • Designed, assembled & tested in the USA

  • Specifications:

    • Transducer Type: Condenser

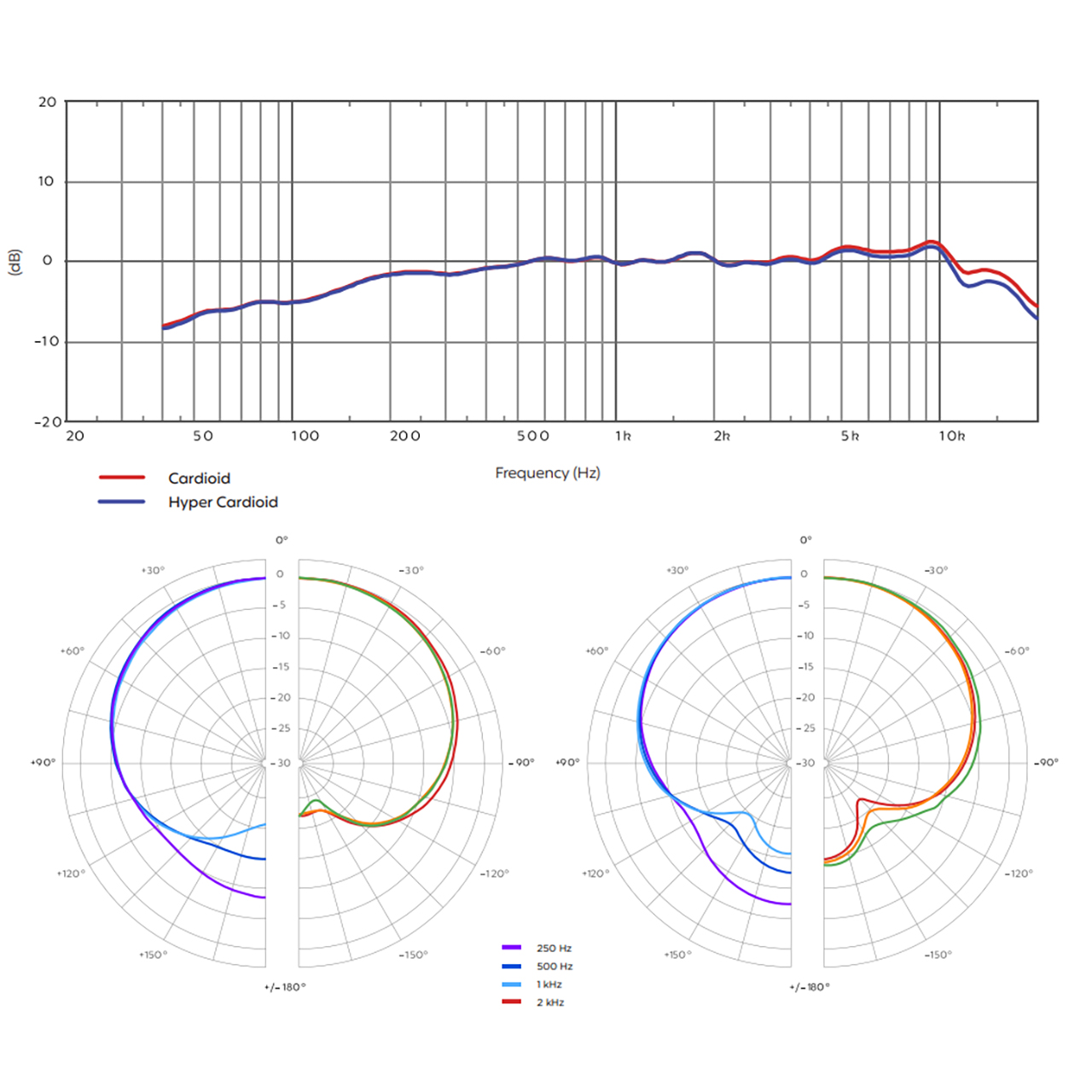

    • Frequency Response: 50Hz - 19kHz
    • Polar Pattern: Cardioid
    • Output Impedance: 100Ω
    • Sensitivity: 10mV (C/HC)/ Pa @ 1kHz
    • Signal to Noise Ratio: 72dB
    • Equivalent Noise Level: 22dB
    • Maximum SPL: 117dB SPL
    • Dynamic Range: 95dB
    • Power Requirements: 4.5V - 5.5V
    • Current Consumption (@5V): 2mA

  • Item Includes:

    • 1x WS1218 - Windsock
    • 1x CBL3P1 - 1' 3pin to 3pin (female) mini-XLR cable
    • 1x CBL3P6 - 6' 3pin to 3pin (female) mini-XLR cable
    • 1x CBLADAPT4P1 - 1' 3pin to 4pin (female) miniXLR cable
    • 1x CBLADAPT4P6 - 6' 3pin to 4pin (female) mini-XLR cable
    • 1x MBWFLEX - Stand Clamp

  • GTIN:

    0687471601044
