Audix NC2BX10 Dual-Channel Handheld Wireless System with 2x ADX10 Lavalier Mic & 2x NCBP Bodypack Transmitter

ITEM #: AUD-NC2BX10 MFG #: NC2BX10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,147.00

Our Price:

$1,789.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NC2BX10 - Overview

The Audix NC2BX10 is a complete dual-channel Novacore digital wireless lavalier system for clergy, presenters, performers, and broadcast talent - everything needed for professional hands-free wireless audio in a single purchase. It pairs the NCR2 Dual-Channel Digital Receiver with 2x NCBP Digital Bodypack Transmitters and 2x AUDIX ADX10 Cardioid Lavalier Condenser Microphones, delivering discreet, natural-sounding vocal clarity on a professional AES-256 encrypted UHF digital wireless platform.

The ADX10 miniature cardioid lavalier delivers natural vocal clarity with strong off-axis rejection, making it well suited for podium applications, theatrical productions, and houses of worship where clean, unobtrusive placement and consistent feedback control are equally important. The NCBP transmitter and NCR2 receiver are pre-matched on the Novacore RF platform and pair via one-touch IR sync. Variable input gain from -12 to +18 dB at the transmitter and a dedicated 3.5 mm remote mute input for external switch control round out the system's flexibility for installed-sound applications.

The system operates across a 48 MHz UHF tuning range with less than 3 ms latency and 9+ hours of transmitter battery life on 2x AA alkaline or 1x NCLB rechargeable lithium-ion. USB-C charging is built into the NCBP transmitter body. The NCBP is also compatible with other AUDIX lavalier and headset microphones - including the L5, L5O, HT5, HT7B3P, and HT7BG3P - and any third-party TA3F-terminated mic, allowing the system to adapt as application needs evolve. The system is fully expandable within the Novacore ecosystem by adding channels, transmitters, or receivers as needs grow.

  • Features:

    • Complete dual-channel lavalier wireless system - receiver, bodypack transmitter, and lavalier microphone included, ready to perform out of the box
    • 2x ADX10 cardioid lavalier condenser microphones - natural vocal clarity with strong off-axis rejection for podium, stage, and worship applications
    • AES-256 encryption with one-touch IR sync; 48 MHz tuning range (494-542 MHz); <3 ms latency
    • Dedicated 3.5 mm remote mute input on NCBP for external latching or momentary switch (not included)
    • Fully expandable - add channels, transmitters, and receivers within the Novacore ecosystem as your system grows

  • Specifications:

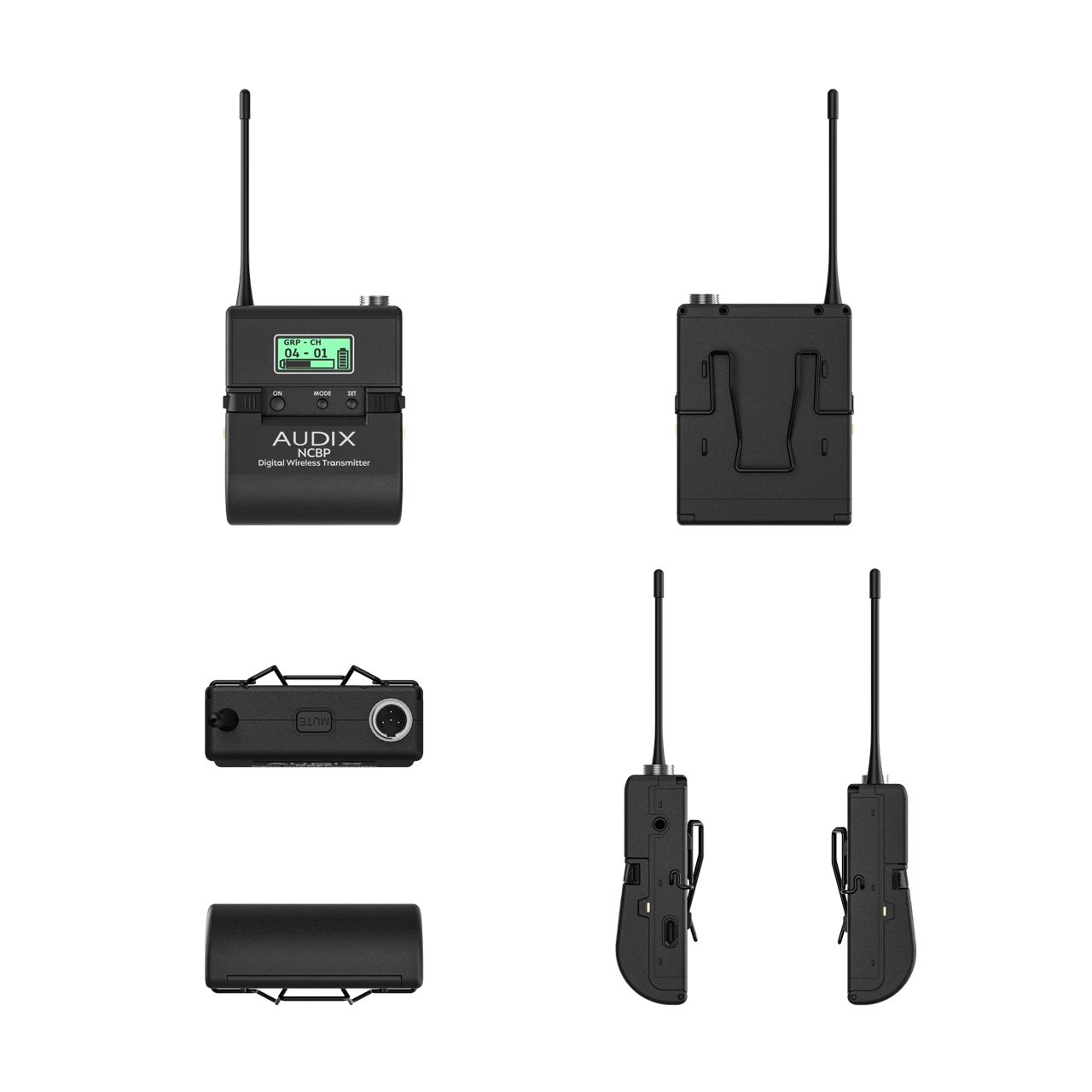

      NCBP Bodypack Transmitter
    • Type: Digital Bodypack Transmitter
    • Audio Resolution: 24-bit
    • Latency: < 3 ms
    • Encryption: AES-256
    • Battery Options: 2x AA or 1x NCLB rechargeable
    • Battery Life: 8+ hours
    • USB Charging: USB or Novacore charging station
    • Connector: TA3F (Pin 2 hot)
    • Audio Control: Variable gain: -12 dB to +18 dB in / 6 dB steps; low cut; limiter; phase invert
    • Remote Mute: Hard-wire mute input
    • Construction: ABS housing
    • Pairing: IR sync

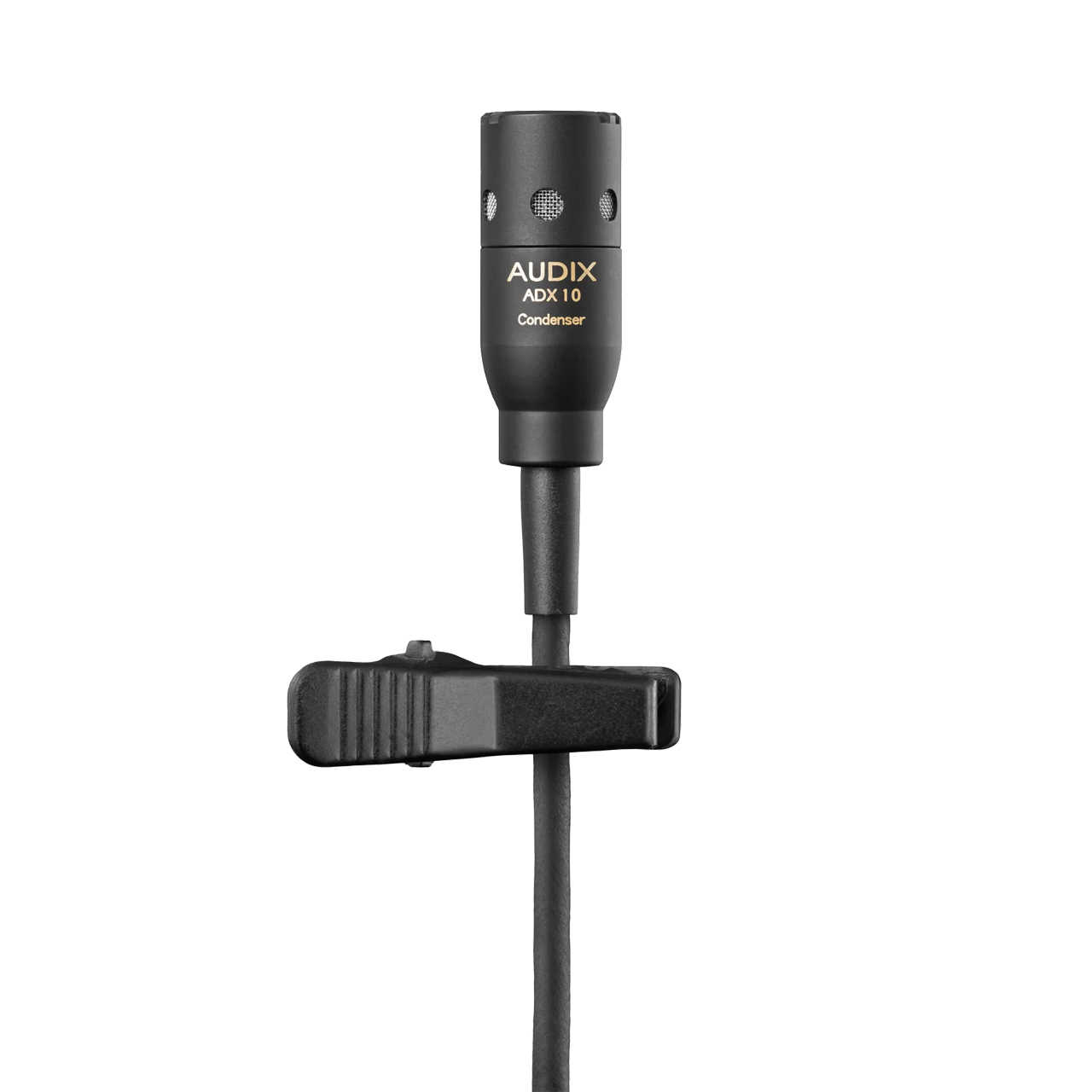

      ADX10 Lavalier Mic
    • Transducer Type: Pre-Polarized Condenser
    • Frequency Response: 50 Hz - 18 kHz
    • Polar Pattern: Cardioid
    • Output Impedance: 800 ohms
    • Sensitivity: 5 mV / Pa @ 1k
    • Equivalent Noise Level: <29 dB (A-weighted)
    • Signal to Noise Ratio: >65 dB
    • Maximum SPL: ≥120 dB
    • Power Requirements: 9-52 V phantom
    • Connector: Shielded 3' terminating to a miniature 3 pin Female XLR connector
    • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
    • Materials / Finish: Machined Brass / Black Finish
    • Weight: 0.74 oz / 21 g
    • Length: .98" / 25 mm

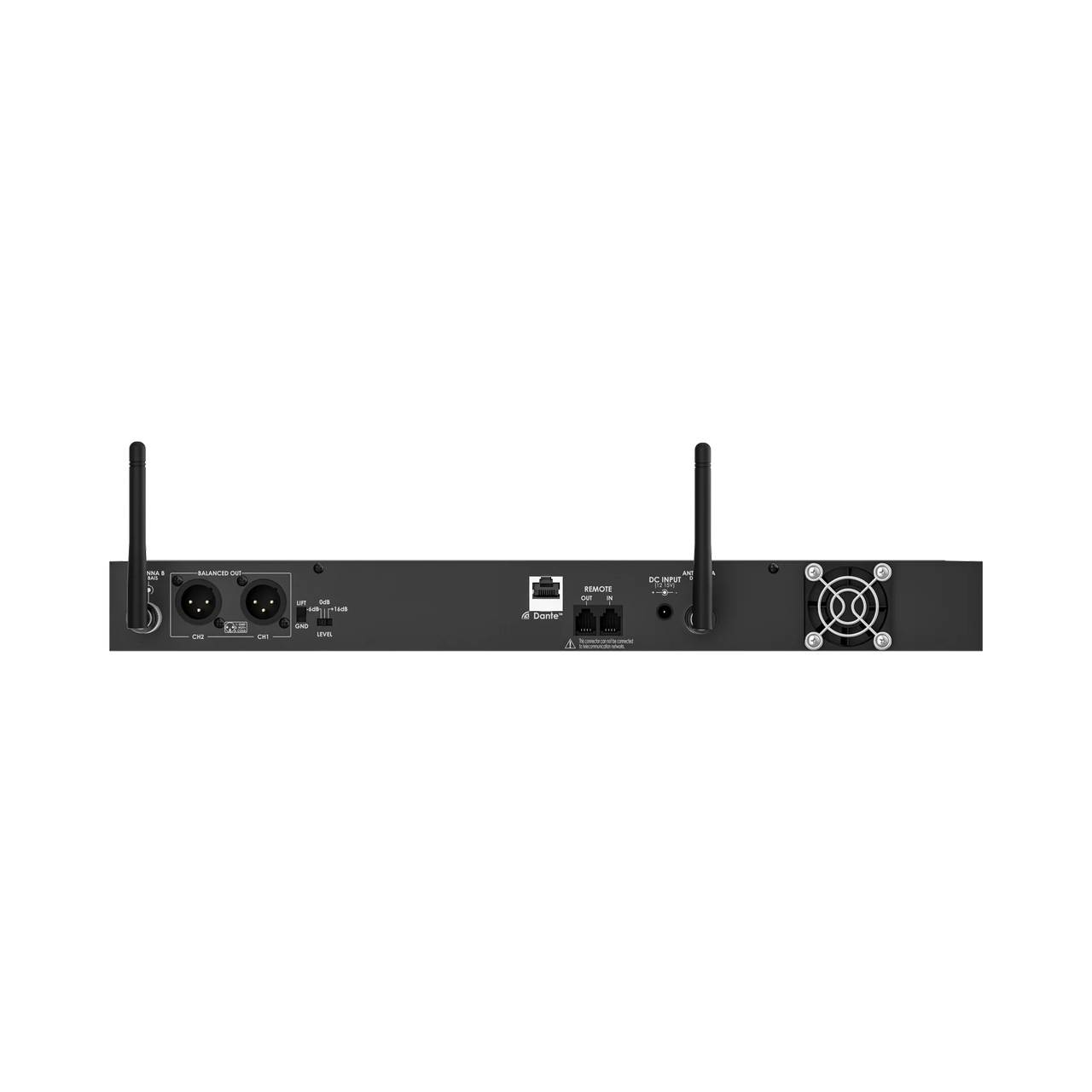

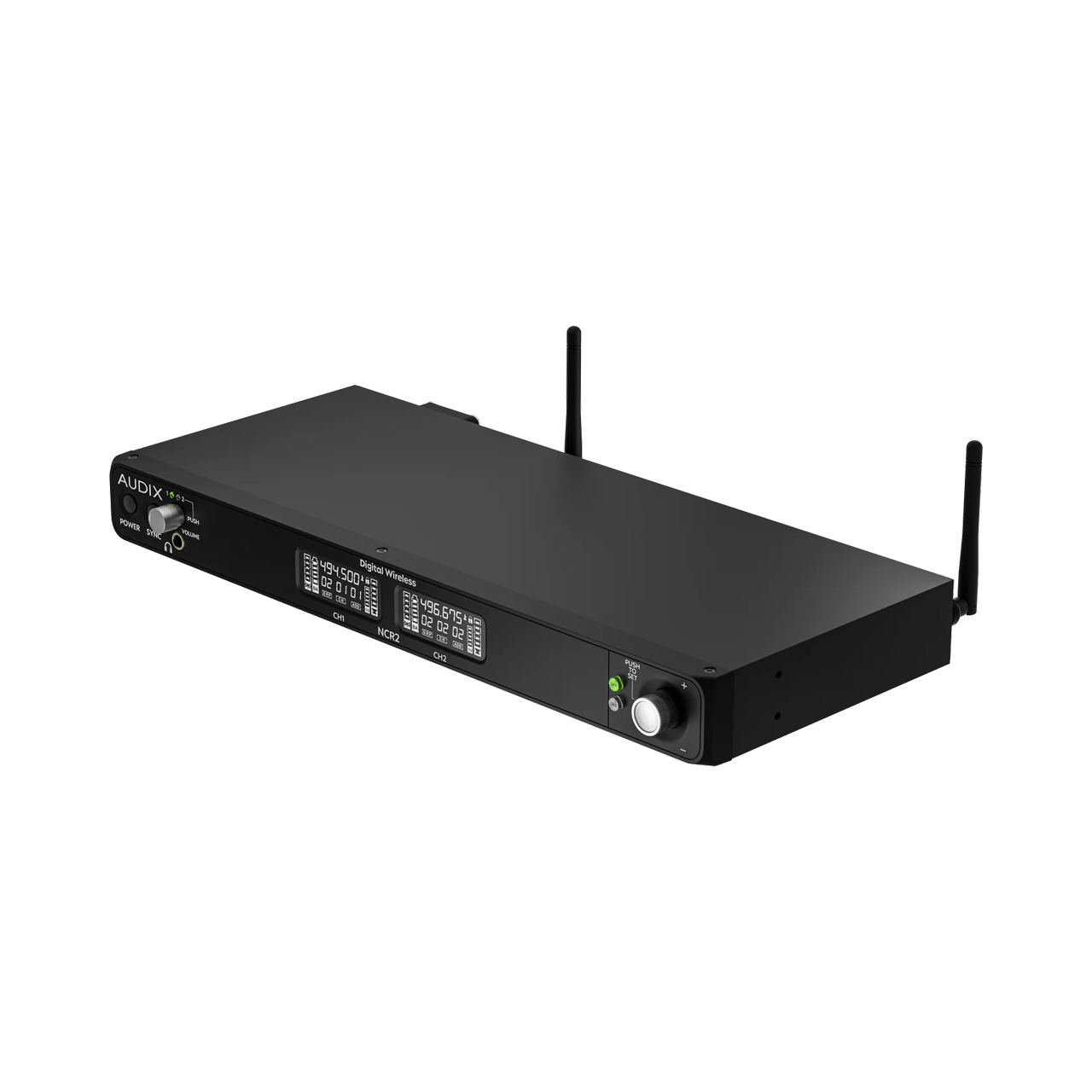

      NCR2 Digital Receiver
    • RF Frequency Range: UHF 494MHz - 542MHz (country dependent)
    • RF Bandwidth: 48MHz
    • Display: LCD
    • Control Interface: Power button, Sync button, Jog Dial, Channel Select Buttons, Headphone Monitoring Control
    • Encryption: AES 256-bit
    • Frequency Response: 20Hz - 20kHz (< -2dB)
    • Latency: < 3 ms
    • Audio Processing: 44.1kHz/24-bit digital sampling
    • Dynamic Range: > 110dBA
    • Receiving Mode: Digital Diversity
    • RF Input:
      - Spurious Rejection: > 80dB
      - Antenna Type: 1/4-wave; adjustable
      - Connector Type: Detachable; 50Ω BNC Female connector provides bias for antenna systems
      - Sensitivity: -85dBm
    • Audio Output:
      - Level Switch: -6dB, 0dB, +16dB
      - Switch: Ground/Lift
      - Connector: XLR; Balanced (1 = ground, 2 = audio +, 3 = audio -)
      - Impedance: XLR Line Level: 600Ω
      - Output: +18dBV
      - Dante/AES67 via RJ45
    • Networking:
      - 2x RJ11 for PC software control
      - Recommended Connection Distance: < 328ft (100m)
    • Power Requirements: 12VDC @ 300mA (supplied by external power supply - tip positive)
    • Chassis: 1U (19")
    • Materials/Finish: Steel/Black Finish
    • Weight: Approx. 4.5lbs (2kg)(without antennas)
    • Dimensions (WxHxD): 16.5" x 1.73" x 8.5" (419mm x 44mm x 216mm)

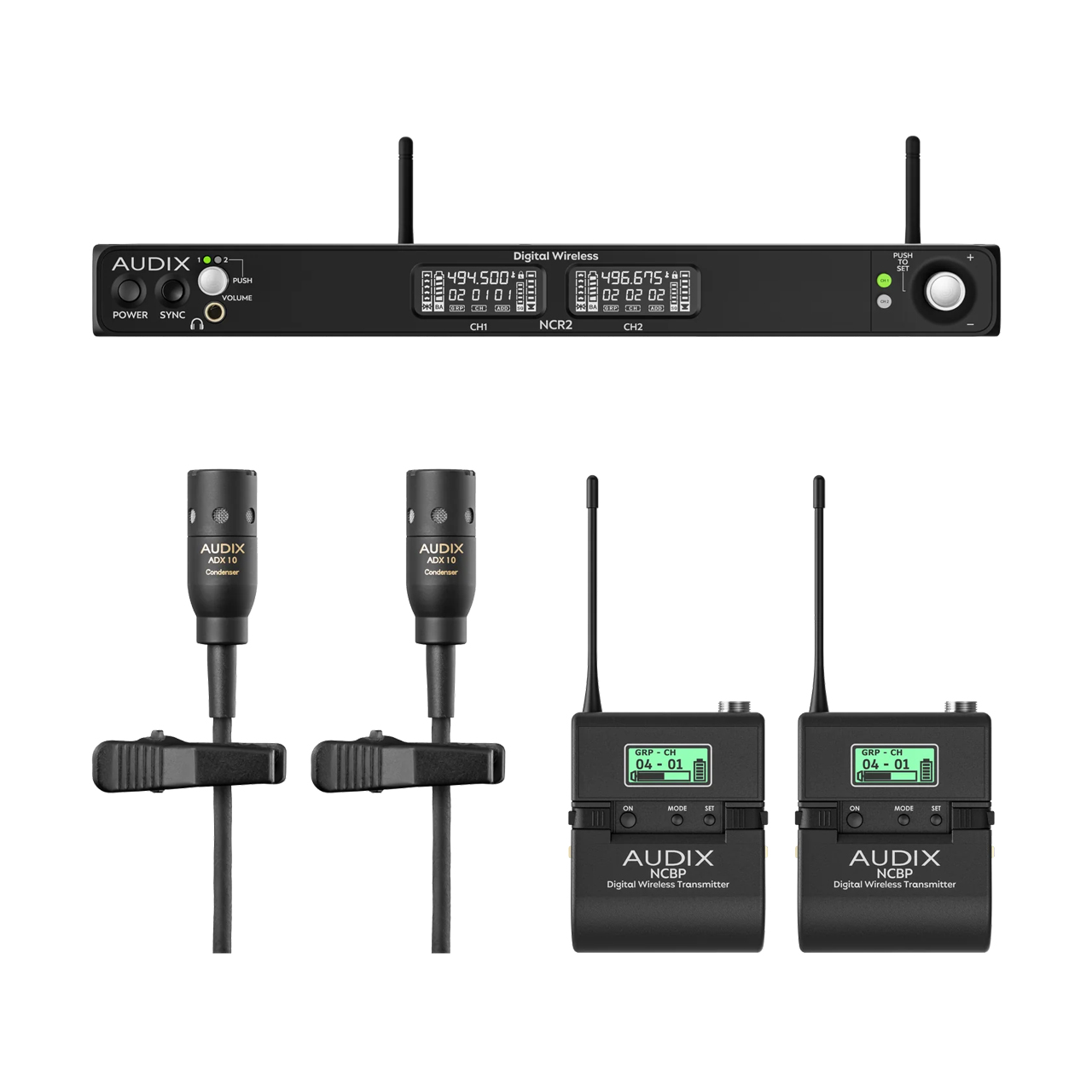

  • Item Includes:

    • 1x NCR2 - Novacore Dual-Channel Digital Receiver
    • 2x NCBP - Novacore UHF Digital Bodypack Transmitter
    • 2x ADX10 - Cardioid Lavalier Condenser Microphone
    • 2x BNC Detachable Antennas
    • 1x PS12V - 12 VDC External Power Supply (100-240 VAC / 50/60 Hz universal)
    • 2x NCBC - Belt Clip
    • 2x NCCC - 20" Charging Cable, USB-A to USB-C

  • Warranty:

    • 1 Year Warranty
