Remee AUD12P22ISP 22-12P Shielded Analog Audio Plenum - 2500 Foot

AUD12P22ISP25K - Overview

• Features:

  • 12 twisted pairs (24 conductors total)
  • 22 AWG, 7-strand tinned copper conductors for flexibility and corrosion resistance
  • CMP plenum-rated for installation in air-handling spaces
  • FEP insulation and PVDF jacket for excellent flame performance
  • 300V RMS working voltage rating
  • RoHS compliant


• Specifications:

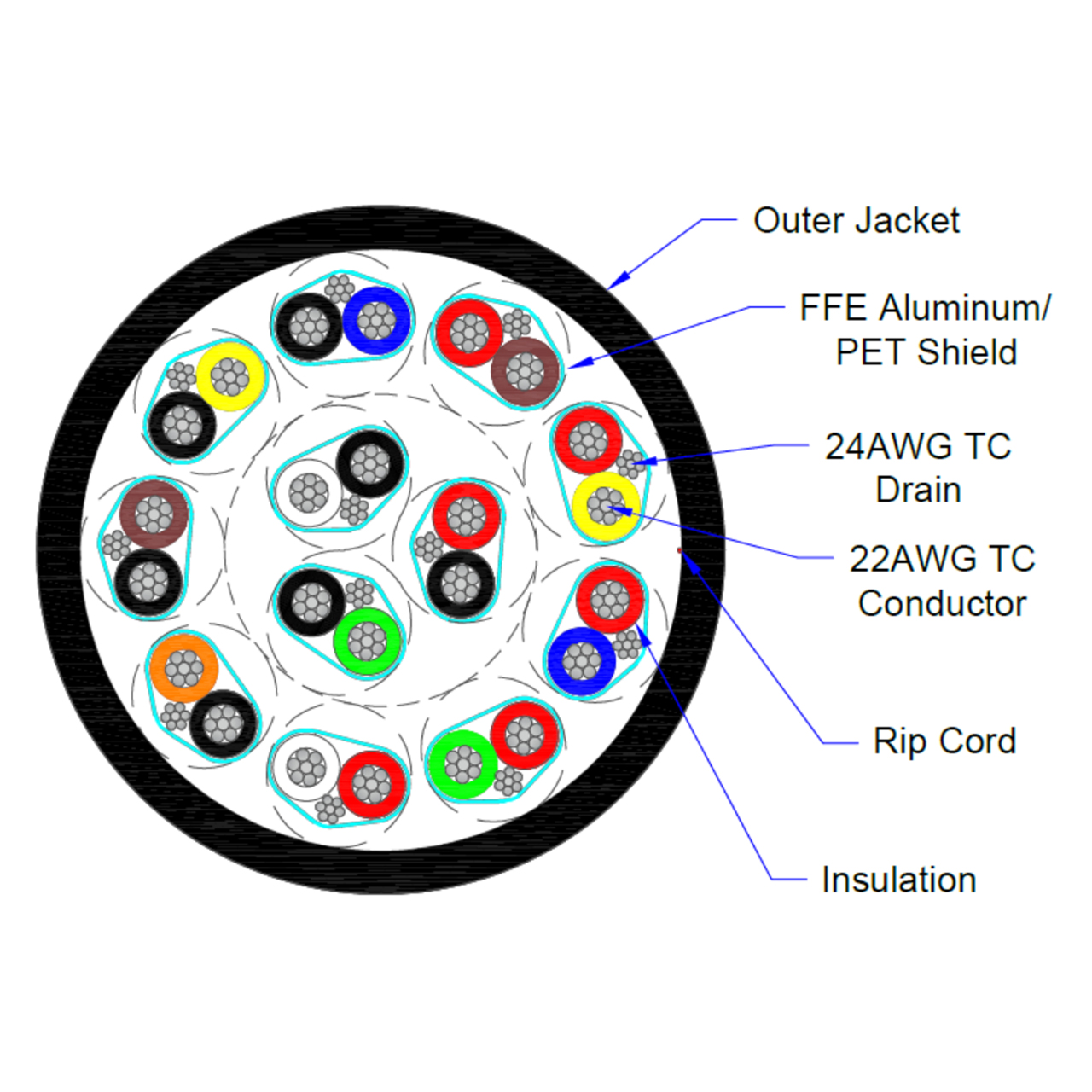

  Construction Details
  • Number of Pairs: 12-Pair
  • Conductor: 22AWG 7-Strand Tinned Copper
  • Insulation Material: FEP
  • Nominal Insulation Thickness: 0.008" (0.2mm)
  • Nominal Insulation Diameter: 0.046" (1.2mm)
  • Color Code: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue, Red/Yellow, Red/Brown
  • Drain Wire, Each Pair: 24AWG Stranded Tinned Copper
  • Shielding, Each Pair: FFE Aluminum/Polyester (100% Cover)
  • Jacket Material: PVDF
  • Jacket Color: Black
  • Nominal Jacket Thickness: 0.025" (0.64mm)
  • Nominal Diameter: 0.494" (12.5mm)

    Electricals
  • Suggested Working Voltage: 300V, rms.
  • Conductor DCR, Nom.: 16.8Ohms/1000 ft
  • Capacitance, Cond to Cond, Nom.: 27.4pF/ft
  • Capacitance, Cond to Others, Nom.: 49.4pF/ft
  • Impedance, Nominal: 54.9Ω
  • Nom. Velocity of Propagation: 68%
  • Max. Current per Cond @ 30°C: 1.9 Amps

    Other
  • Spool Length: 2500 feet (762m)
  • Maximum Cable Pull Strength: 177lbs (80.3kg)
  • Minimum Bend Radius: 4.95" (125.73mm)


• Item Includes:

  • 1x Remee AUD12P22ISP 22-12P Shielded Analog Audio Plenum - 2500 Foot


• Warranty:

  • 1-Year Limited Warranty
