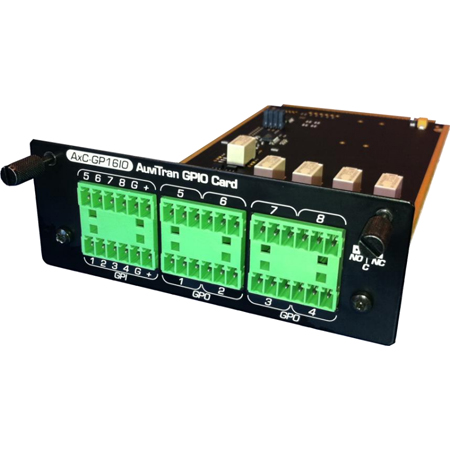

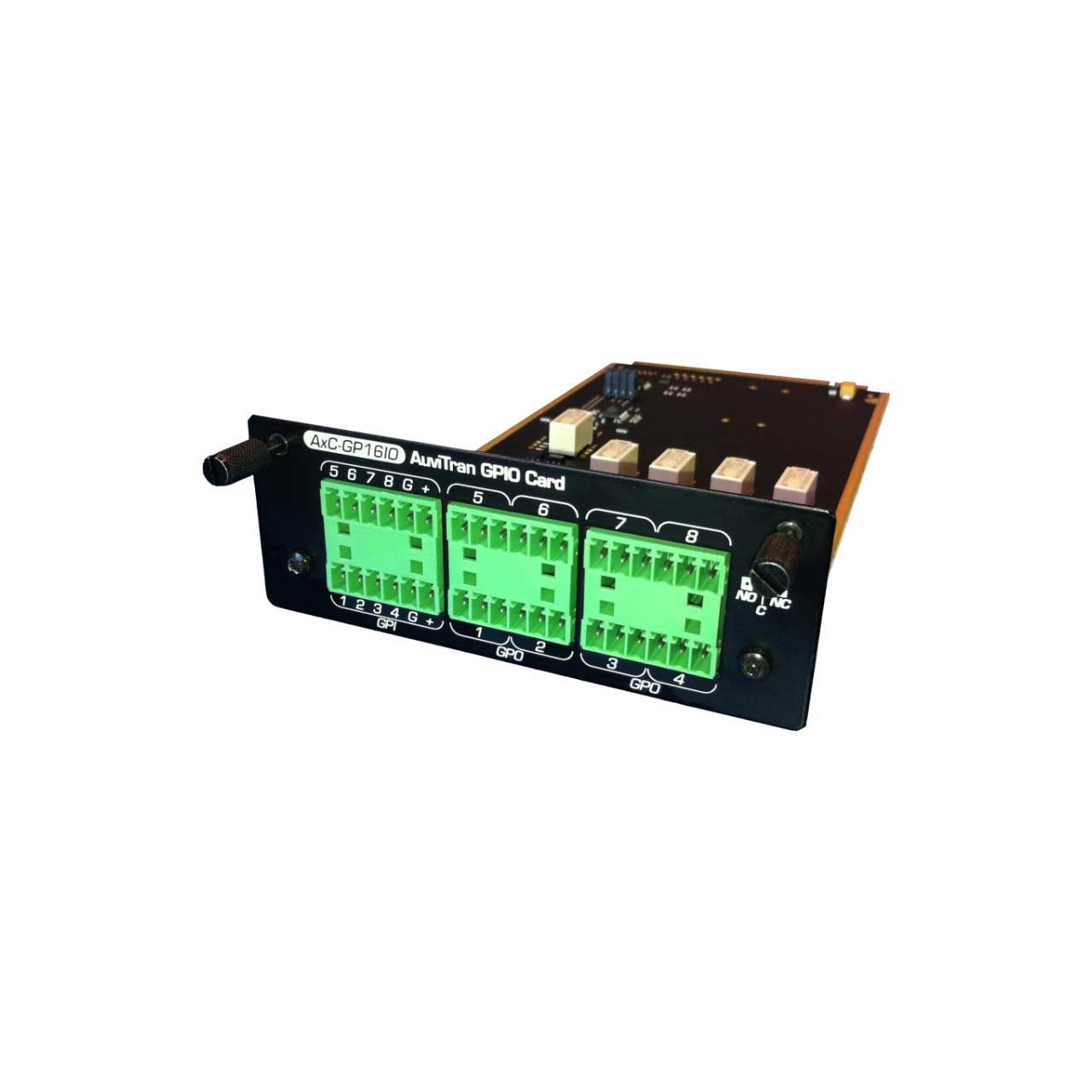

AuviTran Audio Toolbox AxC-GP16io GPIO Card with 8x GPI and 8x GPO on Relay

AXC-GP16IO - Overview

• Features:

  • 8x Opto-Isolated General Purpose Inputs that can be remotely monitored via EtherSound
  • 8x Relay-switch for up to 250VAC/0.25A, 30VDC/2A remotely controllable over EtherSound
  • Integrates a configurable RS232/RS485 serial interface.for remote monitoring and control through a PC application
  • Remote management with ESMonitor software through the EtherSound Network
  • Dedicated control page for monitoring and controlling all the card parameters


• Specifications:

  • General
  • Size: 7.87 x 3.94 x 1.57 In (200 x 100 x 40 mm) - AuviTran Audio ToolBox platform cards format
  • Power Supply: +12V / +3.3V Through AuviTran Audio ToolBox backplane
  • Storage Temp / Humidity: - 23°F to 158°F (-5°C to 70°C)/ 0% to 95% (non-condensing)
  • Operating Temp / Humidity: 32°F to 122°F (0°C to 50°C)/ 5% to 90% (non-condensing)
  • Connectors: 1x6 pole double row Euroblock Connector (pitch 3.81mm) for GPI/2x6 pole double row Euroblock Connector (pitch 3.81mm) for GPO

    GPIO Specifications
  • General Purpose Inputs: 8 Inputs Opto Isolated
  • General Purpose Outputs: 8 relay-switch for up to 250VAC/0.25A, 30VDC/2A
  • Remote Control: Via EtherSound
  • Serial Interface: RS232 / RS485 Rx/Tx serial port interface
