    LES301A-KIT - Overview

    The Black Box LES301A-KIT is an LES300 Series industrial serial device server that provides remote access to serial devices across your LAN/WAN. Use your ethernet network to reliably access a remote RS-232 or RS-422/-485 industrial device from a remote workstation.

    The 1-Port 10/100 Device Server gives you a cost-effective gateway for TCP/IP Ethernet and serial signal communications, enabling nearly any serial device to be connected to a new or existing Ethernet network.

    It does this by encapsulating serial data and transporting it over Ethernet, communicating full-duplex, and transmitting bidirectional data transparently between the serial port and a network.

    Plus, it's easy to configure. You can do this remotely over the Ethernet link using Telnet, a Web browser link, a serial console, or another Windows utility.

    Even better, it comes with virtual communications software. Through it, you can use an existing Windows-based application to access a serial device by mapping the virtual COM port to a remote serial server over Ethernet.

    In addition, the device server supports TCP server, TCP client, and UDP modes of communication, and serial tunneling, which you can use to send data between two serial devices via the TCP/IP link instead of RS-232, -485, or -422 connections. Link a touchscreen to a distant PLC over the Ethernet network, for instance.

    Ideal for any manufacturing, process engineering, or automation application, the 1-Port 10/100 Device Server, RS-232/422/485 can also be used to communicate with a bar-code scanner, PLC, electronic Kanban inventory management device, and similar equipment on the factory floor.

    • Features:

      • Access a single serial device over your Ethernet network.
      • Software selectable for RS-232, RS-422, or RS-485.
      • Includes external power supply
      • DB9 male serial connector.
      • Autosensing 10-/100-Mbps Ethernet port.
      • Completely manageable through any Web browser or Telnet™.
      • Supports SNMP manangement.
      • Features TCP server/client, UDP, Virtual COM, and tunneling modes.
      • Software-selectable RS-232/485/422 serial data communications.
      • Ideal for controlling a manufacturing or automation device over a LAN.
      • Auto MDI/MDI-X Ethernet port. Auto negotiates, autodetects for 10 or 100 Mbps.
      • Rugged, metal case that can be wall or DIN rail mounted (mounts included).
      • Firmware can be upgraded over an Ethernet network from a remote PC.
      • On the serial side, it features 15-kV ESD protection.
    • Specifications:

      • CE Approval: Yes
      • Ethernet Interface: 10 or 100 Mbps
      • Operating Temperature: 32 to 140° F (0 to 60° C)
      • Power: 9-30 VDC from separate AC power supply (included); Consumption: 1.5 watts (maximum)
      • RoHS: Yes
      • Serial Baud Rate: 1200 bps to 230 kbps
      • Serial Data Bits: 7, 8
      • Serial Data Parity: None, Odd, Even, Mark, Space
      • Serial ESD Protection: 15 kV
      • Serial Flow Control: None; Software: X-ON/X-OFF; Hardware: RTS/CTS
      • Serial Stop Bits: 1, 2
      • Software Support Protocols: ICMP, TCP (UDP)/IP, DHCP client, SNMP, HTTP, Telnet
      • Standard: IEEE 802.3
      • Connectors: Serial: (1) DB9 (Male) (RS-232/422/485 software selectable); Ethernet: (1) RJ45 (10BASE-TX/100BASE-T)
      • Dimensions: 1.1-in. H x 2.6-in. W x 3.1-in. D (2.8 x 6.6 x 7.9 cm)
      • Replaces: LES4011A, LES4012A, LES4013A, LES5013A, LES5014A, and LES5016A

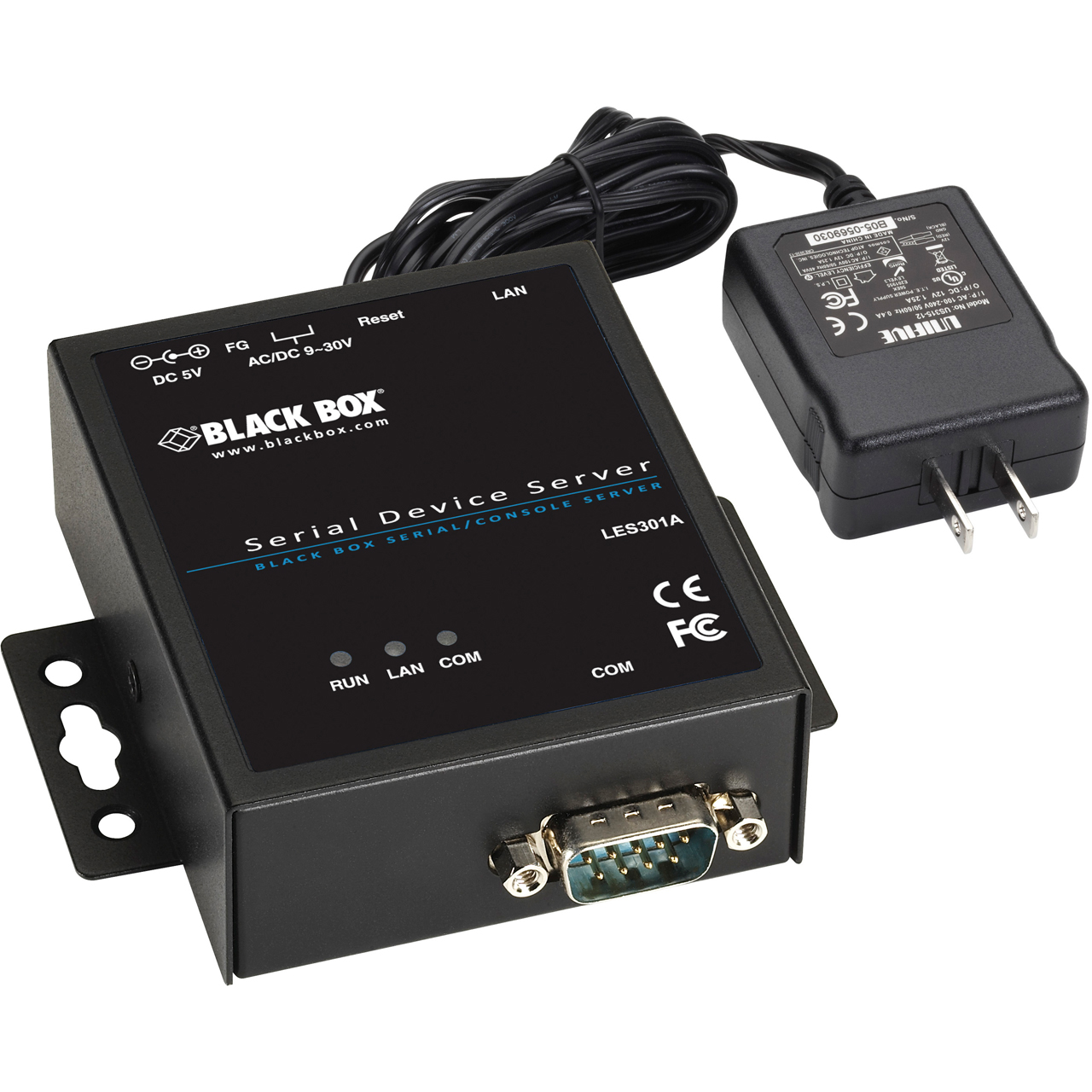

    • Item Includes:

      • 1x Device Server
      • 1x 12VDC Power Supply
