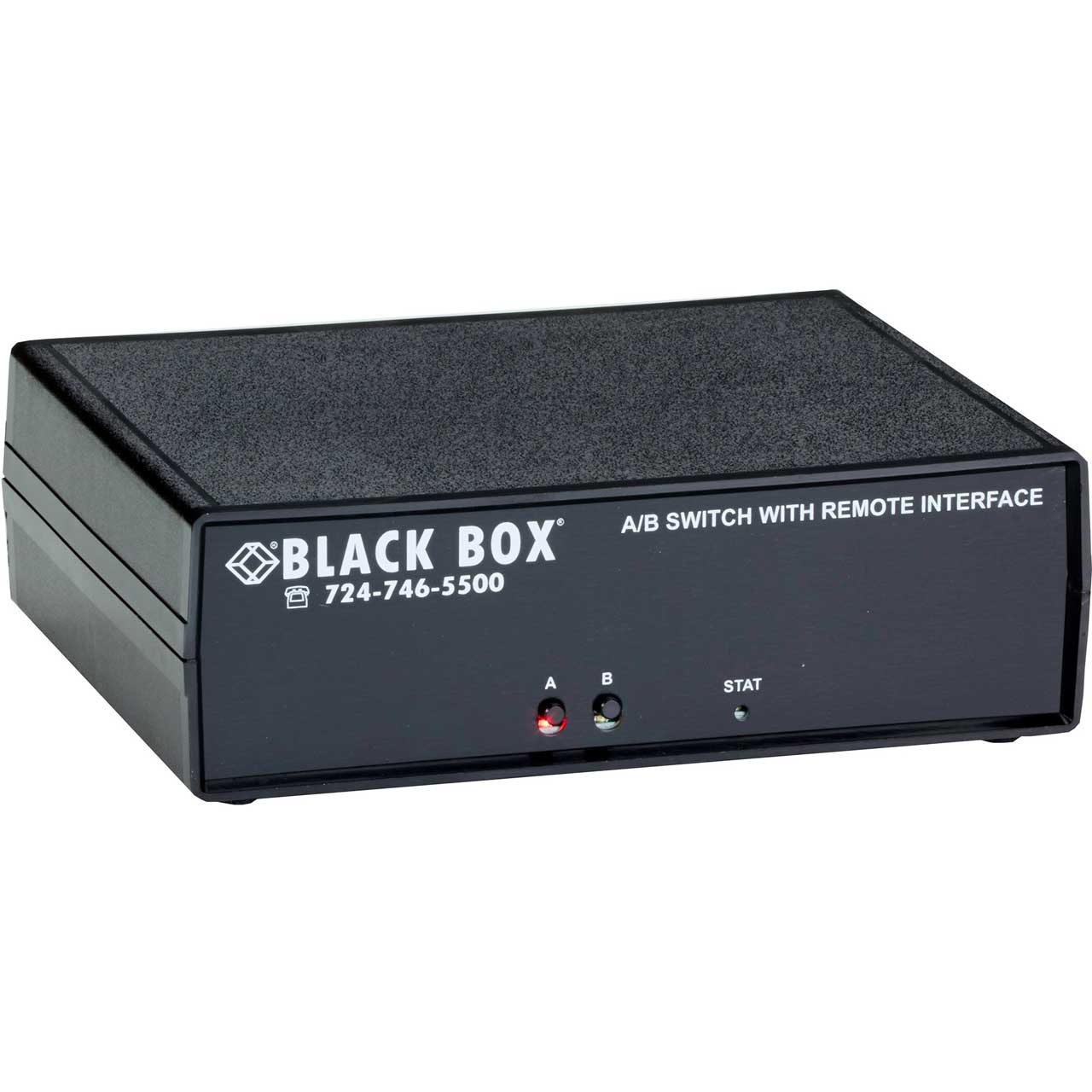

Black Box SW1047A DB9 A/B Switch Latching Remote Control Dry Contact

Manufacturer: Black Box

Item #: BBX-SW1047A   •   MFG #: SW1047A



List Price:$424.42
Our Price:$334.29

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Black Box SW1047A DB9 A/B Switch has a 6 position terminal strip on the rear of the unit that provides remote control capability and accepts external dry contact closures as inputs for remote A/B switching. Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Mbps. Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit. The connection state will be maintained if power fails or is removed.


    • Features

      • Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Mbps
      • Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit
      • The connection state will be maintained if power fails or is removed
      • Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position
      • Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position
      • If desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B Switch

    • Specifications

      • Connectors: A/B switch ports: (3) DB9 F; Serial control port: DB9 F; Remote control/status port: (1) 6-position terminal block; Power: (1) 3.5-mm power input
      • Dimensions(H x W x D): 2.5 inch x 6.25 inch x 8.1 inch (6.4 x 15.9 x 0.6 cm)
      • Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 5 VDC
      • Switching Speed Typical: 5 msec; Maximum: 10 msec
      • Weight: 4 lb. (1.8 kg)

    • GTIN:

      0822088118213
