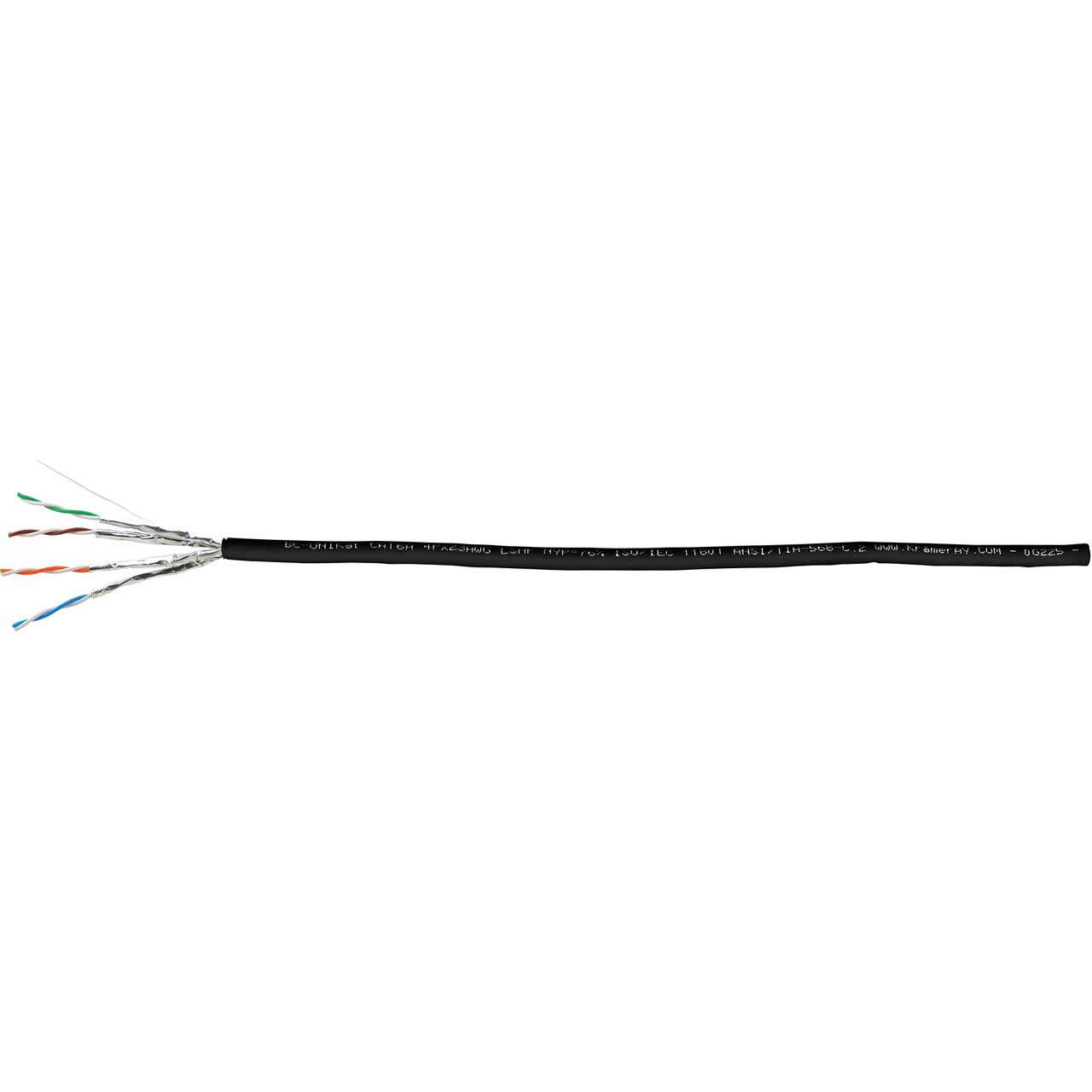

Kramer BC-UNIKAT/LSHF/BK-305M 23AWG U/FTP CAT6A Bulk Cable for Kramer DGKat/HDBaseT & LAN - 1000 Feet - Black

ITEM #: BC-UNIKATLSHFBK3 MFG #: BC-UNIKAT/LSHF/BK-305M

free ship

List Price:

$590.00

Our Price:

$472.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    BC-UNIKAT/LSHF/BK-305M - Overview

    CAT6A U/FTP Video & LAN Bulk Cable - Low Smoke & Halogen Free

    Kramer's BC-UNIKAT cable is a unified CAT6a cable that handles all Pro AV and IT signals. Over four individually screened twisted pairs, this U/FTP CAT6A cable runs Kramer's DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimal signal performance.

    Perfect for:
    Structure cabling for horizontal and building backbone cable.
    IT, LAN, HDBaseT and Ethernet installations.
    Ideal for 10GbE and legacy speed applications.
    IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt.

    • Features:

      • Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
      • Optimized for Kramer Hardware
      • HDBaseT Recommended - www.hdbaset.org/hdbaset-recommended-cables/.
      • Reaction to Fire Classification - Dca-s2,d1,a1 (optional: B2ca-s1,d1,a1).
      • RJ-45 Connector - The larger diameter 23AWG twisted pair cable requires a special RJ-45 connector.
      • Length - Available in reel boxes of 100m (328ft) & wooden drums of 305/500m (1000/1640ft).

    • Specifications:

      • CONDUCTORS
      • Size: 4x2x23AWG
      • Material: Annealed copper
      • Diameter: 0.56mm ±0.01mm

        INSULATION
      • Material: Skin/Foam/Skin HDPE
      • Diameter: 1.33mm ±0.10mm
      • Color Code: White/Blue, White/Orange, White/Green, White/Brown

        SCREENING
      • Material: Alu/PET per pair (Alu side out)

        DRAIN WIRE
      • Material: Tinned copper
      • Diameter: 0.4mm ±0.01mm

        JACKET
      • Material: LSHF
      • Color: Blue RAL 5012
      • Thickness: =0.5mm
      • Diameter: 7.2mm ±0.2mm

        ELECTRICAL
      • Impedance: 1-100MHz: 100Ω ±15Ω, 100-250MHz: 100Ω ±20Ω, 250-500MHz: 100Ω ±25Ω
      • Propagation Velocity (NVP): 76%
      • Voltage Rating: 60V
      • Delay Skew: <45ns
      • Mutual Pair Capacitance: =42pF/m
      • Capacitance Unbalance Pair/ground: =1500pF/km
      • Conductor DC Resistance: <79.8Ω/km
      • Pair Resistance Unbalance DC: <1.5%
      • Dielectric Strength: 2.5kV DC (2s)
      • Insulation Resistance (500V): >5000MΩ/km

        USAGE AND ENVIRONMENTAL
      • Storage / Transport / Installation Temperature: 0°C to +50°C
      • Operation Temperature: -20°C to +60°C

        MECHANICAL
      • Maximum Pulling Tension: : 100N
      • Bending Radius - Installed: 50mm
      • Bending Radius - During Installation: 60mm

        STANDARDS COMPLIANCE - EC VERIFIED
      • Electrical: EIA/TIA 568A, ISO/IEC 11801
      • Fire Performance: IEC 60332-1
      • Smoke Density: IEC 61034
      • Halogen Free: IEC 60754
      • RoHS: 2011/65/EU

        STANDARDS COMPLIANCE
      • Reaction to Fire Classification: Dca-s2,d1,a1 (optional: B2ca-s1,d1,a1)

    • Warranty:

      • Lifetime Warranty

    • GTIN:

      7291063080877
