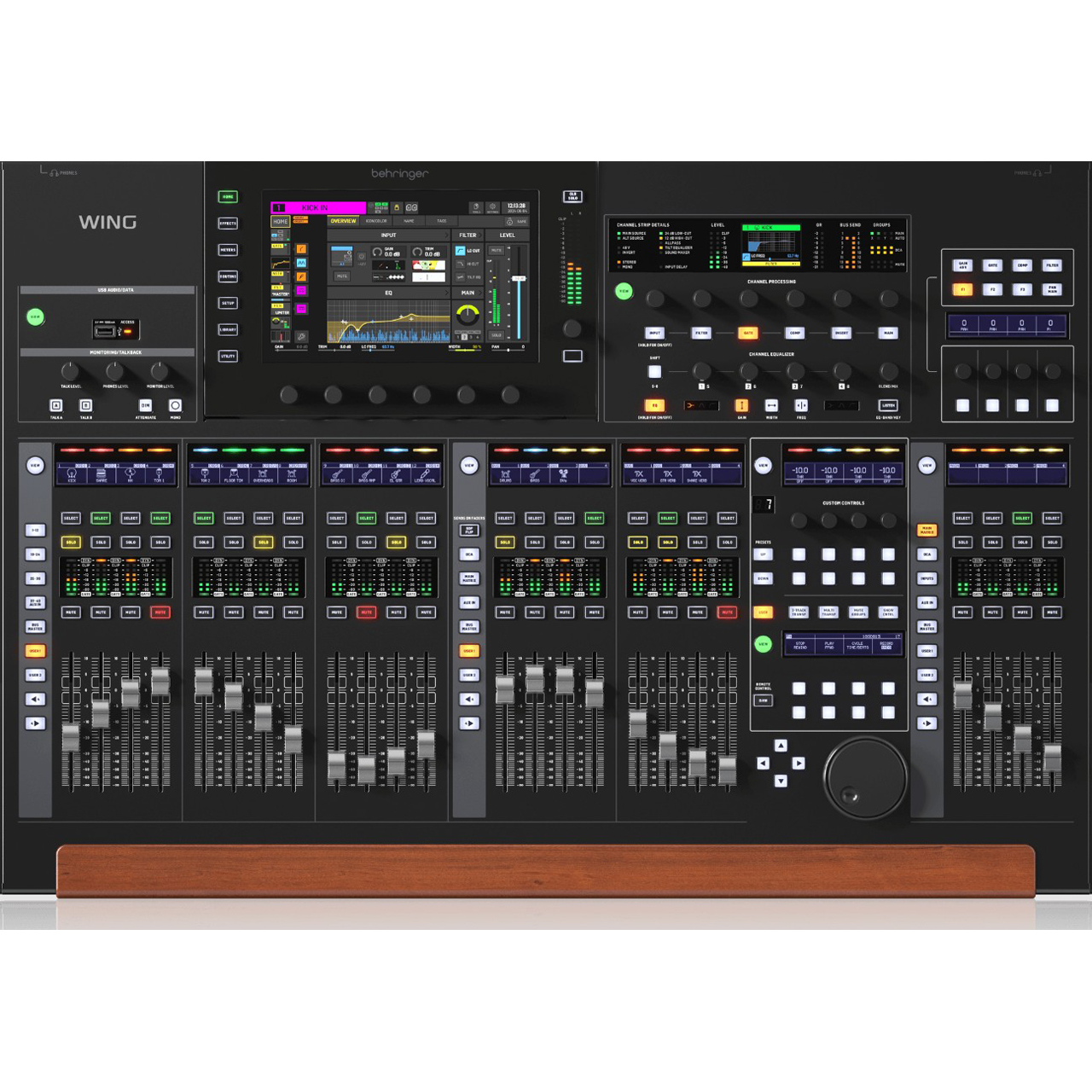

Behringer WING-BK 48-Channel 28-Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps and Outputs - Black

WING-BK - Overview

• Features:

  • 8 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard
  • 24 motorized 100 mm faders in 3 separate, fully configurable sections
  • "Plug and play" remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik's SuperMAC technology for ultra-low jitter and latency

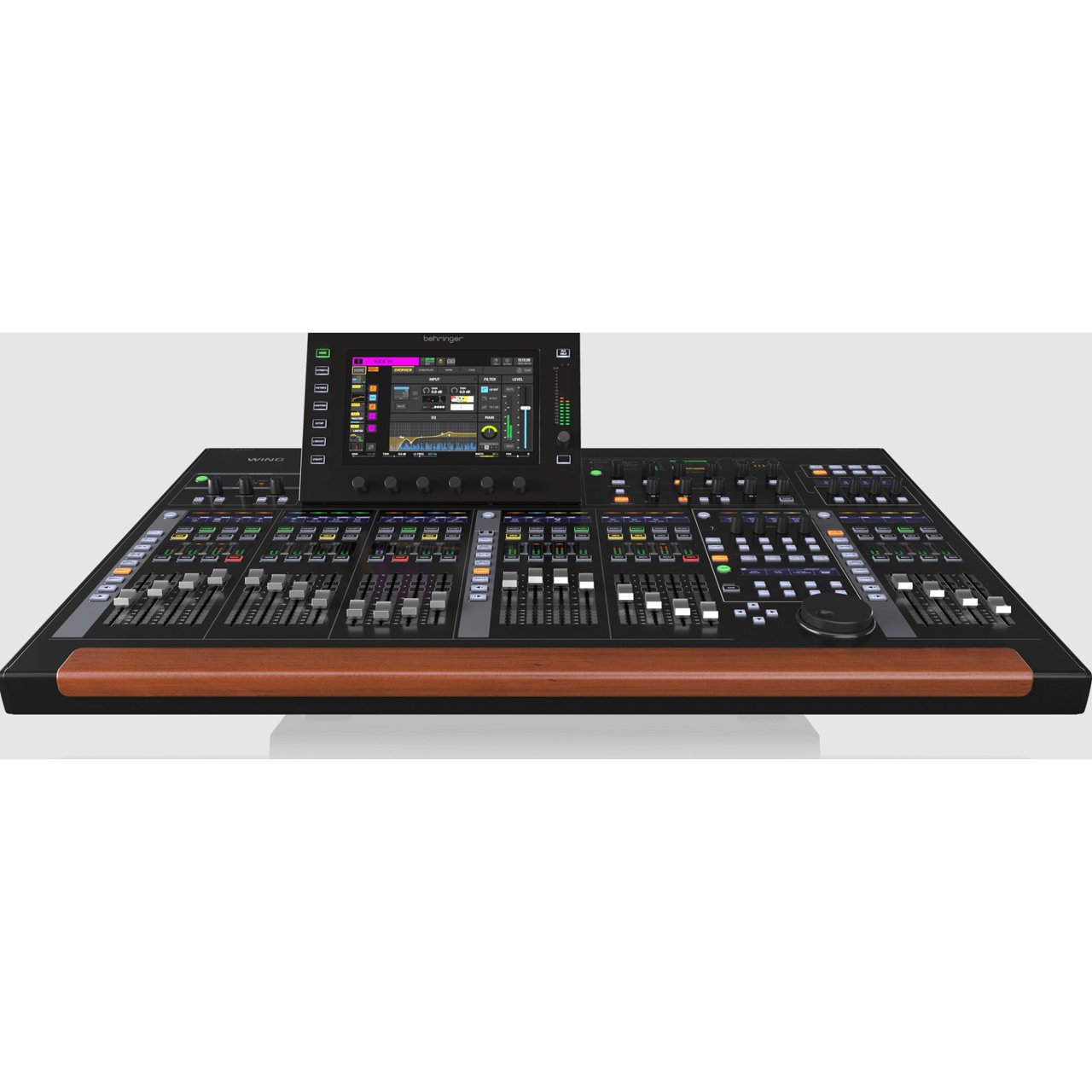

  • Large main display with capacitive touch screen and adjustable display swivel
  • Unique touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for staying on top of all channel properties

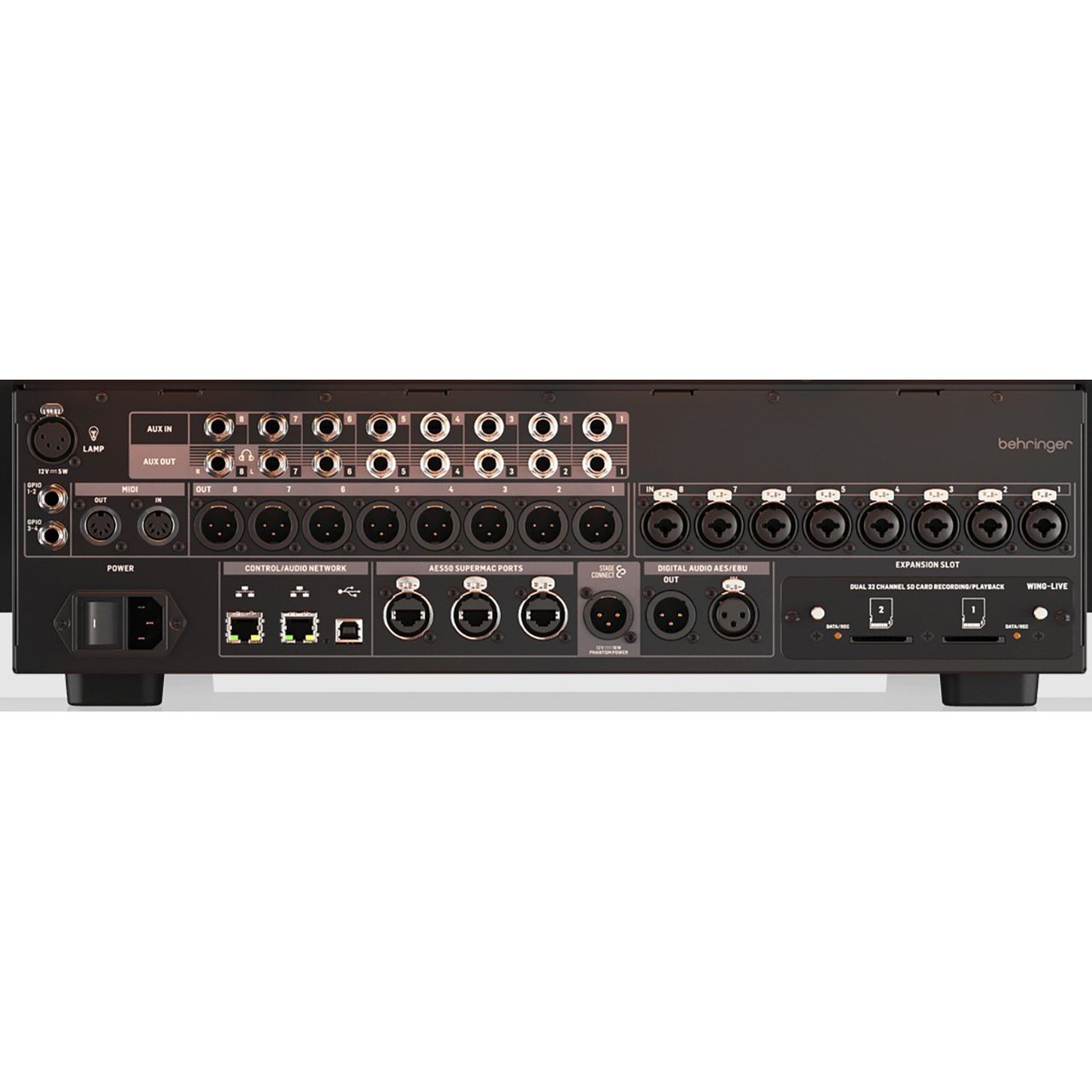

• Specifications:

  • Digital AES/EBU Input/Output (XLR): 1/1
  • AES50 Ports (KLARK TEKNIK SuperMAC, 100 Mbit/s): 3
  • Expansion Card Interface: 64 x 64Ch audio input/output
  • StageCONNECT Master I/O (12V/18W power supplied, XLR, 32Chs): 1
  • MIDI Inputs/Outputs: 1/1
  • GPIO on TRS, Configurable: 2 x 2
  • USB 2.0 Type B Device (48 x 48 ch 24-bit Audio and MIDI I/O): 1
  • USB 2.0 Type A Host (Audio and Data, 5 VDC, 1 A): 1
  • Ethernet LAN Ports, RJ45, 1 Gbit/s: 2, internally switched
  • Audio Over IP (AoIP) Internal Module Socket (Dante, AES67 or SoundGrid Modules Optional): Up to 64 x 64Chs @48kHz
  • IEC Mains Socket with Power Switch: 1

    Mic Input Characteristics (Mic Input to Analog Output)
  • Design: MIDAS PRO series
  • THD+N (0dB gain, 0dBu output): < 0.004%*
  • THD+N (+40dB gain, 0dBu to +20dBu output): < 0.006%*
  • Input Impedance (unbal/bal): 1kΩ/2kΩ
  • Non-Clip Max Input Level: +21dBu
  • Phantom Power (Switchable per Input): +48V
  • Equivalent Input Noise @+45dB gain (150 Ω source): -128dBu*
  • CMRR @Unity Gain (Typical): > 50dB
  • CMRR @40dB Gain (Typical): > 70dB

    Input/Output Characteristics
  • Frequency Response @48kHz Sample Rate, 0 to -1dB (Any Gain Setting): 10Hz - 20kHz
  • Dynamic Range, Analog in to Analog Out (Typical), XLR/AUX: 111 dB*/108dB*
  • A/D Dynamic Range, Preamplifier and Converter (Typical), XLR/AUX: 112dB*/110dB*
  • D/A Dynamic Range, Converter and Output (Typical), XLR/AUX: 118dB*/112dB*
  • Crosstalk Rejection @1kHz, Adjacent Channels: 100dB
  • Output Level, XLR Connectors (Nominal/Max): +4dBu/+21dBu
  • Output Impedance, XLR Connectors (unbal/bal): 75Ω /75Ω
  • Input Impedance, TRS Connectors (unbal/bal): 20kΩ/40kΩ
  • Non-clip Max Input Level, TRS Connectors: +16dBu
  • AUX Output Level, TRS (nominal/Max): +4dBu/+16dBu
  • AUX Output Impedance, TRS (unbal/bal): 150Ω/300Ω
  • Phones Output Impedance/Max Output Level: 500 mW @75Ω/+18dBu
  • Residual Noise Level, XLR out 1-16 Connectors, Unity Gain: -97dBu*; AUX and Monitor TRS out Connectors: -95dBu*

    Displays
  • Main Screen: 10.1" TFT LCD, 1280 x 800px, capacitive touch
  • Main Screen Swivel, Continuous Adjustment: 15°- 60°
  • 4-Ch Group LCD Screen with RGB Color Strip per Channel: 320 x 48 monochrome
  • Ch Editing Screen: 2.4" TFT LCD, 320 x 240px
  • Main Stereo Meter: 18 segment (-60dB to clip)

    Controls
  • 100mm Motor Faders: 12 + 8 + 4
  • Touch-Sensitive Rotary Controls: 3 + 7 + 11 + 4 + 4
  • Custom Controls:
    - Fully Assignable Rotary Controls: 4
    - Fully Assignable Backlit Buttons: 8 + 8
    - Variable Rotary Controls/Buttons: 4/4

    Power
  • Switch-Mode Power Supply: Auto-ranging 100V - 240V AC (50/60Hz)
  • Power Consumption: 130W

    Physical
  • Operating Temperature Range: 41°F - 104°F (5°C - 40°C)
  • Dimensions (HxWxD): 7.9" x 34.3" x 22.6" (201mm x 870mm x 575mm)
  • Weight: 52.8lbs (24kg)


• Item Includes:

  • 1x Behringer WING-BK 48-Channel-28-Bus Full Stereo Digital Mixing Console - 24-Fader Control Surface & 10-Inch Touchscreen
