Blonder Tongue BIDA 86A-30 Broadband Indoor Distribution Amplifier 30 dB 49-860 MHz

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

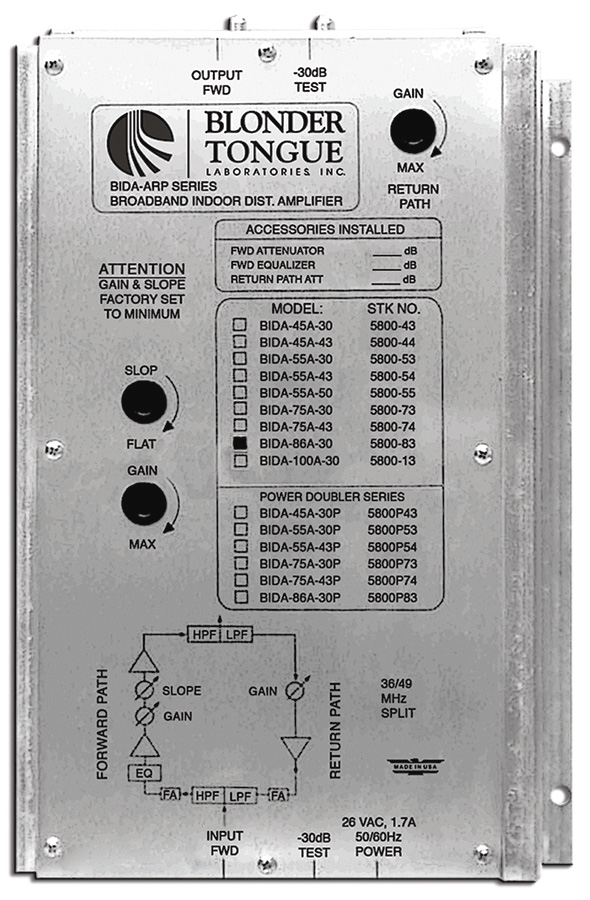

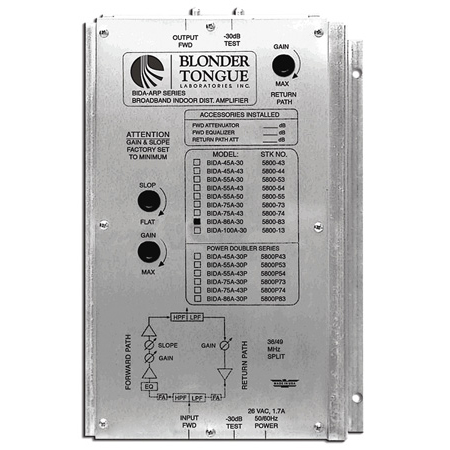

    Blonder Tongue BIDA 86A-30 Broadband Indoor Distribution Amplifier 30 dB 49-860 MHz

    Item #: BIDA-86A-30   •   MFG #: 5800 83



    List Price:$683.00
    Our Price:$545.95

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!





      The BIDA 5800 and 5900 Series are professional quality, two way broadband indoor distribution amplifiers. These amplifiers are ideal for multi-channel RF distribution systems the input source is a "cable drop" or the output of a MATV/SMATV/CATV headend. The BIDA 5800 Series features models having RF bandwidths of 550,750,860 and 1000 MHz. The BIDA 5900 Series is available in 860 MHz bandwidth. Push-pull and power doubling hybrid amplifier technologies are available on both series. The BIDA 5800 and 5900 series are factory equipped for 2-way operation. The 5800 series has a 36/49 MHz split and the 5900 series has a 42/54 MHz split. Both series leave the factory set for passive return path operation. Active return path operation can easily be accomplished by reconfiguring a few internal jumpers. The BIDA 5800/5900 Series utilizes an external power transformer providing 26 VAC to the amplifier. This enables the amplifiers to be remotely powered via low voltage AC wiring should a 120 VAC electrical outlet not be in close proximity to the desired amplifer location.


      • Features

        • Interstage Variable Gain and Slope Controls
        • Optional Plug-in Fixed Equalizer and Attenuator Capability For Input Signal Conditioning
        • Integrated Return Path Configurable for either Passive or Active Operation
        • Push-Pull and Powering Doubling Hybrid Models Available
        • Input and Output Test Ports
        • Large Heat Sinks for Exceptional Heat Dissipation

      • Specifications

        • See research tab above
