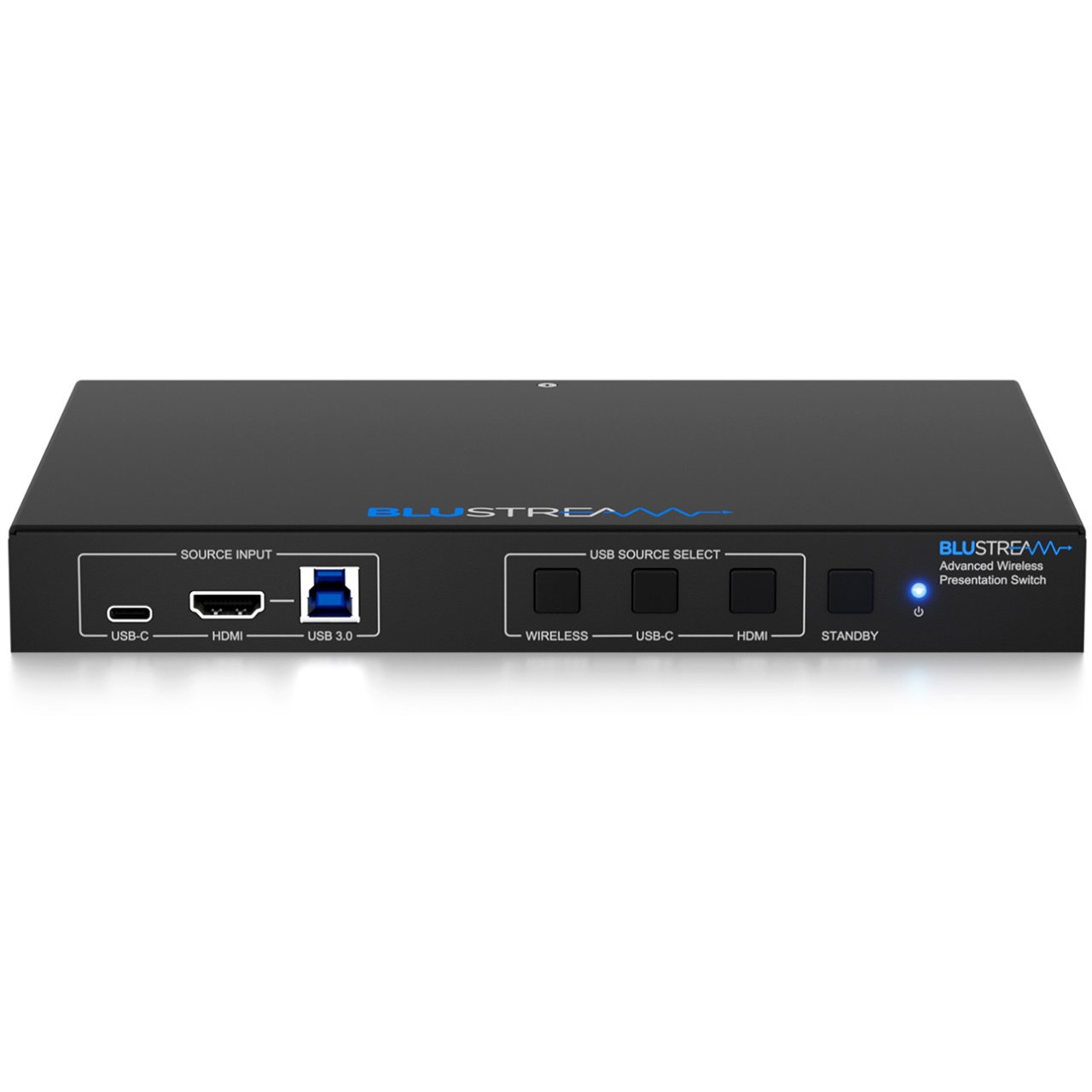

Blustream WMF72 4K HDMI Advanced Wireless Multi-Format Presentation Switch with Airplay/Miracast/Chromecast Inputs

Name: Blustream WMF72 4K HDMI Advanced Wireless Multi-Format Presentation Switch with Airplay/Miracast/Chromecast Inputs
Brand: Blustream
SKU: BLU-WMF72
Price: 2343.00 USD
Availability: InStock

ITEM #: BLU-WMF72 MFG #: WMF72

Blustream

List Price:

$2,579.95

Our Price:

$2,343.00

Add to Wish List Leasing Options

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

WMF72 - Overview

Advanced Wireless Multi-Format Presentation Switch

The Blustream WMF72 is an advanced 4K multi-format presentation switch featuring wired HDMI and USB-C, AirPlay, Miracastr and Chromecastr inputs to dual HDMI outputs.

The WMF72 provides enhanced features including dual HDMI output for mirrored or managed source control with multiview presentation, video scaling and web-GUI for control and configuration, localised 2.4/5G WiFi hotspot, and dual LAN connection. The WMF72 also features OSD control, USB camera and MIC over WiFi, USB touch-back to connected host device, whiteboard and screen overlay annotation, manual or automated source selection, and control via front panel, RS-232 and TCP/IP.

The WMF72 is also compatible with Blustream WMF-USBC-D and WMF-HDMI-D plug & play wireless dongles (sold separately, providing an ideal BYOD solution for your boardroom, classroom or huddle-space application.

Please Note: *Miracast touch-back compatibility subject to Windows features.

Features:
- 4K multi-format multi-view presentation switch
- Features HDMI, USB-C, AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to dual HDMI outputs
- Dual HDMI output supports mirror or desktop extension for managed source control within advanced video conferencing set-ups

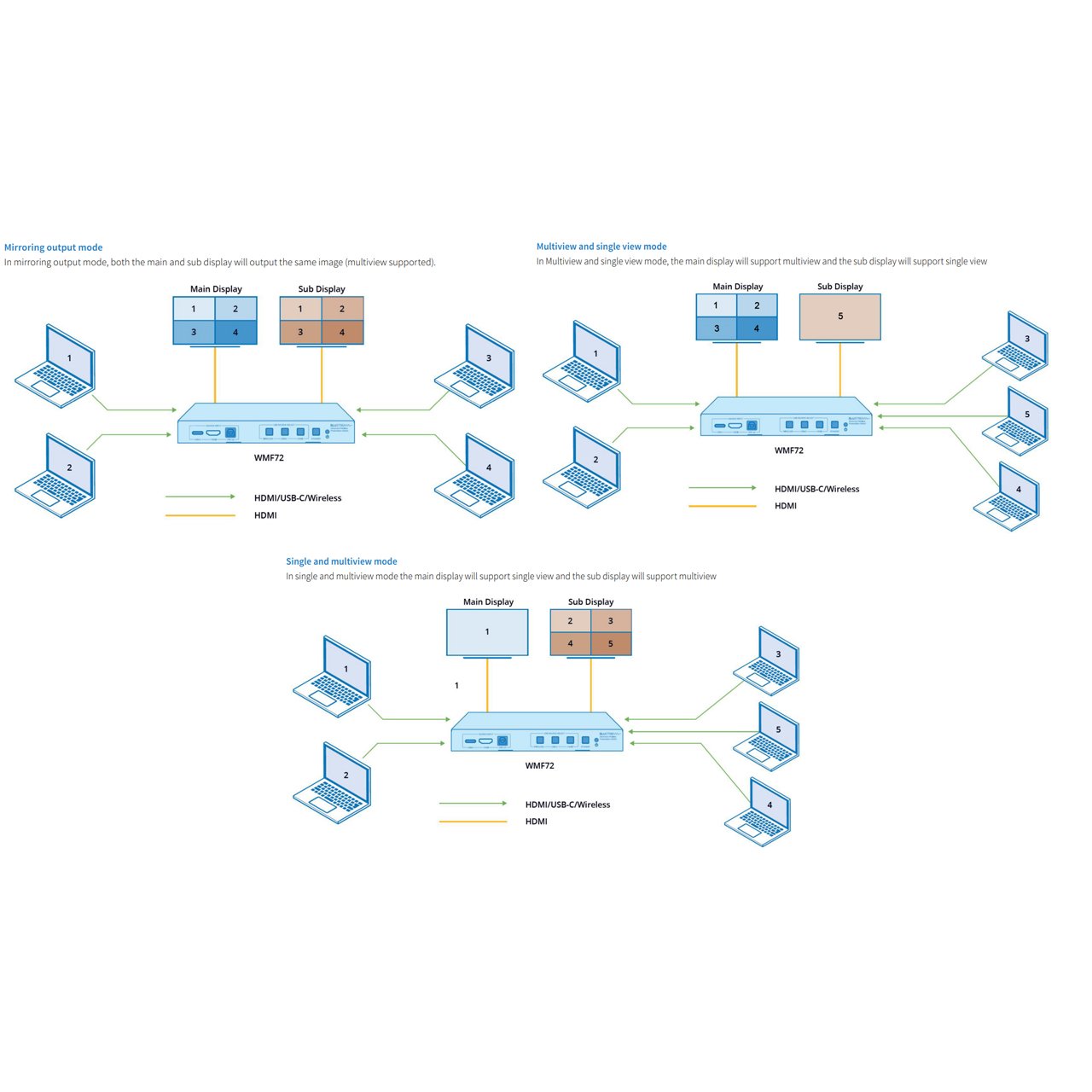

- Multi-view presentation with up to 5 concurrent video signals with fully configurable screen layout
- In-built video scaler with output timing up to 4K 60Hz 4:4:4
- USB-C connection for BYOM, with DP, USB, 1Gbps network and up to 65W power charging
- HDMI & USB Type B connection for BYOM, with USB and 1Gbps network via USB Type B connection
- Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p 30Hz)
- Dual LAN connection for integration to existing network infrastructures
- Supports USB camera and MIC over WiFi (1080p 30Hz)
- Supports USB touch-back feature via WMF-USBC-D and WMF-HDMI-D dongles and Miracast®*
- Audio breakout to balanced / unbalanced analogue L/R audio
- Web interface module for control and configuration of switch
- OSD control with preview function
- Whiteboard and screen overlay annotation feature
- Control via front panel, RS-232 and TCP/IP with manual or auto source selection

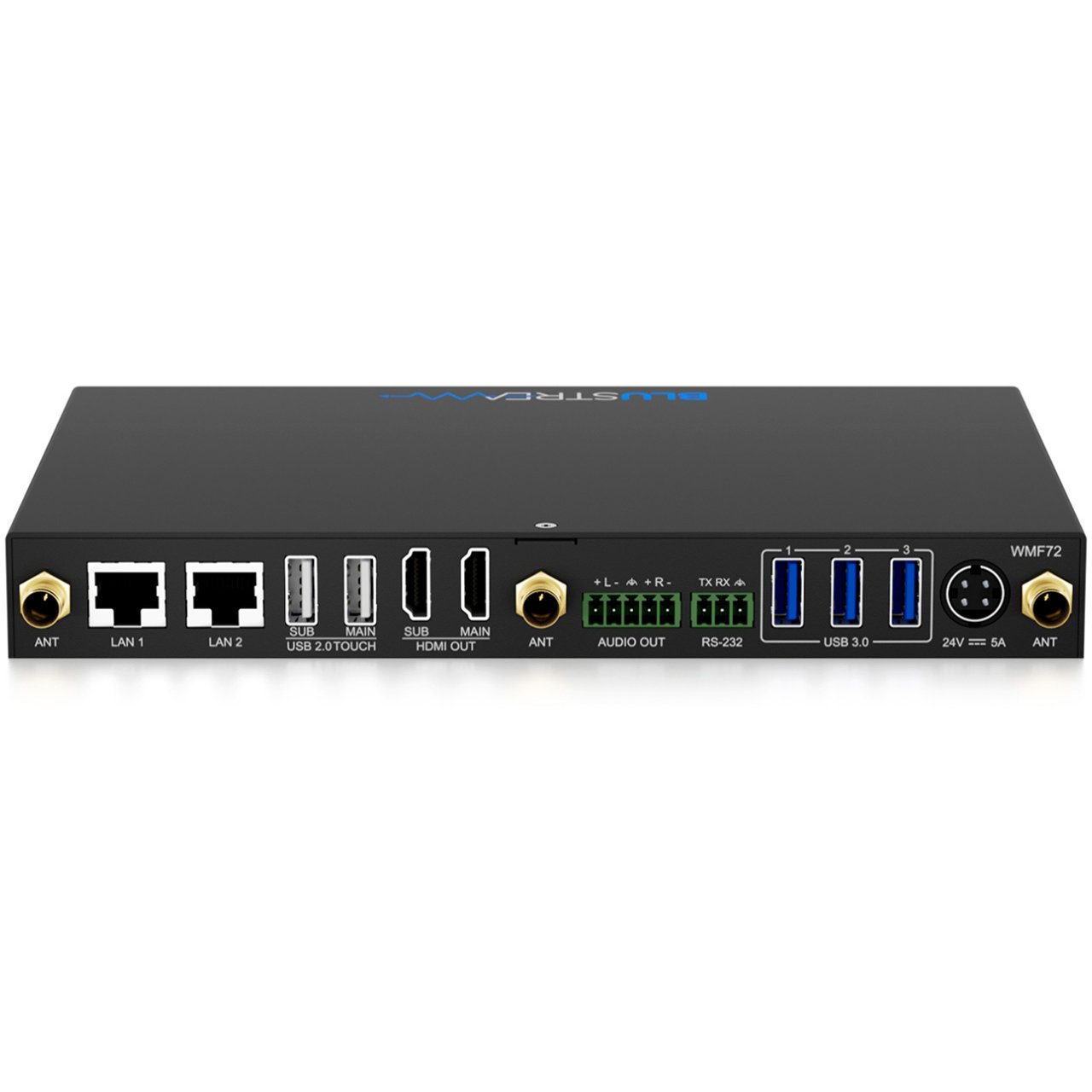

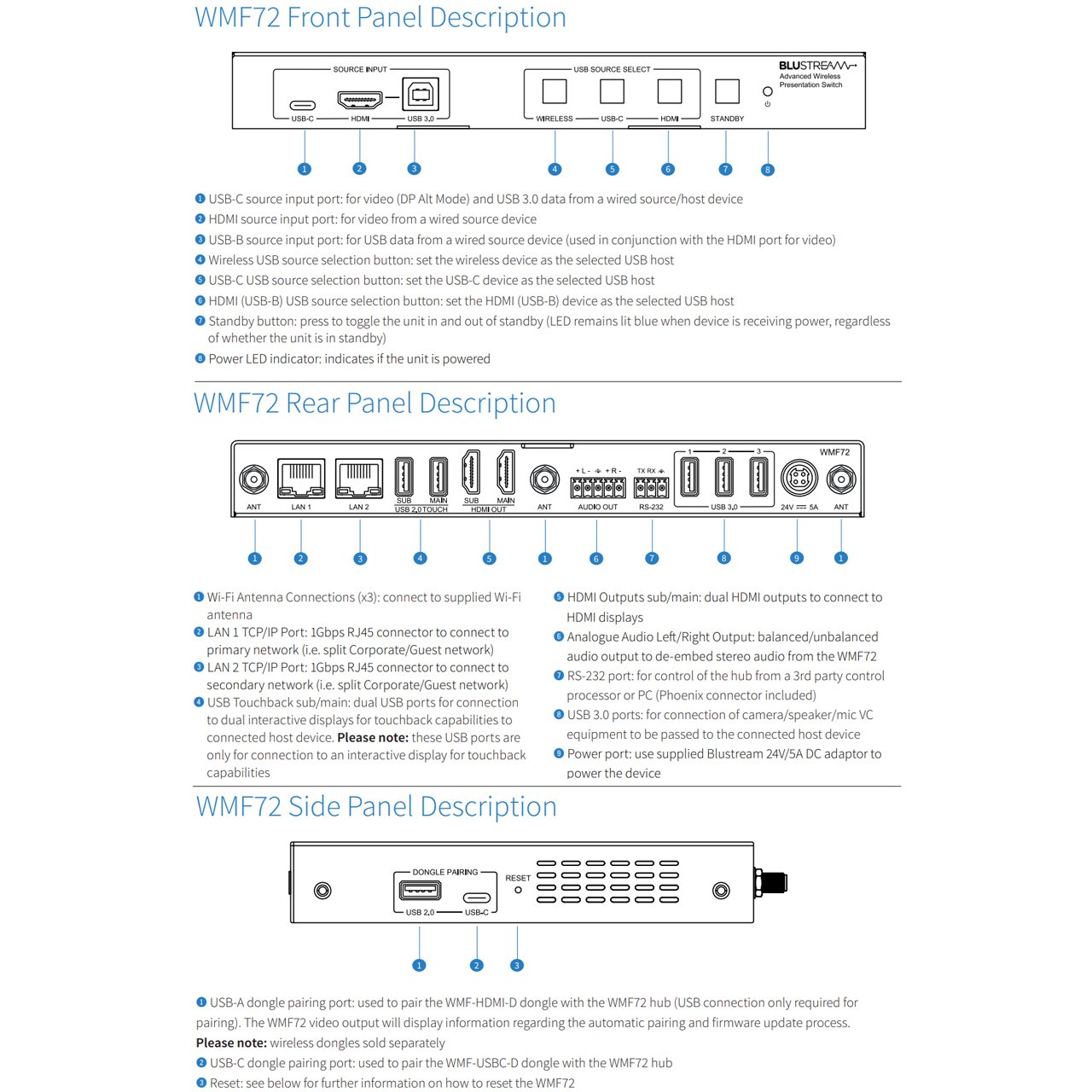

Specifications:
- Video input:
  - 1x HDMI Type A, female
  - 1x USB Type C, female
- Video Output Connectors: 2x HDMI Type A, 19-pin, female (Main @ 4K max, sub @ 1080p max)
- Audio Output Connectors: 5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
- RS-232 serial port: 1x 3-Pin Phoenix connector
- TCP/IP Control: 2x RJ45, female (1000Mbps x2)
- USB Connectors:
  - 3x USB3.0 Type A female
  - 1x USB3.0 Type B female
- USB Touchback Connectors: 2x USB2.0 Type A female
- USB Pairing Connectors:
  - 1x USB2.0 Type A female
  - 1x USB-C 2.0 Type C
- WiFi
  - 3x SMA, female connector, MIMO antennas (2.4G & 5G, WiFi IEEE 802.11 b/g/n/ac up to 1200Mbps)
  - WiFi Encryption - AES WPA PSK, WPA2 PSK
- Casing Dimensions (W x H x D): 8.7" x 1.1" x 6.3" (220mm x 27mm x 161mm) (excluding antennas)
- Shipping Weight: 4.4lbs (2kg)
- Operating Temperature: 32°F to +113°F (0°C to 45°C)
- Storage Temperature: -4°F to +158°F (-20°C to 70°C)
- Power Supply: 24V/5A DC
- Power Consumption (standby): 4.5W
- Power Consumption (fully loaded): 114W (when USB-C PD charging is 86W)
Item Includes:
- 1x WMF72
- 1x 5-pin Phoenix Connector (Audio)
- 1x 3-pin Phoenix Connector (RS-232)
- 3x Antenna
- 1x Mounting Kit
- 1x Quick Reference Card
- 1x 24V / 5A DC Power Supply
