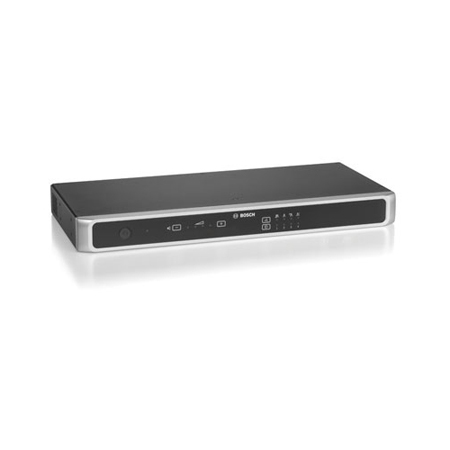

Bosch CCS 1000 D Control Unit - Powers 80 Discussion Devices - Based on Extension Cable Lengths & Configuration

ITEM #: BSH-CCSD-CU MFG #: CCSD-CU

free ship

List Price:

$1,850.00

Our Price:

$1,426.87

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    CCSD-CU - Overview

    The Bosch CCSD-CU Control Unit is the main component of the CCS 1000 D Digital Discussion System. It supplies DC power to all connected Discussion Devices (CCSD-DS/CCSD-DL) and monitors and controls the discussion system.

    • Features:

      • Up to 80 Discussion Devices can be connected to a single Control Unit; the system can be expanded to a maximum of 245 Discussion Devices by using Extension Units (CCSD-EXU).
      • Touch-button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings.
      • Conveniently positioned connections at the rear of the unit enable peripheral equipment to be connected to the discussion system, such as audio equipment, Ethernet switches, video switches, Bosch HD Conference Domes, and a PC or laptop.
      • An intuitive web browser interface control allows basic and advanced system settings to be easily viewed and changed, as required.
      • Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices
      • Intuitive web browser interface control for advanced configuration and control
      • On-board support for automatic HD camera control

    • Specifications:

      • Color: Black
      • Dimension (HxWxD): 1.80 x 17.30 x 7.90" (4.50 x 44 x 20cm)
      • Weight: 7.10Lbs (3.20kg)
      • Input Voltage: 100 – 240 VAC
      • Maximum Input Level: -26 dBV
      • Mounting Type: Rack-mounted
      • Nominal Input Level: -56 dBV
      • Operating Relative Humidity: 5 to 98%, non-condensing
      • Operating Temperature: 41° to 113°F (5° to 45°C)
      • Storage Temperature: -40° to 158°F (-40° to 70°C)

    • Item Includes:

      • 1x CCSD-CU Control Unit
      • 1x Mains power cord
      • 1x 24 VDC power supply
      • 2x Sets of chairperson's buttons for a Discussion Device
      • 1x Exchange tool for buttons
      • 1x Set of feet for table top use
      • 1x Set of 19” 1U mounting brackets
      • 1x Safety instructions
      • 1x Installation note
      • 1x DVD with operation manual and supporting tools

    • Warranty:

      • 3 years
