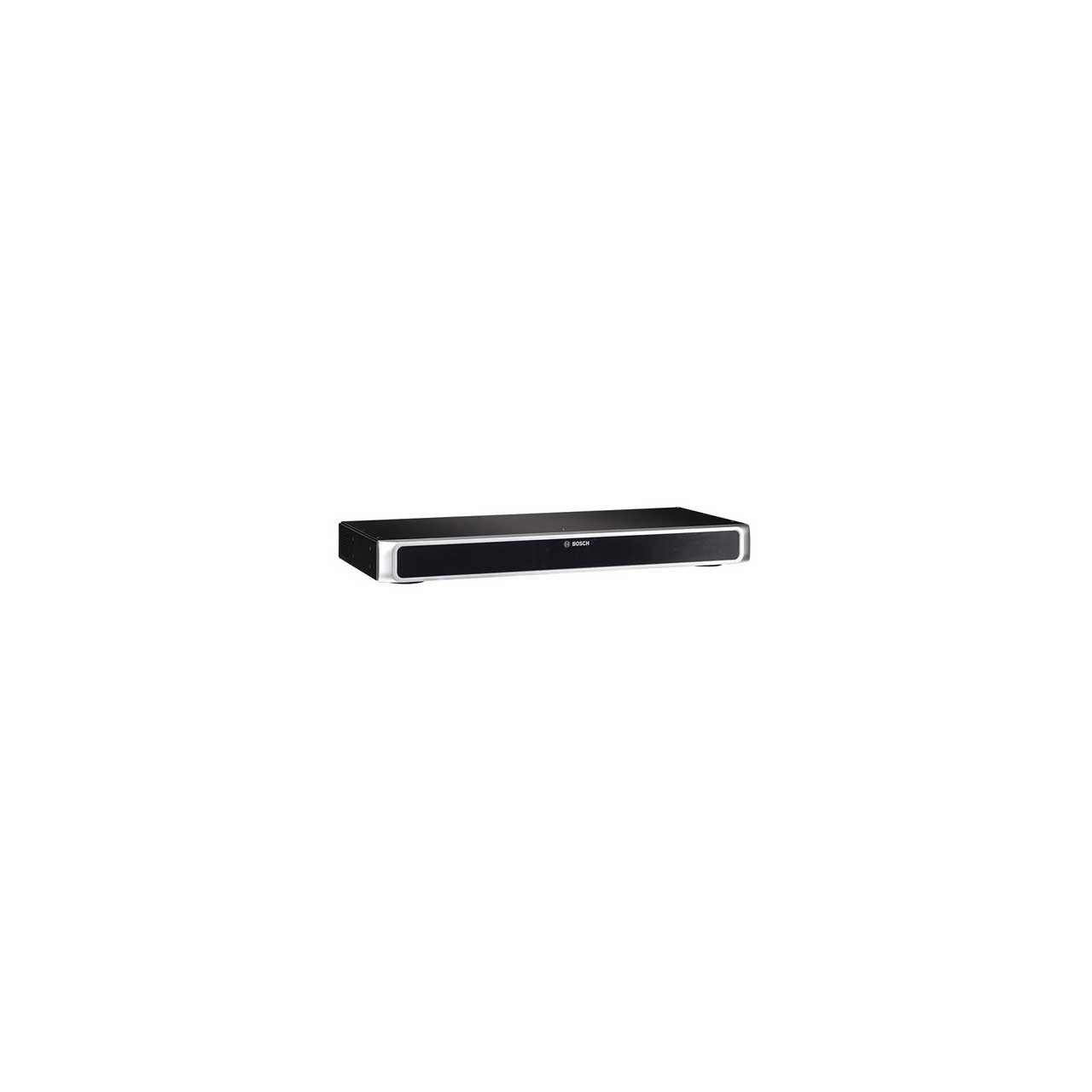

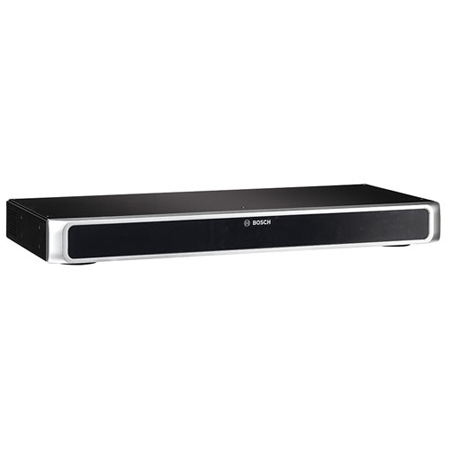

Bosch CCS 1000 D Extension Unit - Powers 85 Discussion Devices - Based on Extension Cable Lengths and Configuration

ITEM #: BSH-CCSD-EXU MFG #: CCSD-EXU

free ship

List Price:

$1,547.00

Our Price:

$1,193.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    CCSD-EXU - Overview

    The Bosch CCSD-EXU Extension Unit is used in combination with a Control Unit (CCSD-CU or CCSD-CURD) to supply additional power to the CCS 1000 D Digital Discussion System.

    One or more Extension Units can be used to expand the CCS 1000 D Digital Discussion System up to 245 Discussion Devices. A single Extension Unit can provide power for up to 85 additional Discussion Devices (CCSD-DS or CCSD-DL).

    • Features:

      • Expands the CCS 1000 D Digital Discussion System up to 245 Discussion Devices
      • Easily connected to system by use of 6-pole circular connectors
      • Built-in splitter allows for installation at any convenient point in system, including loop-through for cascading extension units
      • One trunk and two tap-off connections with short-circuit protection
      • Freestanding or 19” rack mounted; housing similar to control unit

    • Specifications:

      • Color: Black
      • Dimension (HxWxD): 1.80 x 17.30 x 7.90" (4.50 x 44 x 20cm)
      • Weight: 9.10Lbs (4.12kg)
      • Input voltage: 100 – 240 VAC
      • Mounting type: Rack-mounted
      • Operating relative humidity: 5 to 98%, non-condensing
      • Operating Temperature: 41° to 113°F (5° to 45°C)
      • Power frequency: 50 Hz; 60 Hz
      • Storage Temperature: -40° to 158°F (-40° to 70°C)

    • Item Includes:

      • 1x CCSD-EXU Extension Unit
      • 1x Mains power cord:
      • 1x 24 VDC power supply
      • 1x Set of feet for table top use
      • 1x Set of 19” 1U mounting brackets
      • 1x Safety instructions
      • 1x Quick Installation Guide

    • Warranty:

      • 3 years
