Blonder Tongue MTSA-PRO MPEG Transport Stream Analyzer

ITEM #: BT-MTSA-PRO MFG #: MTSA-PRO

free ship

List Price:

$5,327.00

Our Price:

$4,155.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    MTSA-PRO - Overview

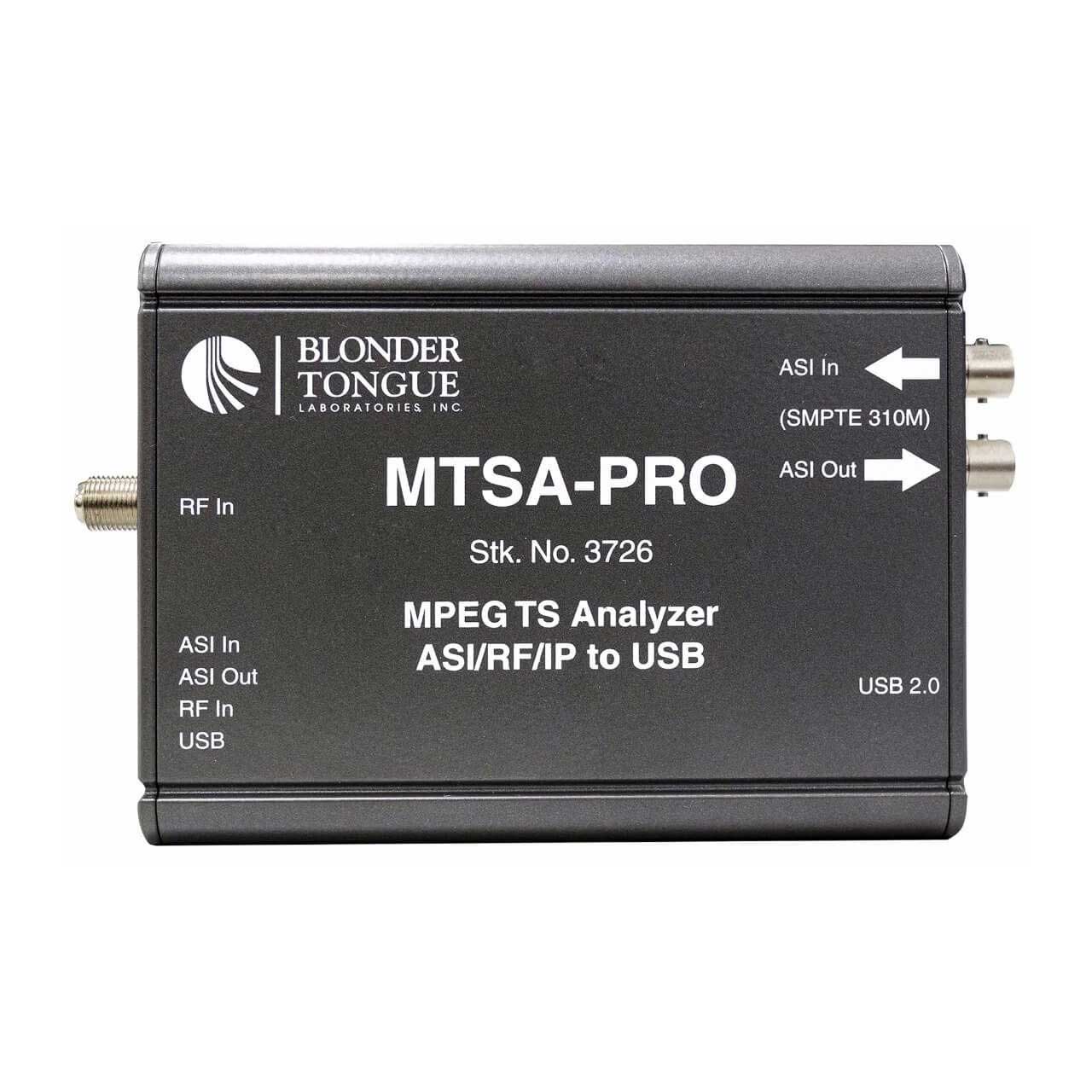

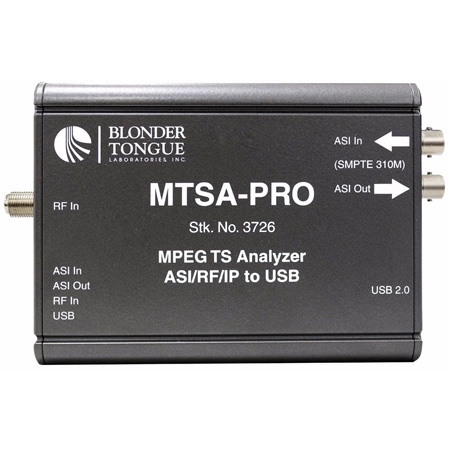

    The MTSA-PRO (MPEG Transport Stream Analyzer - ASI/RF/IP to USB) is a compact device used to capture, analyze and/ or generate MPEG ASI transport streams. The MTSA-PRO features a single DVB-ASI input and output with USB (half duplex), and RF input. The MTSA-PRO with its included software combined with a user's PC creates an MPEG ASI Transport Stream Analyzer for real-time analyzing, monitoring, and decoding. The MTSA-PRO can also serve as a PSI/PSIP generator and advertisement inserter.

    • Features:

      • Real time analysis via RF/ASI/IP input and TS file
      • Single DVB-ASI input and single DVB-ASI output adapter for USB (half duplex)
      • MPEG TS analysis and capture
      • USB 2.0, bus powered, no power supply required
      • ATSC, DVB-C, DVB-T and OpenCable DTV standards compliant
      • ETSI TR 101 290 Priority with real-time 3-stage error monitoring reporting and error logging.
      • Diagnostic and verification of MPEG designs
      • PCR & PTS analysis, arrive time graphing, measurement display and jitter analysis
      • Triggered recording
      • Data rate analysis
      • Table and packet views
      • SI/PSI & PSIP view and interval analysis
      • CAS view: ECM and EMM repetition rate and update time
      • PES header analysis
      • Real-time A/V decoding

    • Specifications:

      • Input
      • ASI/SMPTE-310M
      • Connectors:: 1x BNC; 75Ω
      • Standard:: DVB-ASI
      • Bitrate:: 0~108Mbps (in 1bps step)
      • Mode:: 188/204 bytes packet mode
      • Input
      • RF Demod: 8VSB, QAM64B, QAM256B
      • Connector:: 1xF 75Ω
      • Freq Range:: 57-1000 MHz
      • Level Min:: -15 dBmV QAM256B -20 dBmV QAM64B -30 dBmV 8VSB

      • Output
      • ASI/SMPTE-310M
      • Connectors:: 1x BNC; 75Ω
      • Standard:: DVB-ASI SMPTE-310M
      • Bitrate:: 0~108Mbps (in 1bps step)
      • Mode:: 188/204 bytes packet mode
      • General
      • Dimensions (W x D x H):: 6.06" x 3.89" x 1.12" (154mm x 100mm x 29mm)
      • Weight:: 0.5 lbs. (227g)
      • Power:: USB 2.0 powered; no power supply required
      • OS Supported:: Windows 7

      • Software
      • TS Input:: ASI, SMPTE-310M, File, IP (UDP/TS or UDP/RTP/TS), RF
      • TS Out:: 0-108Mbps (in 1bps step)
      • Analysis Mode:: 188/204 bytes packet mode
      • 7 analysis Window Tab:: Service, PID, Table, Service View, Bit-rate, TR 101 290, Table History
      • Closed Caption
      • Real-time Decoder
