    SDI24A - Overview

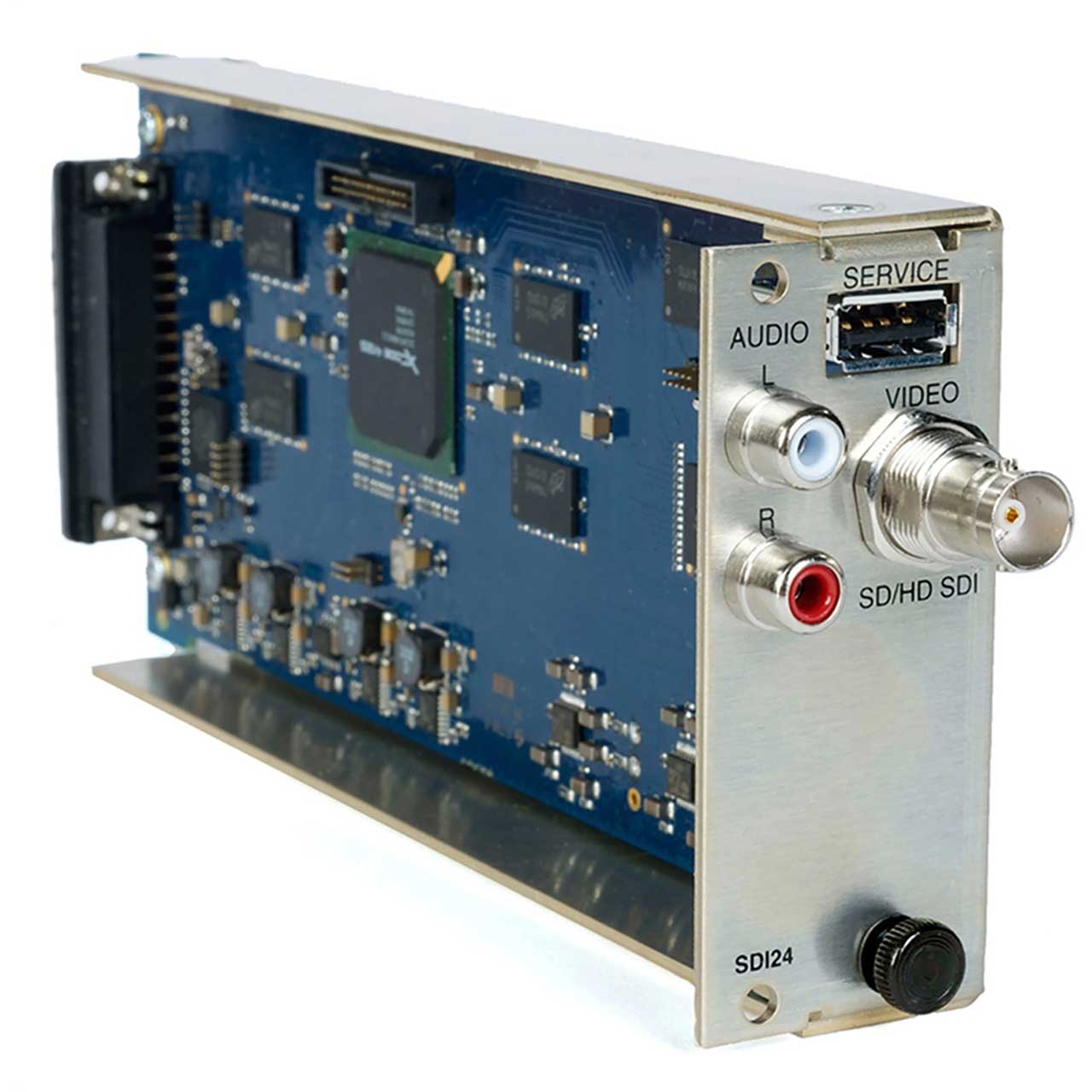

    The Drake Digital SDI24A high-definition or standard-definition encoder module generates MPEG-2 or MPEG-4/H.264 video streams derived from an SD or HD-SDI source, with Dolby® AC3 or MPEG1-Layer 2 audio.

    This module is designed to be installed into the Drake EH244 Q-IP or Drake MEQ1000B style platforms, which provides the control and output interface to the unit. This configuration of encoder module and host chassis provides the ultimate in bandwidth management and economy by allowing multiple HD and SD streams to be multiplexed together dependent upon the limitations of the bandwidth of the chosen output: QAM and/or ASI.

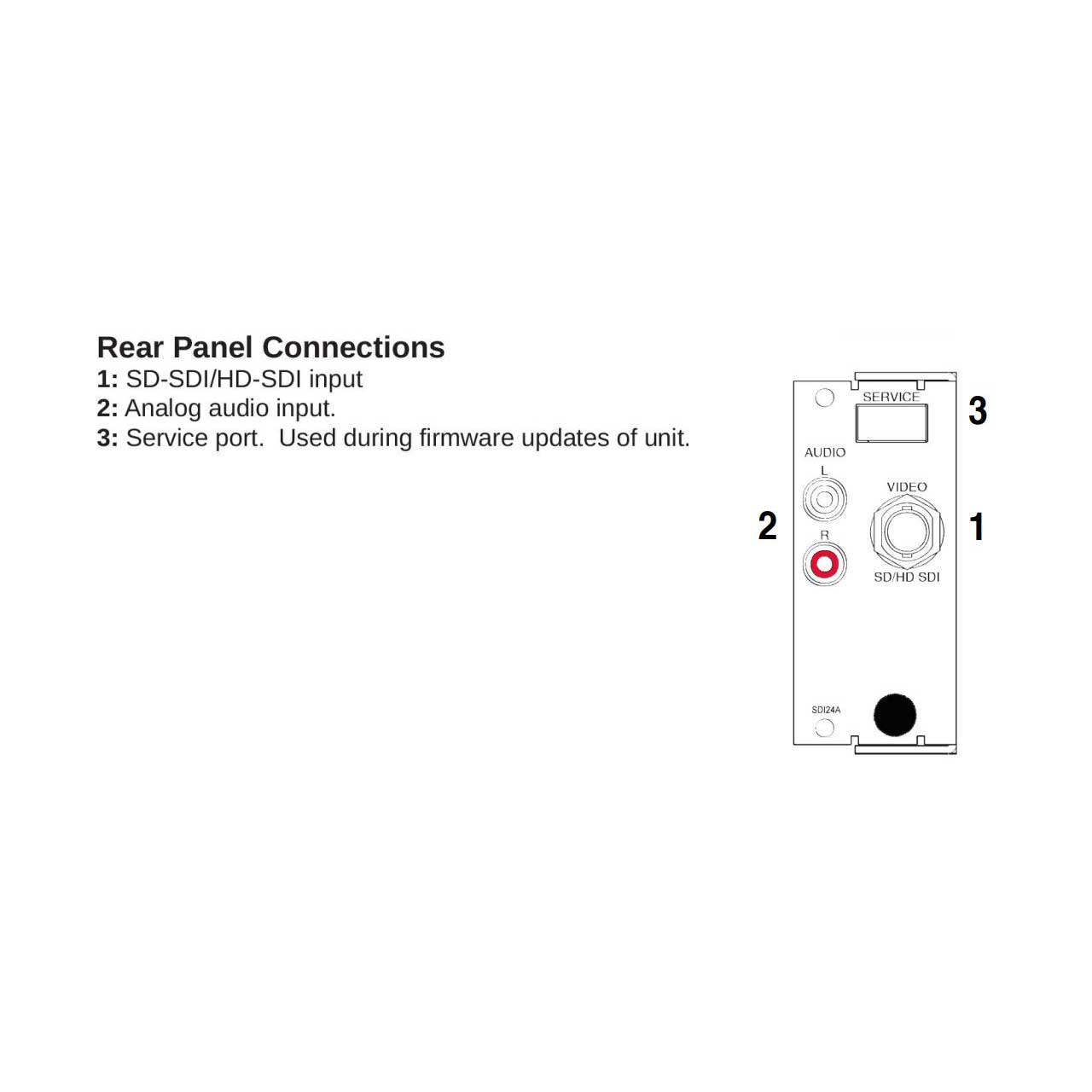

    The Drake SDI24A encoder accepts broadcast-type SDI or HD-SDI video with embedded audio. The SDI24A is also provisioned with a set of RCA L+R inputs for adding audio from an analog source.

    Broadcast, Hospitality, Health Care, Commercial, Government/Military, Digital Signage, Cable Networks

    • Features:

      • Accepts HD/SD-SDI Video Input
      • Supports MPEG-2 or H.264 Encoding
      • Supports Encoding Bit Rate from up to 19 Mbps
      • AC3-Dolby® Digital Stereo, MPEG1-Layer2 (MP2) Audio
    • Specifications:

      • Video Inputs:
      • SD-SDI / HD-SDI Video: 1 x 75-ohm HD-SDI capable input

        Audio Inputs:
      • RCA-type L + R: 1 x 1Vrms nominal, 3.5Vrms maximum
      • SDI-embedded Audio: Supports PCM (uncompressed) digital audio from SDI

        Video Options:
      • Input Video Modes Supported: 480i ( 720x480 @ 30 fps ), 576i ( 720x576 @ 25 fps ), 720p @ 60 Hz ( 1280x720 @ 60 fps ), 1080i @ 30 Hz ( 1920x1080 @ 30 fps ), 1080i @ 25 Hz ( 1920x1080@ 25 fps ) Supports auto-scan for input resolution
      • Encoder Format: MPEG-2 or MPEG-4 / H.264
      • Video Adjustments: Brightness, Contrast, Hue, Saturation
      • MPEG-4 Profile Support: Simple, Advanced Simple, High
      • Bit Rate: Up to 19 Mbps (depending on input format)
      • Closed Captioning: Supports Closed Captioning extraction of either EIA-608 or EIA-708 embedded data

        Audio Options:
      • Encoder Format: Dolby® Digital or MPEG1-Layer 2
      • Output Bit Rate: 128, 192, 320, 384 kbps
    • Item Includes:

      • 1x Blonder Tongue DRAKE SDI24A HD/SD-SDI Encoder Module - Supports MPEG-2 or H.264 Encoding
