Beyerdynamic Quinta CC-2 Charging and Transport Case for up to 10 Quinta MU31 / MU33 Microphone Units

Item #: BYD-QUINTA-CC-2 MFG #: 723967

Beyerdynamic Quinta CC-2 Charging and Transport Case for up to 10  Quinta MU31 /  MU33 Microphone Units
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.


723967 - Overview

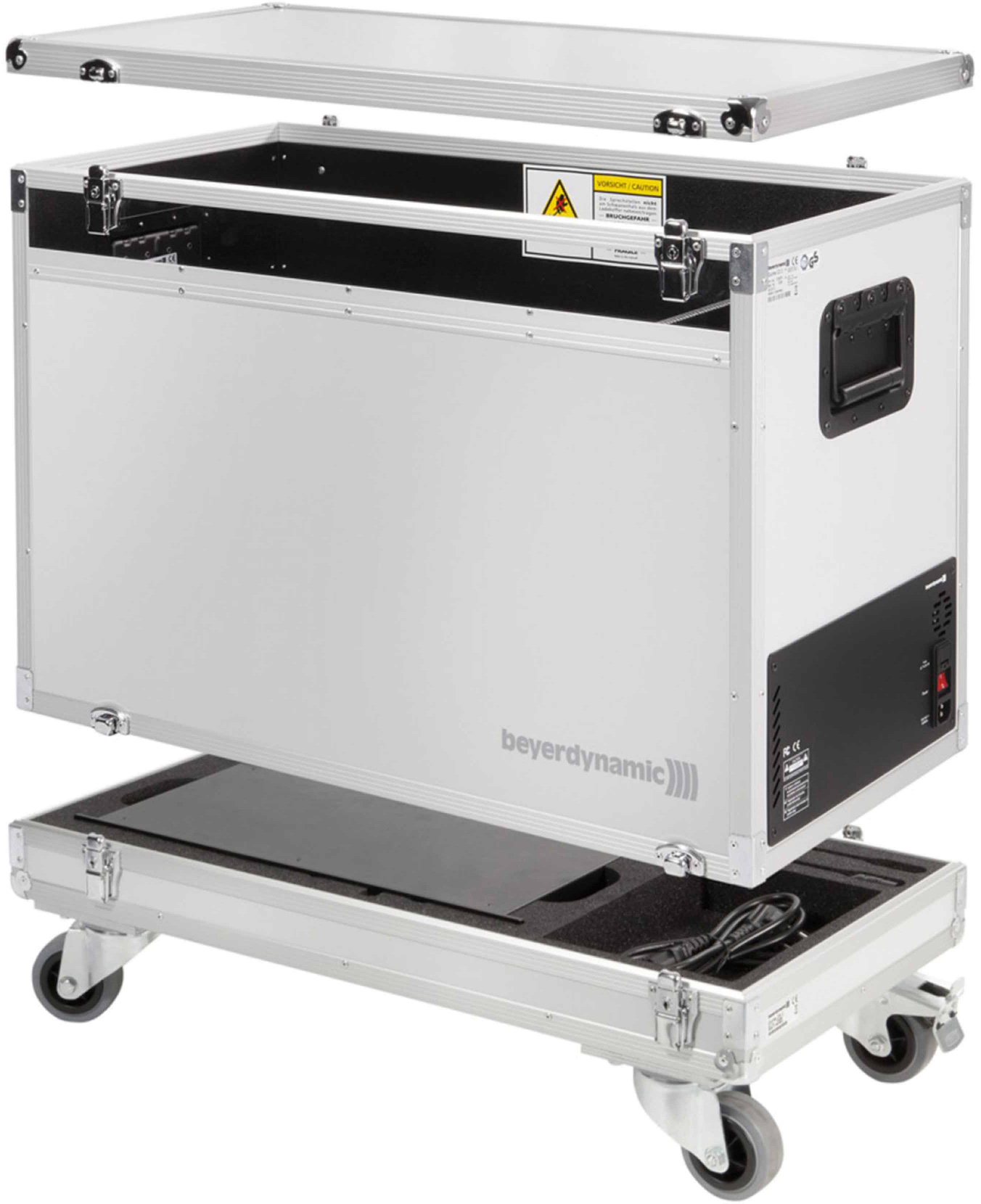

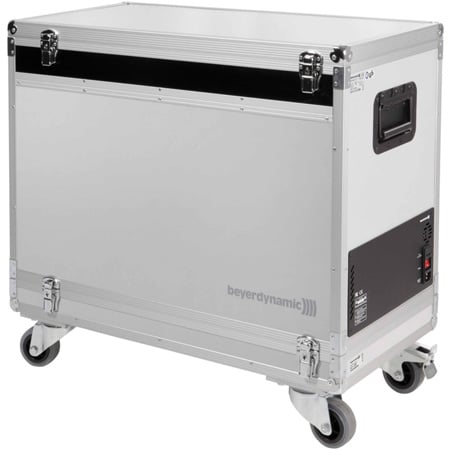

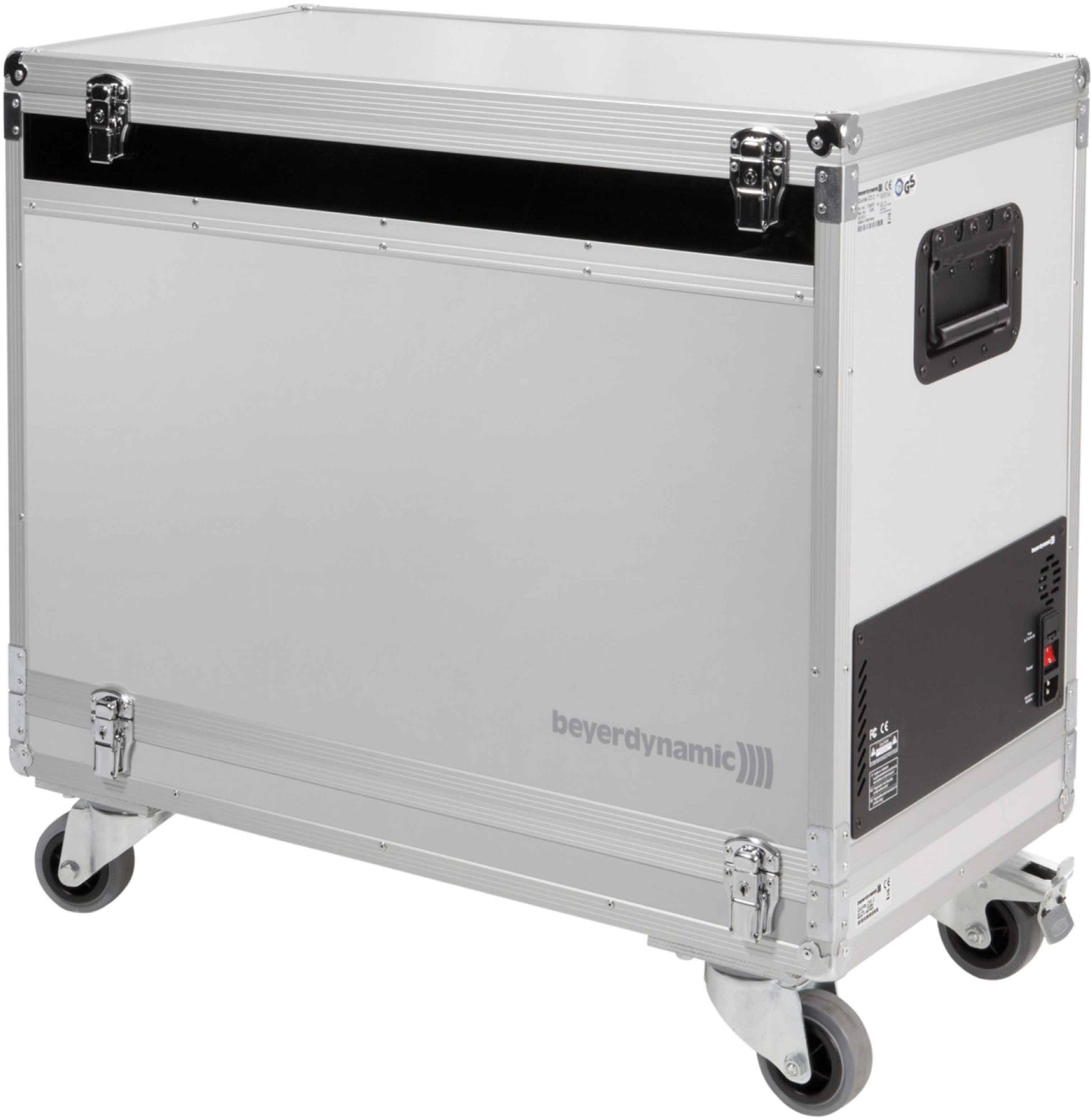

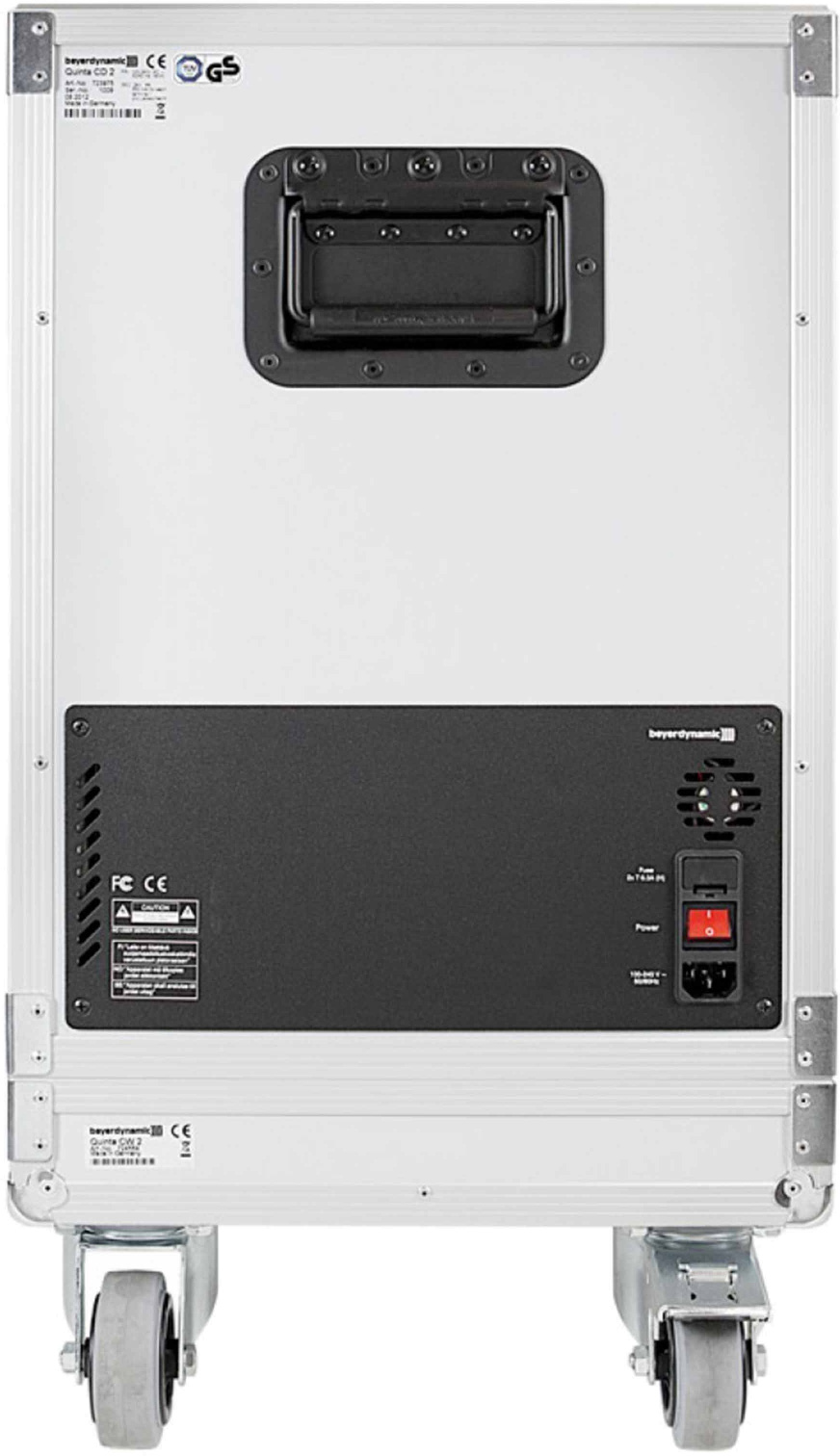

The Beyerdynamic Quinta CC 2 is a modular charging and transport case. The basic version consists of a cover (Quinta CT 2), a charging unit (Quinta CD 2) for 10 microphone units and a bottom with casters (Quinta CW 2), which provides room for the Quinta CU control unit, spare gooseneck microphones and other accessories. This version can be used for the Classis GM 313 Q, GM 314 Q and GM 315 Q gooseneck microphones.

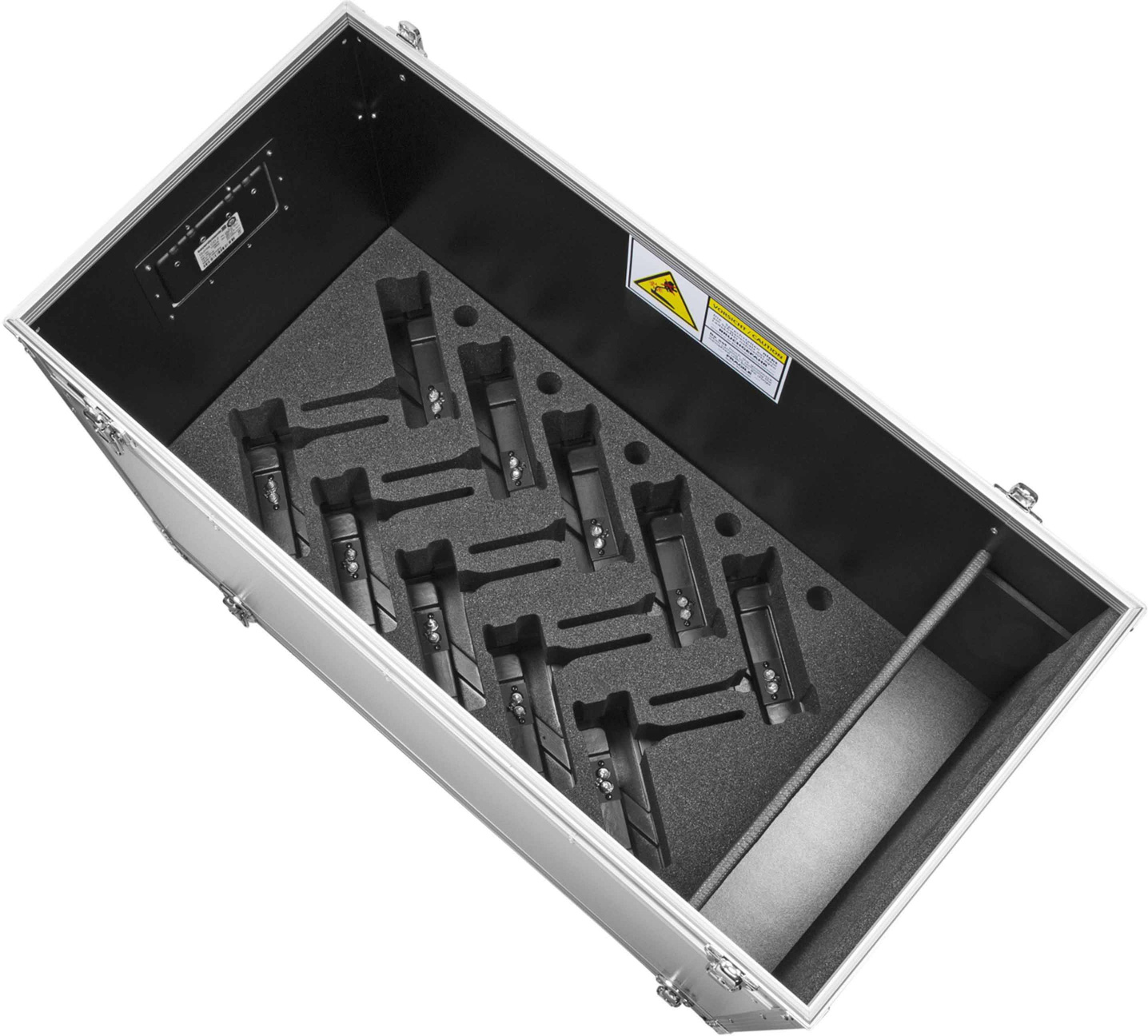

Microphone units equipped with the Classis GM 316 Q can use the Quinta CC 2 / 600 charging and transport case, which is shipped with a higher top cover (Quinta CT 2 / 600). Each charging unit has 10 compartments for the microphone units. On both sides there are handles for comfortable carrying. It is recommended to use not more than two Quinta CD 2 charging units on top of each other, because the top might become too heavy. Quinta CD 2 charging units that are used with microphone units equipped with Classis GM 316 Q gooseneck microphones can not be stacked due to the length of the microphone.

The body of the case is made of plywood with a washable foil inside and "Oslo" silver-grey laminate outside. The case is equipped with ball bearing casters with a diameter of 80 mm. Two of the casters are equipped with brakes. Silver anodized aluminum profiles protect the edges from shocks and ensure an exact fitting of the individual sections. There are four locking chromium-plated automatic locks per section. For charging the microphone units are put into the charging facilities. Shock-mounted charging contacts ensure the electric connection between microphone unit and power supply unit. All batteries are charged simultaneously. After approximately 2.5 hours the battery is fully charged, depending on the previous use. The charging state of the batteries is indicated by the LED ring of the gooseneck microphone and can be seen from the outside through a glass panel or when the cover is opened. To avoid a self-discharge of the batteries, trickle charging is carried out. So each microphone unit has its full capacity at any time. Therefore, beyerdynamic recommends the charger being connected to the mains permanently.
