Beyerdynamic TG D71 Boundary Microphone - Semi-cardioid

ITEM #: BYD-TG-D71 MFG #: 708992

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$349.00

Our Price:

$239.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    708992 - Overview

    Simple positioning, an unparalleled lean and robust design and exceptional sound qualities turn the beyerdynamic TG D71 boundary microphone into the consummate companion on stage, in rehearsal rooms or in home studios. The microphone takes sound quality to the next level when it is used on kick drums and cajóns. Well-considered features like the helpful status LED and the rubber underside enhance the microphone's emphatic design. Its simple handling is also reflected in the sound itself: Painstaking fiddling with the equalizer becomes a thing of the past when the TG D71 is put to use.

    Convincing Performance
    The TG D71 is your ideal choice if you plan to record percussion instruments - high impulse fidelity, an extremely appealing attack and a maximum sound pressure level of 148 dB. The condenser microphone reaches the top of its game when it is used with everything from kick drums and cajóns to grand pianos.

    Clever Details

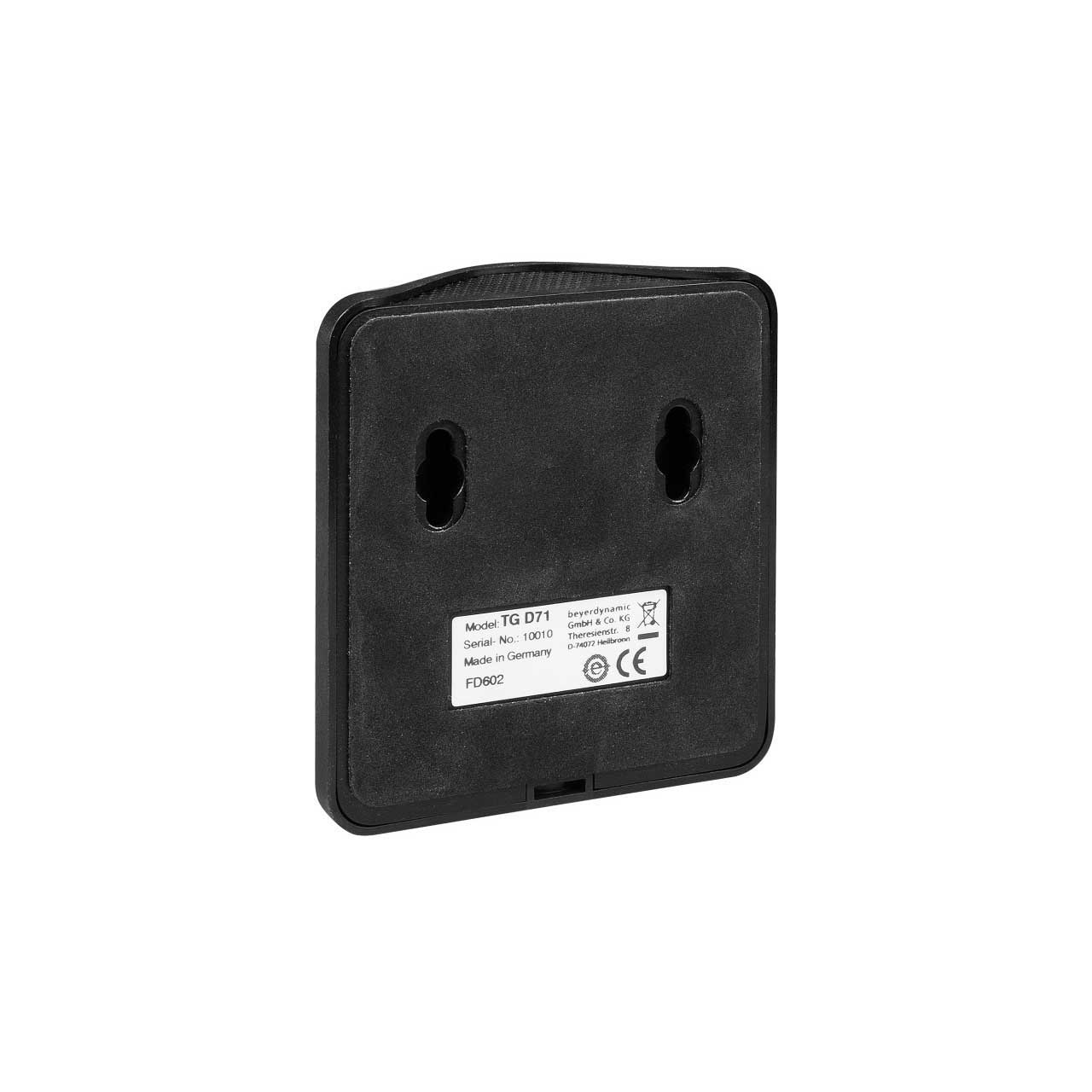

    The microphone's lean, timeless design is both a technical and optical marvel. A red status LED glows when phantom power is used and indicates the microphone's ready-to-speak status. The microphone comes with a bag that can be used to safely transport it wherever you go. Thanks to the rubberised underside, the boundary microphone always remains in the position that you want. An assembly fixture that can be used for extended or long-term installation is located on the underside.

    Sound Channeling Technology
    To achieve that "unique" beyer sound, beyerdynamic has been developing and refining its Sound Channelling Technology (SCT) for decades. beyerdynamic's acoustic experts have created acoustic labyrinths with special geometries that provide optimised sound channelling. They influence the sound and model the polar pattern by using precisely tuned delay lines and attenuation pads. Whether with additional elements, special materials or unique design: every beyerdynamic microphone has its own SCT to ensure optimal control of the sound waves. The result? Incredible sound quality.

    • Features:

      • Extremely rugged housing in a compact, slim design
      • Optimal for Bass or Cajon drums
      • Flexible use with low-frequency instruments
      • Half-cardioid polar pattern for maximum gain before feedback
      • High impulse fidelity and low attack time
      • Undistorted transmission of even high volumes
      • Powerful, natural sound
      • Integrated pre-amp
      • Phantom power 11 - 52 V
      • Non-slip rubber bottom

    • Specifications:

      • Transducer type: Condenser (back electret)
      • Operating principle: Pressure gradient
      • Polar pattern: Half-cardioid
      • Frequency response: 25 - 20,000 Hz
      • Open circuit voltage: 1.5 mV/Pa (-56 dBV)
      • Nominal impedance: < 200 Ohms
      • Max. SPL at 1 kHz: 148 dB [SPL@1% THD]
      • Signal-to-noise ratio: 63 dB [A, RMS], 50 dB [CCIR, Q-Peak]
      • A-weighted equivalent SPL: 31.2 dB
      • Polarity: Positive pressure produces positive voltage on pin 2 in relation to pin 3
      • Wiring: bal. with 3-pin XLR male
      • Connection: XLR, 3-pin, male
      • Dimensions (LxWxH): 3.54" x 3.3" x 1.06" (90 mm x 86 mm x 27 mm)
      • Weight: 413 g

    • Item Includes:

      • 1x Beyerdynamic TG D71 Boundary Microphone

    • Warranty:

      • 2 Year Warranty

    • GTIN:

      4010118708992
