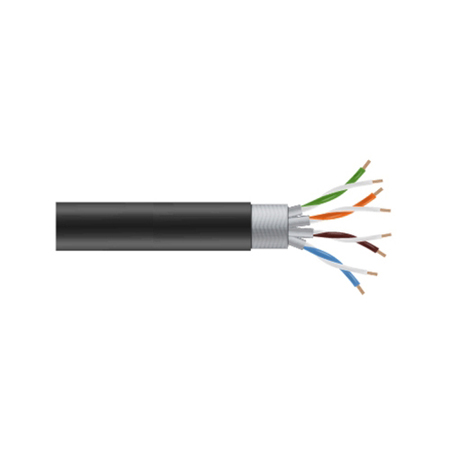

Black Box C6ABC50-STR-BK-1000 CAT6A Stranded UTP 650Mhz CM PVC PoE Bulk Cable - 1000 Foot - Black

ITEM #: C6ABC50STRBK1000 MFG #: C6ABC50-STR-BK-1000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$369.99

Our Price:

$320.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    C6ABC50-STR-BK-1000 - Overview

    Black Box GigaTrue® CAT6A 650-MHz premium bulk cable is constructed to exceed industry-standard requirements, providing the uncompromising performance demanded in today's 10G networking applications. Built to ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards, and ETL tested to ensure premium CAT6A performance, our bulk cables provide guaranteed transmission of your voice, data, audio/video, and/or PoE signals, and are backed up by a Lifetime Warranty.

    This CM-Rated General-purpose communications cable is in-wall rated for use in locations other than risers or plenums and is UL tested and verified to ensure premium performance to the CM flame rating for the protection of your environment in the event of a fire. Constructed using stranded wiring, it is ideal for use in patch cabling and short horizontal runs and comes in reel-on-spool packaging for seamless and easy cable pulls. Also, the cable length is marked on the jacketing in 2-ft. (61-cm) increments, making it easy to tell how much you have left.

    • Specifications:

      • Jacket Rating: CM
      • Shielding: UnShielded (UTP)
      • Jacket Material: PVC
      • Category Type: CAT6A
      • Conductor Type: Stranded
      • Speed: 650-MHz
      • Gauge: 24
      • Diameter: 6.00 +/- 0.30-mm., 0.2362 +/- 0.01181-in.
      • Jacket: CM PVC
      • NEXT: Minimum: 33.8 dB at 500 MHz
      • PS-NEXT: Minimum: 31.8 dB at 500 MHz
      • Return Loss: Minimum: 13.0 dB @ 500 MHz
      • Standards: ANSI/TIA-568.2-D, UL444, ISO/IEC 11801 Class EA, 2011/65/EU (RoHS), 2015/863 (EU)
      • Characteristic Impedance: 1 - 500 MHz 100 +/- 15 Ohms
      • Approvals: REACH, RoHS, CE, UL/cUL
      • ANSI/TIA Category: CAT6A
      • Conductor Gauge: 24 AWG
      • Cable Type: Stranded Bare Copper
      • Separator Type: Isolator Cross-Filler
      • Shielding: UTP
      • Frequency: Up to 650 MHz
      • Conductor Resistance: 14 Ohms / 100m / 20° C Max.
      • Mutual Capacitance: 5.6 nF / 100M Max.
      • Dielectric Strength: AC 1.5KV / 2 Seconds
      • Cable Length: 1,000-ft. (304.8-m)
      • Packaging: Spool
