Cartoni HF2200/150 Focus 22 Head with Pan Bar - ENG Camera Support and Interfaces with 150mm Bowl Base Tripods

ITEM #: CAR-HF2200-150 MFG #: HF2200/150

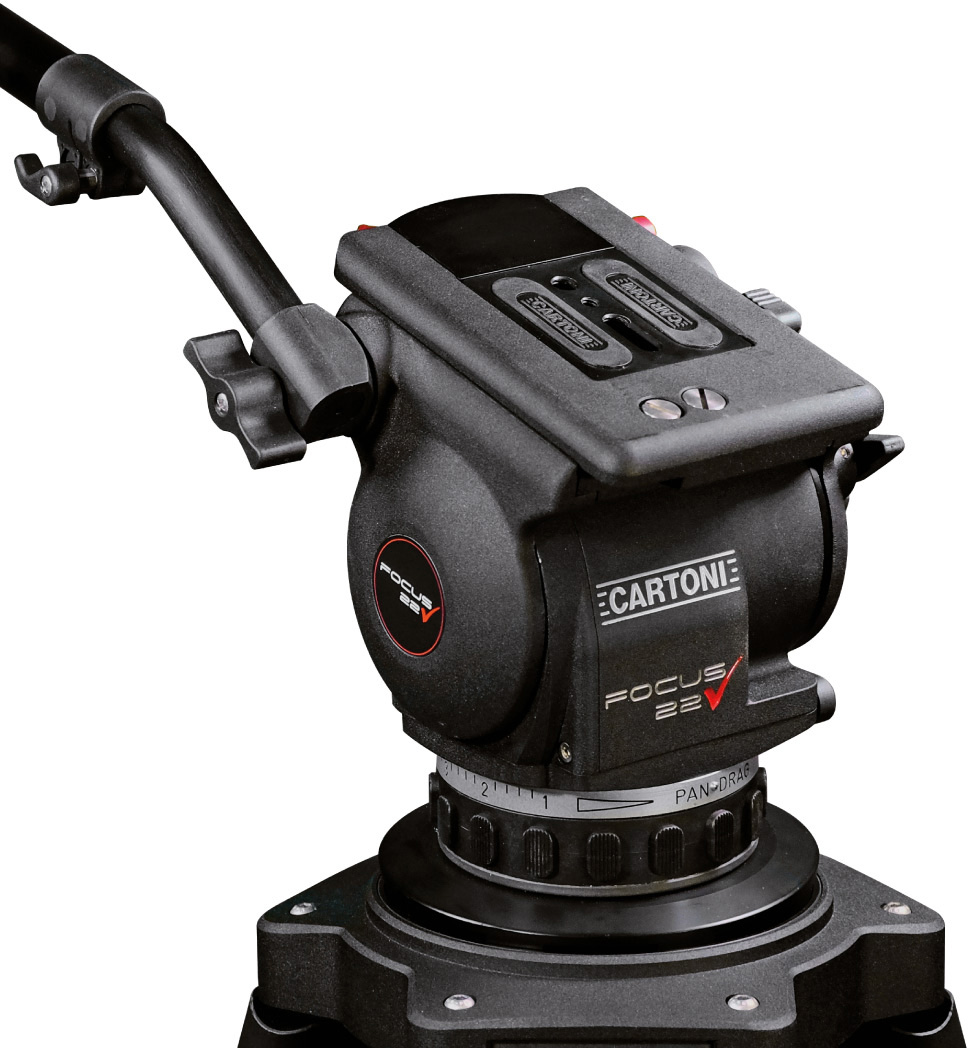

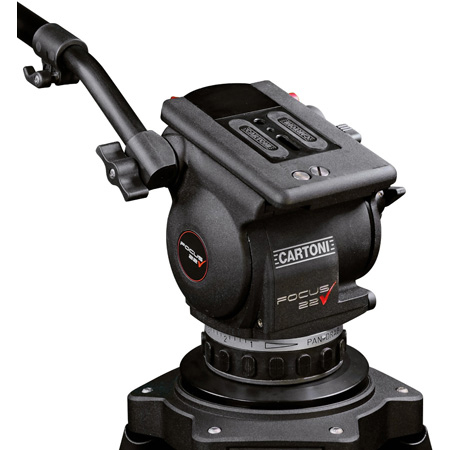

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CAR-HF2200-150

HF2200/150 - Overview

The Cartoni HF2200/150 FOCUS 22 is specifically designed to support the wide variety of new ENG cameras, so compact yet so fully accessorized, featuring the patented CARTONI "wing" continuously adjustable counterbalance.

With its broad range of payloads - 3 kg (6.5 lbs) to 22 kg (48.5 lbs) - The 22 aims to become the ideal partner for all news gathering and outdoor shooting jobs.

Rugged but easy to operate the new Fluid Head has all the ergonomic settings at the right place. Fluid drag in both pan and tilt feature the distinctive renowned CARTONI patented infinitely adjustable labyrinth system.

Positive locks, wide range sliding platform incorporating the European style quick release plate, a switchable illuminated spitit level completes the operating specs.

FOCUS 22, weighs only 3.9 kg (8.6 lbs) thanks to the extensive use of extremely lightweight magnesium alloys.

The new base interfaces directly with 150mm tripods and to Pedestals via the standard Vinten 4 bolts. The tie down shaft can be easily removed with 10mm wrench from the 3/8" thread to interface with many popular pedestals and sliders, ideal for rental houses and broadcast production environments that employ a variety of camera and support systems.

  • Specifications:

    • Minimum Payload Capacity: 3 kg / 7 lbs
    • Maximum Payload Capacity: 22 kg / 49 lbs
    • Weight: 4.0 kg / 8.8 lbs
    • Bowl Diameter: 150 mm
    • Fluid Drag: Continuous
    • Counterbalance: Continuous
    • Pan Range: 360°
    • Tilt Range: +/-90°
    • Temperature Range: -40°/+60°


HF2200/150 - Required Accessories
