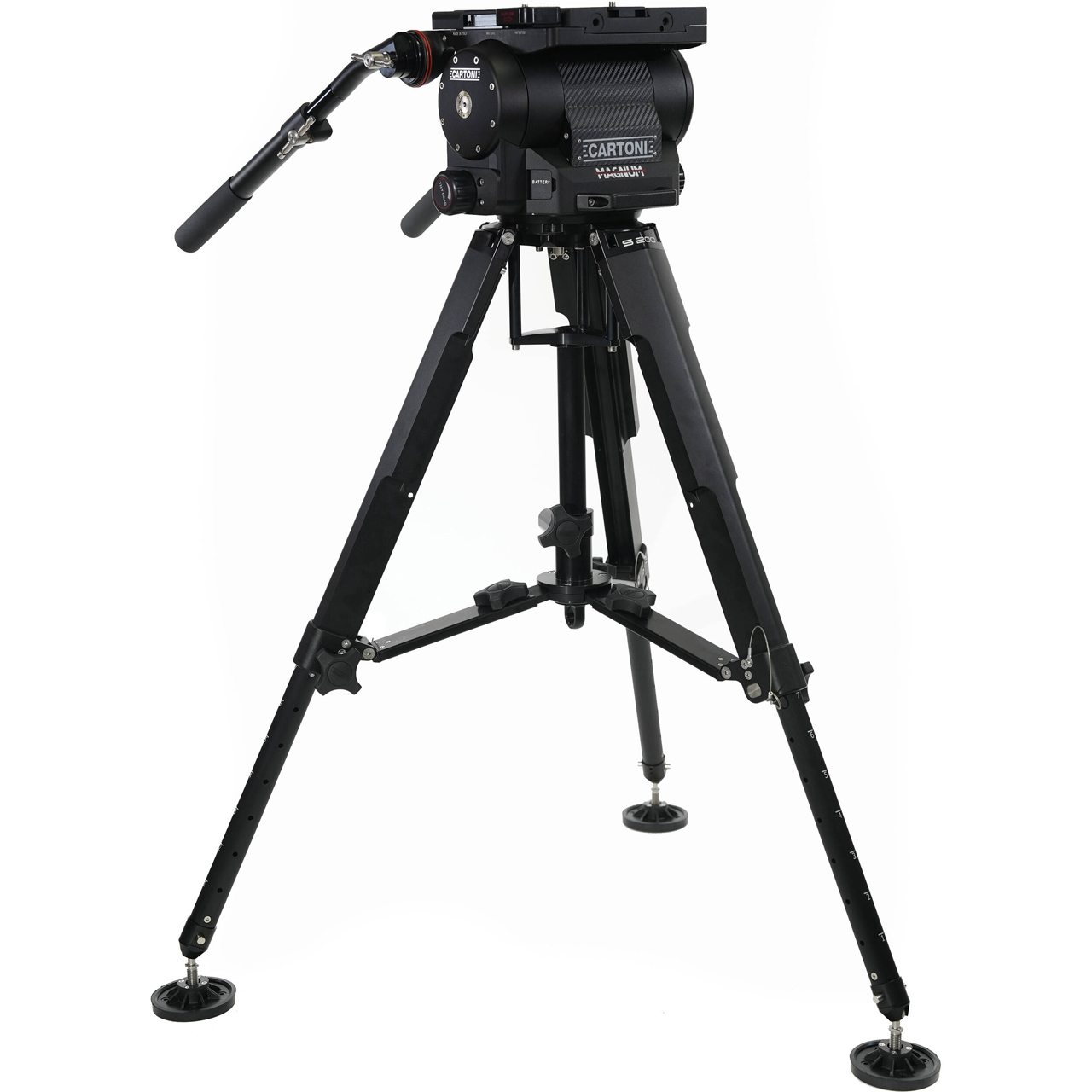

The Cartoni KMAG/H-S20 is a combo kit consisting of the Magnum HP Head FB, 2 Telescopic Pan Bars, Dovetail Plate & Sport 200 Heavy-Duty Tripod Legs.It features a powerful fluid head that employs a steel cable patented counterbalance system that facilitates operation with cameras featuring a high center of gravity and weighing between 66 and 287 lb. The unit's advanced, frictionless fluid damping module allows for an increased range of damping flexibility thanks to its new formula of silicon fluid, enhancing continuous fluid drag and counterbalance.

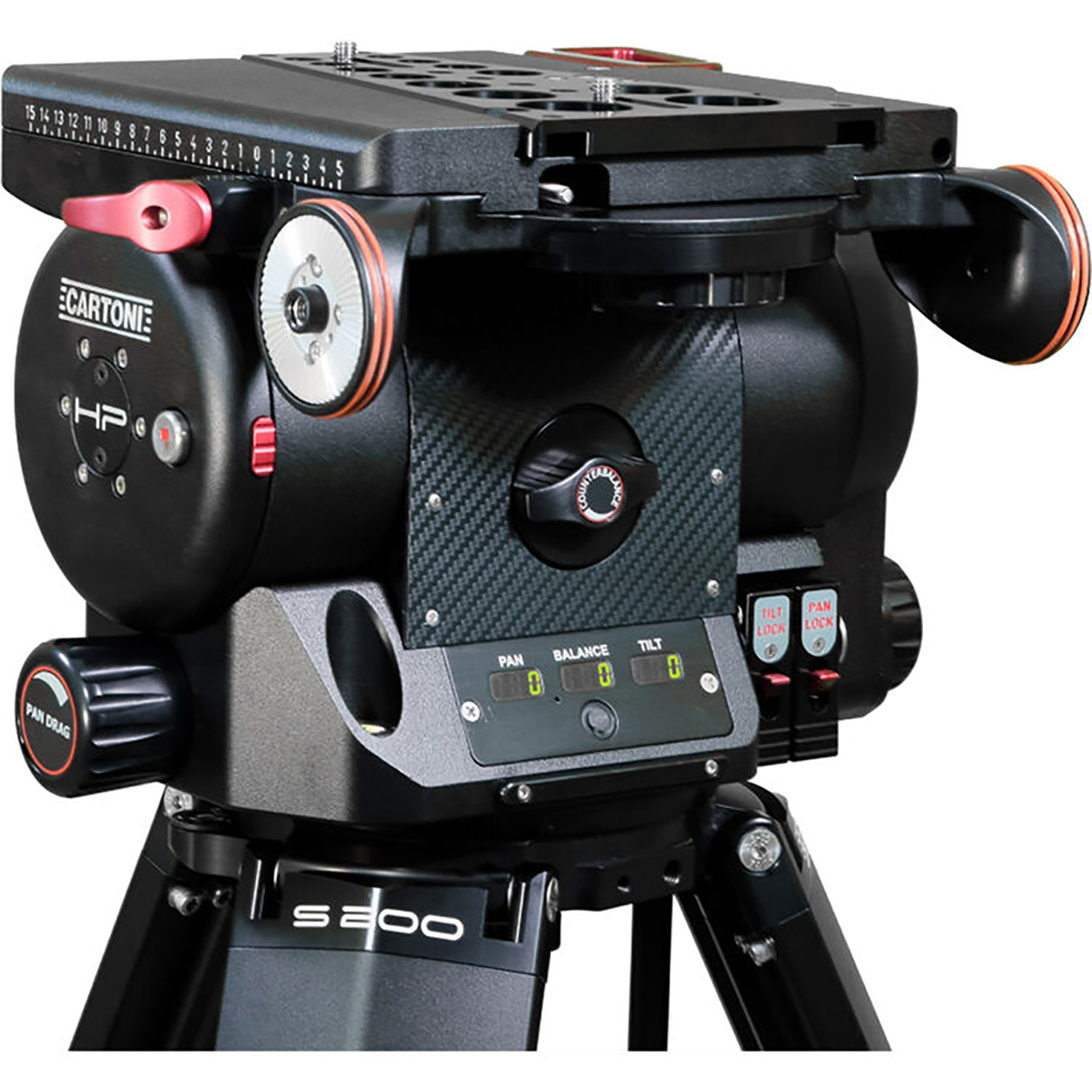

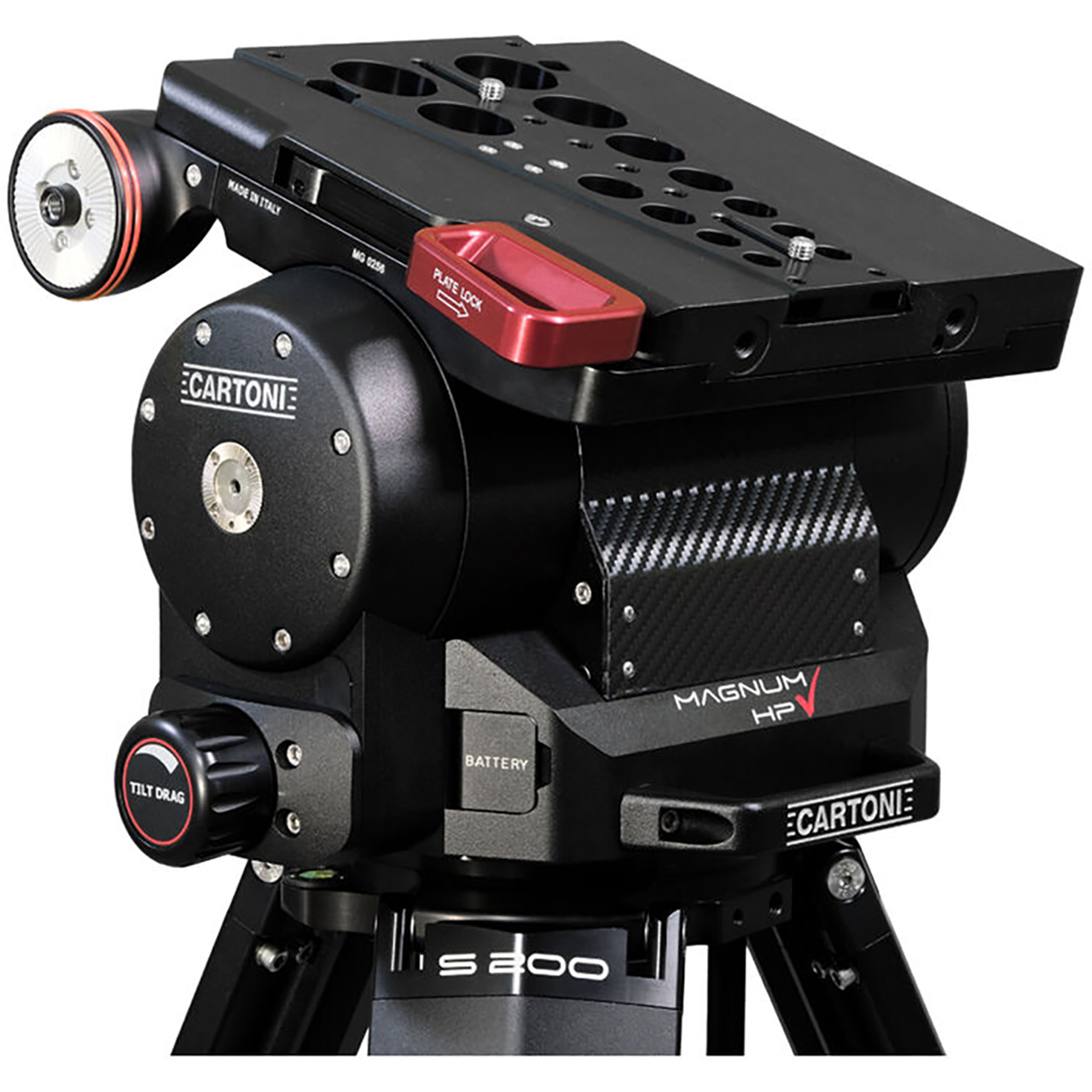

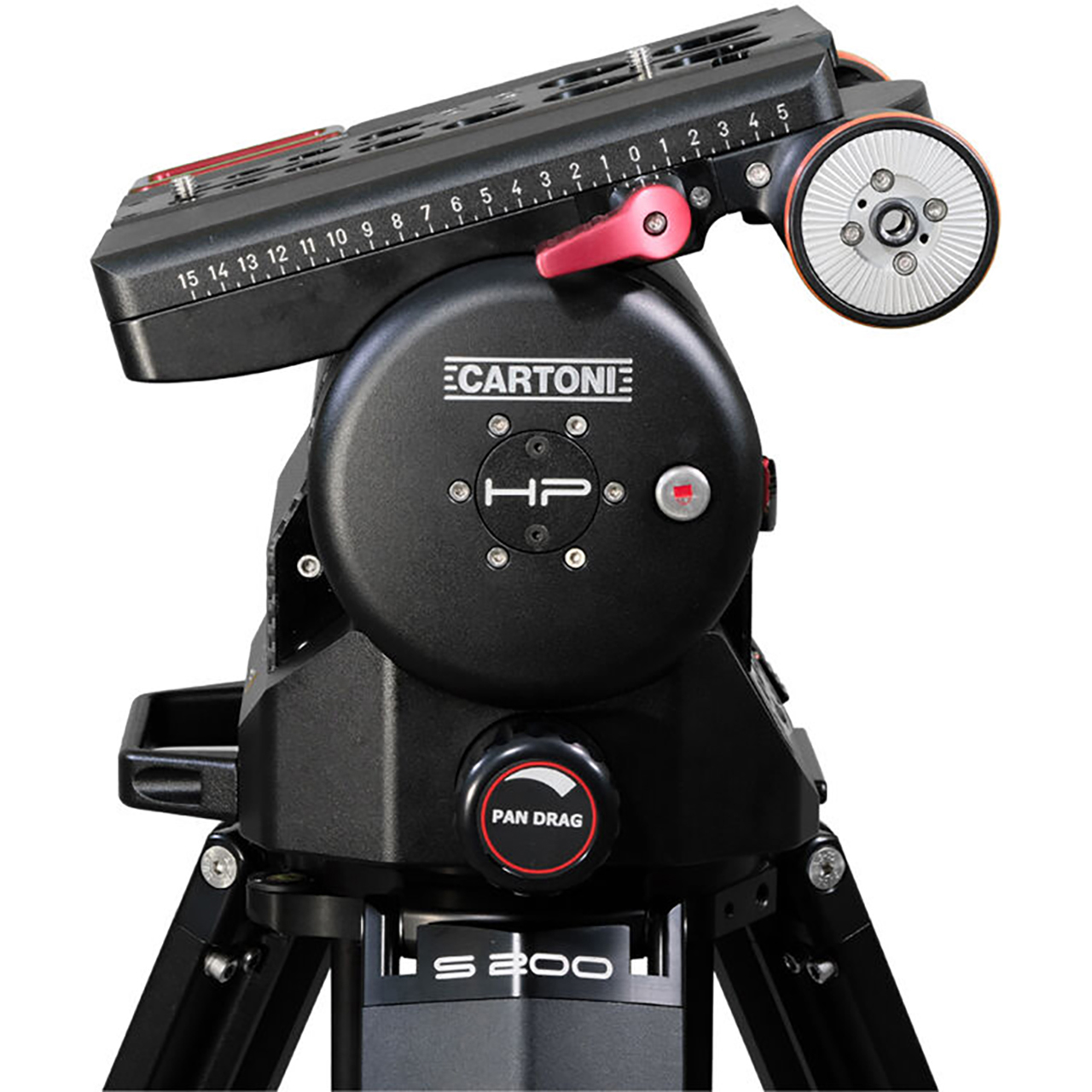

The Magnum HP is the ultimate evolution in the Cartoni range of camera supports, with a payload up to 130 kg (287 lbs). Taking the flagship head of the Cartoni range to a next step perfection the Magnum HP fluid head is designed to support fully decked Studio and Outside Broadcast cameras equipped with long boxed lenses, viewfinder or large teleprompter. The Magnum HP incorporates the steel cable patented counterbalance system while the Cartoni's advanced "planetary" fluid damping modules carry a new formula of silicon fluid allowing an increased range of damping capability.The counterbalance system is ideally suited to operate with cameras featuring a high center of gravity and weighing between 30 kg & 130 kg (66 lbs & 287 lbs). Cameras within this weight range can be perfectly balanced through the entire 130° tilt angle. The frictionless fluid damping modules give an extraordinary performance from freewheeling to maximum drag, over an extended temperature range.The continuously variable fluid control knobs are ergonomically located at each side of the head, easy to reach and connected to the digital readout for pan, tilt & balance, allowing the operator for quick set-ups even in low light conditions. The effective control brakes on both, pan and tilt mode are located on the right side of the control panel for an easy one-hand operation. Two threaded holes for the teleprompter tubes are located on the front of the sliding platform.The Magnum HP interfaces directly with any Mitchell flat tripod, and all existing pedestals featuring 4-hole system.
The Sport 200 heavy-duty tripod is designed for Outside Broadcasting applications with heavy and bulky camera packages.With a rated capacity at 200 Kg (441 lbs) while weighing just 11,9 kg (26 lbs) the Sport 200 is the preferred heavy-duty tripod on all sports grounds & stadiums. With its unique design, the special aluminum alloy legs feature an angle shape profile guaranteeing the best possible torsional rigidity to this innovative tripod. Exceptional attention to materials selection allows this unique tripod to endure harsh weather conditions, rain, dust, moisture and extreme temperatures effortlessly. The center brace drives a telescopic mid-level spreader for a truss structure stable in any environment. Set up is fast and comfortable, each leg has an engraved second stage with positive rotary locking knobs and safety pins. The bubble level is located on the side of the platform for hassle free levelling. The upper stage accepts classic Mitchell flat base heads and the 4 bolts standard. The specific feet incorporate a stainless steel spike for softer terrains, while the pivoting rubber pad works for flat surfaces.
Technical Data
Weight: 11.9 kg/ 26.24 lbs
Capacity: 200 kg / 440.92 lbs
Minimum Height: 57 cm / 22.44"
Maximum Height: 115 cm / 45.28"
Folded Height: 72 cm / 28.35"
Material: Aluminum
Number of stages: 1
