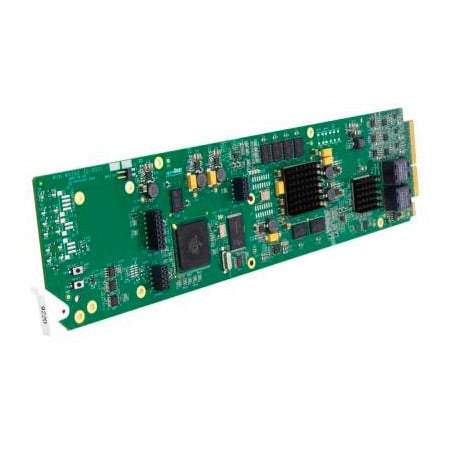

Cobalt Digital 9220 Bidirectional ASI/MPTS Gateway openGear Card

ITEM #: CB-9220 MFG #: 9220

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

9220 - Overview

The 9220 card bidirectional Single Channel ASI/IP gateway can receive transport streams over ASI and transmit streams over IP, or receive transport streams over IP and transmit streams over ASI. It features up to 6 ASI ports, individually configurable as inputs our outputs. With option +TS, the 9220 can support up to six ASI/IP bidirectional conversions simultaneously (standard support with no additional licenses supports one ASI/IP bidirectional gateway). The 9220 can be used to facilitate seamless plant distribution/contribution over IP. It also includes advanced redundancy protection features, allowing for automatic failover if the primary signal disappears. The card supports both unicast and multicast, with IGMP V1, V2 and V3. DashBoard remote control allows easy centralized control and monitoring access.Optional 2x Gigabit IP interface Card - Order CB-PLUS-GBE
Optional Additional ASI or IP Transport Stream Output Card - Order CB-PLUS-TS

  • Features:

    • supports one ASI/IP gateway
    • Bidirectional ASI/IP encapsulation or de-encapsulation
    • 1x Gigabit Ethernet IP interface
    • Multicast IGMP v1, v2, and v3 support
    • Hot-swappable
    • High density with 60 channels per 2RU frame
    • Energy-efficient 12 watt power consumption
    • Remote control/monitoring via DashBoard software
    • Five year warranty
