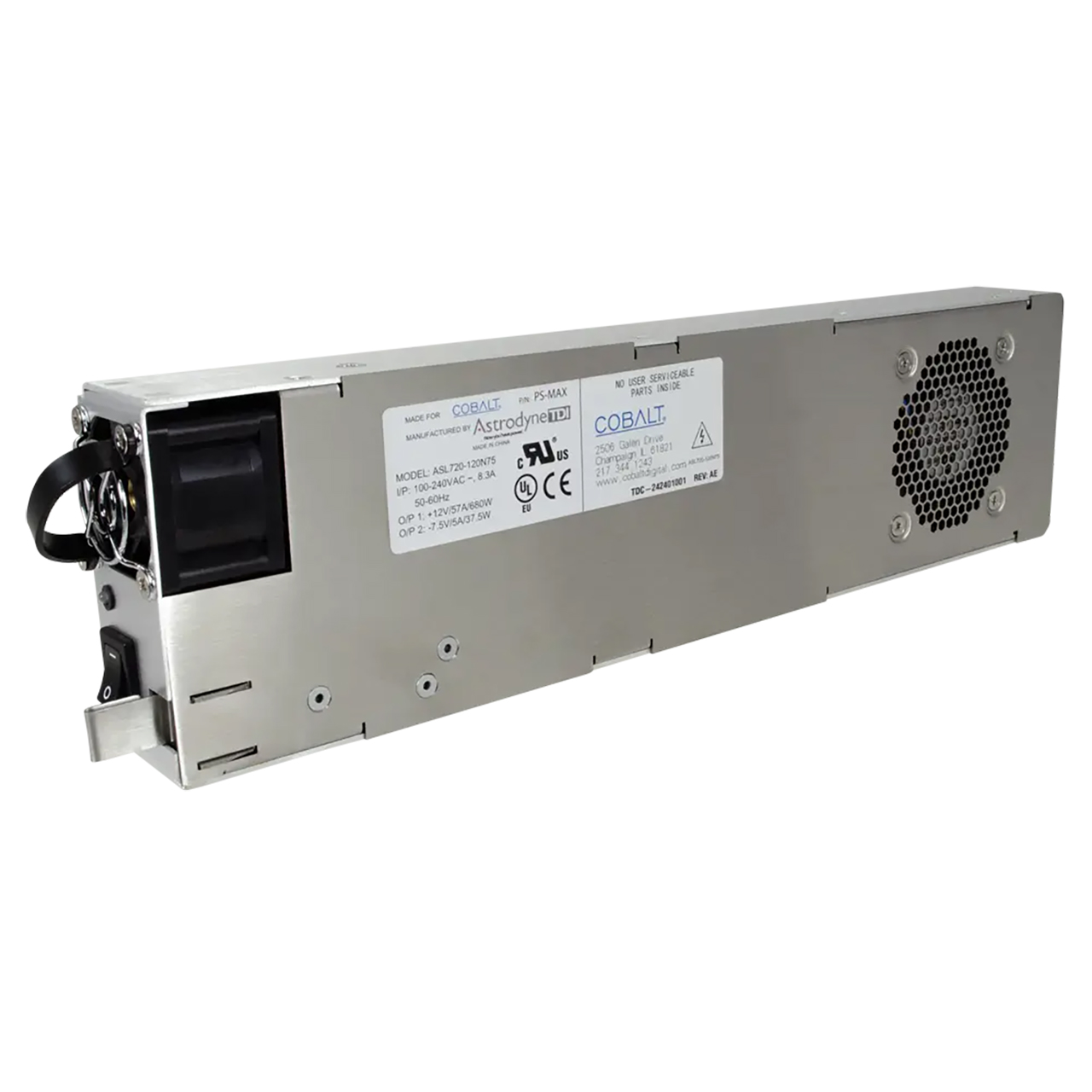

Cobalt Digital PS-MAX is a Redundant Power Supply for use with the HPF-MAX openGear Frame.

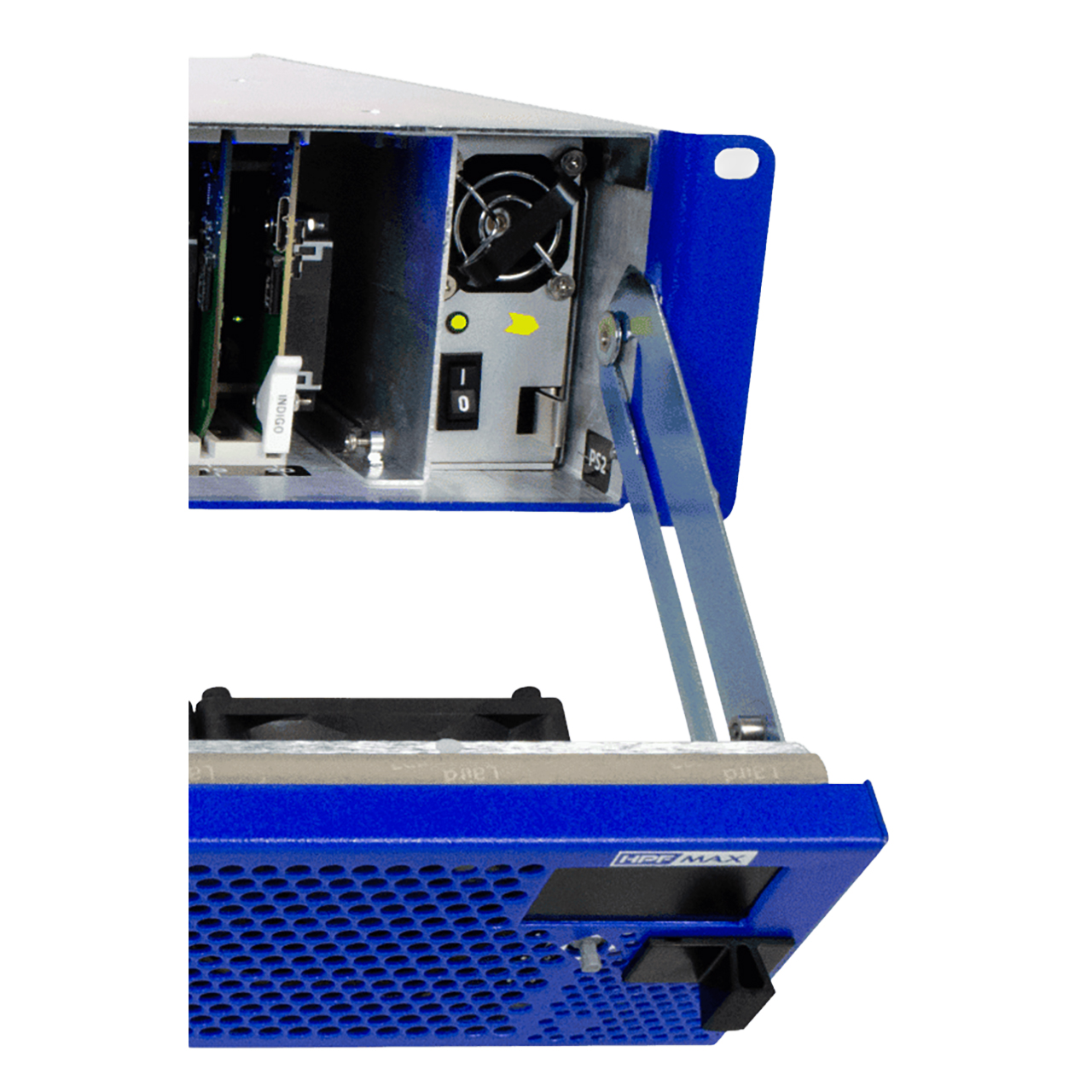

The HPF-MAX can accommodate two front-loaded PS-MAX power supply modules. Adding a second (optional) supply gives the frame full power redundancy. The PS-MAX power supply unit is interchangeable as a primary or redundant power supply module, with supplies in either position being hot-swappable. Each power supply has an independent cooling fan and a front-mounted power switch.
High power-density power supplies (single standard, redundant second optional) and engineered cooling/ventilation design allow 10 high-power cards in a frame (10 x 60W = 600W), or 20 medium-power cards in a frame (20 x 30 W = 600W). Separate forced-air cooling paths are provided for the card area and the power supply areas. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature.
