Cobalt RM20-9004-A OpenGear Frame Rear I/O Module

Item #: CB-RM20-9004-A MFG #: RM20-9004-A

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

RM20-9004-A - Overview

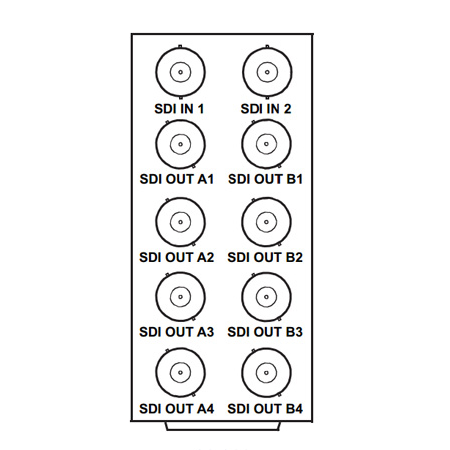

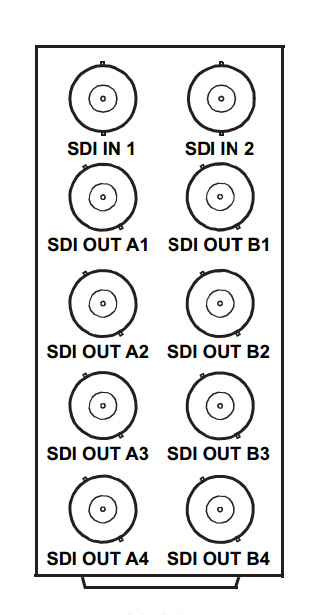

Rear I/O module for the 9004 (2 SDI in and 8 SDI out).The Cobalt Digital 9004 is a dual multi-rate SDI distribution amplifier capable of equalizing 3G, HD, and SD signals. Excellent receiver EQ performance allows for up to 160m cable lengths for HD signals.

The 9004 can be set up as either a single-channel 1:8, dual-channel 1:4, or 1:8 with failsafe using DashBoard remote control software or card-edge switches. In failsafe mode, the card automatically switches to the secondary input if the primary input is lost.

RM20-9004-A - Required Accessories

    RM20-9004-A - Recommended Accessories
