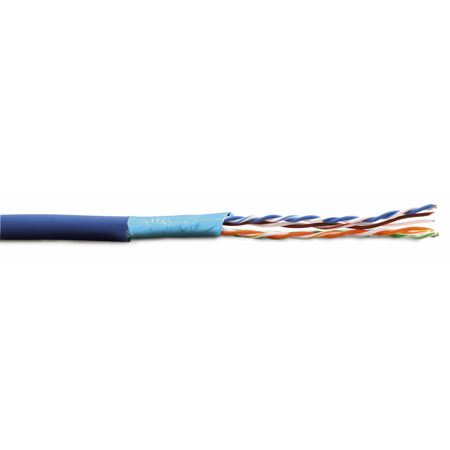

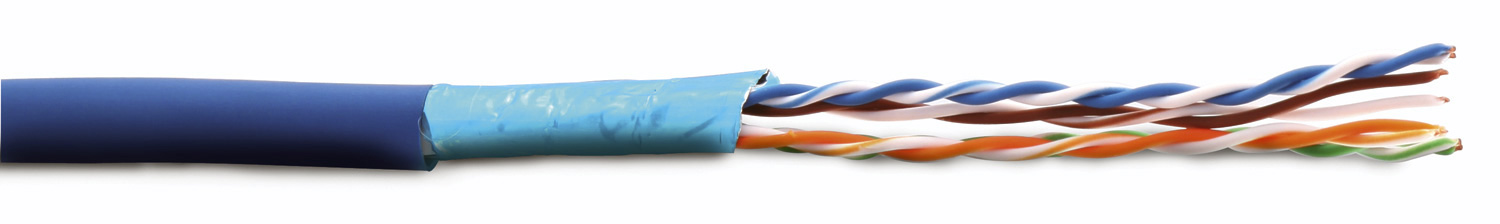

Digital Media 8G Plus 24AWG STP 350MHz with Drain Crestron Blue 500 Foot

ITEM #: CREST-8G MFG #: CREST-8G

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

Items similar to the CREST-8G

CREST-8G - Overview

Structured Cable CREST-6 8G Crestron Control Cable.

Digital Media 8G+- 24AWG STP 350MHz w/DRAIN, PVC Jacket - Blue

  • Specifications:

    • Four twisted pair, polyester tape, drain, shield, braid, ripcord and overall
    • jacket
    • (4) Twisted Pairs
    • Colors: Blue/white, orange/white,
    • green/white, brown/white
    • Conductors: 24 AWG x8 solid copper
    • Insulation: 0.0055 inch thick HDPE
    • Outer Diameter (per conductor): 0.040 inch (1.016 mm) maximum
    • Drain: 26 AWG solid tin/copper
    • Shield: Aluminum foil (100% coverage)
    • Braid: Tin/copper (40% nominal coverage)
    • Outer Jacket
    • Color: Blue
    • Material: PVC
    • Thickness: 0.018 inch
    • Outer Diameter: 0.244 ±0.008 inch (6.2 ±0.2 mm)
    • Mutual Capacitance: 17.1 pF / ft
    • Velocity of Propagation: 69%
    • Propagation Delay Skew: 45nS / 100 m
    • DC Resistance: 28.6 Ohms / 1000 ft maximum
    • DC Resistance Unbalance of a Pair: 5% maximum
    • Capacitance Unbalance: 330 pF / 100 m
    • Characteristic Impedance: 100 Ohms ±15% (1-250 MHz)
