Creamsource K-CSU-C-ESS Micro Color Essential Kit with Yoke and 20-Degree Beam - 2200K to 15000K Range

ITEM #: CRM-K-U-C-ESS MFG #: K-CSU-C-ESS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


K-CSU-C-ESS - Overview

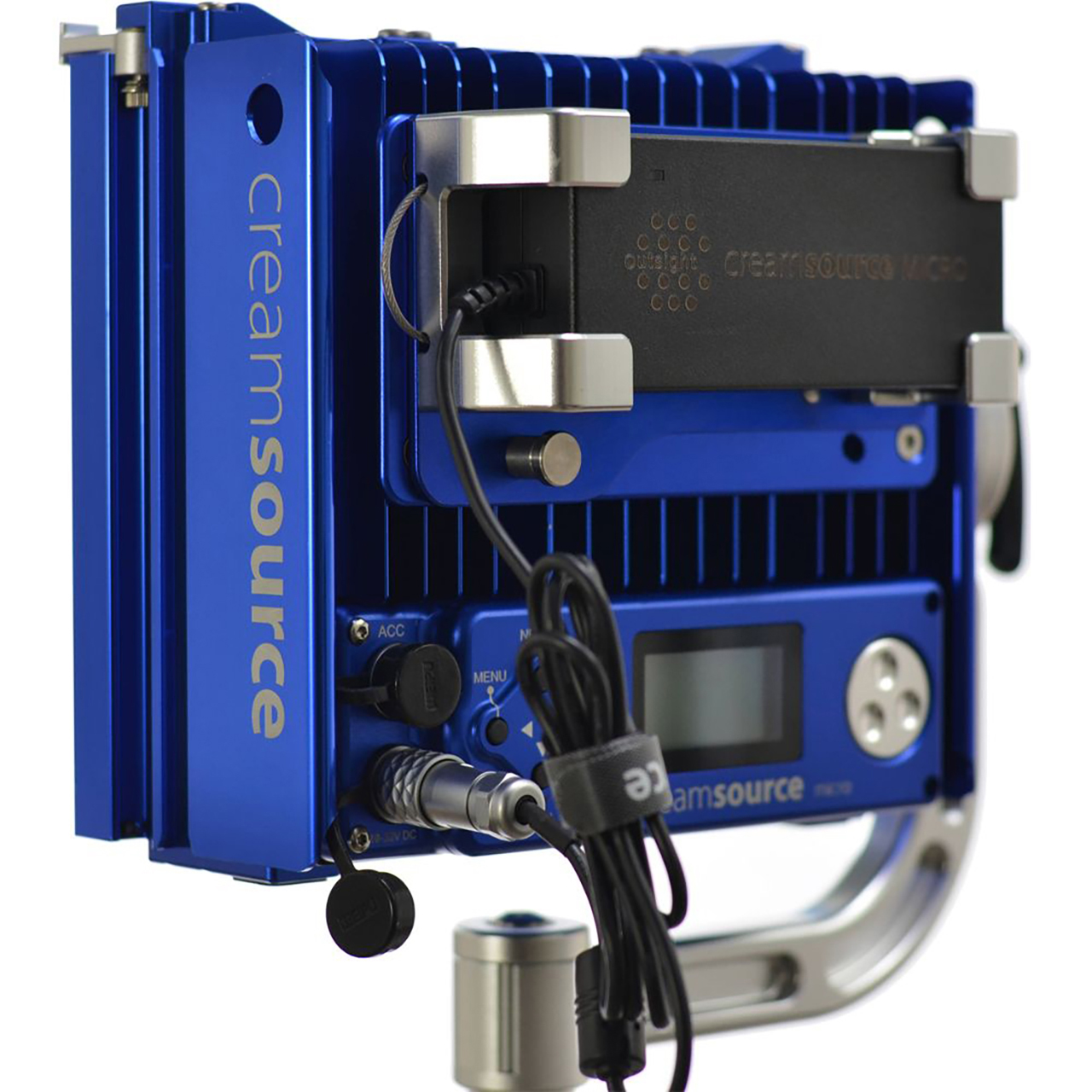

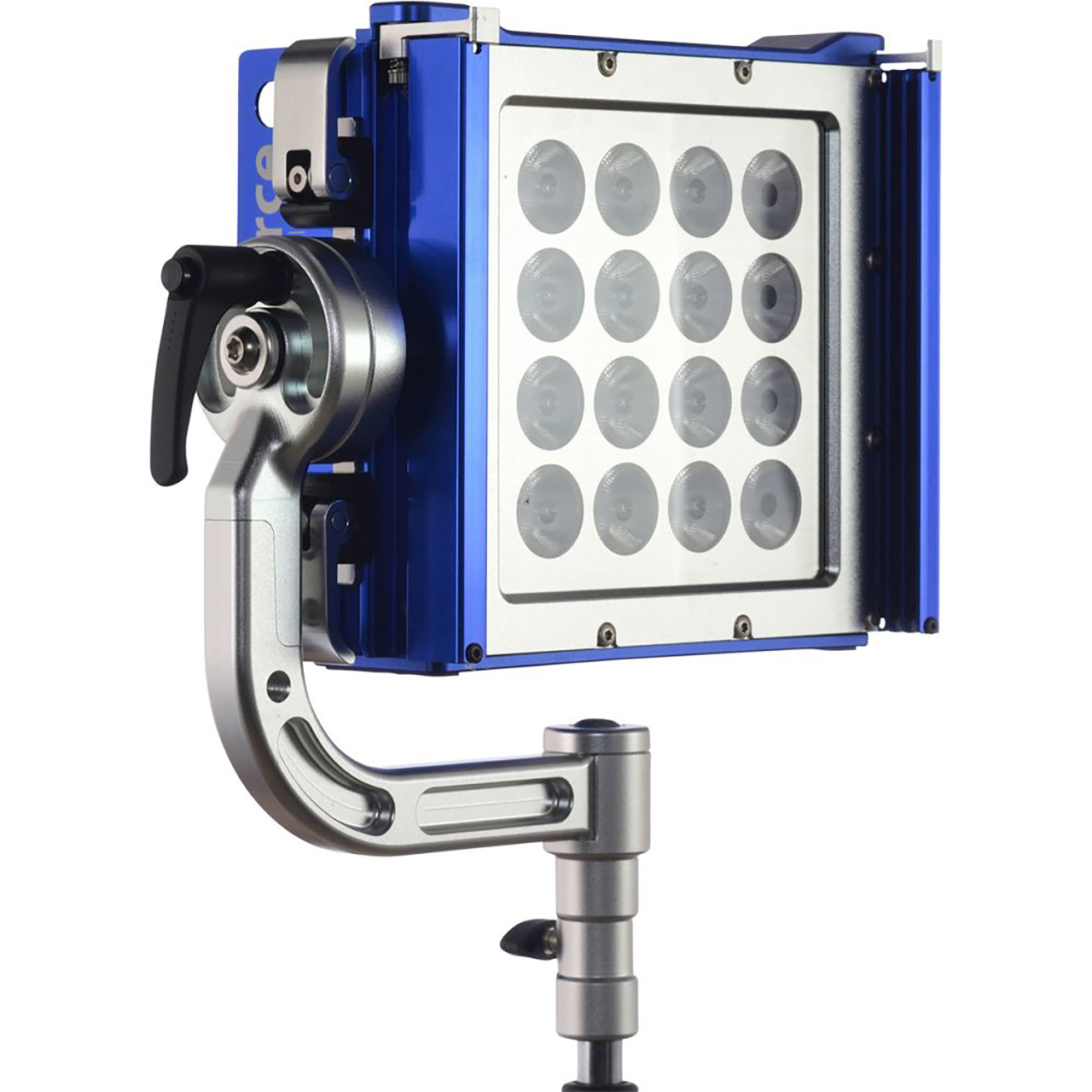

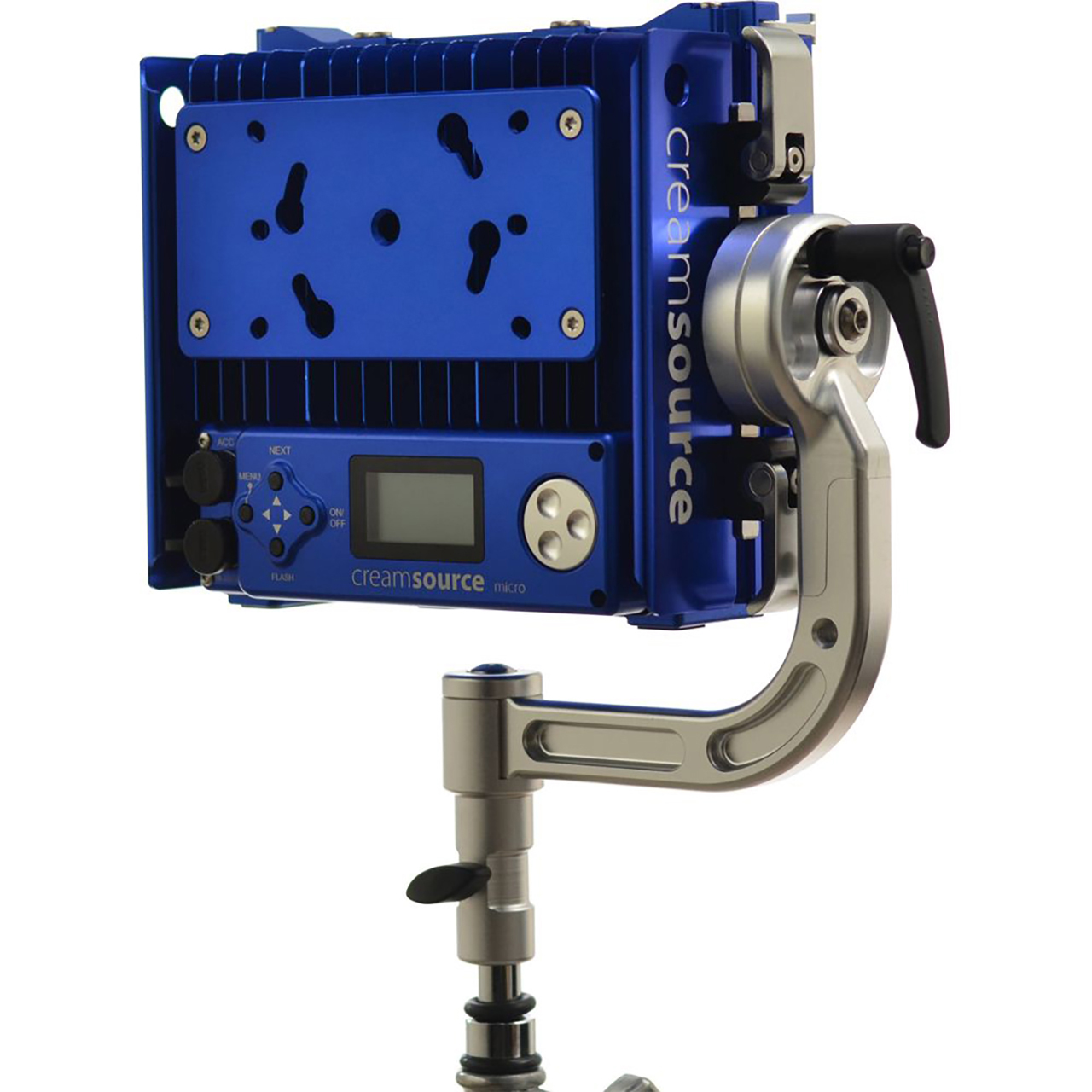

The Creamsource Micro K-CSU-C-ESS is a powerful and versatile lighting solution designed for the film and TV industry. Featuring an 80W RRGBBW LED engine, this compact and rugged light offers exceptional performance, providing a wide color temperature range from 2200K to 15000K with precise green/magenta adjustment. It delivers brilliant white light and vibrant, saturated colors, making it ideal for both creative and technical lighting needs. The Micro Color offers a narrow 20° beam angle, making it perfect for long-distance shots and dramatic effects. Its IP65 rating ensures the fixture is water-resistant, enabling it to perform flawlessly in various weather conditions. Whether you're rigging it in tight spaces or using it outdoors, the Micro Color offers reliable performance and easy setup, making it the go-to choice for lighting professionals.

The Micro Color is equipped with a high-precision digital rotary encoder, a graphic LCD, and a user-friendly 4-button keypad, allowing for easy control on set. With no fans and fan-free passive cooling, it operates silently, making it suitable for quiet environments. The fixture features excellent color rendering, boasting a CRI and TLCI of 95, ensuring accurate and consistent color reproduction. Its flicker-free dimming reaches over 5000fps in high-speed mode, providing seamless operation for high-speed filming. This LED powerhouse delivers 12,900 lux at 3.3ft at 3200K and 12,340 lux at 5600K, making it suitable for both high-output and low-intensity applications.

With its removable quick-release yoke, intuitive user interface, and optional control options like DMX, the Micro Color is designed for flexibility in all professional environments. The lightweight and durable aluminum body ensures easy transportation and setup, while the included wide lens allows for optimal light distribution. Whether mounted with its Kino Flo twist-on style plate or using its ⅜" threaded insert, the Micro Color offers multiple mounting options for enhanced versatility.

  • Features:

    • RGBW Light with Yoke
    • 20° Beam Angle, 0% - 100% Dimming
    • AC Power Supply with Mount, ⅝" Receiver
    • Medium Angle Lens, 9.8ft Extension Cable
    • 2200K to 15,000K, DMX512
    • High CRI/TLCI: 95, Magenta/Green Control
    • 0% - 100% Smooth Dimming
    • Optional Battery Power
    • DMX Compatible, IP65 Weatherproof
    • Passive Cooling for Silent Operation

  • Specifications:

      Physical
    • Panel Size: 8" x 8" (203mm x 203mm)
    • Dimensions:
      - Fixture Only: 8.7" x 8.1" x 4.3" (221mm x 205.8mm x 109.2mm)
      - With Yoke: 11.8" x 13" x 4.3" (300mm x 330mm x 109.2mm)
    • Weight: 7.5lbs (3.4kg)
    • Fixture Mount: 1x ⅝" Receiver (Via Yoke Mount)

      Power
    • Power Source: AC/DC
    • Power Consumption: 80 Watt
    • AC Input Power: 100V - 240VAC
    • DC Input Power: 10V - 32VDC

      Light Fixture
    • Number of Heads/Lights: 1x
    • Fixture Type: Light Panel
    • Photometrics:
      - 3200K @ 3.3ft: 12,900 lux/1,200 fc
      - 3200K @ 6.6ft: 3,150 lux/290 fc
      - 3200K @ 9.8ft: 1,400 lux/130 fc
      - 3200K @ 13.1ft: 790 lux/70 fc
      - 5600K @ 3.3ft: 12,340 lux/1,150 fc
      - 5600K @ 6.6ft: 3,010 lux/280 fc
      - 5600K @ 9.8ft: 1,340 lux/120 fc
      - 5600K @ 13.1ft: 750 lux/70 fc
    • Estimated LED Lifespan: 50,000 hours (L70)
    • Color Accuracy Standard: CRI/TLCI 95
    • Color Temperature: Bi-Color
    • Color Temperature Range: 2200K - 15000K
    • Display: LCD
    • Beam Angle: 20°
    • Cooling System: Passive
    • Dimming: Built-In Dimmer
    • Water Resistance/IP Rating: IP65

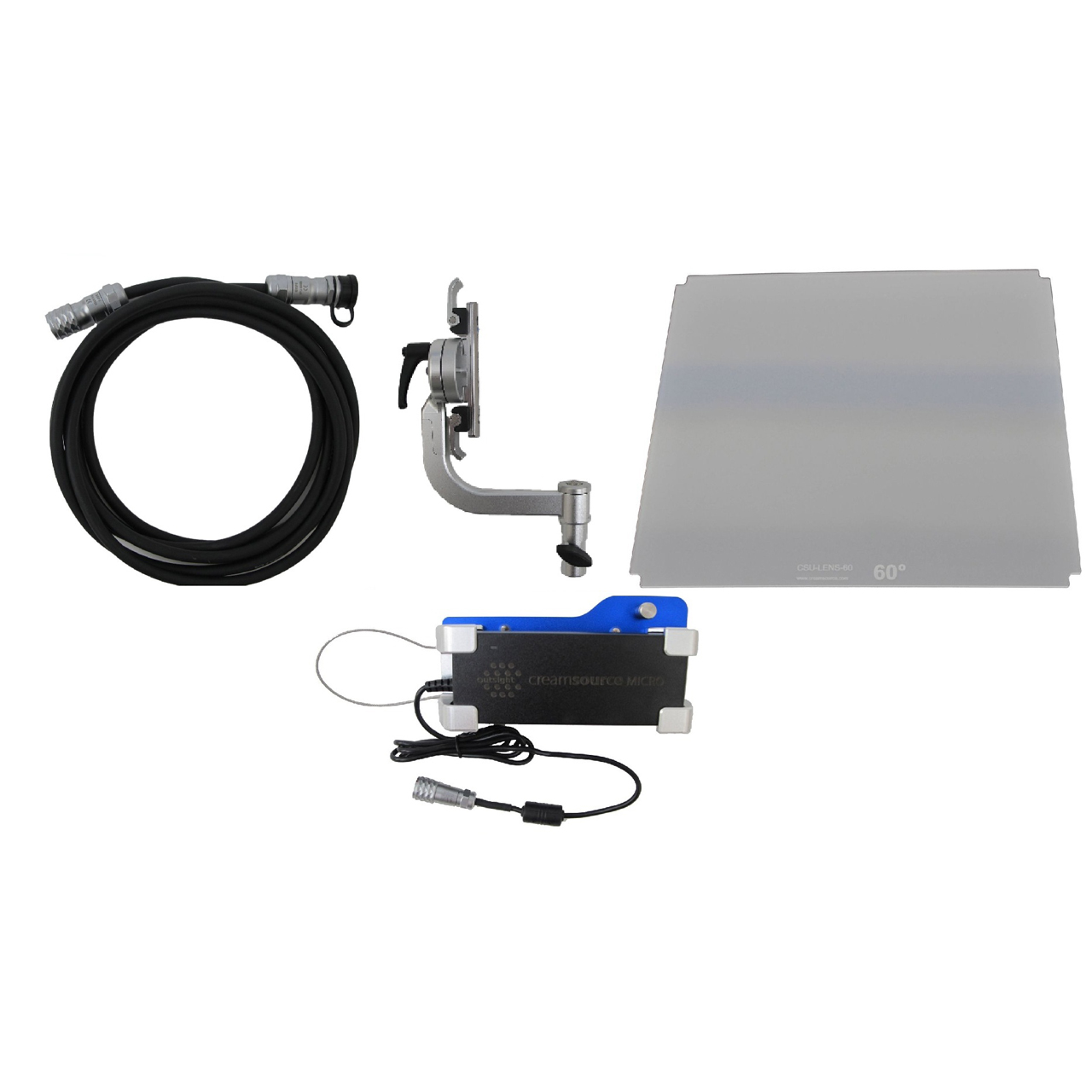

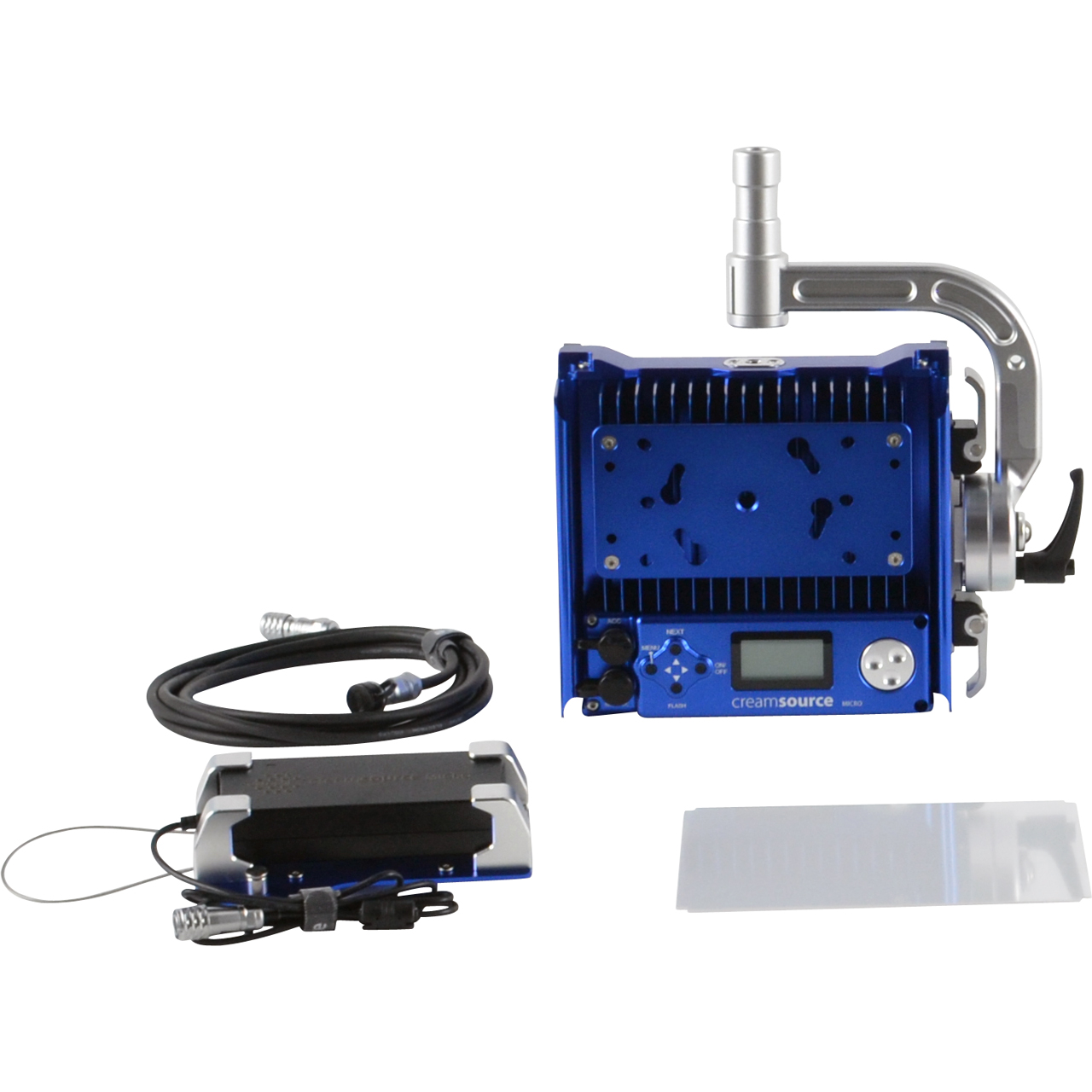

  • Item Includes:

    • 1x Micro Color Head
    • 1x Micro Power Supply 90W
    • 1x Baby Socket Receiver ⅝"
    • 1x Micro Rigging Yoke
    • 1x Micro Medium Angle Lens
    • 1x Micro Power Cable
    • 1x Power Supply Mount

  • Warranty:

    • 3 Year Limited Warranty
