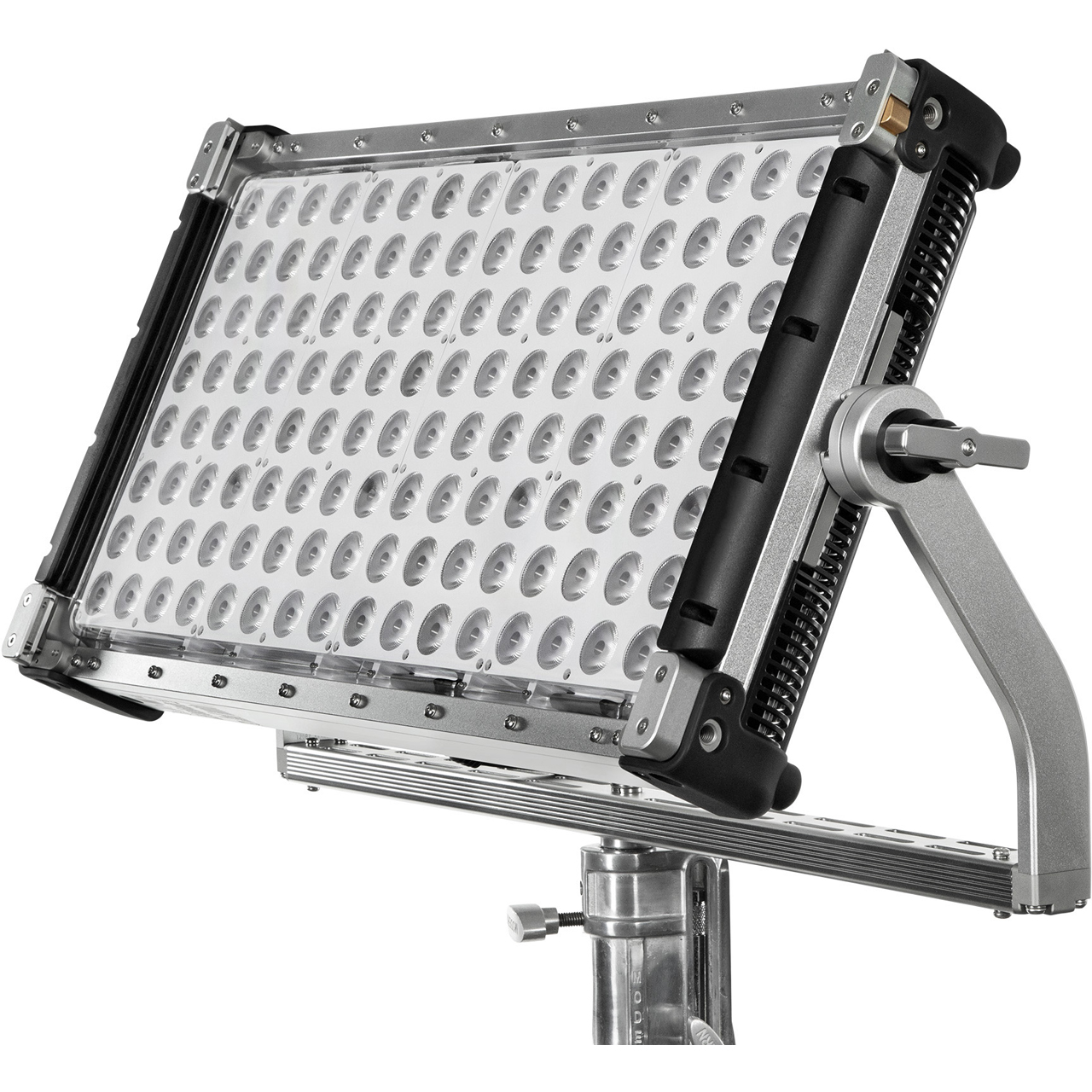

Creamsource K-CSV-8-ESS Vortex8 650W 2x1 RGBW LED Light Panel with Yoke - 2200K to 15000K Range

ITEM #: CRM-K-V-8-ESS MFG #: K-CSV-8-ESS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$5,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


K-CSV-8-ESS - Overview

The Creamsource Vortex8 K-CSV-8-ESS is a perfect blend of innovative technology and artistic passion. This state-of-the-art lighting system, designed by the reputable brand Creamsource, offers a versatile color temperature range from 2200K to 15000K, providing you with the flexibility to light any scene or subject to perfection.

Whether you're aiming for a powerful punch of light to enhance your shots or a soft, creamy aura using the Creamsource Dome or DoPchoice Snapbag, the Vortex8 is your ultimate lighting solution. Dive into a world of special effects and color gels, all seamlessly integrated into our advanced CreamOS architecture, opening doors to limitless creativity.

Constructed for durability, the Vortex8 is built to withstand various conditions. With an IP65 water-resistance rating, it functions optimally in rain, snow, or dust, ensuring weather concerns never compromise your creative endeavors.

Stay ahead of the curve with the Vortex8's cutting-edge connectivity features. From LumenRadio TimoTwo and Ethernet to Bluetooth, Wifi, and the exclusive Creamsource Accessory port, the possibilities for control are truly endless. Empower yourself with a multitude of control options, both wired and wireless, and let your lighting speak volumes, perfectly in sync with third-party instruments and protocols.

The Vortex8 is more than just a lighting system; it's a masterpiece of precision engineering. Crafted with a blend of elegant aluminum and robust technopolymer, it's both visually stunning and undeniably resilient. The integrated PSU and antennas make it sleek yet powerful, embodying our passion for design that caters to both aesthetics and functionality.

Trust the Vortex8 to shine bright, no matter the weather. Its IP65 water-resistant rating, combined with its ultra-quiet fan system and elite thermal efficiency, makes it a beacon of durability. And with premium waterproof connectors, it promises relentless performance in any environment.

Turn up the intensity with the Vortex8's staggering 650W power. Producing a dazzling 14000lux at just 9.8ft (3m) it competes effortlessly with 1200W HMI systems. Its ultra-narrow 20-degree beam angle grants you the artistic freedom to sculpt, diffuse, and design the perfect ambiance.

Step into the future with the Vortex Series' revamped software base. From controlling 8 dynamic zones to embracing an array of features and protocols, the new CreamOS opens doors to limitless creativity. The Vortex8 2x1 RGBW 650W LED Light is not just a user interface; it's your canvas.

  • Features:

    • Dynamic 2x1 RGBW System
    • Offers a broad CCT range from 2200K to 15000K
    • Multifunctional Lighting
    • All-Weather Resilience
    • Superior Connectivity like LumenRadio TimoTwo, Ethernet, Bluetooth, 5-pin DMX, Wifi, USB Type A, and Creamsource Accessory port
    • Boasts 650W power, achieving an impressive 14000lux at 3m
    • Ultra Quiet Operation
    • State-of-the-Art Design
    • Advanced CreamOS supports a multitude of new features and protocols
    • Seamless 3rd Party Integration

  • Specifications:

      Physical
    • Panel Size: 15" x 27" (381mm x 685.8mm)
    • Dimensions:
      - Excluding Yoke: 27.2" x 15" x 4.8" (690mm x 380mm x 121mm)
      - Including Yoke: 32.7" x 21.7" x 6.4" (831mm x 551mm x 164mm)
    • Weight:
      - Head Excluding Yoke: 30lbs (13.7kg)
      - Including Yoke: 4.4lbs (1.98kg)
    • Fixture Mount: 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

      Light Fixture
    • Number of Heads/Lights: 1x
    • Fixture Type: Light Panel
    • Photometrics:
      - 20° at 3200K: 6335 fc/68,200 Lux at 3.3'/1m
      - 20° at 5600K: 6828 fc/73,500 Lux at 3.3'/1m
    • Color Accuracy Standard: CRI/TLCI 95
    • Color Temperature: RGBW
    • Color Temperature Range: 2200-15000K
    • Display: LCD
    • Beam Angle: 20°
    • Cooling System: Fan
    • Dimming: Built-In Dimmer (Continuous), 0 to 100%
    • Water Resistance/IP Rating: IP65

      Power
    • Power Source: AC
    • Power Consumption: 660 Watts
    • AC Input Power: 100 to 240 VAC
    • DC Input Power: 48 VDC

      Inputs and Outputs
    • 1x XLR 5-Pin DMX Input
    • 1x XLR 5-Pin DMX Output
    • 1x USB-A Service Input
    • 1x powerCON TRUE1 AC Power Input
    • 1x Proprietary Power Input
    • 1x etherCON/RJ45 DMX Input

  • Item Includes:

    • 1x Vortex8 LED Light Panel
    • 1x Yoke
    • 1x Flat Diffuser Panel
    • 1x Power Cable

  • Warranty:

    • 5-Year Limited Warranty
