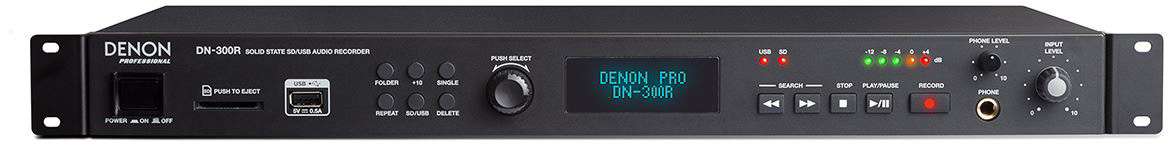

Denon DN-300R Solid-State SD/USB Audio Recorder

DN-300R - Overview

• Features:

  • Records WAV and Mp3 files to SD and USB media simultaneously
  • Simple and easy to use
  • Powers-up in record-ready mode
  • Ability to record one media at -10dB for a safety track
  • Balanced and unbalanced inputs and outputs
  • Compact 1RU design


• Specifications:

  • Audio
  • System: Solid-state SD/USB audio recorder/player
  • Compatible Media (FAT16, FAT32): USB Device (mass storage class), SD/SDHC, SDXC
  • Supported File Formats: MP3, WAV
  • Number of Channels: 2 channels / stereo
  • Audio Frequency Range: 10 - 20 kHz (± 1.0dB recording, ± 0.8 dB playback)
  • Signal-to-Noise Ratio: Recording: > 95 dB (1 kHz, 0dB A-weighted); Playback: > 95 dB (1 kHz, 0dB A-weighted)
  • Channel Separation: Recording: > 80 dB (1 kHz, 0dB A-weighted); Playback: > 90 dB (1 kHz, 0dB A-weighted)
  • Wow and Flutter: < 0.001 %
  • Distortion: Recording: < 0.008 %; Playback: < 0.006 %
  • Total Harmonic Distortion: < 0.01% (1 kHz, 0dB A-weighted)

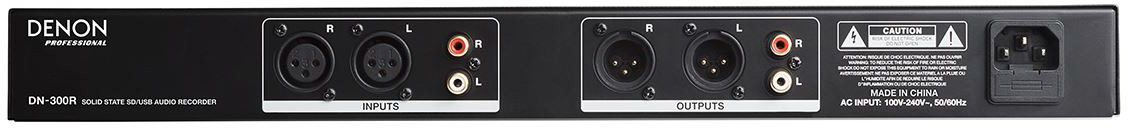

    Connectors
  • Inputs/Outputs: Balanced/Unbalanced XLR; Balanced/Unbalanced RCA
  • (2) XLR outputs
  • (1) 1/4" (6.35mm) headphone output
  • (1) RCA stereo output pair
  • (2) XLR inputs
  • (1) RCA stereo input pair
  • (1) USB port
  • (1) SD card slot
  • (1) IEC AC power input

    General
  • Connection: IEC
  • Input Voltage: 100 - 240 V~, 50/60 Hz
  • Dimensions (W x D x H): 19.0" x 10.92" x 1.72"
  • Weight: 6.6 lbs


• GTIN:

  0694318023297
