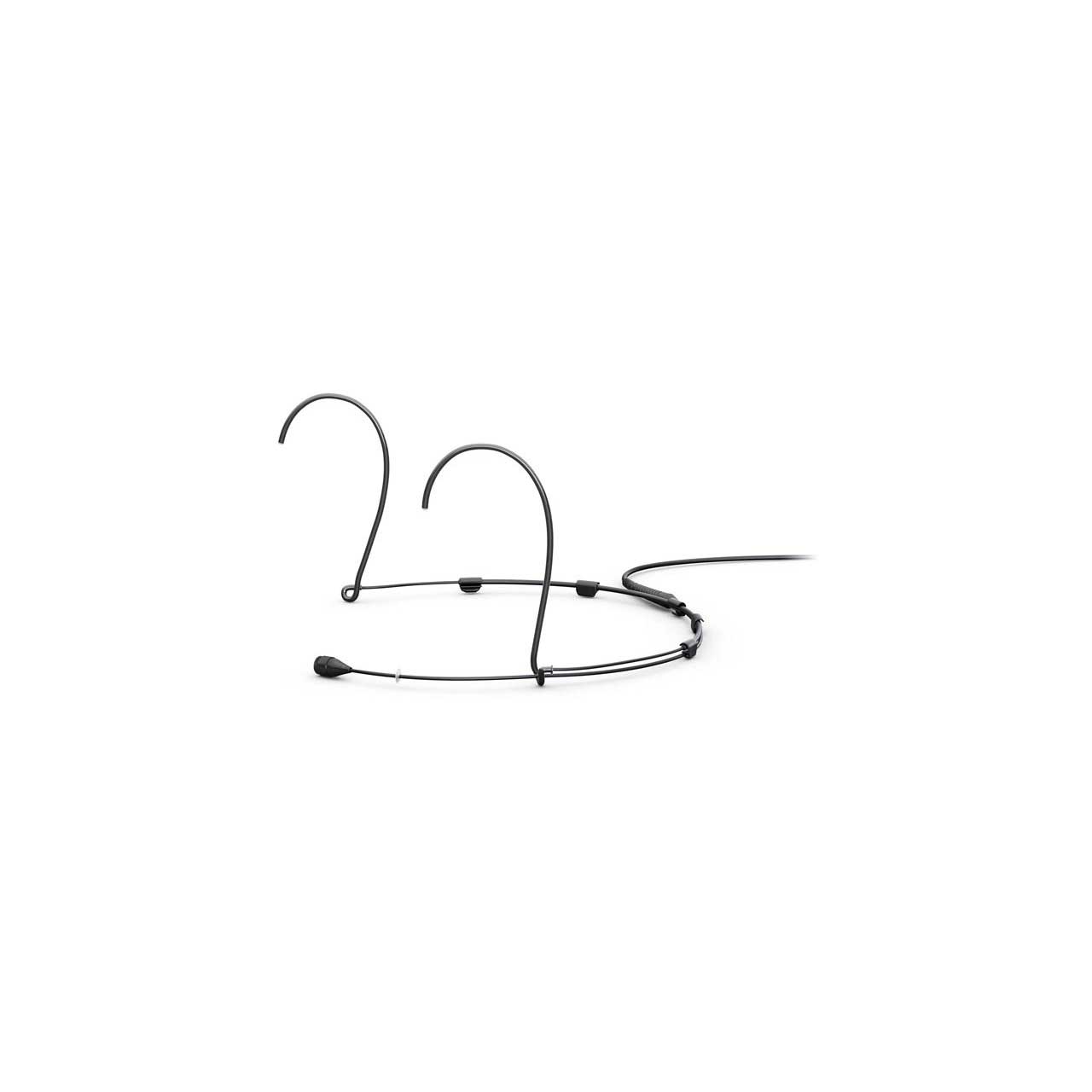

DPA 4066-OC-A-B10-LH CORE Omnidirectional Headset Microphone with TA4F Mini-XLR - Black

ITEM #: DPA-4066OCAB10LH MFG #: 4066-OC-A-B10-LH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$925.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4066-OC-A-B10-LH - Overview

DPA 4066 microphone offers clean and transparent sound quality with lots of headroom. For years, this has been the chosen headset mic for broadcasters as well as theaters on Broadway, as well as in many auditorium and lecture halls. This is due to its pristine sound and durability.

The headset construction is unique. You can detach the mic boom from the headset mount to switch it to either the left or right side and then reattach it. Humidity, often an issue in theatrical applications, is not a problem. This microphone is constructed with a double-vent protection system and a drop stopper on the microphone boom. Also, the materials inside the mic are water resistant. These design elements make it very difficult for the microphone to fail due to humidity.

The microphone's sensitivity is 6 mV/Pa. This matches the level of the human voice to the general input sensitivity of most wireless transmitters. If powered correctly, the microphone will be able to handle very high sound pressure levels up to 144 dB SPL before clipping occurs.

IP58 certified
All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:

Water-repellant nano-coating of the cover and housing
Hermetic sealing of the sensitive amplifier at the core of the mic
Dual gold plating of the diaphragm

Adapter system gives you flexibility
The adapters for wireless systems give you flexible, simple and affordable possibilities when you choose the MicroDot termination and an adapter. You are no longer b'ound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

DPA's miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

  • Features:

    • Resistant to humidity
    • Double-vent protection system
    • Available in three colors and three sizes
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional pattern: Omnidirectional
    • Principle of operation: Pressure
    • Cartridge type: Pre-polarized condenser
    • Frequency response: 20 Hz - 20 kHz
    • Effective frequency range ±2 dB: Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz
    • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 æPa (max. 28 dB(A))
    • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
    • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
    • Dynamic range - Legacy: Typ. 97 dB
    • Dynamic range - CORE: Typ. 111 dB
    • Max. SPL, THD 10%: 144 dB SPL peak
    • Rated output impedance: 30 - 40 Ω
    • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    • Connector: MicroDot, TA4F Mini-XLR
    • Color: Black
    • Weight: 14 g (0.5 oz) incl. Cable and MicroDot connector
    • Microphone diameter: 5.4 mm (0.21 in)
    • Cable length: 1.2 m (3.9 ft)
    • Cable diameter: 1.6 mm (0.06 in)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA 4066-OC-A-B10-LH CORE Omni Headset Mic - Black / TA4F Mini-XLR
