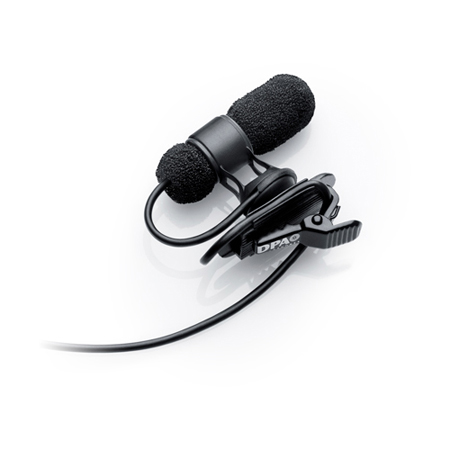

DPA 4080-DC-D-B03 CORE Cardioid Lavalier Microphone - Normal SPL- 3-pin LEMO - Black

ITEM #: DPA-4080-DC-DB03 MFG #: 4080-DC-D-B03

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$755.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    4080-DC-D-B03 - Overview

    Cardioid lavalier mic optimized for chest placement.
    While DPA's miniature omnidirectional mics are ideal for situations where a broad pickup pattern is essential and off-axis noise is not a problem, in some challenging acoustic environments a directional microphone is the better choice. The 4080 Cardioid Lavalier Mic captures the human voice with an unusually high degree of definition. This lavalier mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.

    It is acoustically pre-equalized, offering a 4 dB presence boost, which matches the mic's chest placement perfectly. This makes the voice more distinguishable and improves speech intelligibility. Professionals will appreciate that it is lightweight and offers excellent speech reproduction.

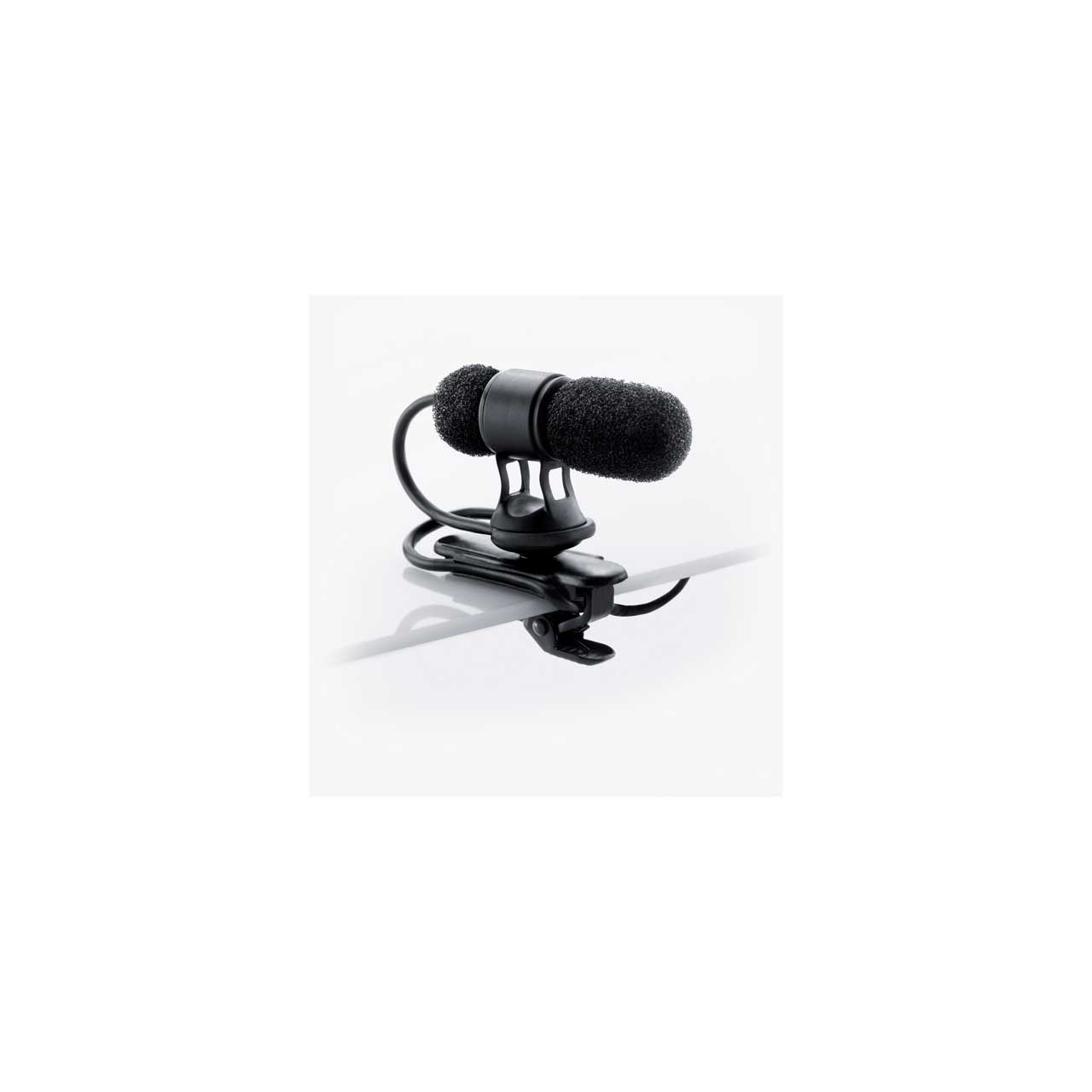

    This cardioid condenser lavalier microphone is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip. An additional white pop filter is also included. Because of the flexible and practical mounting solution, the mic can easily be turned in all directions so it fits both left- and right-buttoned shirts.

    Flexible adapter system
    All of DPA's microphones can be configured to run easily and effortlessly with a wireless system. We use a unique MicroDot termination on DPA's microphones together with a changeable adapter to ensure secure configuration. All of the adapters we use are original, developed and manufactured by the wireless system brand you use. This ensures that your mic will work consistently with no connection trouble to your system.

    The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a new microphone. When you make the switch, you won't hear any loss or change in sound quality.

    • Features:

      • Excellent speech reproduction
      • Discreet, compact design
      • Fits both left and right buttoned shirts
      • Delivered with both black and white pop filters
      • Modular adapter system fits most professional wireless systems

    • Specifications:

      • Directional pattern: Cardioid
      • Principle of operation: Pressure gradient
      • Cartridge type: Pre-polarized condenser
      • Frequency response: 20 Hz - 20 kHz
      • Effective frequency range, ±2 dB, at 25 cm (9.8 in): 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)
      • Sensitivity, nominal, ±3 dB at 1 kH: z20 mV/Pa; -34 dB re. 1 V/Pa
      • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
      • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
      • Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
      • Dynamic range: Typ. 100 dB
      • Max. SPL, THD 10%: 134 dB SPL peak
      • Rated output impedance: 30 - 40 Ω
      • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
      • Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
      • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Connector: 3-pin LEMO
      • Color: Black
      • Weight: 15 g (0.5 oz) incl. Cable and MicroDot connector
      • Microphone diameter: 5.7 mm (0.22 in)
      • Microphone length: 30 mm (1.2 in)
      • Cable length: 1.2 m (3.9 ft)
      • Cable diameter: 1.6 mm (0.06 in)
      • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      • Temperature range: -40°F to 113°F
      • Relative humidity (RH): Up to 90%

    • Item Includes:

      • 1x 4080-DC-D-B00CORE 4080 Cardioid Mic, Normal SPL, Black, MicroDot

    • GTIN:

      5713055019563
