The DataTronix DT-QAM-12-SD 12-Source SD RCA to QAM Encoder Modulator is a professional video distribution device designed to convert multiple standard-definition video sources into digital television channels for delivery over a coaxial cable network. By combining video encoding and RF modulation in a single unit, it allows facilities to efficiently distribute multiple video programs to televisions equipped with integrated QAM tuners.

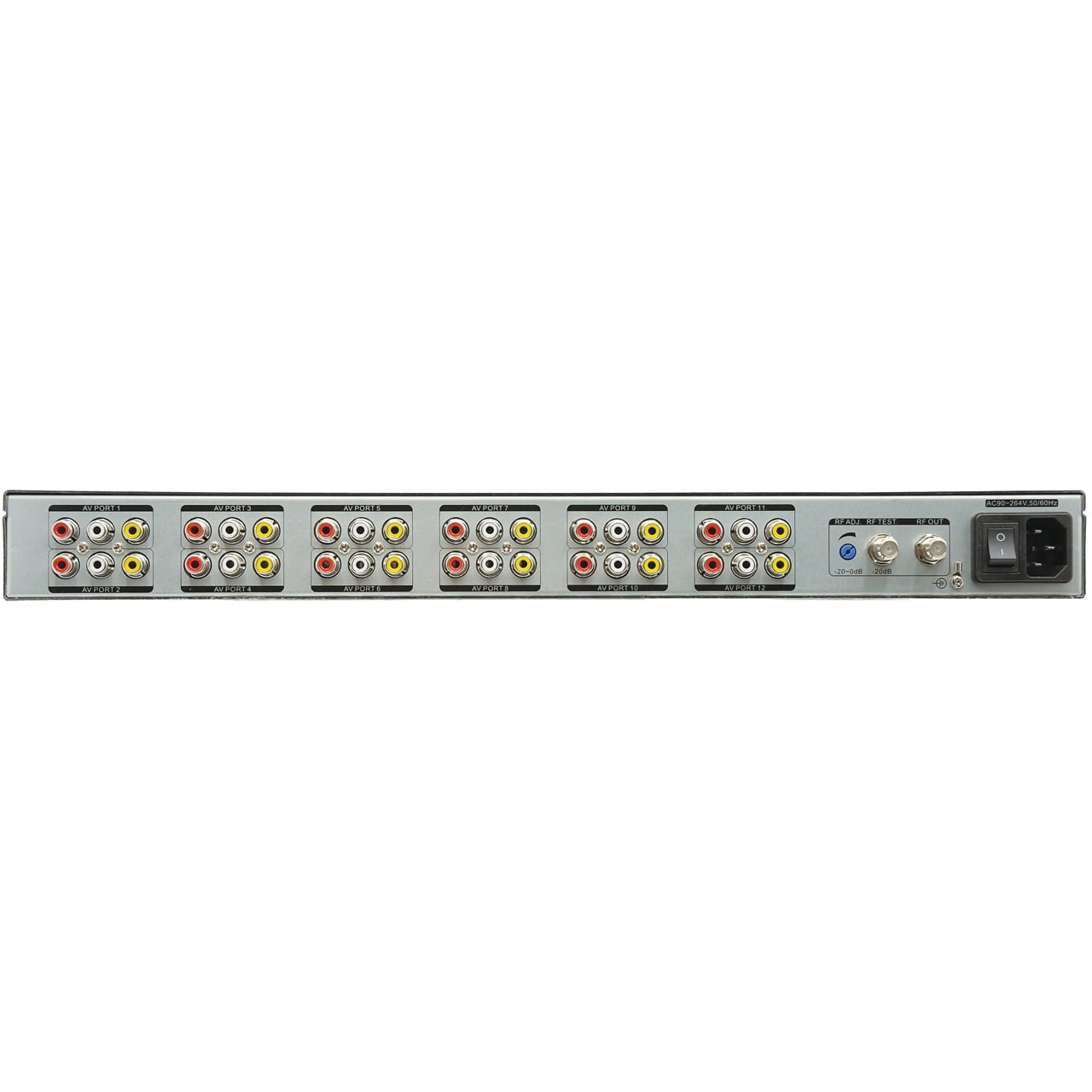

The unit accepts up to twelve composite video inputs (RCA) with stereo audio, making it compatible with a wide range of legacy and standard-definition video sources such as media players, security cameras, satellite receivers, and digital signage systems. Each input is encoded using MPEG-2 video compression and then multiplexed into four configurable QAM digital RF channels for distribution across a coaxial infrastructure.

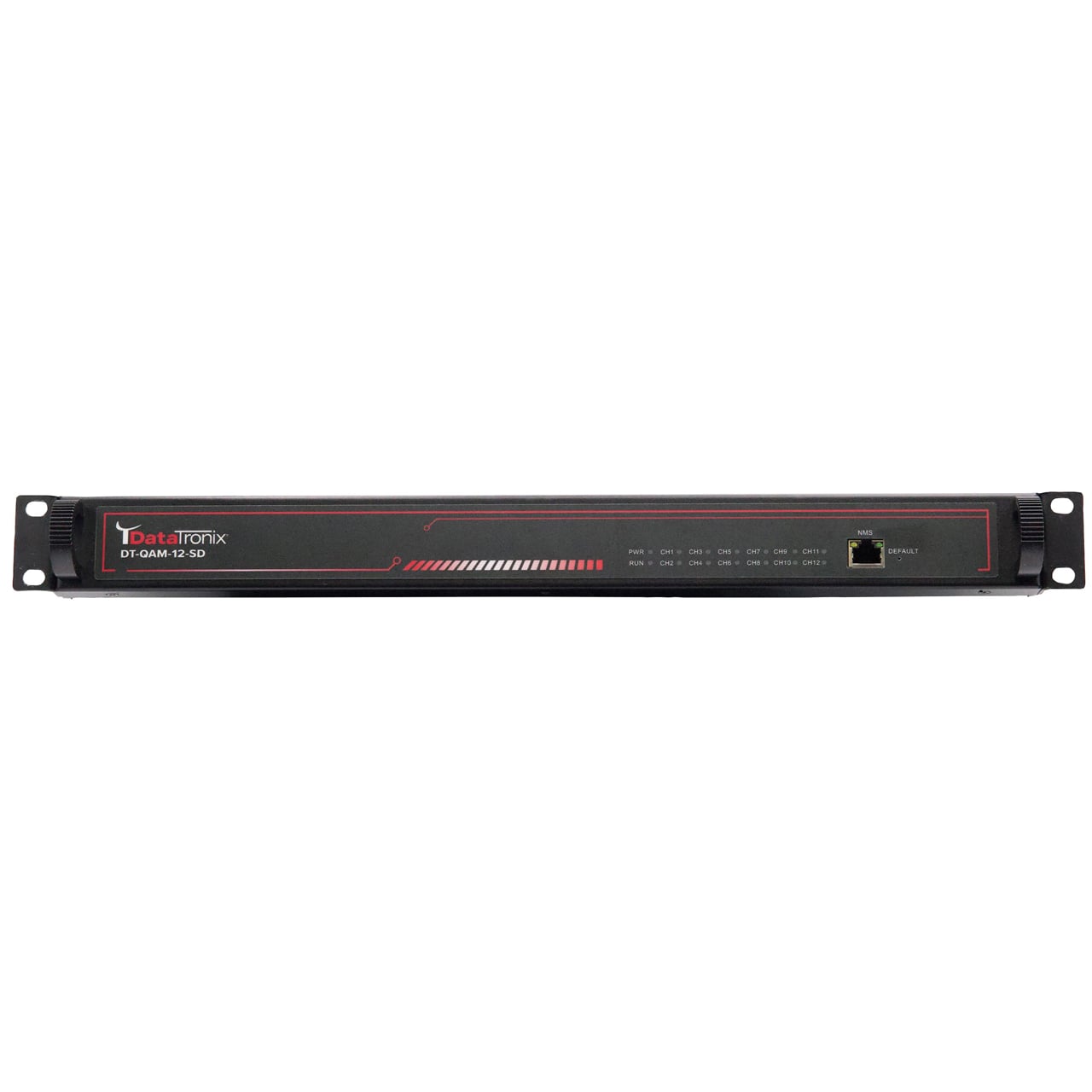

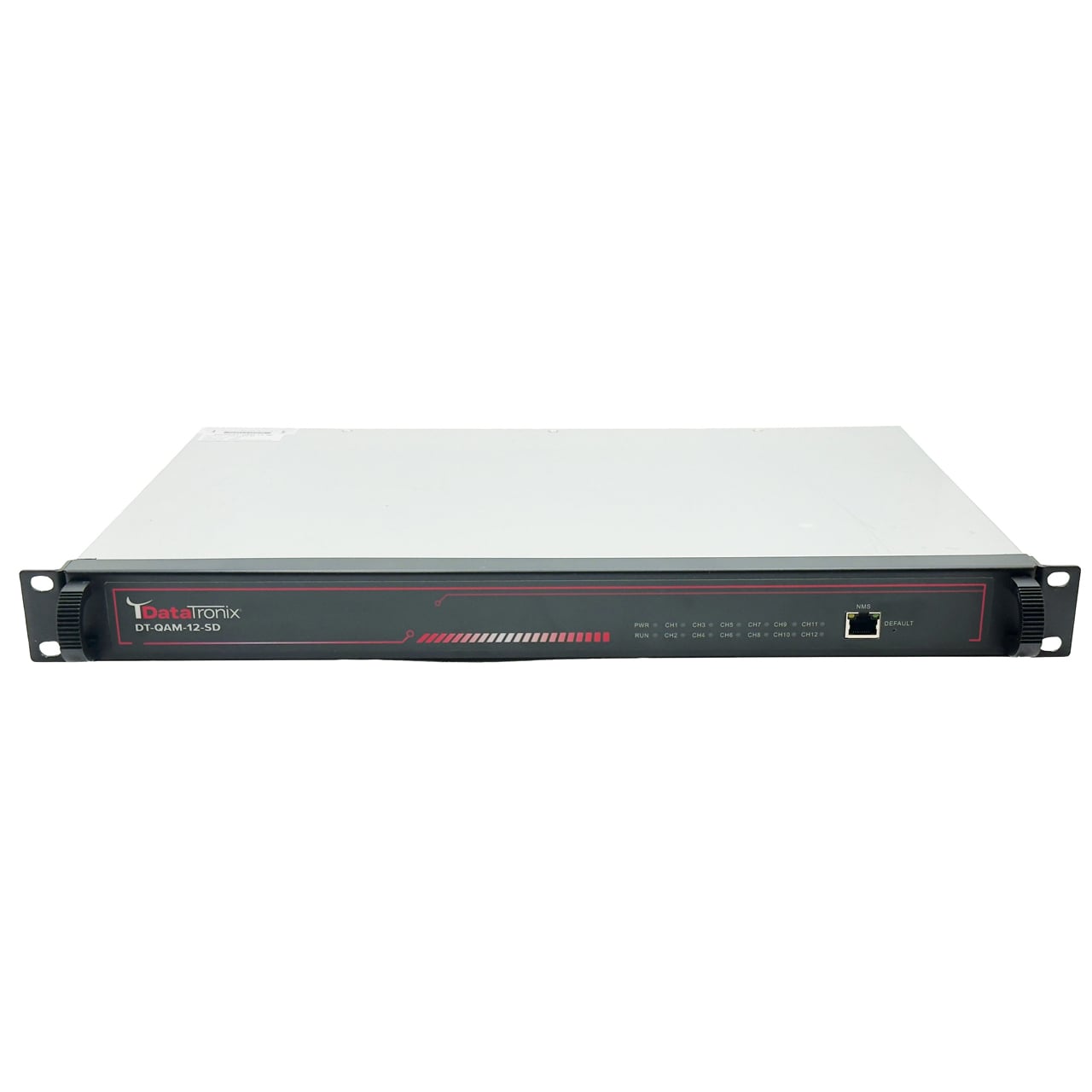

Designed for reliability and ease of deployment, the encoder modulator features a compact 1RU rack-mount chassis suitable for professional installations including hotels, healthcare facilities, campuses, security systems, and digital signage networks. A web-based management interface allows administrators to configure input channels, RF frequencies, and system settings from any computer connected to the network.
The DataTronix encoder modulator is particularly useful in environments where standard definition distribution is required, such as systems supporting legacy televisions or installations where high-definition content distribution is restricted by licensing or bandwidth limitations.
