Deity Microphones SPD Mini Power Solution Kit with Deity SPD Mini and S-95 Smart Battery

ITEM #: DTY-SPDPOWERKIT MFG #: DEITY-DG0706011H

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$439.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DEITY-DG0706011H - Overview

The Deity Microphones SPD-Mini Power Solution Kit is an ultra-compact solution for your power management needs, perfect for audio professionals seeking reliable and smart power solutions. Featuring a vibrant color screen, the SPD-Mini provides real-time telemetry data from SMbus-enabled smart batteries, giving you precise information on remaining battery life in hours, calculated in real-time based on your current amp draw. Stay ahead of your power needs with this intelligent system.

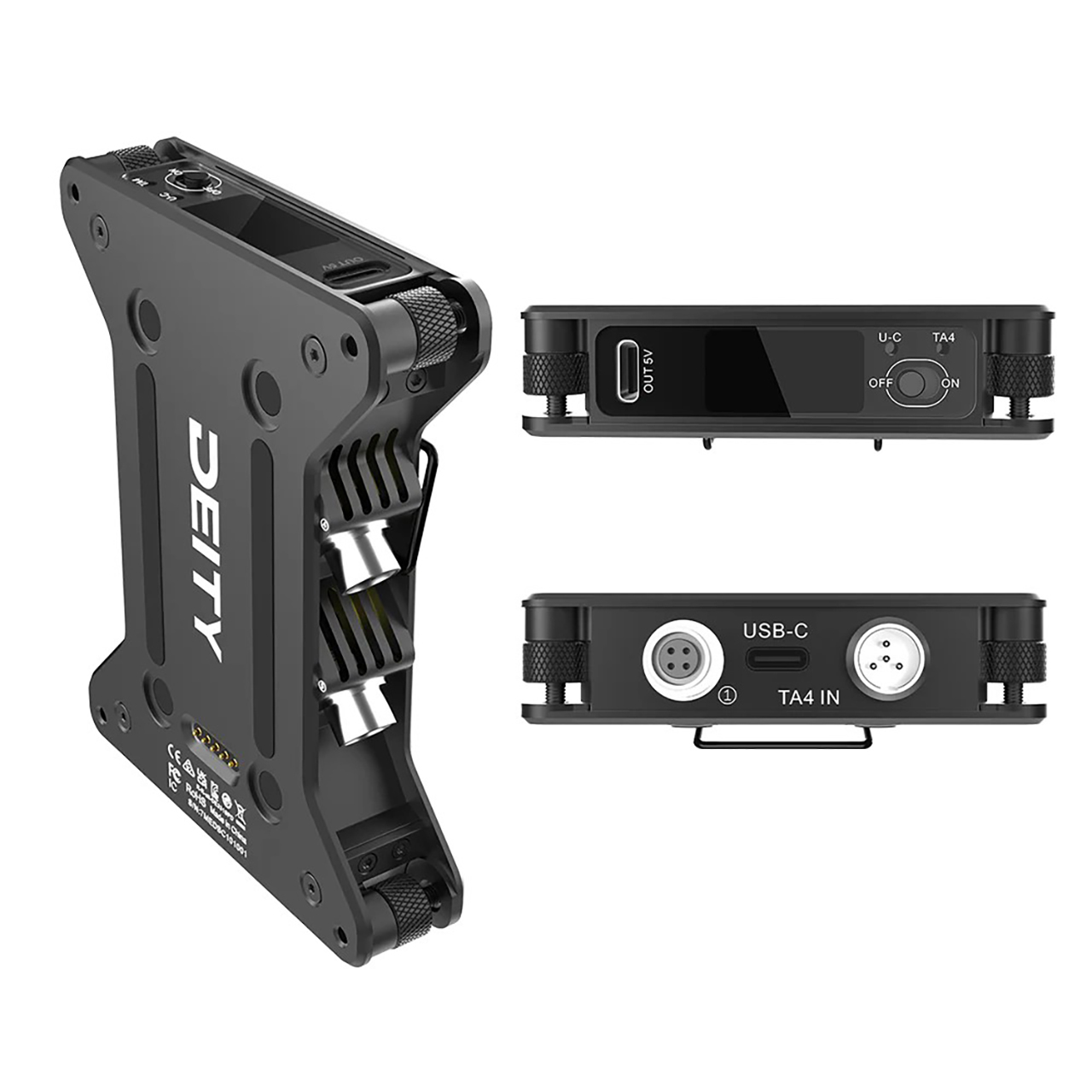

The SPD-Mini boasts five 4-pin Push-Pull Power ports, controllable via a convenient top-mounted switch, making it easy to manage your gear. The top-mounted 5V USB-C output supports 10W power delivery, ideal for quick and efficient charging.

Included in this kit is the Deity S-95, a 95Wh smart battery that can relay battery life data to the SPD Mini. The SPD-T4BATT is also included to make the whole kit work flawlessly.

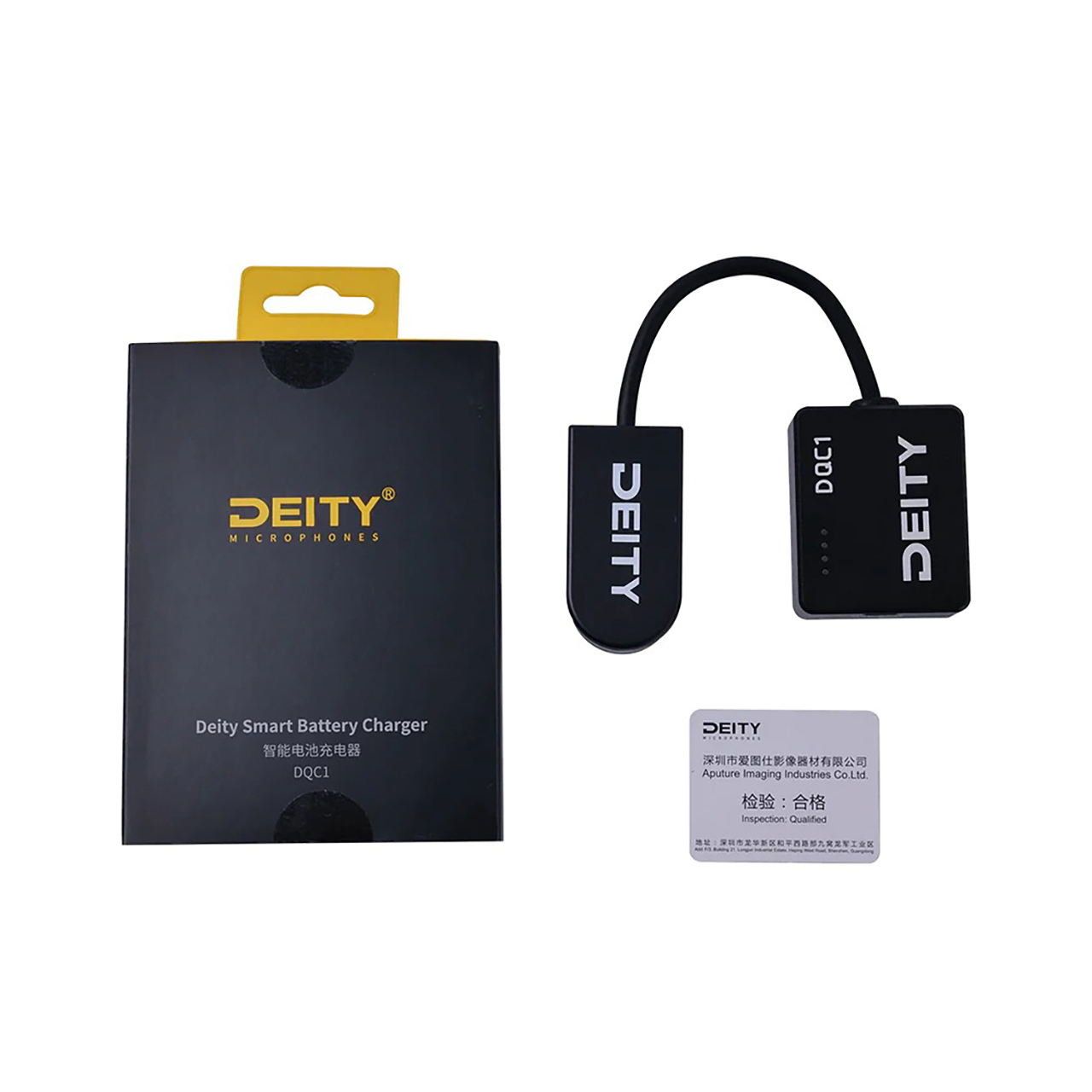

The DQC-1 Smart Battery Charger comes packed with features that set it apart from other battery chargers on the market. It has a 45-watt USB-C Input for charging the connected battery, and it can also be used as a USB-C output of up to 45 watts, making it powerful enough to run a laptop. The charging module is housed inside a metal chassis, making it durable and long-lasting. It also features a 4-LED charging meter, allowing you to monitor the progress of your battery's charge.

  • Features:

    • Complete Power Solution for Audio Bags
    • SPD-Mini Compact Power Distro System
    • S-95 Smart Battery
    • SPD-T4BATT Smart DC/Data Power Cable
    • DQC1 Smart Battery Charger
    • 5x TA4 Push-Pull Power Ports (Angled)
    • Telemetry Data on Full-Color LCD Display
    • Battery: 95Wh, 6600mAh
    • Part of Deity Modular Power System

  • Specifications:

      SPD-Mini
    • Panel Type: TFT LCD
    • Size: Not Specified by Manufacturer
    • Touchscreen: No
    • Power Input:
      - 1x TA4F
      - 1x USB-C
    • Power Output:
      - 1x 4-Pin Push-Pull Aviation Connector (Passes Smart Battery Data)
      - 4x 4-Pin Push-Pull Aviation Connectors
      - 1x USB-C
    • Power Source: Battery, USB
    • Mounting: 2x Belt Clip
    • Color: Black
    • Material of Construction: Aluminum
    • Dimensions: 4.1" x 3.1" x 0.8" (105.3mm x 78mm x 20.7mm)
    • Weight: 6.5oz (185g)

      S-95 Smart Battery
    • Battery Chemistry: Lithium-Ion
    • Battery Capacity: 6600mAh/95.04Wh
    • Output Voltage: 14.4VDC
    • Charging Power: 16.8VDC/1.32A
    • Recharge Time: 2 Hours
    • Dimensions: 5.9" x 3" x 0.9" (150.5mm x 77.4mm x 22.7mm
    • Weight: 15.9oz (450g)

      Smart Battery Charger
    • Power Source: USB
    • Power I/O:
      - 1x USB-C Female Input
      - 1x USB-C Output
    • AC Input Power: Not Specified by Manufacturer
    • DC Input Power: 5V - 20VDC at 2.25 to A
    • Maximum Power Output: 45W (16.8VDC)
    • Material of Construction: Metal
    • Cable Length: 4.7" (120mm)
    • Dimensions: 2.1" x 1.8" x 0.6" (53.5mm x 45mm x 16.5mm)
    • Weight: 3.2oz (90g)

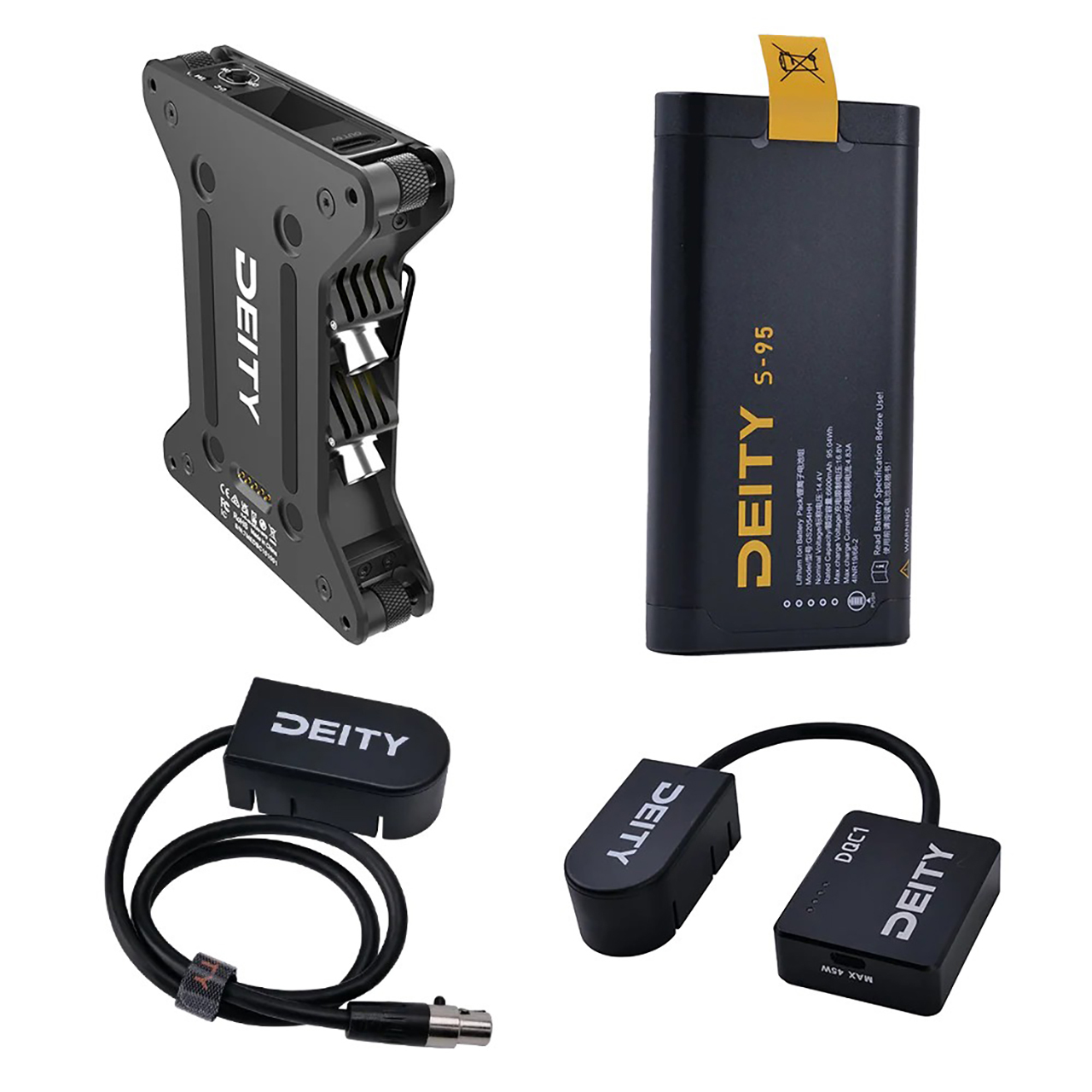

  • Item Includes:

    • 1x SPD-Mini Compact Modular Power Distro System
    • 1x S-95 Smart Battery

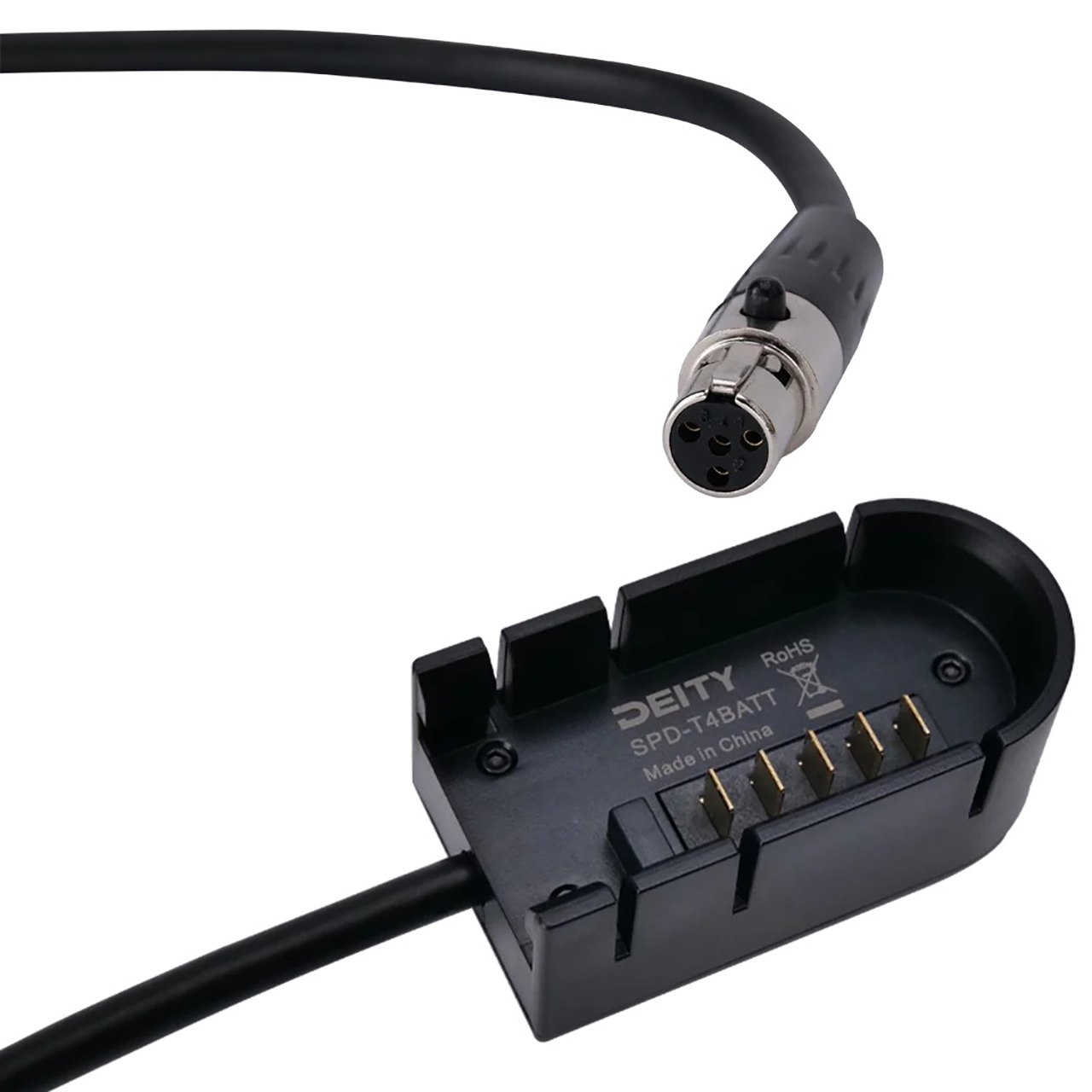

    • 1x SPD-T4BATT TA4F to Hi-Q Battery Cup F Smart DC/Data Power Cable
    • 1x DQC1 Smart Battery Charger

  • Warranty:

    • 1 Year Limited Warranty
