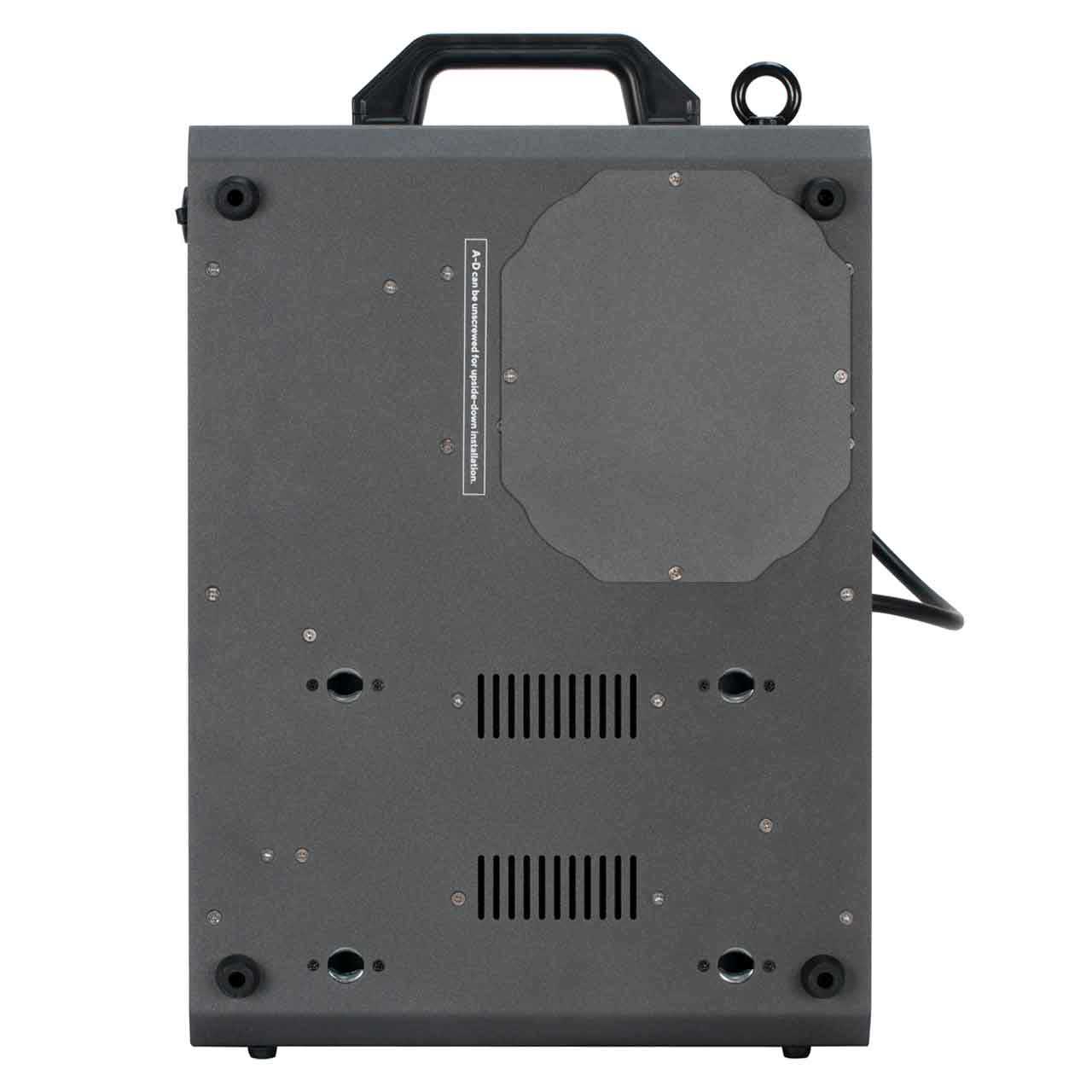

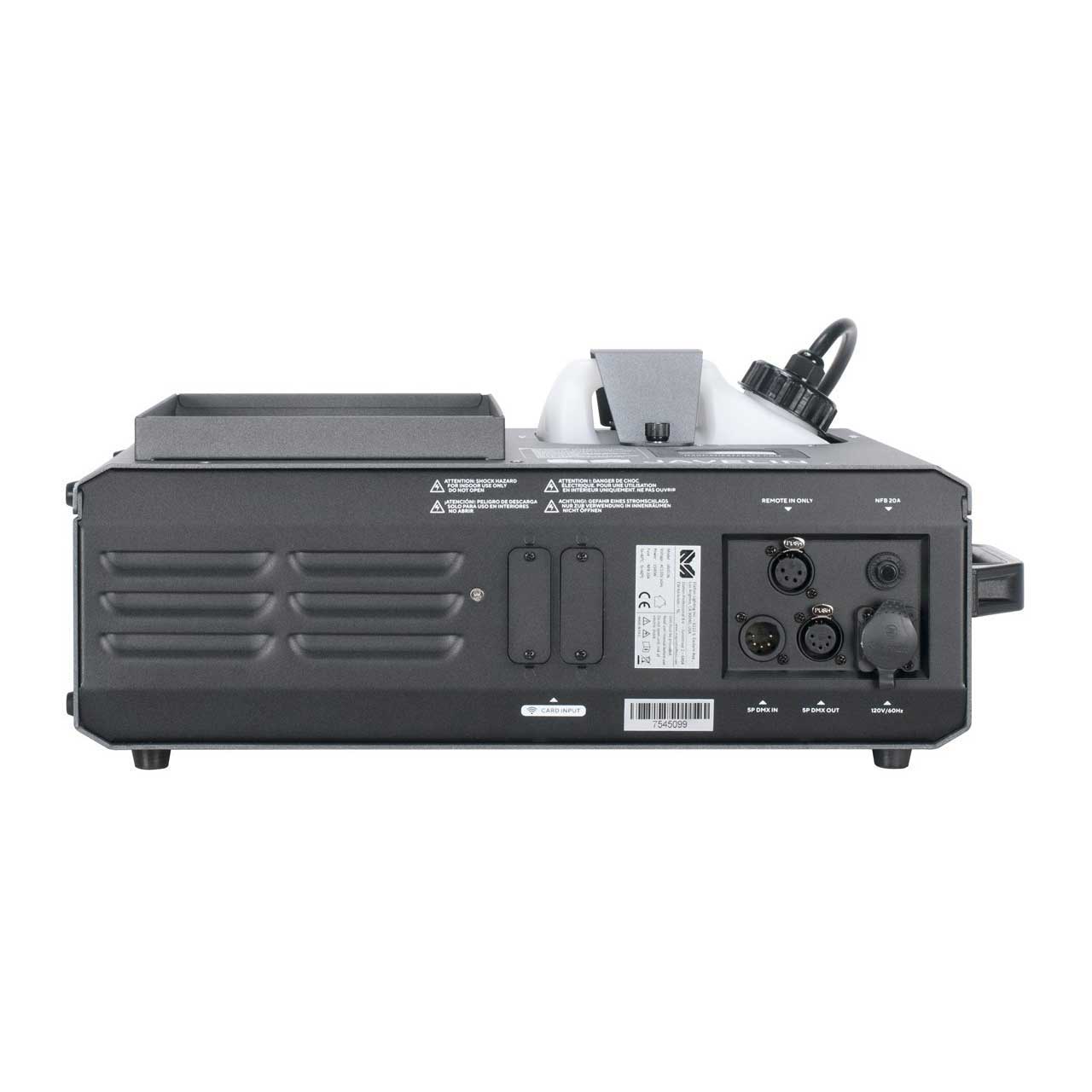

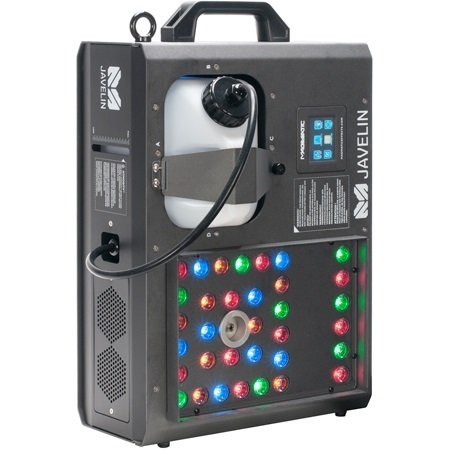

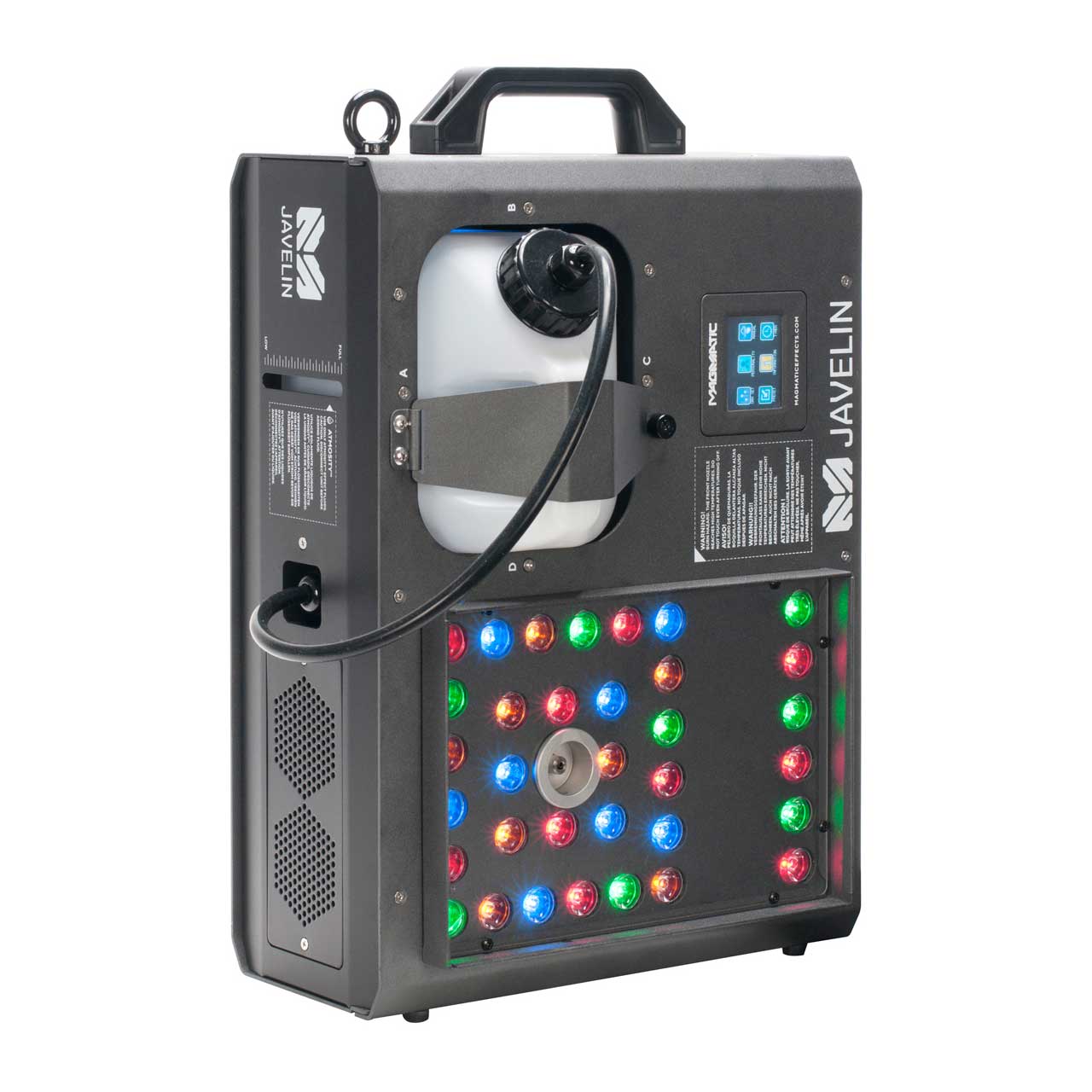

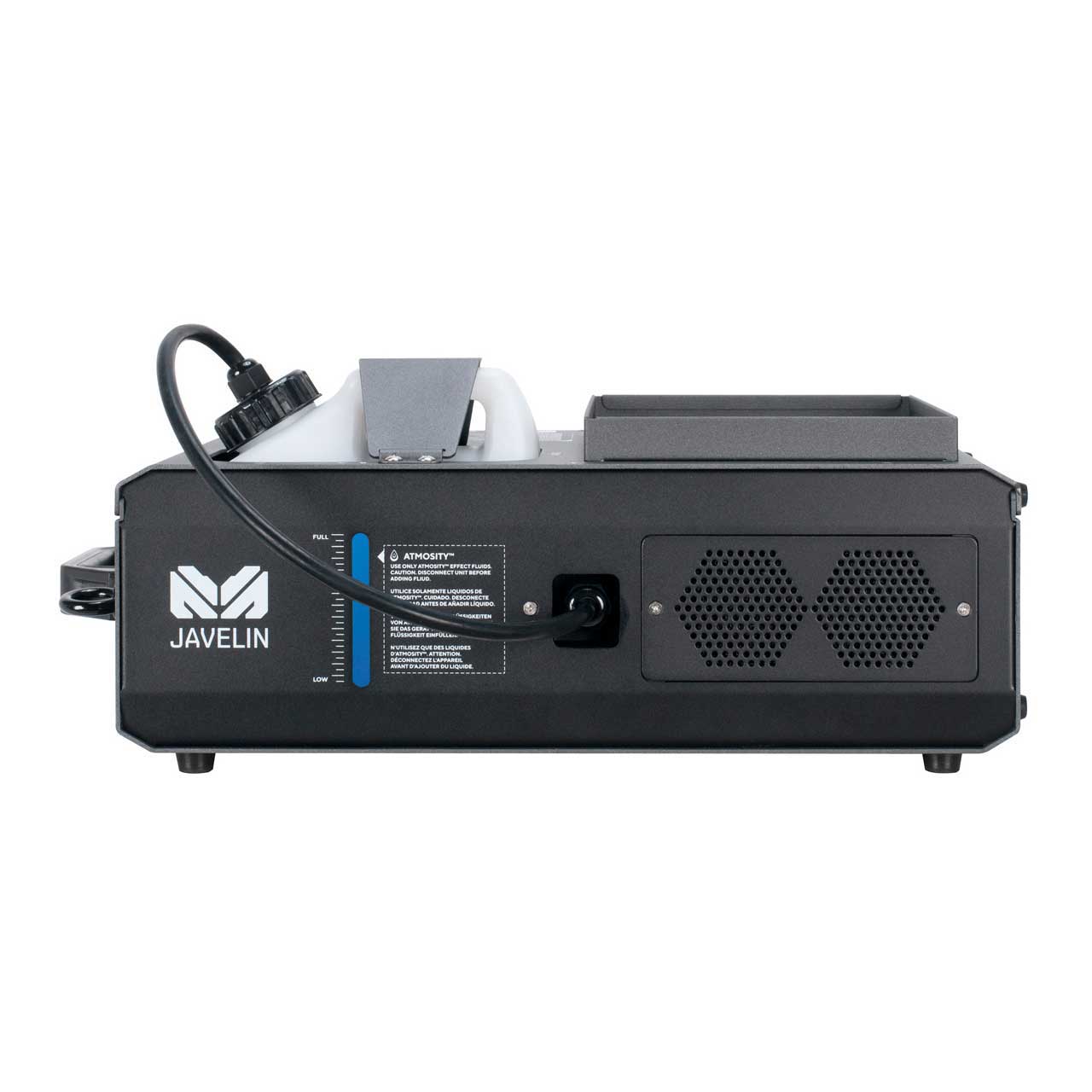

Elation Professional Magmatic JAVELIN 1500W CO2 Simulator Fog Machine w/34x 2W RGBA LEDs - 90-Degree Rotation

RSJ150 - Overview

• Features:

  • High-velocity CO2 simulator fog machine
  • Four, 10-second 20-ft bursts
  • Vertical and horizontal bursts of fog
  • 34 x 2-watt RGBA LEDs
  • Use of LEDs even without the use of Fog
  • Durable tour-ready aluminum housing


• Specifications:

  • Performance
  • Rated Power: 1450W
  • Max Output: 50,000 CFM* (cu ft/min.)
  • Fog Burst (Distance): 5-6m / 3 sec.
  • Ready Time: Initial = 9 Minutes*
  • Fluid Capacity: 0.66 gallons (2.5 liters)
  • Fluid Consumption: 6.09 oz/min (180 ml/min) *approximate
  • Max Continuous Output Duration: 8 Seconds

    Compatible Fluid
  • Atmosity Flash Fog Fluid (AFF-4L)
  • Atmosity Extreme Filtered Fog Fluid (AEF-4L)

    Construction
  • Thermally Protected Heat Exchanger
  • Advanced HPA (high pressure air) Pump Technology
  • Energy Saving Mode with Auto-Clean Process
  • Sealed Fluid Reservoir
  • External Visual Fluid Level Detection
  • Compact Light Weight Mobile Design

    Control
  • 4 DMX Channel Modes (1 / 4 / 7 / 12)
  • Onboard LCD Touch Control Panel
  • DMX-512 and RDM Protocol Support
  • Optional MagFLY Wireless Module (See Accessories)
  • Optional RF Wireless Module and Remote (See Accessories)

    Connections
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In
  • With Wired Digital Communication Network

    Size / Weight
  • Length: 15.0 in. (380mm)
  • Width: 7.7 in. (195mm)
  • Height: 19.1 in. (484mm)
  • Weight: 28.66 lbs. (13kg)

    Electrical
  • AC 120V 60Hz, 230V 50Hz
  • NFB: 20A (120V Version) 10A (230/240V Version)
  • Max Power Consumption: 1500W

    Thermal
  • Maximum Ambient Temperature (Ta max) 104°F (40°C)
  • Exterior Surface Temperature, Steady State: 140°F (60°C)

    Approvals / Ratings
  • CE/cETLus/IP20


• Item Includes:

  • 1x Javelin Fog Machine


• Warranty:

  • 2 Year


• GTIN:

  0810008261545
